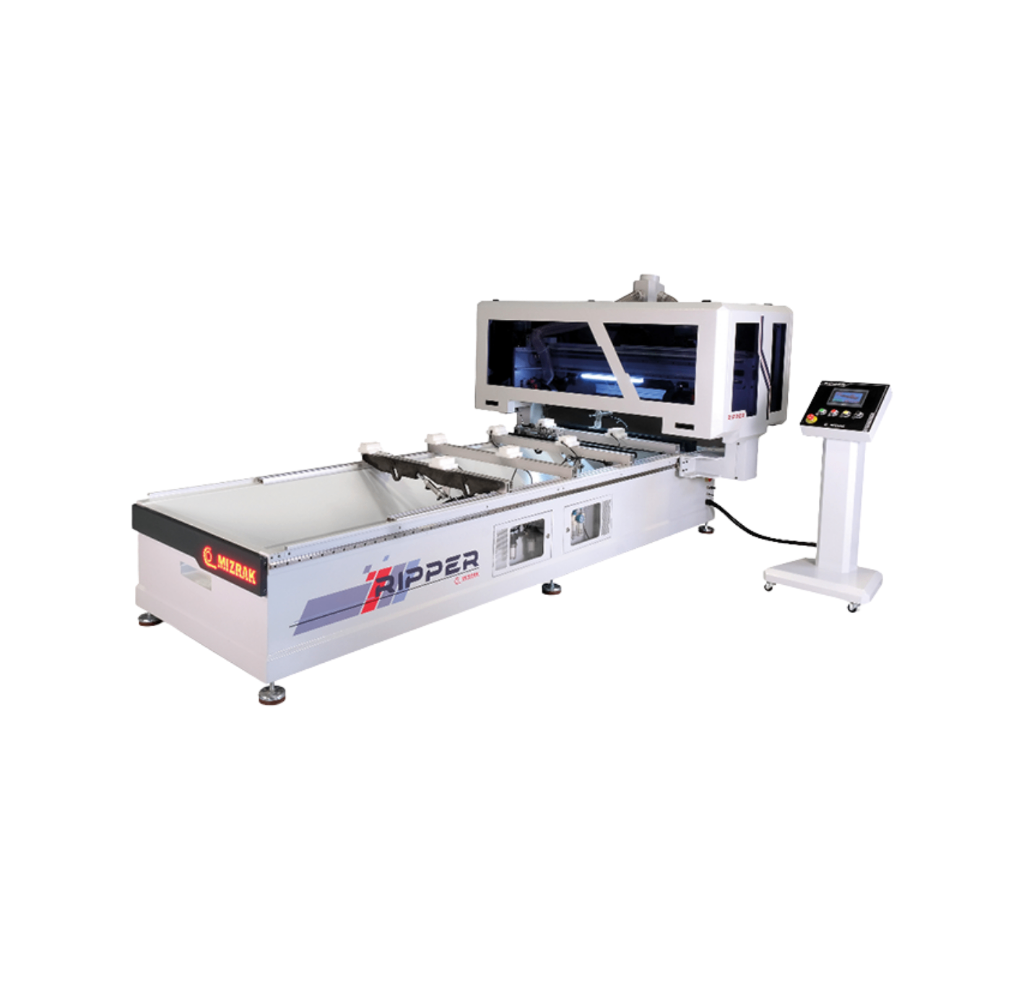

Mizrak MZK NC RIPPER Door Sizing Machine

MZK NC RIPPER

Unlike the RIPPER KK models, the MZK NC RIPPER sizes and mills only and leaves lock and handle pocketing to a separate machine, taking door panels 1250 mm wide, 2700 mm long and 30 to 60 mm thick. Encoder-controlled axes on linear rails are set from a touchscreen PLC panel; 30.41 kW total, 1580 kg.

ფასი მოთხოვნით

The price of the MZK NC RIPPER is moved by the tooling package specified, whether extraction and a 6-8 bar compressor are quoted with it, and delivery, rigging and commissioning at the Georgian site.

ფასის მოთხოვნა

What the MZK NC RIPPER does

The MZK NC RIPPER squares and sizes finished door panels to a programmed dimension. Door width is handled up to 1250 mm, length up to 2700 mm and panel thickness from 30 to 60 mm. The cutting groups run on linear rails with encoder-controlled axis movement, which is what allows the MZK NC RIPPER to hold a repeatable dimension across a batch rather than relying on operator setting. A Ø250 x 30 x 3.2 mm longitudinal saw handles the length cuts, a Ø125 x 20 x 3.2 mm milling cutter works the edge, and the machine also cuts rebated (rabbeted) doors.

Drive package and control

The MZK NC RIPPER is driven by a stack of separate motors rather than one shared spindle: 4 kW at 3445 rpm on the longitudinal cutting motor, 5.5 kW at 3000 rpm on the X axis, 1.5 kW at 12000 rpm on the milling motors, 0.75 kW at 3000 rpm on the bridge and 0.37 kW on the sanding motor, for a total electrical power of 30.41 kW. Operation is through a touchscreen panel over a PLC control system, and the machine needs a compressed air supply between 6 and 8 bar. Sound level is declared at LWA 111.1 dB(A).

Who the MZK NC RIPPER suits

The MZK NC RIPPER belongs in a door manufacturing plant producing interior doors in series, not in a general joinery. Shops that currently size doors on a panel saw and hand-trim the edges are the buyers who gain most, because the MZK NC RIPPER replaces several setups with one programmed pass. At 3600 mm long, 2100 mm wide, 2200 mm high and 1580 kg, the MZK NC RIPPER needs a dedicated production position.

How the MZK NC RIPPER differs from the RIPPER KK

The MZK NC RIPPER sizes and mills; it does not cut lock and handle pockets. Where lock and handle slotting is required in the same pass, the larger MZK NC RIPPER KK adds that group, along with a second bridge motor and an eccentric motor, and grows to 4500 mm long and 2050 kg.

ძირითადი მახასიათებლები

  • Maximum door size of 1250 mm wide by 2700 mm long, 30 to 60 mm thick
  • Encoder-controlled axis movement with cutting groups running on linear rails
  • 5.5 kW X-axis motor at 3000 rpm and a 4 kW longitudinal cutting motor at 3445 rpm
  • 1.5 kW milling motors running at 12000 rpm plus a 0.37 kW sanding motor
  • Total electrical power of 30.41 kW on a 380-400V AC, 50-60 Hz supply
  • Touchscreen operator panel with PLC control
  • Rabbeted (rebated) door cutting capability
  • Machine footprint 3600 mm long x 2100 mm wide x 2200 mm high, 1580 kg

ტექნიკური მახასიათებლები

Nominal Current
380-400V AC, 50-60 Hz
Sound Level
LWA: 111.1 dB(A)
Air Pressure
6 - 8 Bar
Longitudinal Cutting Saw
Ø250 x Ø30 x 3.2 mm
Diameter
Ø250 x 30 x 3.2 mm
Cross Cutting Motor
Ø70 x 50 x 20 Z4
Milling Cutter
Ø125 x 20 x 3.2 mm
Rosette Cutter
Ø19 x 135 Z:2
Lock Handle Cutter
Ø23.5 x 55 Z4
Longitudinal Cutting Saw Blade
Ø25 x 150 Z4
Longitudinal Cutting Motor
4 kW, 3445 rpm
X Axis Motor
5.5 kW, 3000 rpm
Sanding Motor
0.37 kW, 3000 rpm
Milling Motors
1.5 kW, 12000 rpm
Bridge Motor
0.75 kW, 3000 rpm
Total Electrical Power
30.41 kW
Machine Width
2100 mm
Machine Length
3600 mm
Machine Height
2200 mm
Machine Weight
1580 kg
Max. Door Width
1250 mm
Door Length
2700 mm
Door Thickness (Min/Max)
30 / 60 mm

უპირატესობები

  • Encoder-controlled axes on linear rails deliver repeatable door dimensions across a production batch
  • Separate motors for sizing, milling, sanding and bridge movement mean each function runs at its own optimum speed, up to 12000 rpm on the milling head
  • Touchscreen and PLC control let a trained operator change door sizes without mechanical re-setting

გასათვალისწინებელი

  • A 30.41 kW connected load on 380-400V plus a 6-8 bar air supply makes this a plant installation, not a small-workshop purchase
  • Declared sound level of LWA 111.1 dB(A) requires hearing protection and, in many workshops, acoustic separation
  • Fixed capacity envelope: nothing wider than 1250 mm, longer than 2700 mm or outside 30-60 mm thickness can be run

ხშირად დასმული კითხვები

What power supply does the MZK NC RIPPER need?
The MZK NC RIPPER runs on 380-400V AC at 50-60 Hz with a total electrical power of 30.41 kW. A supply capable of that connected load must be in place before the MZK NC RIPPER is commissioned.
Does the MZK NC RIPPER need compressed air?
Yes. The MZK NC RIPPER requires a compressed air supply of 6 to 8 bar in addition to its electrical connection. Factor a compressor of adequate capacity into the installation cost of the MZK NC RIPPER.
What door sizes does the MZK NC RIPPER handle?
The MZK NC RIPPER takes doors up to 1250 mm wide and 2700 mm long, with panel thickness between 30 and 60 mm. Doors outside that envelope cannot be processed on the MZK NC RIPPER.
How much floor space does the MZK NC RIPPER need?
The MZK NC RIPPER measures 3600 mm long, 2100 mm wide and 2200 mm high, and weighs 1580 kg. Add loading and unloading space at both ends of the MZK NC RIPPER plus operator access at the touchscreen when planning the layout.
What tooling does the MZK NC RIPPER use?
The MZK NC RIPPER is specified around a Ø250 x 30 x 3.2 mm longitudinal saw, a Ø70 x 50 x 20 Z4 cross-cutting tool, a Ø125 x 20 x 3.2 mm milling cutter, a Ø19 x 135 Z2 rosette cutter and a Ø23.5 x 55 Z4 lock handle cutter. Confirm which of these tools are supplied with the MZK NC RIPPER at the point of order.
Does the MZK NC RIPPER cut lock and handle pockets?
No. The MZK NC RIPPER is a door sizing and milling machine. For door sizing combined with lock and handle slotting in one machine, the MZK NC RIPPER KK is the correct model.
How much does the MZK NC RIPPER cost?
The MZK NC RIPPER is supplied on quotation rather than at a published list price. What moves the figure for the MZK NC RIPPER is the tooling package specified, whether a dust extraction plant and a 6-8 bar compressor are included, and delivery, rigging and commissioning in Georgia. Send the door width, length and thickness range you run and a written quotation follows.
What is the lead time for the MZK NC RIPPER?
The MZK NC RIPPER is built to order by Mizrak, so the lead time for the MZK NC RIPPER is confirmed at quotation rather than held as stock availability. Ask for the current build slot, shipping and customs schedule into Georgia when requesting the quotation.
What does installing the MZK NC RIPPER involve?
Installing the MZK NC RIPPER means a solid level floor for its 1580 kg, a bay clear around the 3600 x 2100 x 2200 mm frame with infeed and outfeed room for a 2700 mm door, a 380-400 V three-phase connection sized for 30.41 kW, compressed air at 6-8 bar and hoods connected to an extraction plant. Positioning and commissioning of the MZK NC RIPPER are quoted separately from the machine.
What tooling and consumables should be budgeted alongside the MZK NC RIPPER?
Budget for the MZK NC RIPPER's consumable tooling: the Ø250 x 30 x 3.2 mm longitudinal saw, Ø70 x 50 x 20 Z4 cross-cutting tool, Ø125 x 20 x 3.2 mm milling cutter, Ø19 x 135 Z2 rosette cutter and Ø23.5 x 55 Z4 lock handle cutter, plus sanding consumables and blade sharpening. Which of these ship with the MZK NC RIPPER is confirmed on the quotation.
