Mizrak MZK NC RIPPER KK Door Sizing and Lock Slotting Machine

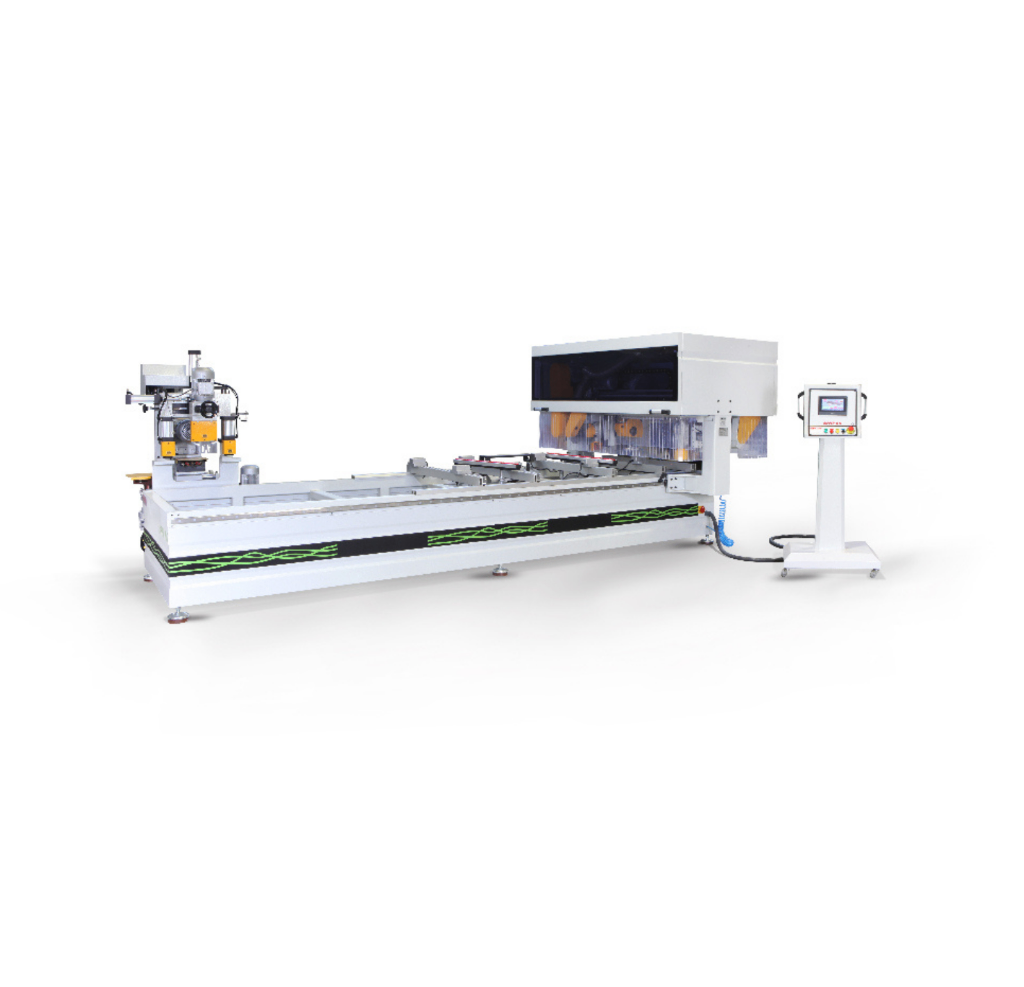

MZK NC RIPPER KK — Mizrak MZK NC RIPPER KK Door Sizing and Lock Slotting Machine 1 / 4

Lock and handle slotting is what separates the MZK NC RIPPER KK from the base MZK NC RIPPER: one single-bridge machine sizes the leaf to 2200 x 1000 mm, cuts the lock and handle slots and opens lighting fixture recesses. Encoder-controlled linear guides, 29.66 kW at 380-400V AC, 4500 mm long, 2050 kg.

ძრავის სიმძლავრე
4 kW
ძაბვა
400V
ჰაერის წნევა
6 - 8 Bar
წონა
2050 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The price of the MZK NC RIPPER KK is driven by the lock and handle tooling set specified for the hardware brands in use, the cutter package for lighting fixture recesses, and delivery, rigging and commissioning in Georgia.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the MZK NC RIPPER KK does

The MZK NC RIPPER KK combines two jobs that most door shops run as separate operations: sizing the door panel and machining the lock and handle. Sizing dimensions reach 2200 mm x 1000 mm, with longitudinal and cross cuts taken on encoder-controlled linear guides so each door in a batch comes out to the same dimension. The lock group cuts the handle and lock apertures, and the machine also opens recesses for lighting fixtures. Separate motors handle sizing and milling, so neither operation is compromised by sharing a drive.

Drive package and control

The MZK NC RIPPER KK carries front and rear cutting motors rated at 5.5 kW, milling motors at 12000 rpm, a second bridge motor of 2.2 kW at 1500 rpm, a mirror and lock motor of 0.75 kW at 1500 rpm and an eccentric motor of 1.1 kW at 3000 rpm, for a total power consumption of 29.66 kW on a 380-400V AC, 50-60 Hz supply. Compressed air is required at 6 to 8 bar. Operation runs from a touchscreen control panel over a PLC system, and the declared sound level is LWA 111.1 dB(A).

Who the MZK NC RIPPER KK suits

The MZK NC RIPPER KK is aimed squarely at door manufacturers producing interior doors in volume, where the labour of drilling and routing lock pockets by hand is the real cost. Consolidating sizing and lock work into one programmed cycle removes handling between machines and the dimensional drift that comes with it. At 4500 mm long, 2100 mm wide, 2200 mm high and 2050 kg, the MZK NC RIPPER KK claims a permanent production bay.

How the MZK NC RIPPER KK differs from the MZK NC RIPPER

The MZK NC RIPPER KK is the lock-and-handle version of the standard MZK NC RIPPER. The MZK NC RIPPER KK adds the lock group, a second bridge motor and an eccentric motor, gains 900 mm in length and 470 kg in weight, and quotes a different sizing envelope of 2200 mm x 1000 mm against the 1250 x 2700 mm of the standard machine. Buyers who do not machine locks in-house should compare the shorter, lighter MZK NC RIPPER first.

ძირითადი მახასიათებლები

  • Sizing dimensions up to 2200 mm x 1000 mm with lock and handle slotting in the same machine
  • Encoder-controlled linear guides for precise longitudinal and cross cutting
  • 5.5 kW front and rear cutting motors, with separate motors for sizing and milling
  • Milling motors running at 12000 rpm plus a 2.2 kW second bridge motor at 1500 rpm
  • Total power consumption of 29.66 kW on a 380-400V AC, 50-60 Hz supply
  • Touchscreen control panel with PLC control system
  • Lighting fixture recess machining capability
  • Machine dimensions 4500 mm long x 2100 mm wide x 2200 mm high, 2050 kg

ტექნიკური მახასიათებლები

Nominal Voltage
380-400V AC, 50-60Hz
Sound Level
LWA: 111.1 dB(A)
Air Pressure
6 - 8 Bar
Longitudinal Cutting Saw
Ø250 x Ø30 x 3.2 mm
Diameter
Ø250 x 30 x 3.2 mm
Cross Cutting Saw Diameter
Ø70 x 50 x 20 Z4
Milling Cutter
Ø125 x 20 x 3.2 mm
Scoring Saw Diameter
Ø19 x 135 Z:2
Tracing Blade
Ø23.5 x 55 Z4
Mirror Blade
Ø25 x 150 Z4
Lock Handle Blade (Motor Power)
4 kW, 3445 rpm
Longitudinal Cutting Motor
5.5 kW, 3000 rpm
Cross Cutting Motor
0.37 kW, 3000 rpm
Sanding Motor
1.5 kW, 12000 rpm
Milling Motors
0.75 kW, 3000 rpm
Second Bridge Motor
2.2 kW, 1500 rpm
Mirror and Lock Motor
0.75 kW, 1500 rpm
Eccentric Motor
1.1 kW, 3000 rpm
Lock Group Motor
29.66 kW
Total Power Consumption
29.66 kW
Machine Width
2100 mm
Machine Length
4500 mm
Machine Height
2200 mm
Machine Weight
2050 kg
Sizing Dimensions (Max)
2200 mm x 1000 mm

უპირატესობები

  • Sizing and lock or handle machining in one programmed cycle removes a whole handling step between machines
  • Separate sizing and milling motors, including a 2.2 kW second bridge motor, so each operation runs on its own drive
  • Lighting fixture recess capability covers a job most door shops otherwise do by hand

გასათვალისწინებელი

  • 4500 mm long and 2050 kg - the largest installation in the RIPPER line and a permanent floor commitment
  • 29.66 kW at 380-400V plus 6-8 bar compressed air puts it beyond small workshops
  • The supplier's English spec table contains mislabelled rows (a 'Lock Group Motor' listed at 29.66 kW, the same figure as total power), so individual motor ratings should be verified with the factory

ხშირად დასმული კითხვები

What supply does the MZK NC RIPPER KK need?
The MZK NC RIPPER KK requires 380-400V AC at 50-60 Hz with a total power consumption of 29.66 kW, plus compressed air at 6 to 8 bar. Both services must be available at the machine position before the MZK NC RIPPER KK is installed.
What door sizes can the MZK NC RIPPER KK process?
The MZK NC RIPPER KK sizes doors up to 2200 mm x 1000 mm according to the supplier's General Information. Panels larger than that envelope cannot be sized on the MZK NC RIPPER KK.
Does the MZK NC RIPPER KK cut lock and handle apertures?
Yes. Lock and handle slotting is the defining function of the MZK NC RIPPER KK and is what separates it from the standard MZK NC RIPPER. The MZK NC RIPPER KK also opens recesses for lighting fixtures.
How much floor space does the MZK NC RIPPER KK need?
The MZK NC RIPPER KK is 4500 mm long, 2100 mm wide and 2200 mm high, and weighs 2050 kg. Allow loading and unloading room at both ends of the MZK NC RIPPER KK plus operator access at the touchscreen panel and service access to the motor groups.
What tooling does the MZK NC RIPPER KK use?
The MZK NC RIPPER KK is specified with a Ø250 x 30 x 3.2 mm longitudinal saw, a Ø70 x 50 x 20 Z4 cross-cutting saw, a Ø125 x 20 x 3.2 mm milling cutter, a Ø19 x 135 Z2 scoring saw, a Ø23.5 x 55 Z4 tracing blade and a Ø25 x 150 Z4 mirror blade. Confirm which tools are included with the MZK NC RIPPER KK when ordering.
What does the MZK NC RIPPER KK not do?
The MZK NC RIPPER KK is a door sizing and lock machining centre, not a general CNC router or a door frame assembly machine. The MZK NC RIPPER KK does not assemble door frames and is not intended for cabinet or panel work outside its 2200 x 1000 mm door envelope.
How much does the MZK NC RIPPER KK cost?
The MZK NC RIPPER KK is priced on quotation, not from a list. The figure for the MZK NC RIPPER KK depends on the lock and handle cutter set specified for the hardware you fit, whether extraction and compressed air equipment are included, and delivery, rigging and commissioning in Georgia. Send the lock and handle types you machine to receive a written quotation.
How soon can a MZK NC RIPPER KK be delivered?
The MZK NC RIPPER KK is built to order, so availability is confirmed at quotation rather than from stock. When requesting a quotation for the MZK NC RIPPER KK, ask for the current production slot together with transport and customs time into Georgia.
What has to be ready on site before the MZK NC RIPPER KK is commissioned?
Before the MZK NC RIPPER KK is commissioned the bay must take a 4500 x 2100 x 2200 mm machine weighing 2050 kg on a solid floor, with a 380-400 V three-phase supply sized for 29.66 kW, compressed air at 6-8 bar and extraction ducting run to the machine position. Commissioning and operator handover for the MZK NC RIPPER KK are quoted as separate line items.
What tooling should be budgeted separately for the MZK NC RIPPER KK?
Alongside the MZK NC RIPPER KK, budget for the Ø250 x 30 x 3.2 mm longitudinal saw, Ø70 x 50 x 20 Z4 cross-cutting saw, Ø125 x 20 x 3.2 mm milling cutter, Ø19 x 135 Z2 scoring saw, Ø23.5 x 55 Z4 tracing blade and Ø25 x 150 Z4 mirror blade as replaceable items, plus sharpening. Which tools ship with the MZK NC RIPPER KK is confirmed on the offer.
