CTF45P — HOLZMANN CTF45P CNC Table Router 1 / 4

HOLZMANN

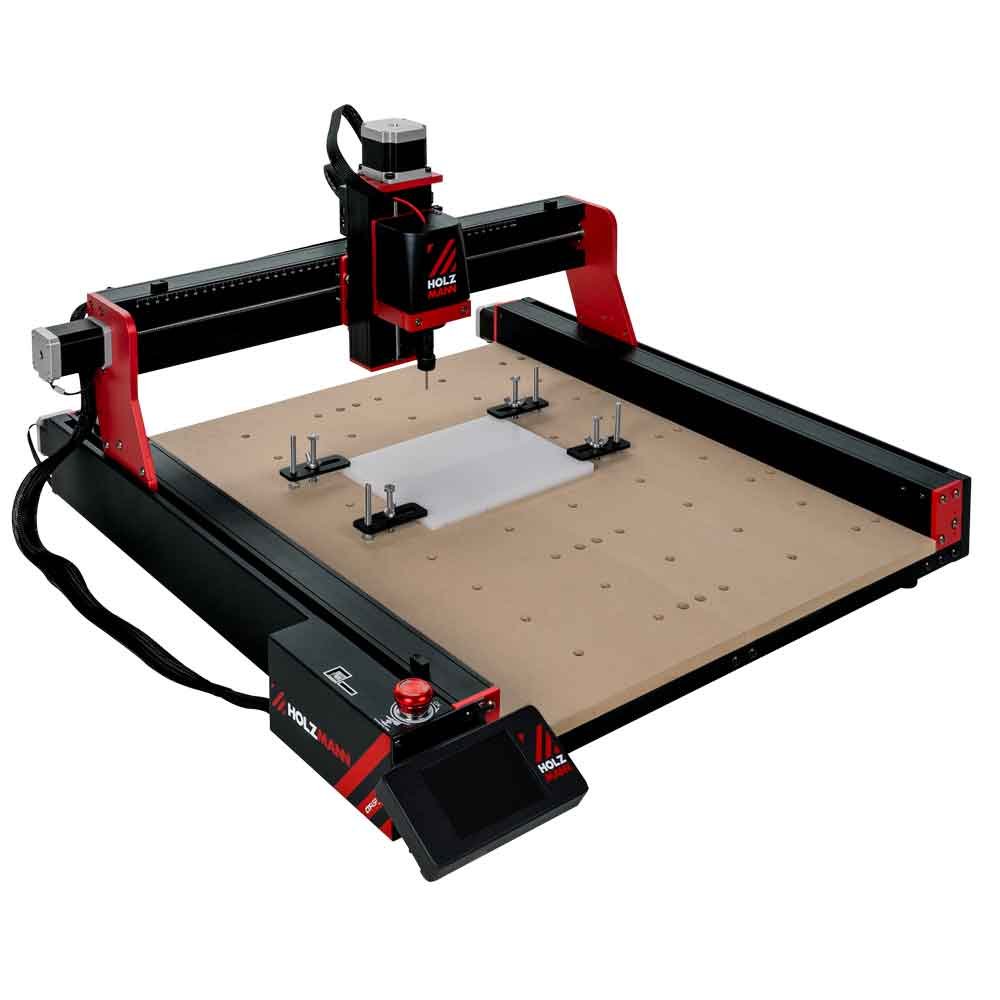

HOLZMANN CTF45P CNC Table Router

CTF45P

An 80 W spindle and a 460 x 460 x 80 mm bed put the CTF45P in a different class from the floor-standing CTF69: this is a 15.8 kg benchtop CNC router that runs from any 100-240 V socket. XY positioning holds 0.05 mm, jobs load over USB, WiFi or SD card, and continuous run time is rated at 6 h.

ფასი მოთხოვნით

The CTF45P price moves with which of the three add-on modules are taken (CTF45P4x 4-axis rotary set, CTF45P500W 500 W spindle for aluminium, CTF45PLWT laser honeycomb table), the cutter and clamping set specified, any CAM licence bought alongside the machine, and freight for a 20.6 kg parcel.

ფასის მოთხოვნა

What the HOLZMANN CTF45P CNC table router does

The CTF45P brings CNC into a workshop that has never owned one. Within a working area of 460 x 460 x 80 mm the CTF45P mills wood, plastic and, with the optional stronger spindle, aluminium, holding an XY positioning accuracy of 0.05 mm. The standard 80 W motor spindle runs up to 8000 rpm, which is the honest scale of the CTF45P: engraving, sign work, inlays, small furniture components, jigs, templates and nameplates rather than heavy structural cutting. A plug-in module design means the CTF45P is assembled quickly out of the box without a machine builder on site.

Who the CTF45P suits in a Georgian workshop

The CTF45P suits furniture workshops adding decorative and personalised work, sign makers, model shops and technical schools. At 15.8 kg net and overall dimensions of 742 x 689 x 413 mm, the CTF45P sits on an existing bench and does not claim floor space. Power is undemanding too: the CTF45P accepts 100-240 V at 50-60 Hz, so an ordinary single-phase socket runs it. Continuous working time is rated at a maximum of 6 hours, which is enough for a full day of short jobs but is a limit to respect on long production runs.

Software, connection and expansion of the CTF45P

The CTF45P is supported by Candle, Carveco, Artcam and Easel, so a workshop can start with free control software and move to a full CAM package later without changing machine. Jobs reach the CTF45P over a USB interface, a WiFi connection or the SD card reader with the supplied 4 GB TF card, which matters in a dusty workshop where a computer should not sit next to the machine. Three factory options extend the CTF45P: the CTF45P4x four-axis rotary set for rotationally symmetrical parts such as turned legs and balusters, the CTF45P500W 500 W spindle for machining aluminium, and the CTF45PLWT laser honeycomb table for diode lasers.

How the CTF45P differs from the larger CTF machines

The CTF45P is the entry point of the HOLZMANN CNC router range and is a benchtop machine. The CTF69 and CTF69ATC are floor-standing, enclosed CNC routers of a different class in travel, spindle power and mass. A workshop machining full cabinet parts should be looking at those; a workshop engraving and cutting small components should buy the CTF45P and keep the capital.

ძირითადი მახასიათებლები

  • 80 W spindle to 8000 rpm on a 100-240 V / 50-60 Hz supply - the CTF45P plugs into an ordinary socket, no workshop wiring
  • 460 x 460 x 80 mm (L x W x H) working area on a 15.8 kg net benchtop frame, 742 x 689 x 413 mm overall
  • XY-axis positioning accuracy of 0.05 mm
  • Rated for a maximum continuous working time of 6 hours
  • Jobs arrive over USB, WiFi or the SD card reader, with a 4 GB TF card supplied
  • Toolpaths from Candle, Carveco, Artcam and Easel are listed as supported
  • Plug-in module design: the CTF45P is assembled on site by the buyer rather than arriving on a base frame like the CTF69
  • Three named upgrade modules: CTF45P4x 4-axis rotary set, CTF45P500W 500 W spindle for aluminium, CTF45PLWT laser honeycomb table

ტექნიკური მახასიათებლები

Motor power S1
80 W
Voltage
100 - 240 V / 50 - 60 Hz
Working area
460 x 460 x 80 mm (L x W x H)
Spindle speed
up to 8000 rpm
XY-axis positioning accuracy
0.05 mm
Max. continuous working time
6 h
Interfaces
USB, WiFi, SD card reader (incl. 4 GB TF card)
Supported CAM software
Candle, Carveco, Artcam, Easel
Total dimensions
742 x 689 x 413 mm
Sound power level
105 dB(A)
Sound pressure level
85 dB(A)
Net weight
15.80 kg
Gross weight
20.60 kg
EAN code
9120132140991

უპირატესობები

  • 0.05 mm XY accuracy and a 460 x 460 x 80 mm working area from a 15.8 kg benchtop machine
  • Runs on any 100-240 V single-phase socket, with USB, WiFi and SD card job transfer
  • Grows with the workshop through the 4-axis rotary set, 500 W spindle and laser table options

გასათვალისწინებელი

  • 80 W standard spindle is light: slow feeds and shallow passes in hardwood
  • 460 x 460 mm working area cannot take a full cabinet panel
  • No enclosure, no vacuum table and no tool changer, so dust control and workholding are the operator's job

ხშირად დასმული კითხვები

Does the HOLZMANN CTF45P need 230V or 400V?
The HOLZMANN CTF45P runs on 100-240 V at 50-60 Hz, so the CTF45P works from an ordinary single-phase 230V socket in any Georgian workshop or office. No three-phase 400V supply and no electrical work are needed for the CTF45P, which is one reason it suits shops without an industrial connection.
What does the HOLZMANN CTF45P not do?
The HOLZMANN CTF45P is specified for light milling and engraving in wood and plastic on an 80 W spindle over a 460 x 460 x 80 mm working area, so it does not cut steel, does not machine full-size cabinet panels and is not a substitute for a floor-standing router such as the CTF69. HOLZMANN's published CTF45P specification covers three axes, an 80 W spindle and manual work holding; an automatic tool changer and a vacuum table are not among the listed CTF45P features, so plan on mechanical clamping. Aluminium work is listed only with the optional CTF45P500W 500 W spindle, and rotary work only with the optional CTF45P4x set.
How accurate is the HOLZMANN CTF45P?
The HOLZMANN CTF45P holds an XY-axis positioning accuracy of 0.05 mm. For inlay work, engraving and small furniture components that level of accuracy on the CTF45P is well inside what hand routing can achieve, though it is not machine-tool accuracy for metal parts.
Which software runs the HOLZMANN CTF45P?
The HOLZMANN CTF45P is supported by Candle, Carveco, Artcam and Easel. Files reach the CTF45P through its USB interface, its WiFi connection or its SD card reader with the supplied 4 GB TF card, so the controlling computer does not have to stand beside the machine.
Can the HOLZMANN CTF45P machine round parts or aluminium?
The HOLZMANN CTF45P can machine rotationally symmetrical parts with the optional CTF45P4x four-axis rotary set, and aluminium with the optional CTF45P500W 500 W spindle. In standard form the CTF45P has three axes and an 80 W spindle, so both capabilities are purchases rather than factory equipment.
How long can the HOLZMANN CTF45P run without stopping?
The HOLZMANN CTF45P is rated for a maximum continuous working time of 6 hours. Jobs longer than that should be split, and the CTF45P should be allowed to cool between runs, particularly with the higher-power optional spindle fitted.
What does a HOLZMANN CTF45P cost?
The HOLZMANN CTF45P is quoted rather than shelf-priced. The CTF45P figure depends above all on which optional modules you take - the CTF45P4x 4-axis rotary set, the CTF45P500W 500 W spindle for aluminium, the CTF45PLWT laser honeycomb table - and then on the cutter and clamping set, any CAM licence bought with it, and freight for a 20.6 kg parcel. Tell us what the CTF45P will be cutting and it is quoted as a package rather than a bare machine.
How long does delivery of a HOLZMANN CTF45P take?
The HOLZMANN CTF45P is supplied to order, so the CTF45P lead time is confirmed at quotation. Because the CTF45P ships as a compact 20.6 kg parcel rather than a crated floor machine, and because the optional modules are ordered separately, the lead time is stated per configuration when you request a quote.
What is involved in setting up a HOLZMANN CTF45P?
Setting up a HOLZMANN CTF45P means assembling the plug-in modules on a solid bench with more than 742 x 689 mm of clear top, plugging into a standard 100-240 V / 50-60 Hz socket, installing and configuring the CAM software you intend to use (Candle, Carveco, Artcam or Easel), and squaring and zeroing the axes. No three-phase supply, foundation or ducted extraction is required for a CTF45P, though dust capture at the bench and eye protection are.
What should be budgeted for tooling and consumables with a HOLZMANN CTF45P?
Alongside the HOLZMANN CTF45P, budget for end mills and V-bits with collets to suit them, clamps or a low-tack fixturing method, sacrificial spoilboard material, and a CAM licence if you do not already own one. If aluminium or rotary work is planned, the CTF45P500W 500 W spindle and the CTF45P4x 4-axis set are priced as modules on top of the CTF45P, not as included equipment.
