HOLZMANN CTF69ATC CNC Table Router with Automatic Tool Changer and Vacuum Table

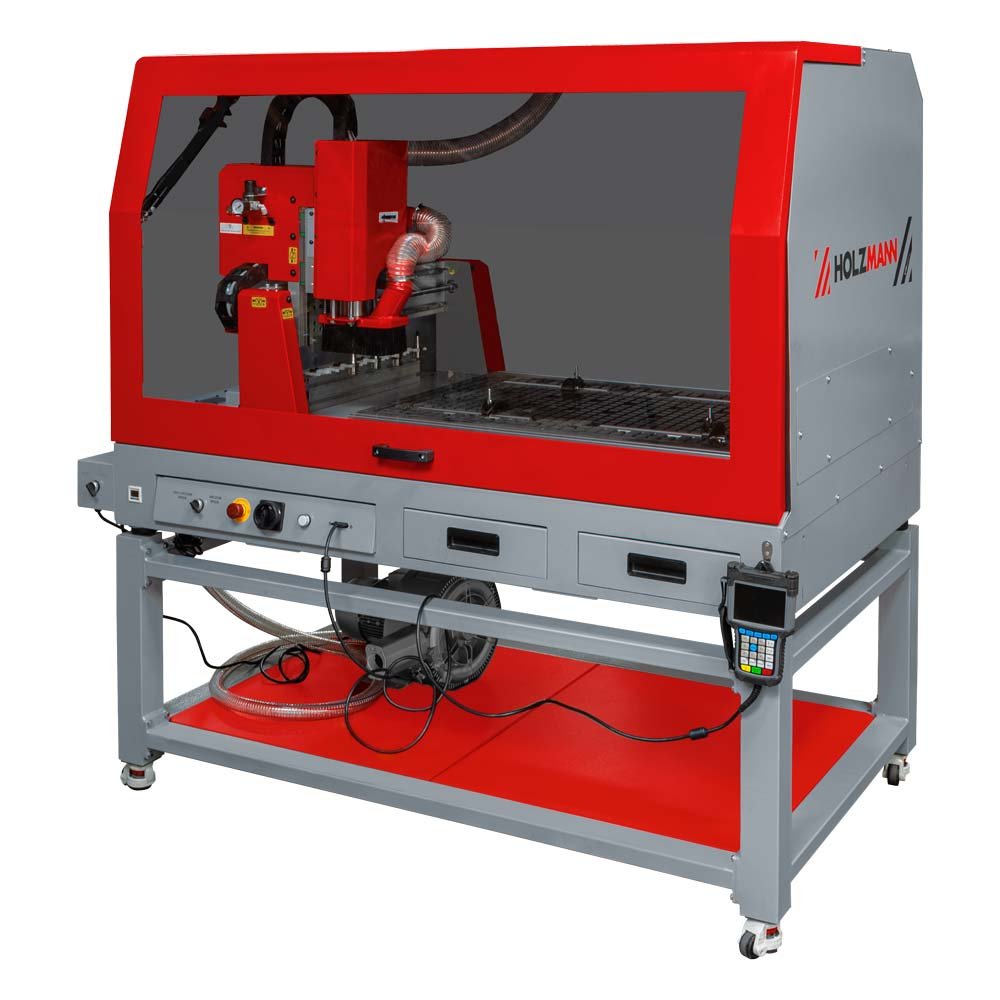

CTF69ATC — HOLZMANN CTF69ATC CNC Table Router with Automatic Tool Changer and Vacuum Table 1 / 4

The CTF69ATC is the CTF69 plus a 5-position automatic tool changer, a 1500 W vacuum pump under the table and 1100 mm of X travel in place of 915 mm. Its water-cooled 2500 W spindle turns to 24000 rpm, Y and Z travel stay at 610 and 140 mm, and the machine weighs 470 kg net on a 230 V supply.

ძაბვა
230V
შპინდელი
2500 W | 1500 W
გაბარიტები
1780 x 1140 x 1965 mm
წონა
470 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The CTF69ATC price is driven by the tooling package, since the 5 ISO20 ER20 holders arrive without collets: collets, cutters, spoilboard and vacuum gasket or zoning material, plus CAM software, an extractor for the Ø 100 mm port, commissioning and training attendance, and freight and rigging of a 570 kg crate 2160 mm long.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the automatic tool changer and vacuum table give the CTF69ATC

The CTF69ATC exists to let one program finish a part without an operator standing at the machine. Its automatic tool changer holds 5 positions, so a program can drill, pocket, profile and chamfer in sequence without a manual tool change stopping the run. The vacuum table, fed by a 1500 W vacuum pump, holds the workpiece down over its whole area instead of at four clamp points, which means the CTF69ATC can nest parts across a full board and machine right to the edges. For a Georgian furniture manufacturer moving from batch-of-one work to repeat production, those two features are what change the output per shift.

Capacity and construction of the HOLZMANN CTF69ATC

The CTF69ATC machines wood and plastic within travels of 1100 mm on X, 610 mm on Y and 140 mm on Z, at a maximum milling diameter of 75 mm. The water-cooled spindle is rated 2500 W and runs from 0 to 24000 rpm, taking cutter shanks up to 1/2 inch (12.7 mm) through an ER20 adapter; water cooling is what supports long continuous programs without the spindle heat soak an air-cooled spindle suffers. The CTF69ATC is enclosed and mounted on a base frame with casters, measures 1780 x 1140 x 1965 mm overall, weighs 470 kg net, and connects to extraction at Ø 100 mm.

CTF69ATC or CTF69

The CTF69ATC and the CTF69 share the 610 mm Y travel, the 140 mm Z travel, the 2500 W spindle, the 0-24000 rpm range and the 75 mm cutter limit. The CTF69ATC adds 185 mm of extra X travel, the 5-position tool changer, the water-cooled spindle and the vacuum table with its 1500 W pump, at 470 kg against 360 kg and in a noticeably larger 1780 x 1140 mm footprint. A workshop whose programs use one or two cutters and whose parts clamp easily is well served by the CTF69; a workshop running multi-tool nested programs should buy the CTF69ATC and stop paying an operator to change collets.

What is included with the CTF69ATC

Delivery of the CTF69ATC includes 5 x ISO20 ER20 tool holders (supplied without collets), the base frame with casters, 4 clamping clamps and the vacuum pump. Collets are ordered separately, which is worth budgeting for at the same time as the machine, since the CTF69ATC tool changer is only useful once its holders are populated.

ძირითადი მახასიათებლები

  • 5-position automatic tool changer: a program runs through five cutters without an operator standing at the machine
  • 1100 mm X travel, 185 mm more than the CTF69, for full-length door and front components
  • 1500 W vacuum pump and vacuum table included, so parts nest across the bed without clamps in the cutter path
  • Water-cooled spindle rated 2500 W for long uninterrupted programs
  • 5 x ISO20 ER20 tool holders supplied without collets - collets and cutters are a separate budget line
  • 470 kg net / 570 kg gross at 1780 x 1140 x 1965 mm overall; the crate is 2160 mm long, so check the door and route
  • Two motors on one 230 V / 50 Hz circuit: the 2500 W spindle and the 1500 W pump draw together during a nested run
  • 610 mm Y and 140 mm Z travel and 75 mm maximum cutter diameter, matching the CTF69

ტექნიკური მახასიათებლები

Motor power S1 (spindle | vacuum pump)
2500 W | 1500 W
Voltage
230 V / 50 Hz
Travel X-axis
1100 mm
Travel Y-axis
610 mm
Travel Z-axis
140 mm
Milling spindle speed
0 - 24000 rpm
Milling adapter
max. 1/2" (ER20, 12.7 mm shank)
Max. milling diameter
75 mm
Automatic tool changer
5 positions (ATC)
Dust collector port
Ø 100 mm
Total dimensions
1780 x 1140 x 1965 mm
Sound power level
93 dB(A)
Sound pressure level
82 dB(A)
Net weight
470 kg
Gross weight
570 kg
Included in delivery
5 x ISO20 ER20 tool holders (without collets), base frame incl. casters, 4 clamping clamps, vacuum pump
EAN code
9120132141646

უპირატესობები

  • 5-position ATC and vacuum holding let one nested program run through several tools unattended
  • Water-cooled 2500 W spindle and 1100 x 610 mm travel, still on a 230 V single-phase supply
  • Enclosure, base frame with casters, 4 clamps and the 1500 W vacuum pump all included

გასათვალისწინებელი

  • Tool holders are supplied without collets, so extra tooling spend is needed before the first job
  • 470 kg net in a 1780 x 1140 mm footprint: a serious commitment of floor space
  • Still limited to 140 mm Z travel and 75 mm cutter diameter, and to wood and plastic

ხშირად დასმული კითხვები

Does the HOLZMANN CTF69ATC need 230V or 400V?
The HOLZMANN CTF69ATC runs on 230 V / 50 Hz single-phase, so no 400V three-phase connection is required. A workshop should still check that the circuit can carry the CTF69ATC spindle at 2500 W together with the 1500 W vacuum pump, because both draw at the same time during a nested program.
What does the HOLZMANN CTF69ATC not do?
The HOLZMANN CTF69ATC does not machine steel and is specified for wood and plastic workpieces. The CTF69ATC also does not arrive ready to cut: the 5 ISO20 ER20 tool holders are supplied without collets, so collets and cutters must be ordered separately. Z travel on the CTF69ATC is 140 mm, which limits workpiece thickness and cutter length.
How many tools does the HOLZMANN CTF69ATC hold?
The HOLZMANN CTF69ATC holds 5 tools in its automatic tool changer and is delivered with 5 x ISO20 ER20 tool holders. Programs on the CTF69ATC that need more than 5 different cutters still require a manual intervention partway through the run.
How does the HOLZMANN CTF69ATC hold the workpiece?
The HOLZMANN CTF69ATC holds workpieces on a vacuum table supplied by a 1500 W vacuum pump, and 4 mechanical clamping clamps are also included. Vacuum holding on the CTF69ATC is what allows parts to be nested across the full 1100 x 610 mm travel without clamps standing in the cutter path.
What is the difference between the HOLZMANN CTF69ATC and the CTF69?
The HOLZMANN CTF69ATC has 1100 mm of X travel against 915 mm on the CTF69, and adds a 5-position automatic tool changer and a vacuum table driven by a 1500 W pump. HOLZMANN describes the CTF69ATC spindle as water-cooled and publishes no cooling method for the CTF69, so no comparison of spindle cooling between the two should be drawn from that. Y travel of 610 mm, Z travel of 140 mm, the 2500 W spindle, the 0-24000 rpm range, the 75 mm maximum cutter diameter and the Ø 100 mm extraction port are the same on both machines. The CTF69ATC weighs 470 kg net against 360 kg, and its 5 ISO20 ER20 holders are supplied without collets, while the CTF69 arrives with three collets ready to use.
How much space does the HOLZMANN CTF69ATC need?
The HOLZMANN CTF69ATC measures 1780 x 1140 x 1965 mm overall and weighs 470 kg net, 570 kg gross. The CTF69ATC arrives on a base frame with casters, but a workshop should plan loading access on the long side and clearance for the extraction hose at the Ø 100 mm port.
What does a HOLZMANN CTF69ATC cost?
The HOLZMANN CTF69ATC is quoted rather than shelf-priced. The largest movers on a CTF69ATC quotation are the tooling package - the 5 ISO20 ER20 holders are supplied without collets, so collets and cutters are a real line item - together with spoilboard and vacuum gasket or zoning material for the vacuum table, CAM software, an extractor for the Ø 100 mm port, commissioning and training attendance, and freight and rigging of a 570 kg crate 2160 mm long. Send the part sizes and the number of tools per program and the CTF69ATC is quoted as a working cell.
How long does delivery of a HOLZMANN CTF69ATC take?
The HOLZMANN CTF69ATC is built to order, so the CTF69ATC lead time is confirmed at quotation and not published as a standing figure. It depends on the HOLZMANN production slot for a machine of this configuration and on the shipping route into Georgia for a 570 kg crate 2160 mm long; the lead time is given together with the price.
What is involved in installing and commissioning a HOLZMANN CTF69ATC?
Installing a HOLZMANN CTF69ATC means checking the entry route for a 2160 mm crate, unloading 570 kg, rolling the machine on its casters base frame onto level floor with a 1780 x 1140 mm footprint and 1965 mm height clearance, and providing a 230 V / 50 Hz circuit that can carry the 2500 W spindle and the 1500 W vacuum pump together. Commissioning then covers extraction at the Ø 100 mm port, vacuum table sealing and spoilboard surfacing, loading and measuring the five tool holders, and proving a first nested program. Installation attendance for the CTF69ATC can be quoted with the machine.
What tooling and consumables should be budgeted separately with a HOLZMANN CTF69ATC?
The HOLZMANN CTF69ATC needs a tooling budget of its own because its 5 ISO20 ER20 tool holders are delivered without collets. Plan for ER20 collets in the sizes you run, cutters up to 1/2" (12.7 mm) shank and 75 mm diameter, a surfacing cutter for the spoilboard, spoilboard sheet and vacuum gasket or zoning material as ongoing consumables, and a CAM package if you do not already own one. Extraction ducting for the Ø 100 mm port is the other item to price alongside the CTF69ATC.
