MIZRAK

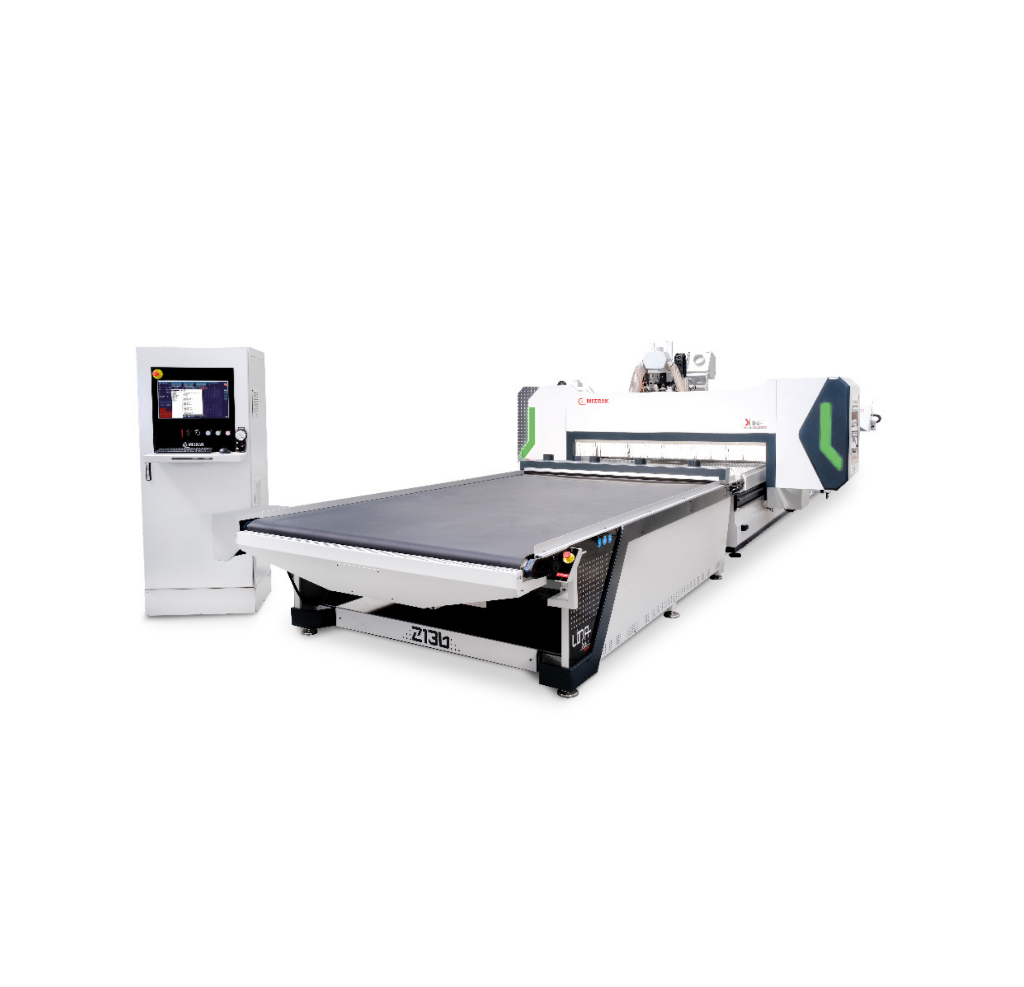

Mizrak LINA 2136 LINE Automatic CNC Nesting Cell
LINA 2136 LINE
The only LINA that loads itself: the LINA 2136 LINE pairs a double scissor lift stacking 25 sheets with automatic barcode labelling, over a 2100 x 3660 mm working area driven by an 11-13 kW HSD spindle at 24,000 rpm. Installed power 24 kW at 400 V 50 Hz, weight 4,800 kg.
The price of a LINA 2136 LINE is driven by the automation itself - the 25-sheet scissor lift and barcode labelling that separate it from the hand-loaded LINA models - together with vacuum pump capacity above the standard 250 m³, extra vacuum zoning, tool holder class and count beyond the 5 HSK 63 supplied, the CAD/CAM licence term after the first year, and transport, rigging and commissioning of a 4,800 kg cell.
ფასის მოთხოვნაWhat the LINA 2136 LINE does
The LINA 2136 LINE is the automated end of Mizrak’s LINA nesting router range: a 2100 x 3660 mm machine that loads, machines, labels and unloads full sheets without an operator lifting panel onto the table. A double scissor lift holds a stack of 25 sheets at 2100 x 3660 x 18 mm and references each one on the lift before an automatic vacuum lifting system, zoned to the material size, places it on the aluminium table. Four front X-axis stop cylinders and independently operating left and right aluminium stops square the sheet, and a material pushing and sweeping unit clears the table afterwards.
Who the LINA 2136 LINE suits
The LINA 2136 LINE is for furniture producers running nesting as a continuous shift, not as an occasional job. Two things justify it: labour, because one operator can keep the LINA 2136 LINE fed while working elsewhere, and traceability, because the integrated barcoding system prints 40 x 60 mm labels by direct thermal or thermal transfer ribbon so every cut part carries its identity into the edgebander and assembly. A workshop cutting fewer than a stack of sheets a day will not recover the price of the automation.
How the LINA 2136 LINE differs from the rest of the LINA range
Automation and rigidity separate the LINA 2136 LINE from its siblings. The manual-load LINA 2136 PLUS X shares the same 11–13 kW HSD spindle class but has no lift, no labelling and no stack referencing; the LINA 2136 and 2136 ED sit a class below on a 7.5–9 kW spindle. In exchange the LINA 2136 LINE runs its axes more conservatively — 60 m/min on X and Y against 120 m/min on Y for the PLUS X — because the whole cell is dimensioned around unattended sheet handling rather than peak feed rate.
What is included with the LINA 2136 LINE
Supply of the LINA 2136 LINE covers 5 HSK 63 tool holders in a 14-position fixed elevator magazine, a 9-spindle vertical drilling unit, a 250 m³ Eurovac vacuum pump feeding 48 suction points across 8 automatic zones, THK linear guides and carriages, a Festo pneumatic system, Neugart servo reducers, an industrial PC control with a hand terminal and mobile control unit, automatic lubrication, air tool cooling, and 3D CAD/CAM software on a one-year rental. ISO-30 tool holders are available in place of HSK 63.
ძირითადი მახასიათებლები
- Double scissor lift stacking 25 sheets at 2100 x 3660 x 18 mm - the only LINA model that loads itself
- Automatic barcoding printing 40 x 60 mm direct thermal or thermal transfer (ribbon) labels
- 2100 x 3660 mm working area with a 150 mm Z-axis distance and 60 mm maximum saw blade height
- 11-13 kW HSD spindle running to 24,000 rpm with automatic tool change and air tool cooling
- 250 m³ Eurovac vacuum pump serving 48 suction points across 8 automatic zones on an aluminium table
- 14-position fixed elevator magazine supplied with 5 HSK 63 holders; ISO-30 available as an option
- 9-spindle vertical drilling unit, THK linear guides and carriages, Festo pneumatics, Neugart servo reducers
- 24 kW installed power on 400 V 50 Hz with 6-8 bar air; 4,800 kg on a 5,350 x 4,000 x 2,650 mm footprint
ტექნიკური მახასიათებლები
- Working Area
- 2100 x 3660 mm
- Z Axis Distance
- 150 mm
- Max. Saw Blade Height
- 60 mm (greater height optional at production, blade length dependent)
- X Motor
- 1.8 kW
- X Axis Speed (max processing)
- 60 m/min
- Y Motor
- 1.8 kW
- Y Axis Speed (max processing)
- 60 m/min
- Z Axis Motor
- 0.75 kW (with brake)
- Z Axis Speed (max)
- 10 m/min
- Spindle Motor Power
- 11–13 kW
- Spindle Motor Brand
- HSD
- Spindle Motor Speed
- 24,000 rpm
- Aggregate
- None
- Multi-Drilling Unit
- Available — 9 vertical drills
- Working Table
- Aluminium
- Stoppers
- Independent right/left operation, 4 front (X-axis) stoppers
- Material Pushing + Sweeping
- Available
- Control System
- Industrial PC based
- CAD/CAM Software
- 3D — 1 year rental
- Lubrication System
- Automatic
- Tool Cooling
- Air cooling
- Tool Change
- Automatic
- Fixed Elevator Magazine
- 14 tool holders
- Tool Holder Class
- HSK 63 (ISO-30 optional)
- Tool Holders Supplied
- 5 pcs HSK 63
- Vacuum Capacity
- 250 m³ (higher capacity optional at production)
- Vacuum Pump Brand
- Eurovac
- Vacuum Pads
- None
- Vacuum Zones
- 8 automatic zones (further zoning optional at production)
- Vacuum Suction Points
- 48 pcs
- Linear Guide + Carriage Brand
- THK
- Pneumatic System Brand
- Festo
- Hand Terminal
- Available
- Mobile Control Unit
- Available
- Electrical Supply
- 400 V – 50 Hz
- Air Pressure
- 6–8 bar
- Installed Power
- 24 kW
- Weight
- 4,800 kg
- Dimensions
- 5,350 x 4,000 x 2,650 mm
- Sheet Stack Capacity (scissor lift)
- 25 sheets at 2100 x 3660 x 18 mm
- Label Printing
- 40 x 60 mm, direct thermal or thermal transfer (ribbon) option
- Servo Reducer Brand
- Neugart
უპირატესობები
- Loads, references, machines and labels sheets automatically, so one operator can cover other work
- Named industrial components throughout — HSD spindle, THK guides, Festo pneumatics, Neugart reducers
- Integrated 40 x 60 mm barcode labelling carries part identity through to edgebanding and assembly
გასათვალისწინებელი
- 4,800 kg on a 5,350 x 4,000 x 2,650 mm footprint plus stack and access space — a large plant commitment
- 400 V three-phase, 24 kW installed and 6–8 bar compressed air are all mandatory, with no single-phase option
- 3D CAD/CAM is a one-year rental, and the machine carries no aggregate or vacuum pads as standard
