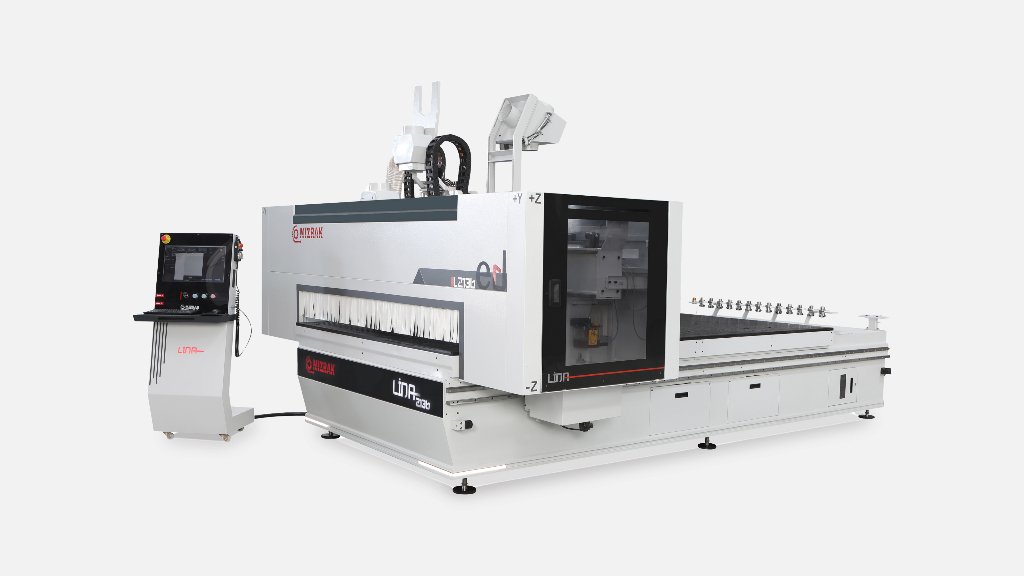

Mizrak LINA 2136 ED CNC Nesting Router

1 / 4

Mizrak publishes the LINA 2136 ED with a spec list identical to the LINA 2136: 7.5-9 kW HSD spindle, 13 HSK F63 holders, 48 vacuum points in 6 zones, 45 mm Z thickness, 30 m/min on Z and 90 m/min on Y. The LINA 2136 ED is therefore quoted as a variant pending supplier confirmation.

სამუშაო სიჩქარე: 30 m/min
შპინდელი: 7.5–9 kW HSD

ახალი
შეკვეთით

ფასი ფასი მოთხოვნით

The price of a LINA 2136 ED is driven by the tooling package bought for the 13 HSK F63 holders, the software licence term after the included 2D rental period, whether the vacuum and extraction plant are quoted with the machine, and transport, rigging and commissioning - and until Mizrak confirms how the ED differs from the LINA 2136, the two should be priced against each other on the same enquiry.

ფასის მოთხოვნა

WhatsApp +995 599 88 74 04

ირაკლი გაყიდვების მენეჯერი

კონფიგურაცია თქვენს ძაბვასა და ზომებზე
მიწოდება, მონტაჟი და გაშვება ადგილზე
ქარხნული გარანტია და სათადარიგო ნაწილები

What the LINA 2136 ED does

The LINA 2136 ED is the working middle of Mizrak’s LINA nesting range: a 7.5–9 kW HSD spindle machine that cuts panel up to 45 mm thick and moves at 90 m/min on the Y axis. Holding is handled by 48 automatic vacuum suction points arranged in 6 adjustable zones and fed by a 250 m³ vacuum pump, which is what allows the LINA 2136 ED to nest small parts from a full sheet without them lifting. Automatic tool measurement and a 13-holder HSK F63 changer keep tool setup off the operator.

Who the LINA 2136 ED suits

Furniture workshops moving from a beam saw and drilling machine to their first CNC are the target for the LINA 2136 ED. The specification is deliberately proportionate: enough spindle power and vacuum for continuous single-shift panel work, but 2D rental software rather than a 3D licence, which suits a shop whose output is flat cabinet parts. A workshop already doing three-dimensional machining or thick worktop work will find the 45 mm thickness limit of the LINA 2136 ED restrictive.

How the LINA 2136 ED compares in the LINA range

Below the LINA 2136 ED sits the LINA 2136 EVO, which shares the 7.5–9 kW spindle and 45 mm thickness but drops to 24 vacuum suction points and slower axes at 20 m/min on Z and 70 m/min on Y. Above it, the LINA 2136 PLUS X moves to an 11–13 kW HSD spindle, 60 mm thickness, 120 m/min on Y, a 15-holder magazine and 3D software. Mizrak currently publishes an identical specification list for the LINA 2136 ED and the plain LINA 2136, so the difference between those two models should be confirmed with the supplier in writing.

What is included with the LINA 2136 ED

Standard supply of the LINA 2136 ED covers the 13-position HSK F63 fixed tool changer, the 250 m³ vacuum pump, the tool cooling system, an automatic lubrication system, automatic tool measurement and tool assignment, a compact flat table, a handheld terminal and 2D software supplied on a rental licence. Cutters and holders are consumables quoted separately from the LINA 2136 ED, and chip extraction is a separate installation.

ძირითადი მახასიათებლები

Published spec list is identical to the LINA 2136 - Mizrak documents no distinguishing figure for the ED
7.5-9 kW HSD spindle motor with a tool cooling system
13 HSK F63 tool holders in a fixed automatic tool changer
48 automatic vacuum suction points across 6 adjustable zones
250 m³ vacuum pump supplying the zoned compact flat table
45 mm maximum working thickness on Z, with 30 m/min on Z and 90 m/min on Y
Automatic lubrication system and automatic tool measurement with tool assignment
Handheld terminal and 2D software on a rental licence

ტექნიკური მახასიათებლები

Fixed Tool Change: 13 pcs HSK F63
Vacuum Suction Points: 48 automatic points in 6 adjustable zones
Vacuum Pump: 250 m³
Max. Working Thickness (Z axis): 45 mm
Max. Working Speed (Z axis): 30 m/min
Max. Working Speed (Y axis): 90 m/min
Spindle Motor: 7.5–9 kW HSD
Tool Cooling System: Included
Lubrication System: Automatic
Software: 2D, rental licence
Working Table: Compact flat table
Tool Measurement: Automatic
Hand Terminal: Included

უპირატესობები

48 suction points in 6 adjustable zones on a 250 m³ pump — proper holding for small nested parts
Automatic tool measurement and a 13-place HSK F63 changer keep setup time down for a first CNC
Realistic spindle and axis specification for continuous single-shift panel work

გასათვალისწინებელი

45 mm maximum thickness rules out thick worktop and deep solid-timber work
2D software is a rental licence, so there is a recurring cost and no 3D programming
No drilling group listed, and Mizrak publishes no working area, footprint, weight or installed power

ხშირად დასმული კითხვები

How thick a workpiece can the LINA 2136 ED machine?

The LINA 2136 ED has a maximum working thickness of 45 mm on the Z axis, which covers 18 mm and doubled panel but not thick worktop stock. A workshop needing 60 mm should look at the LINA 2136 PLUS X or the LINA 2128 PLUS X instead of the LINA 2136 ED.

What working area does the LINA 2136 ED have?

Mizrak does not publish a working area, footprint or weight for the LINA 2136 ED in its current datasheet, so the sheet size and floor space required by the LINA 2136 ED must be confirmed in writing with the supplier before the workshop layout is planned.

What power supply does the LINA 2136 ED need?

The electrical rating of the LINA 2136 ED is not published by Mizrak, but the machine carries a 7.5–9 kW HSD spindle plus a 250 m³ vacuum pump, so a 400 V three-phase supply and compressed air are required. Confirm the installed power of the LINA 2136 ED before the electrical connection is prepared.

What software comes with the LINA 2136 ED?

The LINA 2136 ED is supplied with 2D software on a rental licence, not a perpetual 3D package. Buyers of the LINA 2136 ED should confirm the rental term and the renewal cost, and consider the LINA 2136 PLUS X if three-dimensional programming is needed.

What tooling does the LINA 2136 ED use?

The LINA 2136 ED uses HSK F63 tool holders and carries 13 of them in a fixed automatic changer, with automatic tool measurement and assignment. Cutters and holders for the LINA 2136 ED are consumables and are quoted separately.

Does the LINA 2136 ED drill construction holes?

Mizrak lists no vertical drilling group on the LINA 2136 ED, so construction holes are either routed with the main spindle or drilled on a separate machine. A workshop that wants a 9-spindle drilling head as standard should look at the LINA 2128 PLUS X.

How much does the LINA 2136 ED cost?

The LINA 2136 ED is supplied on quotation rather than at a published price. The figure moves with the cutter and tool-holder package bought for the 13 HSK F63 positions, the software licence term once the included 2D rental expires, whether the dust extraction plant is quoted with the machine, and transport, rigging and commissioning. Because Mizrak publishes the same specification for the LINA 2136 ED and the LINA 2136, ask for both to be priced on one enquiry.

Is the LINA 2136 ED built to order, and how long does it take?

The LINA 2136 ED is manufactured to order by Mizrak, so the current lead time is confirmed at quotation rather than published. Request the LINA 2136 ED delivery window together with pricing, and use the interval to bring three-phase power, compressed air and extraction ducting to the machine position.

What is needed on site to commission a LINA 2136 ED?

Commissioning a LINA 2136 ED requires a level industrial floor with clearance for hand-loading sheets, a position for the 250 m³ vacuum pump, a three-phase connection made by a qualified electrician, compressed air, and ducting to a dust extraction plant. Because Mizrak publishes no weight or footprint for the LINA 2136 ED, request those figures with the quotation before arranging offloading and floor preparation.

What should be budgeted separately from the LINA 2136 ED machine price?

Budget alongside the LINA 2136 ED for HSK F63 tool holders and router cutters to fill the 13-place changer, spoilboard material for the vacuum table, vacuum pump service items, a dust extraction plant with ducting, and renewal of the 2D software rental licence when the included term ends. These are itemised on the LINA 2136 ED quotation rather than assumed.
