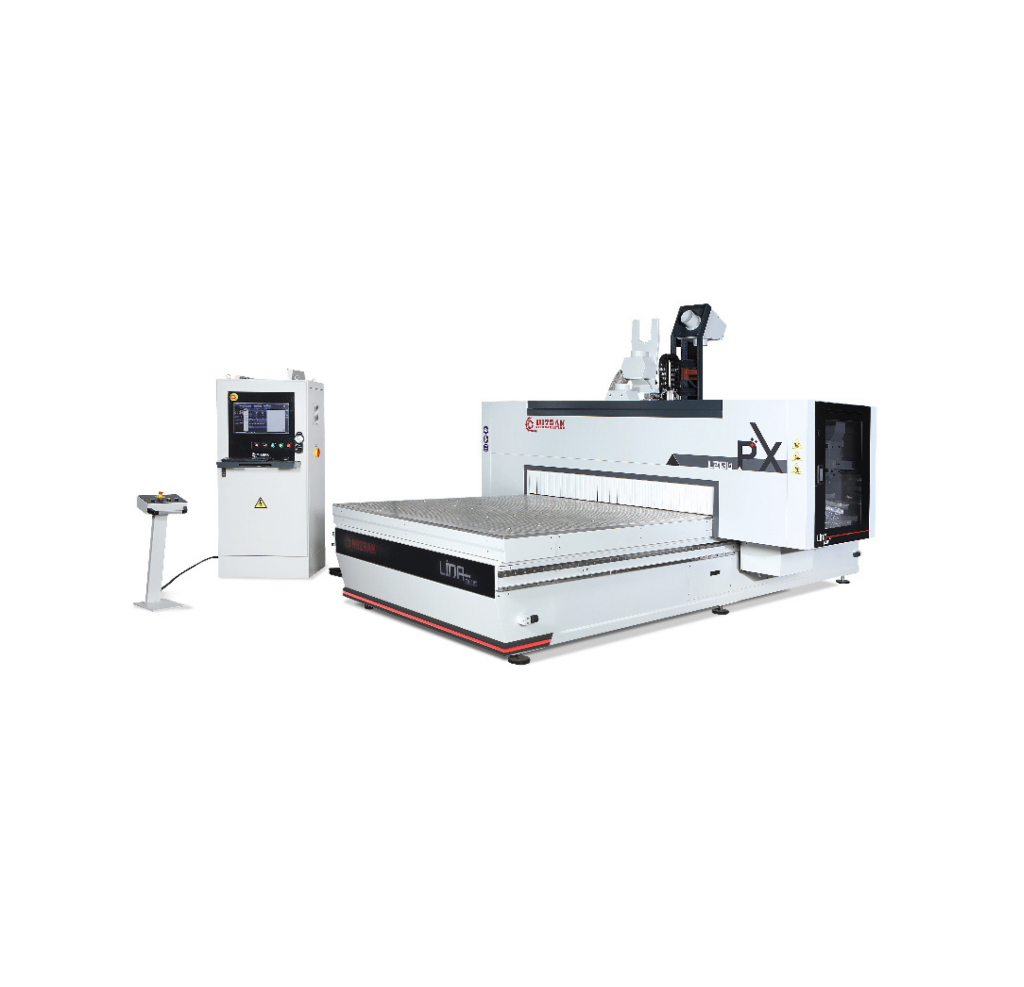

LINA 2136 PLUS X — Mizrak LINA 2136 PLUS X CNC Nesting Router 1 / 4

MIZRAK

Mizrak LINA 2136 PLUS X CNC Nesting Router

LINA 2136 PLUS X

On the LINA 2136 PLUS X the 9-spindle drilling group and aggregate are options rather than standard fittings, and the Z axis runs at 60 m/min against 40 m/min on the LINA 2128 PLUS X. An 11-13 kW HSD spindle, 15 HSK-F63 holders and 48 vacuum points in 8 zones handle 60 mm stock.

ფასი მოთხოვნით

The price of a LINA 2136 PLUS X is driven above all by which of the three Mizrak options are added - the 9-spindle vertical drilling unit, the 2-spindle aggregate and the 14-position bridge-type revolving magazine, all of which are standard on the LINA 2128 PLUS X - plus the number of HSK-F63 cutters bought to fill the 15-holder magazine, and transport, rigging and commissioning.

ფასის მოთხოვნა

What the LINA 2136 PLUS X does

The LINA 2136 PLUS X is Mizrak’s high-speed manual-load nesting router, built for shops that machine full sheets of panel all day and want cycle time rather than automation. Three figures define the LINA 2136 PLUS X: 60 mm of working thickness on the Z axis, 120 m/min of traverse on the Y axis, and an 11–13 kW HSD spindle. Combined with 48 automatic vacuum suction points arranged in 8 zones on an aluminium flat table, the LINA 2136 PLUS X holds small nested parts down at feed rates where a lighter machine would start losing them.

Who the LINA 2136 PLUS X suits

Furniture workshops with an established CNC operator are the right buyer for the LINA 2136 PLUS X. The 15-holder fixed magazine means a full set of nesting, drilling, grooving and finishing tools stays loaded between jobs, which only pays off in a shop running varied work rather than one repeated cutting list. The 3D software supplied with the LINA 2136 PLUS X also implies three-dimensional part programming, so the machine suits a producer whose work goes beyond flat two-dimensional nesting.

How the LINA 2136 PLUS X compares in the LINA range

The LINA 2136 PLUS X sits above the LINA 2136 and LINA 2136 ED, which use a 7.5–9 kW HSD spindle, cut 45 mm rather than 60 mm, reach 90 m/min on Y and run 2D rental software on a compact table. Above the LINA 2136 PLUS X sits the LINA 2128 PLUS X, which includes a 9-spindle drilling group, an F63 twin-output aggregate and 14 rotary tools as standard, and the fully automatic LINA 2136 LINE with its 25-sheet scissor lift. On the LINA 2136 PLUS X those machining units are options, not standard.

What is included with the LINA 2136 PLUS X

Standard supply of the LINA 2136 PLUS X covers the fixed 15-place HSK-F63 magazine, the 250 m³/h Becker vacuum pump, the tool cooling system, automatic lubrication, the aluminium flat table and an industrial PC-based touchscreen control panel with 3D software. Three units are listed as options on the LINA 2136 PLUS X and must be specified at order: a 9-spindle vertical drilling unit, a 2-spindle aggregate unit and a 14-position bridge-type revolving magazine.

ძირითადი მახასიათებლები

  • 60 m/min on the Z axis against 40 m/min on the LINA 2128 PLUS X, with 120 m/min on Y
  • Optional 9-spindle vertical drilling unit, 2-spindle aggregate unit and 14-position bridge-type revolving magazine - standard fittings on the LINA 2128 PLUS X
  • 11-13 kW HSD spindle motor with a tool cooling system for continuous nesting work
  • Fixed tool magazine carrying 15 HSK-F63 holders so a full tool set stays loaded between jobs
  • 60 mm maximum working thickness on the Z axis
  • 48 automatic vacuum suction points in 8 zones on an aluminium flat table
  • 250 m³/h Becker vacuum pump supplying the zoned table
  • Industrial PC-based touchscreen control panel supplied with 3D software
  • Automatic lubrication system built in

ტექნიკური მახასიათებლები

Fixed Tool Magazine
15 HSK-F63 holders
Spindle Motor
11–13 kW HSD
Max. Working Thickness (Z axis)
60 mm
Max. Processing Speed (Z axis)
60 m/min
Max. Working Speed (Y axis)
120 m/min
Vacuum Suction Points
48 automatic points in 8 zones
Vacuum Pump
250 m³/h Becker
Working Table
Aluminium flat table
Tool Cooling System
Included
Lubrication System
Automatic
Control System
Industrial PC-based touchscreen control panel
Software
3D
9-Spindle Vertical Drilling Unit
Optional
2-Spindle Aggregate Unit
Optional
14-Position Revolving Magazine (bridge type)
Optional

უპირატესობები

  • 120 m/min on the Y axis and a 60 m/min Z put it at the fast end of Mizrak's nesting range
  • 15 HSK-F63 holders in a fixed magazine keep a complete tool set loaded across varied jobs
  • 3D software and an industrial PC touchscreen control support work beyond flat 2D nesting

გასათვალისწინებელი

  • Drilling head, aggregate unit and revolving magazine are all options, adding cost against the LINA 2128 PLUS X
  • Mizrak publishes no working area, footprint, weight or installed power for this model — confirm before layout
  • Manual sheet loading only, and a 400 V three-phase supply with compressed air is mandatory

ხშირად დასმული კითხვები

How thick a workpiece can the LINA 2136 PLUS X machine?
The LINA 2136 PLUS X has a maximum working thickness of 60 mm on the Z axis, which covers standard 18 mm furniture panel, doubled panel, worktop material and solid components within that range.
What working area does the LINA 2136 PLUS X have?
Mizrak does not publish a working area figure for the LINA 2136 PLUS X in its current datasheet. The 2136 designation is shared with the LINA 2136 LINE, which is listed at 2100 x 3660 mm, but the working area of the LINA 2136 PLUS X should be confirmed in writing before the workshop layout is planned.
What power supply does the LINA 2136 PLUS X need?
Mizrak does not publish the electrical rating of the LINA 2136 PLUS X, but the machine carries an 11–13 kW HSD spindle plus a 250 m³/h vacuum pump, so a 400 V three-phase supply is required. The exact installed power and connection details for the LINA 2136 PLUS X must be confirmed with the supplier before electrical work begins.
What tooling does the LINA 2136 PLUS X use?
The LINA 2136 PLUS X uses HSK-F63 tool holders and its fixed magazine carries 15 of them. Cutters, holders and collets for the LINA 2136 PLUS X are consumables and are quoted separately from the machine.
Does the LINA 2136 PLUS X include a drilling head?
No — the 9-spindle vertical drilling unit is an option on the LINA 2136 PLUS X, as are the 2-spindle aggregate unit and the 14-position bridge-type revolving magazine. A workshop that needs drilling and aggregate work as standard should look at the LINA 2128 PLUS X, which includes both.
Does the LINA 2136 PLUS X load sheets automatically?
No — the LINA 2136 PLUS X is a manually loaded router. Automatic sheet loading, stack referencing and barcode labelling belong to the LINA 2136 LINE, which adds a double scissor lift holding 25 sheets.
How much does the LINA 2136 PLUS X cost?
The LINA 2136 PLUS X is supplied on quotation rather than at a list price, and the biggest single variable is optional content: the 9-spindle vertical drilling unit, the 2-spindle aggregate unit and the 14-position bridge-type revolving magazine are all extras on this model. Tooling to fill the 15-holder HSK-F63 magazine, transport, rigging and commissioning also move the figure. State which options are wanted and a LINA 2136 PLUS X quotation will be prepared.
What is the lead time on a LINA 2136 PLUS X?
The LINA 2136 PLUS X is built to order by Mizrak, and adding the optional drilling unit, aggregate or revolving magazine affects the build, so the current lead time is confirmed at quotation once the specification is fixed. Ask for the LINA 2136 PLUS X delivery window at the same time as the option pricing.
What has to be ready on site before a LINA 2136 PLUS X is commissioned?
Before a LINA 2136 PLUS X is commissioned, the site needs a level industrial floor with room for hand-loading full sheets, a position for the 250 m³/h Becker vacuum pump, a three-phase connection made by a qualified electrician, a compressed air supply, and ducting to a dust extraction plant. Because Mizrak does not publish the footprint, weight or installed power of the LINA 2136 PLUS X, request those figures with the quotation before pouring or preparing the floor.
What tooling and consumables should be budgeted with a LINA 2136 PLUS X?
Budget alongside the LINA 2136 PLUS X for HSK-F63 tool holders and cutters to fill the 15-place magazine, spoilboard material for the aluminium vacuum table, vacuum pump service items, and a dust extraction plant with ducting. If construction holes are needed, the 9-spindle drilling unit is an option on the LINA 2136 PLUS X and must be added at order rather than retrofitted casually.
