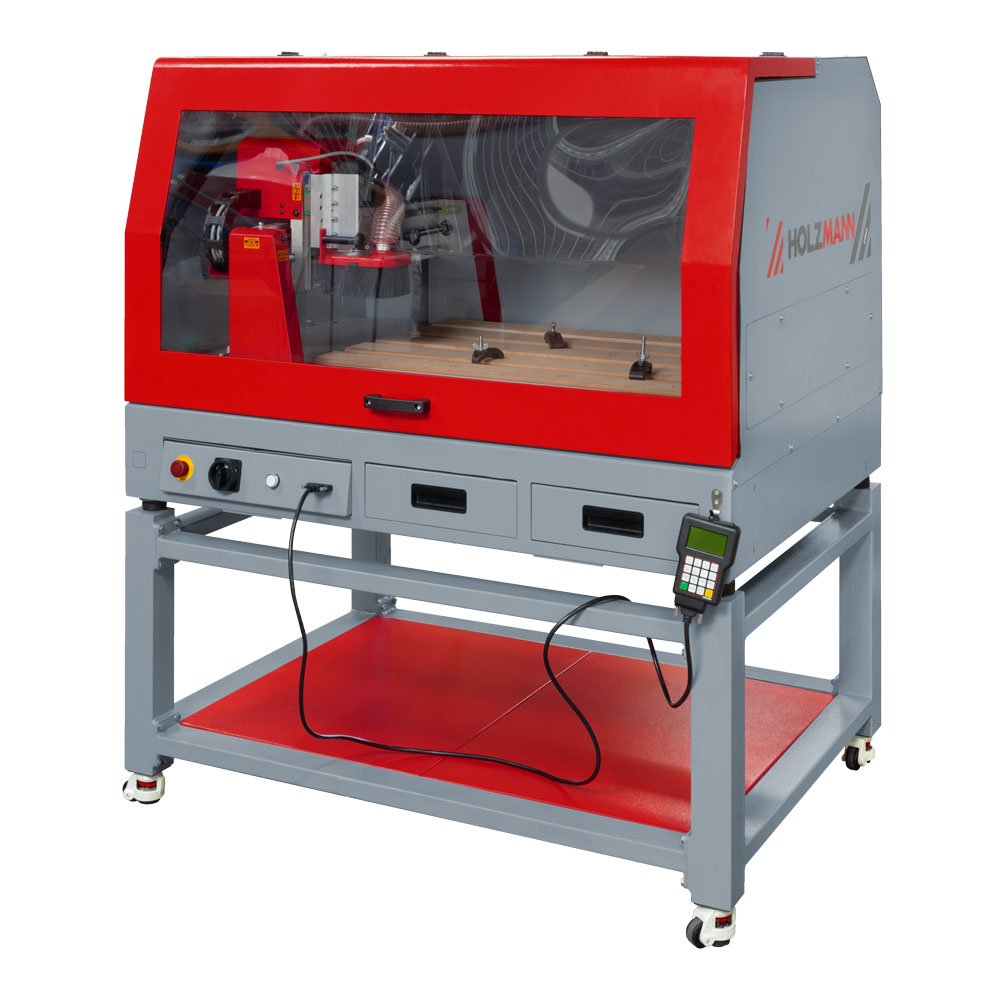

HOLZMANN CTF69 CNC Table Router with Base Frame and Enclosure

CTF69

915 mm of X travel and three ready-to-cut collets (1/2", 8 mm, 10 mm) are what separate the CTF69 from the ATC version, which ships its holders empty. The enclosed 360 kg router machines wood and plastic with a 2500 W spindle to 24000 rpm across 915 x 610 x 140 mm, on 230 V single-phase.

ფასი მოთხოვნით

The CTF69 price moves with the cutters and any collets beyond the three supplied, the clamping and fixturing set specified, CAM software if not already owned, an extractor sized for the Ø 100 mm port, commissioning and training attendance, and freight plus rigging of a 430 kg crate 1800 mm long.

ფასის მოთხოვნა

What the HOLZMANN CTF69 CNC router does

The CTF69 is the machine that moves a furniture workshop from hand-marked components to programmed ones. Designed for machining wood and plastic workpieces, the CTF69 works within travels of 915 mm on the X axis, 610 mm on Y and 140 mm on Z, driving a 2500 W spindle from 0 to 24000 rpm through an ER20 adapter that takes shanks up to 1/2 inch (12.7 mm). Maximum milling diameter on the CTF69 is 75 mm. That envelope covers cabinet doors, drawer fronts, shaped seat parts, jigs, signage and pocketed joinery components in one setup, at a repeatability no hand router matches.

Why the enclosure and base frame matter

The CTF69 is delivered complete on a base frame with casters and inside an enclosed housing, and both of those change what a workshop can do with it. The enclosure keeps chips and noise contained, which is what makes the CTF69 usable in workshops with limited space where a machine cannot be given its own room. The base frame on casters means the CTF69 arrives at working height without a bench being built for it, and can be repositioned during a workshop layout change despite a net weight of 360 kg. Extraction connects at Ø 100 mm.

CTF69 against the CTF45P and the CTF69ATC

The CTF69 sits in the middle of the HOLZMANN CNC router range and the choice between the three models is clear. The benchtop CTF45P is an entry machine with an 80 W spindle and a 460 x 460 mm working area, suited to engraving and small parts. The CTF69 is a floor-standing production machine with a 2500 W spindle and 915 x 610 mm travel. Above it, the CTF69ATC extends X travel to 1100 mm and adds a 5-position automatic tool changer and a vacuum table. A workshop that changes cutters a few times per job and clamps mechanically should buy the CTF69; a workshop running multi-tool programs unattended should pay for the CTF69ATC.

What is included with the CTF69

The CTF69 is delivered with three collets (Ø 1/2 inch, Ø 8 mm and Ø 10 mm), the base frame with casters and four clamping clamps for holding work to the table. Workpieces on the CTF69 are held by those mechanical clamps, so nesting layouts have to leave clamping room. The CTF69 ships at 430 kg gross with overall dimensions of 1445 x 1042 x 1670 mm.

ძირითადი მახასიათებლები

  • 915 mm X travel - 185 mm shorter than the CTF69ATC, and why the CTF69 needs only a 1445 x 1042 mm floor patch
  • Three ready-to-cut collets supplied (Ø 1/2", Ø 8 mm, Ø 10 mm), so the CTF69 can be tooled up without a separate collet order
  • 360 kg net / 430 kg gross - 110 kg lighter than the CTF69ATC to unload, move and site
  • Manual tool change from the ER20 adapter (shanks to 1/2", 12.7 mm); four mechanical clamping clamps hold the work
  • One 2500 W load on the circuit: HOLZMANN lists a single spindle motor for the CTF69, with no second pump motor to power
  • Enclosed housing on a casters base frame, 1445 x 1042 x 1670 mm overall, crated at 1800 x 1160 x 1160 mm
  • Spindle speed variable 0 - 24000 rpm with a 75 mm maximum cutter diameter
  • 610 mm Y and 140 mm Z travel, Ø 100 mm extraction port, 230 V / 50 Hz single-phase

ტექნიკური მახასიათებლები

Motor power S1 (spindle)
2500 W
Voltage
230 V / 50 Hz
Travel X-axis
915 mm
Travel Y-axis
610 mm
Travel Z-axis
140 mm
Milling spindle speed
0 - 24000 rpm
Milling adapter
max. 1/2" (ER20, 12.7 mm shank)
Max. milling diameter
75 mm
Dust collector port
Ø 100 mm
Total dimensions
1445 x 1042 x 1670 mm
Sound power level
93 dB(A)
Sound pressure level
82 dB(A)
Net weight
360 kg
Gross weight
430 kg
Included in delivery
3 collets (Ø 1/2", Ø 8 mm, Ø 10 mm), base frame with casters, 4 clamping clamps
EAN code
9120132141561

უპირატესობები

  • 2500 W spindle and 915 x 610 mm travel on an ordinary 230 V single-phase supply
  • Enclosure and base frame with casters included, so the CTF69 is ready to run without site fabrication
  • 0-24000 rpm variable speed with ER20 collets covers wood and plastic cutters up to 75 mm diameter

გასათვალისწინებელი

  • No automatic tool changer: every cutter change on the CTF69 stops the program
  • Mechanical clamps only, no vacuum table, so nesting layouts lose area to clamping
  • 360 kg net and a 1445 x 1042 mm footprint make the CTF69 a permanent installation in a small shop

ხშირად დასმული კითხვები

Does the HOLZMANN CTF69 need 230V or 400V?
The HOLZMANN CTF69 runs on 230 V / 50 Hz single-phase, so no three-phase 400V connection is required. That matters in Georgia, where many furniture workshops have only a single-phase supply: the CTF69 delivers a 2500 W spindle without the electrical upgrade a 400V machine would force.
What does the HOLZMANN CTF69 not do?
The HOLZMANN CTF69 does not change tools automatically and has no vacuum table: workpieces on the CTF69 are held with the four supplied mechanical clamps and cutters are changed by hand. The CTF69 is also built for wood and plastic, not for steel, and its 140 mm Z travel limits how thick a workpiece and how long a cutter it can accommodate.
What size workpiece fits the HOLZMANN CTF69?
The HOLZMANN CTF69 has travels of 915 mm in X, 610 mm in Y and 140 mm in Z. A workpiece on the CTF69 must fit within that machining envelope with room left over for the four clamps, so the usable part size is somewhat smaller than the raw travel figures.
Which cutters fit the HOLZMANN CTF69?
The HOLZMANN CTF69 uses an ER20 milling adapter for shanks up to 1/2 inch (12.7 mm), and is delivered with three collets in Ø 1/2 inch, Ø 8 mm and Ø 10 mm. Maximum cutter diameter on the CTF69 is 75 mm, so large profile heads from a spindle shaper cannot be used.
What is the difference between the HOLZMANN CTF69 and the CTF69ATC?
The HOLZMANN CTF69 has 915 mm of X travel and arrives with three usable collets (Ø 1/2", Ø 8 mm, Ø 10 mm), so a CTF69 can be tooled and cutting without a separate collet order. The CTF69ATC stretches X travel to 1100 mm and adds a 5-position automatic tool changer and a vacuum table on a 1500 W pump, but supplies its 5 ISO20 ER20 holders without collets. Y travel of 610 mm, Z travel of 140 mm, the 2500 W spindle, the 0-24000 rpm range, the 75 mm maximum cutter diameter and the Ø 100 mm extraction port are identical on both; the CTF69 weighs 360 kg net against 470 kg for the CTF69ATC.
How is the HOLZMANN CTF69 installed and extracted?
The HOLZMANN CTF69 arrives on its own base frame with casters, at 430 kg gross and 1445 x 1042 x 1670 mm overall, so no bench or foundation is built for it. Extraction on the CTF69 connects at Ø 100 mm and should be running whenever the machine cuts, because the enclosure keeps chips inside the housing.
What does a HOLZMANN CTF69 cost?
The HOLZMANN CTF69 is quoted rather than shelf-priced. What drives a CTF69 figure is the cutter set and any collets beyond the three supplied (Ø 1/2", Ø 8 mm, Ø 10 mm), the clamping and fixturing you need beyond the four supplied clamps, CAM software if you do not already have it, an extractor able to serve the Ø 100 mm port, commissioning and training attendance, and freight and rigging of a 430 kg crate. Tell us the parts the CTF69 will produce and it is quoted as a working cell rather than a bare machine.
How long does delivery of a HOLZMANN CTF69 take?
The HOLZMANN CTF69 is built to order, so the CTF69 lead time is confirmed at quotation rather than published in advance. It depends on the HOLZMANN production slot and on the shipping route into Georgia for a crate 1800 mm long and 430 kg gross, and it is stated with the price when you request a quote.
What is involved in installing and commissioning a HOLZMANN CTF69?
Commissioning a HOLZMANN CTF69 means unloading a 430 kg crate, rolling the machine on its supplied casters base frame onto level floor with 1445 x 1042 mm of footprint plus loading access on the long side, connecting a 230 V / 50 Hz single-phase circuit sized for the 2500 W spindle, connecting the Ø 100 mm port to a running extractor, then squaring the axes, setting tool and work offsets and proving a first program. Installation attendance for the CTF69 can be included in the quotation.
What tooling and consumables should be budgeted separately with a HOLZMANN CTF69?
Budget separately from the CTF69 machine price for cutters (the ER20 adapter takes shanks to 1/2" / 12.7 mm and cutters to 75 mm diameter), collets in any size beyond the three supplied, spoilboard material for the bed, additional clamps or fixtures beyond the four included, and a CAM package if you do not own one. Extraction ducting and an extractor for the Ø 100 mm port are the other CTF69 line item most often forgotten.
