HBS230ECO — HOLZMANN HBS230ECO Benchtop Wood Bandsaw – 230 mm Throat, 16 kg 1 / 3

HOLZMANN

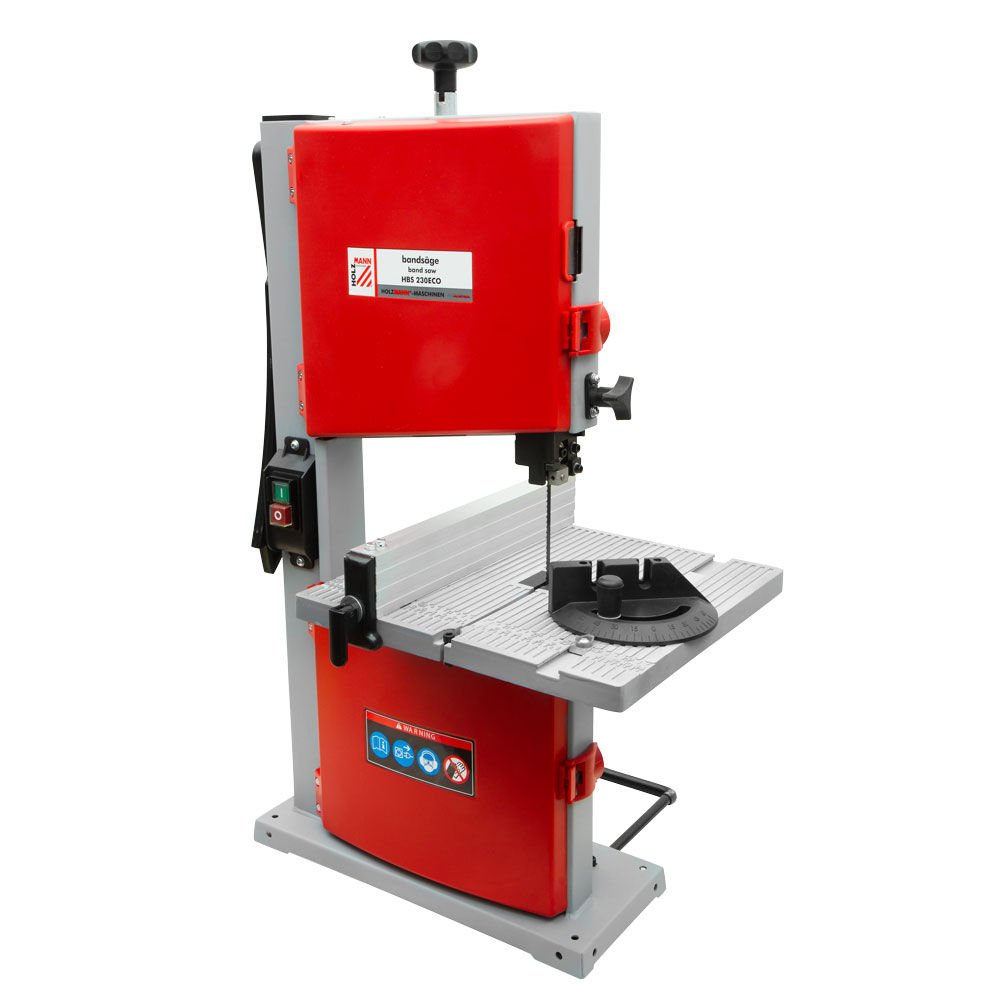

HOLZMANN HBS230ECO Benchtop Wood Bandsaw – 230 mm Throat, 16 kg

HBS230ECO

Weight is the deciding number here: the HOLZMANN HBS230ECO comes in at 16 kg net where the HBS450 starts at 161 kg, so it works on a bench instead of taking floor space. A 350 W motor turning 1450 min-1 runs from a normal 230V socket, cutting 90 mm high within a 230 mm throat on 230 mm flywheels.

ფასი მოთხოვნით

The HBS230ECO quotation is moved mainly by order quantity — schools and workshops taking several units are priced differently from a single machine — plus the number of spare 1575 x 6-10 mm bands added, freight for a 20 kg gross carton, and the exchange rate at the date of issue.

ფასის მოთხოვნა

What the HOLZMANN HBS230ECO does

The HOLZMANN HBS230ECO is the entry point to the HOLZMANN bandsaw range: a light benchtop machine for curved cuts, small parts and model work rather than production sawing. The HBS230ECO cuts up to 90 mm high, has a throat depth of 230 mm and runs narrow bands of 1575 x 6-10 mm at 762 m/min. That combination is aimed at plywood, small solid-wood parts, trim and hobby joinery, and the HBS230ECO is presented by HOLZMANN as a DIY model with a strong price-performance ratio.

Size, table and setup

At 16 kg net and 510 x 650 x 810 mm overall, the HBS230ECO is carried by one person and clamped or bolted to a bench, which is exactly what most small shops need from a second saw. The table measures 300 x 300 mm and swivels from 0° to 45° for bevel cuts. The 350 W motor runs at 1450 min-1 on a 230V / 50 Hz socket, so no special installation is required. Rip fence, mitre gauge and push stick are included, so the HBS230ECO is usable straight out of the box.

Chip extraction

The HBS230ECO has a Ø54 mm dust port, sized for a shop vacuum rather than a large extraction system. Sound power level is 94 dB(A) and sound pressure 81 dB(A), noticeably quieter than the larger floor-standing HOLZMANN bandsaws.

How the HBS230ECO compares in the HOLZMANN range

The HBS230ECO shares its 230 mm flywheel size and 90 mm cutting height with the HOLZMANN HBS230HQ, and sits far below the HBS450, which cuts to 330 mm and runs a 1.5 kW motor on a floor-standing frame. Choose the HBS230ECO when the work is small and occasional; choose the HBS450 or HBS600DELUX when boards and blanks have to be resawn.

Who the HBS230ECO suits

The HOLZMANN HBS230ECO suits small joinery workshops in Georgia that need a low-cost curve-cutting saw alongside their main machines, plus carpenters, model makers and school workshops. Workshops cutting hardwood thicker than 90 mm should not consider the HBS230ECO at all.

ძირითადი მახასიათებლები

  • 16 kg net and 20 kg gross — light enough for one person to lift onto a bench
  • 350 W motor turning 1450 min-1, protection type IP 20, off any 230V / 50 Hz socket
  • 90 mm cutting height inside a 230 mm throat, on 230 mm flywheels
  • Narrow 1575 x 6-10 mm bands run at 762 m/min for curves and small parts
  • 300 x 300 mm table swivelling 0° - 45°; whole machine measures 510 x 650 x 810 mm
  • 81 dB(A) sound pressure and 94 dB(A) sound power — 9 dB under the HBS450
  • Ø54 mm spigot sized for a shop vacuum rather than a Ø100 mm chip extractor
  • Rip fence, mitre gauge and push stick named in the HOLZMANN highlights

ტექნიკური მახასიათებლები

Motor power S1
350 W
Voltage
230V / 50 Hz
Motor speed
1450 min-1
Motor protection type
IP 20
Outreach (throat depth)
230 mm
Table size
300 x 300 mm
Dust collector port
54 mm
Total dimensions
510 x 650 x 810 mm
Table swivel range
0° - 45°
Max. cutting height at 90°
90 mm
Saw band
1575 x 6-10 mm
Saw band speed
762 m/min
Flywheel diameter
230 mm
Sound power level
94 dB(A)
Sound pressure level
81 dB(A)
Net weight
16 kg
Gross weight
20 kg
EAN code
9120058376689

უპირატესობები

  • Only 16 kg and 510 x 650 x 810 mm, so the HBS230ECO can sit on a bench and be stored away
  • Rip fence, mitre gauge and push stick are included, with no extras needed to start work
  • Runs from an ordinary 230V socket at 350 W and just 81 dB(A) sound pressure

გასათვალისწინებელი

  • Maximum cutting height of only 90 mm rules out resawing and thick stock
  • Band width limited to 6-10 mm, so no wide resaw bands can be fitted
  • Ø54 mm port needs a vacuum or an adapter, not a standard Ø100 mm workshop extractor

ხშირად დასმული კითხვები

What power supply does the HOLZMANN HBS230ECO need?
The HOLZMANN HBS230ECO runs on a normal 230V / 50 Hz single-phase socket and draws 350 W, so no three-phase 400V connection is needed. There is no 400V version of the HBS230ECO; workshops that need a three-phase bandsaw should look at the HOLZMANN HBS450 or HBS600DELUX.
How thick a piece can the HBS230ECO cut?
The HOLZMANN HBS230ECO cuts up to 90 mm in height, with 230 mm of clearance between the band and the frame. Stock thicker than 90 mm cannot pass under the upper guide of the HBS230ECO.
What does the HBS230ECO not do?
The HOLZMANN HBS230ECO does not resaw thick hardwood, does not accept wide resaw bands and is not built for continuous production. The HBS230ECO takes bands only 6 to 10 mm wide, so it is a curve-cutting and small-parts saw, not a substitute for a floor-standing bandsaw.
Is anything included with the HOLZMANN HBS230ECO?
Yes. The HOLZMANN HBS230ECO includes a rip fence, a mitre gauge and a push stick, so straight cuts, mitres and safe narrow ripping are possible from the first day.
Can the HBS230ECO be connected to dust extraction?
The HOLZMANN HBS230ECO has a 54 mm dust port, which suits a workshop vacuum cleaner. A large Ø100 mm chip extractor will need an adapter to fit the HBS230ECO.
Is the HBS230ECO portable?
Yes. The HOLZMANN HBS230ECO weighs 16 kg net and measures 510 x 650 x 810 mm, so one person can lift it onto a bench and move it between sites.
How much does the HOLZMANN HBS230ECO cost?
The HOLZMANN HBS230ECO is quoted on request like the rest of our HOLZMANN range, and being a small 16 kg benchtop machine its price is moved by different things than the floor saws: the quantity ordered, since schools and workshops taking several HBS230ECO units are priced differently from a single unit, the number of spare 1575 x 6-10 mm bands included, freight on a 20 kg carton, and the exchange rate on the quotation date. Send the quantity you need and we price it.
How quickly can a HBS230ECO be supplied?
The HOLZMANN HBS230ECO is supplied to order and the current lead time is confirmed at quotation. It travels as a 20 kg carton rather than a crated floor machine, so ask for the shipping window together with the price for the HBS230ECO and we confirm both in writing.
Does the HBS230ECO need installation or commissioning?
No commissioning visit is needed for the HOLZMANN HBS230ECO. It is set on a solid bench that will carry its 16 kg plus the workpiece, secured so it cannot move under load, plugged into an ordinary 230V / 50 Hz socket, and connected to a shop vacuum through the Ø54 mm spigot. Band tension and tracking are checked before the first cut — that is the whole setup for the HBS230ECO.
What extras should be budgeted with a HBS230ECO?
The main running cost on a HOLZMANN HBS230ECO is bands: 1575 mm loops in 6 to 10 mm widths, which are consumables on a curve-cutting saw. Beyond those, budget for a shop vacuum if you do not have one, since the Ø54 mm port on the HBS230ECO does not take a Ø100 mm workshop extractor without an adapter, and a stable bench to mount it on.
