HBS450 — HOLZMANN HBS450 Wood Bandsaw – Two Band Speeds, 330 mm Cutting Height 1 / 4

HOLZMANN

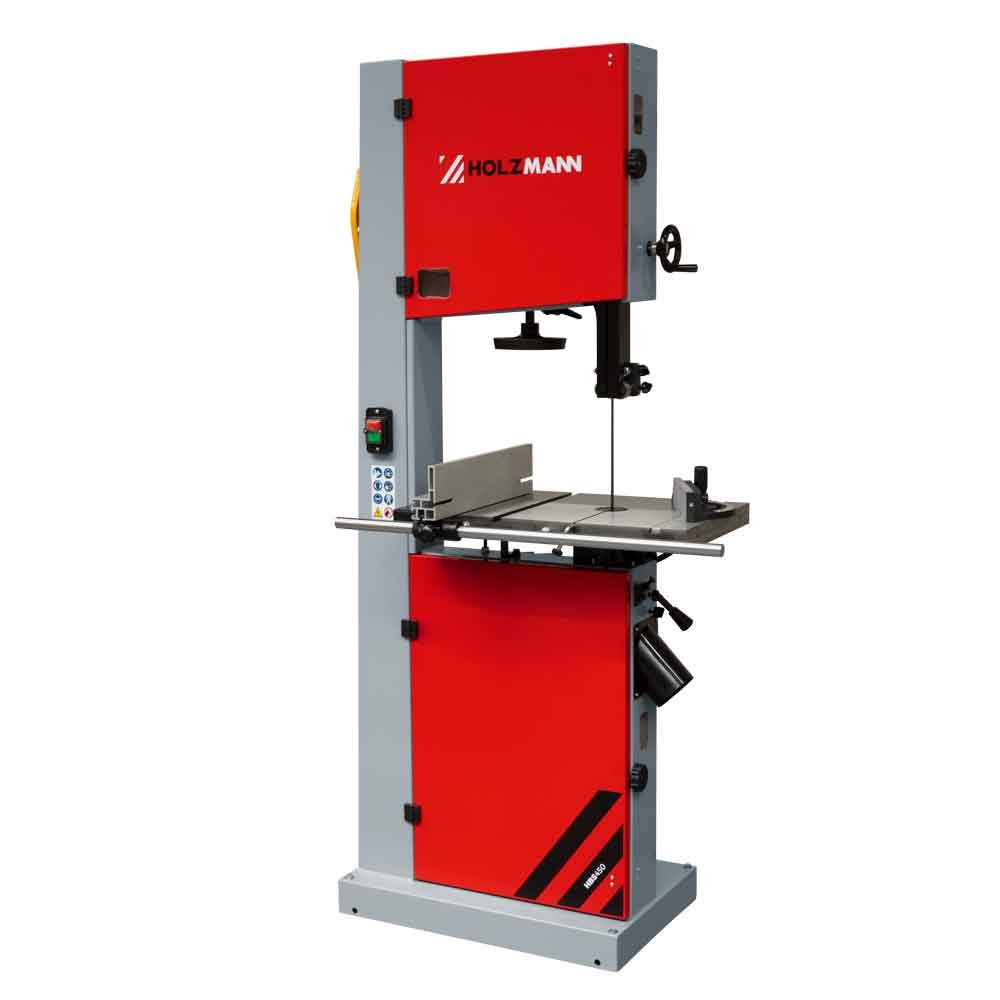

HOLZMANN HBS450 Wood Bandsaw – Two Band Speeds, 330 mm Cutting Height

HBS450

Two band speeds and a choice of supply separate the HOLZMANN HBS450 from the single-speed, 400V-only HBS600DELUX: 400 m/min for dense hardwood, 900 m/min for a cleaner finish in softwood, ordered as either 230V single-phase or 400V three-phase. A 1500 W motor turns 450 mm flywheels behind a 447 mm throat.

ფასი მოთხოვნით

The HBS450 price is driven by the variant chosen (230V or 400V), freight for a 180 kg gross crate, how many spare 3886 mm bands in the 6-33 mm range go on the order, and whether a dust extractor for the two Ø100 mm ports is quoted with the machine.

ფასის მოთხოვნა

What the HOLZMANN HBS450 does

The HOLZMANN HBS450 is the practical middle of the HOLZMANN bandsaw range: enough capacity for real joinery work, but still available for a single-phase workshop. The HBS450 cuts up to 330 mm high, rips up to 393 mm against the parallel fence and offers a throat depth of up to 447 mm, so panels and wide boards clear the frame. Cutting height is set with a hand wheel driving a gear rack, which keeps the upper guide close to the workpiece where it belongs.

Two band speeds, one machine

The defining feature of the HBS450 is its two-speed drive. The slow setting of 400 m/min suits dense hardwood and thick resawing, while 900 m/min gives a cleaner finish in softwood and thinner stock. The HBS450 takes 3886 mm bands in widths from 6 to 33 mm, so the same machine runs a narrow band for curved work and a wide band for straight resawing. The table measures 546 x 400 mm, sits at a comfortable 960 mm working height and tilts from -5° to +45° on a splined guide for bevel cuts.

Extraction and chip handling

Unlike smaller bandsaws, the HBS450 has two Ø100 mm dust collector connections, one at each chip source, which keeps the band and table clear when cutting deep. A separate extraction unit is required; the HBS450 does not include one. Sound power level is 100 dB(A) and sound pressure 90 dB(A).

How the HBS450 compares in the HOLZMANN range

Compared with the industrial HOLZMANN HBS600DELUX, which runs 600 mm flywheels and a 4 kW motor on 400V only, the HBS450 trades cutting height and power for a smaller footprint, 161 kg net weight and the option of single-phase supply. A workshop that cuts hardwood beams all day should go up to the HBS600DELUX; a workshop that resaws boards and cuts curves is better matched to the HBS450.

Delivery and who the HBS450 suits

The HOLZMANN HBS450 is delivered with one saw band, a mitre gauge and a fence, and stands 958 x 664 x 1910 mm on the floor. The HBS450 suits furniture workshops, joineries and cabinet shops in Georgia that need genuine 330 mm cutting capacity without committing to a three-phase installation.

ძირითადი მახასიათებლები

  • Two selectable band speeds, 400 m/min and 900 m/min, where the HBS600DELUX runs one fixed speed
  • Ordered either as HBS450_230V single-phase or HBS450_400V three-phase, 1500 W S1 in both
  • Table tilts -5° to +45° on a splined guide, so bevels run either side of square
  • 3886 mm bands from 6 mm to 33 mm wide, covering curve work as well as ripping
  • 447 mm maximum outreach with 393 mm rip width at the aluminium parallel fence
  • 161 kg net, 958 x 664 x 1910 mm overall, table surface 546 x 400 mm at 960 mm height
  • Rated 90 dB(A) sound pressure and 100 dB(A) sound power; 3 m connecting cable
  • Delivered with one saw band, a mitre gauge and a fence

ტექნიკური მახასიათებლები

Motor power S1
1500 W
Voltage
230 V / 50 Hz
Cable length
3 m
Outreach (throat depth)
max. 447 mm
Table size
546 x 400 mm
Table height
960 mm
Dust collector port
2 x Ø 100 mm
Total dimensions
958 x 664 x 1910 mm
Max. cutting width at parallel fence
393 mm
Saw band length
3886 mm
Saw band width
6 - 33 mm
Saw band speed
(I): 400 m/min, (II): 900 m/min
Flywheel diameter
450 mm
Sound power level
100 dB(A)
Sound pressure level
90 dB(A)
Net weight
161 kg
Gross weight
180 kg
EAN code (230V version)
9120058379598
EAN code (400V version)
9120058379604

უპირატესობები

  • Available in both 230V and 400V, so single-phase workshops are not excluded
  • Two band speeds (400 / 900 m/min) cover hardwood resawing and clean softwood cuts on one machine
  • Hand wheel and gear rack height adjustment plus a -5° to +45° tilting table make setup quick and repeatable

გასათვალისწინებელი

  • 1.5 kW motor limits sustained resawing in dense hardwood compared with larger HOLZMANN bandsaws
  • Feeding is manual only; there is no powered feed
  • At 161 kg the HBS450 is a fixed floor machine, and extraction is not included

ხშირად დასმული კითხვები

Is the HOLZMANN HBS450 available in 230V and 400V?
Yes. The HOLZMANN HBS450 is offered as two variants of the same machine: HBS450_230V for a single-phase 230 V / 50 Hz supply and HBS450_400V for three-phase. A small joinery on a domestic connection should order the 230V HBS450; a workshop with a three-phase board will usually prefer the 400V version for a steadier start under load.
What are the two saw band speeds of the HBS450 for?
The HOLZMANN HBS450 runs at 400 m/min or 900 m/min. The lower speed of the HBS450 is used for hard, dense or thick timber, while 900 m/min gives a smoother cut surface in softwood and thinner sections.
What does the HBS450 not do?
The HOLZMANN HBS450 does not cut logs, does not feed the timber automatically and does not plane or thickness. The HBS450 is a hand-fed vertical bandsaw for boards, blanks and shaped work; round logs need a head band saw such as the HOLZMANN BBS350.
How high can the HOLZMANN HBS450 cut?
HOLZMANN quotes 330 mm of cutting height for the HBS450 in the model introduction, but it is worth knowing where that number comes from: the HBS450 spec table itself publishes no cutting-height row, listing only 393 mm maximum rip width at the parallel fence and 447 mm maximum outreach between band and frame. Use 330 mm as the manufacturer's stated figure, and ask us to confirm it against the machine's own data plate if your work depends on the last few millimetres of height on the HBS450.
Does the HBS450 need dust extraction?
Yes. The HOLZMANN HBS450 has two Ø100 mm extraction connections and should be connected to a workshop dust collector; no extraction unit is included with the HBS450.
What is supplied with the HOLZMANN HBS450?
The HOLZMANN HBS450 is delivered with one saw band fitted, a mitre gauge and a fence — that is the full published scope of delivery. Anything else for the HBS450 is ordered separately: spare bands in the 6 to 33 mm width range, a dust extractor for the two Ø100 mm connections and the hose to reach it, and support stands for boards longer than the 546 x 400 mm table.
What decides the quoted price of a HOLZMANN HBS450?
The HOLZMANN HBS450 is quoted rather than listed at a fixed price, and four things move the figure: which variant you order, the 230V single-phase HBS450 or the 400V three-phase one; freight for a 180 kg gross crate; how many spare 3886 mm bands in 6-33 mm widths you put on the same order; and whether a dust extractor for the two Ø100 mm ports is included. Tell us the variant and we quote the HBS450 against it.
How long is the wait for a HBS450 after ordering?
The HOLZMANN HBS450 is built to order and its current lead time is confirmed at quotation. Because the HBS450 exists as two separate variants, 230V and 400V, confirm which one you need when you enquire — the shipping window is confirmed in writing for that variant rather than for the model in general.
Does the HBS450 need professional installation?
The HOLZMANN HBS450 is far simpler to install than the larger HBS saws: at 161 kg and 958 x 664 x 1910 mm it can be moved into place and levelled without lifting gear, and the 230V variant runs from a single-phase socket on its 3 m cable. The 400V HBS450 does need a licensed electrician for the three-phase connection, and either variant should have both Ø100 mm ports ducted to extraction before the first cut.
What should I budget for on top of the HBS450 machine price?
The HOLZMANN HBS450 arrives with one band, a mitre gauge and a fence, so the budget items beyond it are a working stock of 3886 mm bands across the 6-33 mm range, a chip extractor with two Ø100 mm branches plus hose, and roller stands for long stock. Band sharpening or welding is a local service cost to allow for as well, and none of these are included in the HBS450 machine price.
