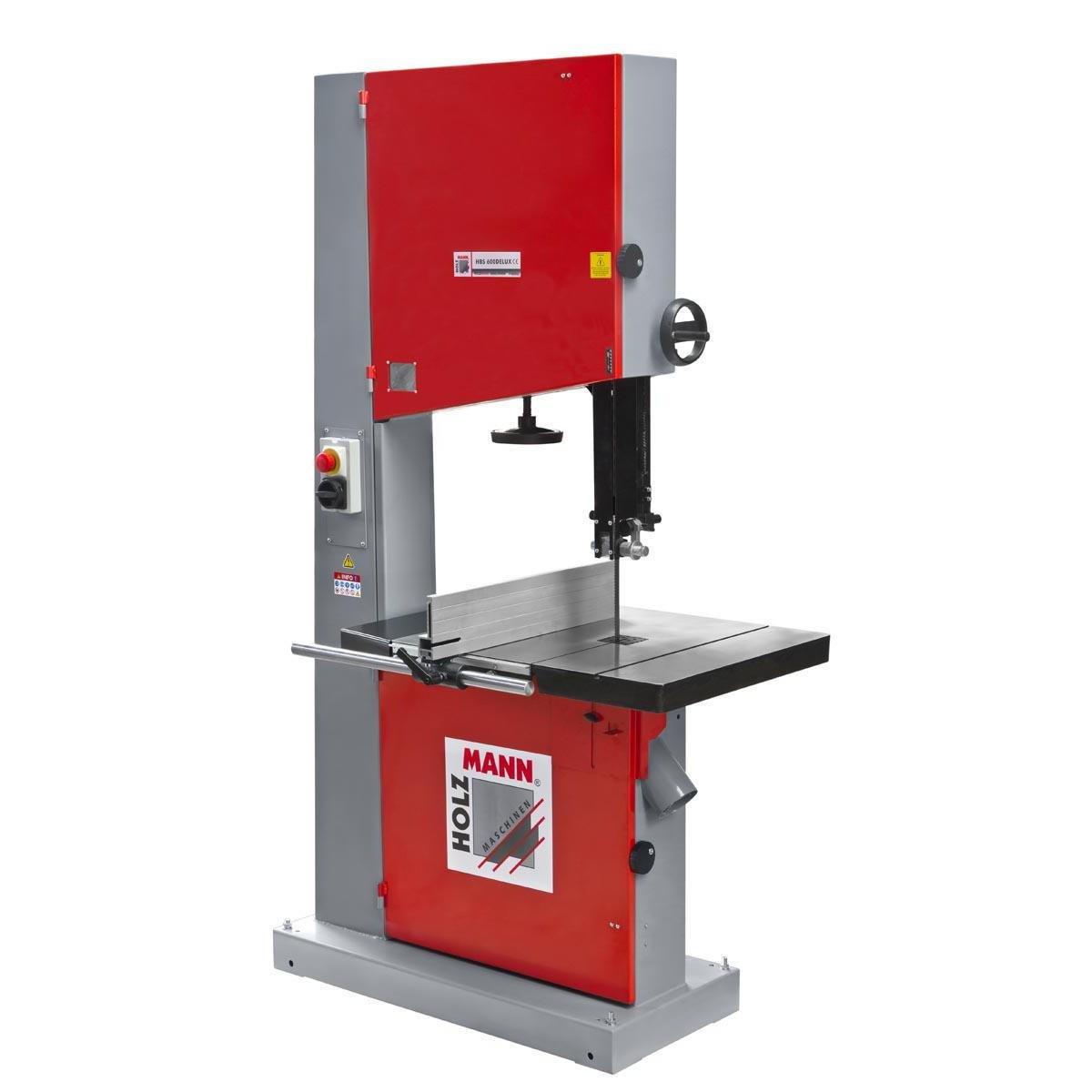

HOLZMANN HBS600DELUX Wood Bandsaw – 600 mm Flywheels, 370 mm Cutting Height

HBS600DELUX — HOLZMANN HBS600DELUX Wood Bandsaw – 600 mm Flywheels, 370 mm Cutting Height 1 / 4

The HOLZMANN HBS600DELUX runs its band at 1500 m/min, the fastest speed published for any HBS bandsaw, driven by a 4000 W S1 / 6000 W S6 motor on 400V. It cuts 370 mm at 90° on 600 mm flywheels, takes 4470 mm bands 10-35 mm wide, and works off a ground cast-iron T-slot table of 700 x 608 mm.

სამუშაო სიგანე
580 mm
ძრავის სიმძლავრე
6 kW
ძაბვა
400V
გაბარიტები
1201 x 889 x 2017 mm
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The HBS600DELUX quotation moves with freight for a 350 kg gross crate and the lifting equipment needed to place a 330 kg machine 2017 mm tall, the number and width of 4470 mm bands ordered with it, whether a chip extractor for the single Ø100 mm port is included, and the exchange rate on the quotation date.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN HBS600DELUX does

The HOLZMANN HBS600DELUX is built for resawing thick, dry hardwood day after day. A maximum cutting height of 370 mm at 90° and a rip width of 580 mm at the parallel fence let the HBS600DELUX split beams, slice oak and beech blanks into boards, and cut curves in heavy stock. The 4 kW continuous (6 kW S6) motor and 1500 m/min band speed give the machine the torque to hold that cut without stalling in dense timber.

Construction and adjustment

Rigidity is what separates the HBS600DELUX from lighter bandsaws. The frame is a fully enclosed, thickened steel body, and the 600 mm flywheels carry bands of 4470 x 10-35 mm, so wide resaw bands and narrow curve-cutting bands both fit the same machine. Height adjustment of the upper guide runs on a rack and pinion for repeatable, accurate settings, and the band runs through industrial-grade guides. The fine-ground cast iron table with T-slot measures 700 x 608 mm and swivels through 0-35° for bevel work, with an extra-large rip fence and solid guide stop.

Extraction, noise and installation

The HBS600DELUX has a single Ø100 mm dust collector port and must be run with a chip extractor; sawdust from 370 mm cuts fills a machine base quickly. Sound pressure is 90 dB(A), so hearing protection is required. At 330 kg net and 1201 x 889 x 2017 mm overall, the HBS600DELUX needs a solid floor and a pallet truck or forklift to place, not two workers and a trolley.

How the HBS600DELUX compares in the HOLZMANN bandsaw range

Choose the HBS600DELUX over the smaller HOLZMANN HBS450 when cutting height and motor power matter more than a single-phase option: the HBS450 runs 450 mm flywheels and a 1.5 kW motor and is available in 230V, while the HBS600DELUX is a 400V-only machine of a different class. Larger HOLZMANN HBS700 and HBS800 models sit above it for sawmill-scale resawing.

Who the HBS600DELUX suits

The HBS600DELUX suits joineries, door manufacturers and furniture workshops in Georgia that already have a three-phase connection and want one bandsaw that handles both breakdown and shaped cuts. HOLZMANN does not publish a separate accessory list for this family; the parallel fence with solid guide stop and the T-slotted cast iron table are part of the machine.

ძირითადი მახასიათებლები

  • 1500 m/min band speed — the fastest published for any HOLZMANN HBS bandsaw
  • Ground cast-iron table with T-slot, 700 x 608 mm, tilting through 0-35°
  • 4000 W continuous and 6000 W in S6 duty, wired 400V / 3x50Hz
  • 600 mm flywheels carrying 4470 mm bands in widths of 10 to 35 mm
  • Fully enclosed thickened steel body with industrial-grade band guides
  • Rack-and-pinion guide adjustment and an oversize rip fence with a solid guide stop
  • 370 mm cutting height at 90°, 580 mm rip width against the fence
  • 90 dB(A) sound pressure; 330 kg net inside a 1201 x 889 x 2017 mm footprint

ტექნიკური მახასიათებლები

Motor power S6
6000 W
Motor power S1
4000 W
Voltage
400V / 3x50Hz
Total dimensions
1201 x 889 x 2017 mm
Table swivel range
0-35°
Table size
700 x 608 mm
Dust collector port
Ø100 mm
Max. cutting height at 90°
370 mm
Max. cutting width at parallel fence
580 mm
Saw band
4470 x 10-35 mm
Saw band speed
1500 m/min
Flywheel diameter
600 mm
Sound pressure level
90 dB(A)
Net weight
330 kg
Gross weight
350 kg
EAN code
9120058372391

უპირატესობები

  • 370 mm cutting height and 580 mm rip capacity handle beam and hardwood resawing that lighter bandsaws cannot
  • Ground cast iron T-slot table and rack-and-pinion guide adjustment support accurate, repeatable cuts
  • Fully enclosed thickened steel body and 600 mm flywheels keep the band stable at 1500 m/min

გასათვალისწინებელი

  • Available only in 400V three-phase; unusable in a workshop with single-phase supply
  • At 330 kg and 2017 mm tall, the HBS600DELUX is heavy to install and needs a permanent floor position
  • Extraction is not included and the single Ø100 mm port requires a separate dust collector

ხშირად დასმული კითხვები

Does the HOLZMANN HBS600DELUX run on 230V single-phase power?
No. The HOLZMANN HBS600DELUX is supplied only as a 400V / 3x50Hz three-phase machine, because its motor delivers 4 kW continuously and 6 kW in S6 duty. A workshop without a three-phase connection should look at a smaller HOLZMANN bandsaw such as the HBS450, which is offered in a 230V version.
What is the maximum cutting height of the HBS600DELUX?
The HOLZMANN HBS600DELUX cuts up to 370 mm at 90°, and up to 580 mm wide when working against the parallel fence. Those two figures define what the HBS600DELUX can resaw in one pass.
What does the HBS600DELUX not do?
The HOLZMANN HBS600DELUX does not mill logs, does not feed the workpiece automatically and does not thickness or surface timber. The HBS600DELUX is a vertical band resaw fed by hand or with a separate power feeder; breaking down round logs into cants is the job of a head band saw such as the HOLZMANN BBS series.
Which saw bands fit the HBS600DELUX?
The HOLZMANN HBS600DELUX takes 4470 mm long bands in widths from 10 to 35 mm. Narrow bands near 10 mm are used for curves, while bands towards 35 mm are used for straight resawing at the full 370 mm cutting height.
Does the HBS600DELUX need a dust extractor?
Yes. The HOLZMANN HBS600DELUX has one Ø100 mm extraction port and should always be connected to a chip extractor; the machine is not supplied with an extraction unit and does not have an on-board dust bag.
How much space and floor strength does the HBS600DELUX need?
The HOLZMANN HBS600DELUX measures 1201 x 889 x 2017 mm and weighs 330 kg net, so it needs a level concrete floor, a ceiling above 2017 mm and lifting equipment for placement, plus clear run-off space for boards longer than the 700 x 608 mm table.
How is the HOLZMANN HBS600DELUX priced?
The HOLZMANN HBS600DELUX is quoted on enquiry, not sold at a listed price, and the number is assembled from things you can actually check: inland freight for a 350 kg gross crate, the lifting or forklift work needed to place a 330 kg machine that stands 2017 mm tall, the set of 4470 mm bands in 10-35 mm widths ordered with it, extraction for the Ø100 mm port if required, and the exchange rate on the day. Ask us for a quotation on the HBS600DELUX with your site details and those items are shown separately.
What is the delivery time on a HBS600DELUX?
The HOLZMANN HBS600DELUX is built to order, and its current lead time is confirmed at quotation rather than promised as a fixed number of weeks. When you request the price for the HBS600DELUX, ask for the shipping window in the same email and both are confirmed together in writing.
What does commissioning a HBS600DELUX involve on site?
Commissioning the HOLZMANN HBS600DELUX means getting a 330 kg, 2017 mm tall machine through the door and onto a level concrete floor, levelling it, having an electrician connect the 400V / 3x50Hz supply for a 4 kW continuous load, ducting the Ø100 mm port to a chip extractor, then tensioning and tracking the first band and setting the guides for a test cut at 1500 m/min. Say at quotation stage whether that work should be included in the offer.
What tooling and extras should be budgeted with the HBS600DELUX?
Alongside the HOLZMANN HBS600DELUX, budget for a stock of 4470 mm bands — narrow ones near 10 mm for curves, wide ones towards 35 mm for resawing at the full 370 mm height — a chip extractor and hose for the Ø100 mm port, and support stands for boards longer than the 700 x 608 mm table. These are consumables and accessories quoted separately from the HBS600DELUX itself.
