HOLZMANN

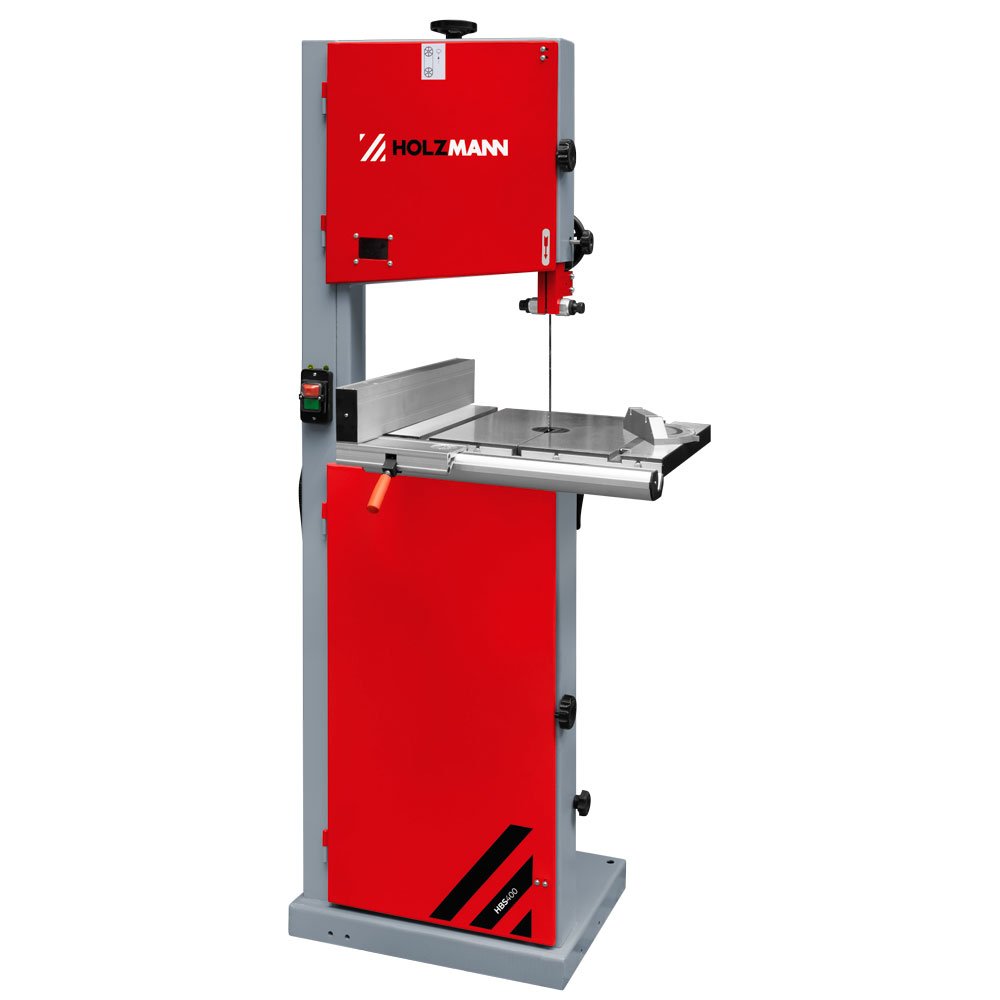

HOLZMANN HBS400 Wood Bandsaw – 220 mm Cutting Height
HBS400
The HOLZMANN HBS400 is a 127 kg floor-standing wood bandsaw with 220 mm cutting height at 90°, 380 mm throat depth and 400 mm rubber-coated cast-iron flywheels running 2950 mm blades from 6 to 20 mm wide. The HBS400 has a 500 x 400 mm table at 990 mm height tilting 0° to 45°, a Ø100 mm extraction port, and is available in 230V and 400V versions.
Price of the HBS400 is driven by the voltage version (230V or 400V), the saw band package in the 6-20 mm range, the extractor and Ø100 mm hose ordered with it, freight and customs on a 137 kg crate from Austria, and whether delivery to the workshop floor is included.
ფასის მოთხოვნა220 mm of cut from a 127 kg bandsaw
The HOLZMANN HBS400 is the entry machine in HOLZMANN’s floor-standing bandsaw range: 220 mm cutting height at 90°, 240 mm of cutting width at the parallel fence, 380 mm of throat and a 2950 mm blade on 400 mm wheels. At 127 kg net the HBS400 is a real cast-and-steel machine rather than a benchtop saw, but it is still light enough to move on a pallet truck and to fit a small joinery or a cabinet shop with limited floor area.
Cast-iron wheels are the reason it runs true
Cut quality on the HBS400 rests on mass in the right places. The HBS400 uses cast-iron flywheels with a rubber-coated surface, which store enough momentum to carry the blade through a knot and protect the blade set, and a massive sheet metal construction that resists flexing under tension. The 500 x 400 mm table sits at 990 mm – the highest table in this bandsaw group – and tilts 0° to 45° for bevelled cuts.
Fence and blade range
The aluminium fence guide on the HBS400 is adjusted by handwheel and gear rack and carries a scale with a fast-lock system, so repeat rips are set by reading rather than by measuring the cut. Blade width runs from 6 mm to 20 mm, which covers curve cutting and light ripping; the HBS400 is not intended for wide resaw blades. A single Ø100 mm port serves extraction, and a compact collector such as the ABS850 at 850 m³/h is a sensible match.
Choosing the HBS400
The HBS400 is driven by a 1500 W S6 (1100 W S1) motor and comes in 230V and 400V versions, so it installs on a domestic supply. If the shop regularly resaws boards deeper than 220 mm, the HBS470PROFI or HBS610 is the correct machine and the HBS400 will frustrate; within its capacity the HBS400 is the cheapest route into a proper floor-standing bandsaw.
ძირითადი მახასიათებლები
- 220 mm cutting height at 90°, 240 mm cutting width at the parallel fence, 380 mm throat
- 400 mm cast-iron flywheels with rubber-coated surface for momentum and blade protection
- 2950 mm saw bands from 6 mm to 20 mm wide
- 1500 W S6 (1100 W S1) motor, available in 230V and 400V versions
- Massive sheet metal construction for high stability
- Aluminium fence guide adjusted by handwheel and gear rack, with scale and fast-lock system
- 500 x 400 mm table at 990 mm height, tilting 0° to 45°
- Ø100 mm dust collector port; 127 kg net weight
ტექნიკური მახასიათებლები
- Max. cutting height at 90°
- 220 mm
- Max. cutting width at parallel fence
- 240 mm
- Outreach (throat depth)
- 380 mm
- Flywheel diameter
- 400 mm
- Saw band length
- 2950 mm
- Saw band width
- 6-20 mm
- Table size
- 500 x 400 mm
- Table height
- 990 mm
- Swivel range
- 0° - 45°
- Motor power S6
- 1500 W
- Motor power S1
- 1100 W
- Voltage
- 230V (400V variant also available)
- Dust collector port
- 100 mm
- Net weight
- 127 kg
- Gross weight
- 137 kg
- Packaging (L x W x H)
- 1760 x 600 x 480 mm
- EAN code (HBS400_230V)
- 9120039902975
- EAN code (HBS400_400V)
- 9120039900285
უპირატესობები
- Cast-iron flywheels and a heavy sheet metal body give the HBS400 stability that benchtop bandsaws cannot match at this size
- 127 kg and a 230V option mean the HBS400 installs in almost any small workshop without electrical or handling work
- Fence with scale and fast-lock system makes repeat rips quick to set without measuring each cut
გასათვალისწინებელი
- 220 mm cutting height and 240 mm fence width are the smallest in this bandsaw group - resawing capacity is limited
- Maximum blade width of 20 mm rules out heavy resaw blades
- Single blade speed and a single Ø100 mm port, where the HBS470PROFI offers two speeds and two ports
