HBS800 — HOLZMANN HBS800 Wood Bandsaw – 800 mm Throat, 470 mm Cut Height 1 / 4

HOLZMANN

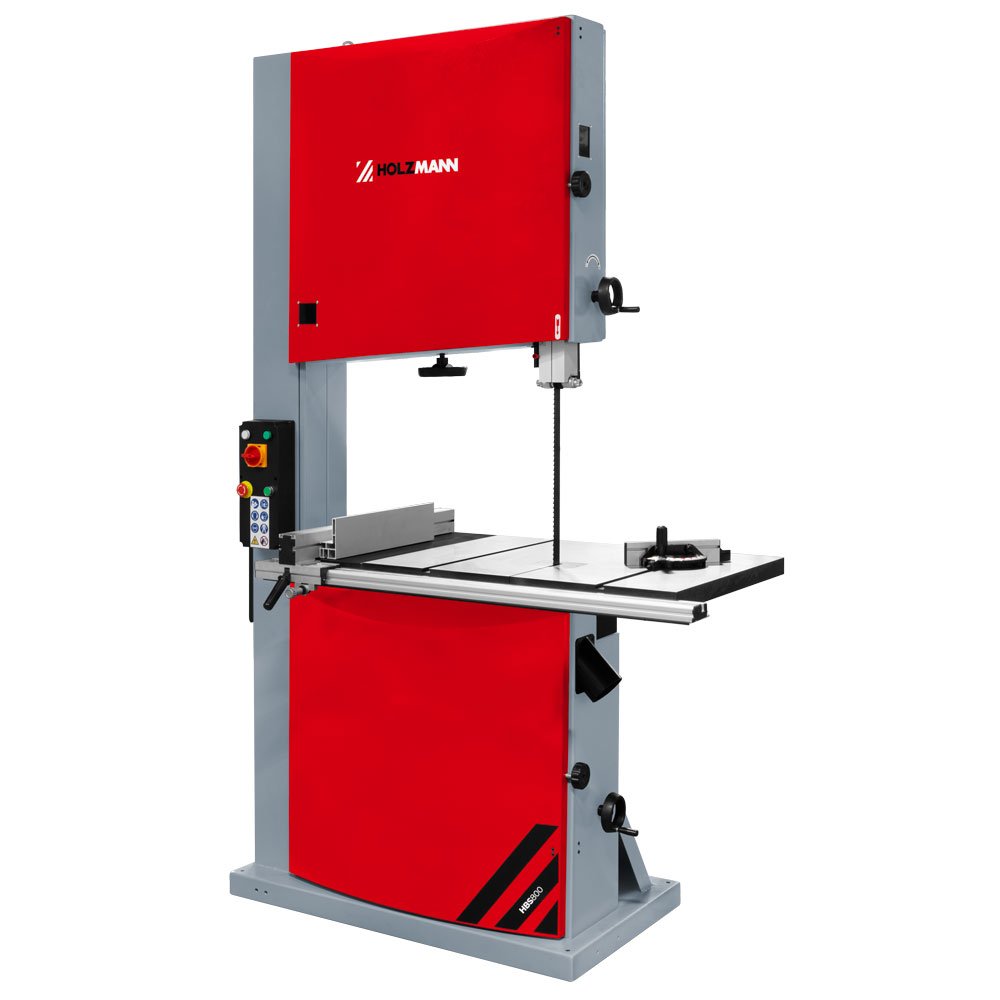

HOLZMANN HBS800 Wood Bandsaw – 800 mm Throat, 470 mm Cut Height

HBS800

Resaw capacity is what separates the HOLZMANN HBS800 from the HBS600DELUX: 470 mm of cutting height instead of 370 mm, an 810 mm flywheel instead of 600 mm, and bands up to 50 mm wide instead of 35 mm. Drive is 5500 W S1 / 7700 W S6 on 400V, and the 700 x 900 mm table sits at 1050 mm on a 500 kg frame.

ფასი მოთხოვნით

What moves the HBS800 price is the freight and rigging for a 586 kg gross crate and a 500 kg machine that has to be placed in position, the saw band set you specify from the 19-50 mm range, whether a chip extractor and ducting sized for two Ø100 mm ports are quoted with the saw, and the exchange rate on the day the quotation is issued.

ფასის მოთხოვნა

What the HOLZMANN HBS800 does

The HOLZMANN HBS800 is a floor-standing wood bandsaw built for deep cuts in solid timber. An 810 mm flywheel and a 5500 W S1 motor — 7700 W on S6 duty — carry blades of 5611 mm length in widths from 19 to 50 mm, giving a maximum cutting height of 470 mm at 90° and a maximum cutting width at the parallel fence of 640 mm. That combination puts the HBS800 into resawing work: slicing boards from thick stock, cutting beams down, and breaking down heavy blanks that a smaller bandsaw cannot pass under its guides.

Who the HBS800 suits

The HBS800 suits sawmills, door manufacturers and joineries working in thick solid wood rather than sheet material. At 500 kg net the HBS800 is a permanently sited machine, and its mass is the point: rubberised wheels and precision bearings run quietly, and the weight absorbs the vibration that spoils a cut in a light machine. The table stands at 1050 mm and measures 700 x 900 mm, and it tilts through a swivel range of 0° to +45° on a precision worm gear, so angled cuts are set by hand wheel rather than by knocking a trunnion into place.

How the HBS800 compares within the HOLZMANN bandsaw range

The defining figures of the HBS800 are its 800 mm outreach and 470 mm cutting height, both well above the hobby and light workshop bandsaws in the HOLZMANN programme, which typically take narrower blades and offer far less height under the guides. Where a small bandsaw is a curve-cutting machine, the HBS800 with a 50 mm blade is a resaw. The price of that capability is fixed 400V three-phase power, a 500 kg foundation and a machine that is not moved once installed.

Working accuracy and extraction on the HBS800

The HBS800 carries a measurement scale on the fence with two magnifying glasses for exact reading and setting, and the cutting height is adjusted quickly by a hand wheel and rack combination. Two Ø100 mm chip extraction connections are provided on the HBS800, so it should be paired with a collector such as the HOLZMANN ABS4000 or ABS5000SE. Blades, extraction hoses and a mobility kit are not part of the machine’s standard scope.

ძირითადი მახასიათებლები

  • Resaws 470 mm under the guide, 100 mm more than the HBS600DELUX
  • 810 mm flywheels — the largest wheel diameter in the HOLZMANN HBS range
  • Takes 5611 mm bands from 19 to 50 mm wide, against 10-35 mm on the HBS600DELUX
  • 5500 W S1 / 7700 W S6 drive, 400V three-phase only — no single-phase variant exists
  • Work table 700 x 900 mm, standing 1050 mm off the floor
  • Worm-gear tilt 0° to +45°, with a fence scale read through two magnifying glasses
  • 640 mm rip capacity at the parallel fence and 800 mm of outreach past the frame
  • Rubberised wheels and precision bearings on a 500 kg net frame; twin Ø100 mm ports

ტექნიკური მახასიათებლები

Motor power S1
5500 W
Motor power S6
7700 W
Voltage
400V
Swivel range
0° to +45°
Table size
700 x 900 mm
Outreach (throat)
800 mm
Table height
1050 mm
Dust collector port
2 x 100 mm
Max. cutting height at 90°
470 mm
Max. cutting width at parallel fence
640 mm
Saw band length
5611 mm
Saw band width
19-50 mm
Flywheel diameter
810 mm
Net weight
500 kg
Gross weight
586 kg
EAN code
9120058371820

უპირატესობები

  • 470 mm cutting height and 800 mm throat handle true resawing work
  • 500 kg mass with rubberised wheels and precision bearings runs quietly
  • Table tilts 0° to +45° on a precision worm gear, with a magnified fence scale

გასათვალისწინებელი

  • 400V three-phase only, with a 5.5 kW power requirement
  • 500 kg net — a permanent installation, not a movable machine
  • Blades and extraction hoses are not included in the standard delivery

ხშირად დასმული კითხვები

Does the HOLZMANN HBS800 run on 230V single-phase?
No. The HOLZMANN HBS800 is supplied as the HBS800_400V variant with a 5500 W S1 (7700 W S6) motor on a 400V three-phase supply. There is no 230V version of the HBS800, and a workshop must have a three-phase connection sized for a 5.5 kW machine before installing it.
What does the HOLZMANN HBS800 not do?
The HOLZMANN HBS800 is not a portable or mobile saw — at 500 kg net it is installed once and stays there. The HBS800 does not cut metal, it is not a log-carriage head saw with a moving bed, and blades, extraction hoses and a mobility kit are not part of its standard delivery.
What is the maximum cutting height of the HBS800?
The HOLZMANN HBS800 cuts up to 470 mm high at 90°, and up to 640 mm wide when working against the parallel fence. Those two figures are what make the HBS800 a resawing machine rather than a general-purpose workshop bandsaw.
Which saw blades fit the HBS800?
The HOLZMANN HBS800 takes saw bands of 5611 mm length in widths from 19 mm to 50 mm. Wide 50 mm blades are used on the HBS800 for straight resawing, and narrower 19 mm blades for tighter work.
How is extraction connected to the HBS800?
The HOLZMANN HBS800 has two Ø100 mm chip extraction connections, so it pairs with a collector offering at least two Ø100 mm branches, such as the HOLZMANN ABS4000 or ABS5000SE.
Can the table of the HBS800 be tilted for angled cuts?
Yes, and the published figure to work from is the spec sheet's: the 700 x 900 mm table of the HOLZMANN HBS800 swivels 0° to +45° through a precision worm gear rather than a clamped trunnion. HOLZMANN's own highlight text for the HBS800 quotes a wider -3° to 45° range, which the spec table does not support; if you need tilt below square, ask us to confirm it with the factory before ordering rather than relying on the marketing line.
How much space and floor strength does the HBS800 need?
HOLZMANN does not publish assembled dimensions for the HBS800, so plan the space from the crate and the machine data: the crate measures 2496 x 726 x 1280 mm, and the saw itself weighs 500 kg net (586 kg gross) with a 700 x 900 mm table at 1050 mm working height. Treat the crate figures as shipping dimensions, not as the installed height of the HBS800 — allow headroom above the upper wheel housing and clear infeed and outfeed runs for the length of stock being resawn, on a solid floor and in a permanent position.
What does the HOLZMANN HBS800 cost, and what changes the figure?
The HOLZMANN HBS800 is a capital machine quoted on enquiry, and the quotation is built from identifiable items: freight and rigging for a 586 kg gross crate and the placing of a 500 kg saw, the saw band set specified from the 19-50 mm range, a chip extractor and ducting for the two Ø100 mm ports if you want them on the same order, and the exchange rate at the date of issue. Send us your workshop details and we price the HBS800 against those.
How soon can a HOLZMANN HBS800 be delivered?
The HOLZMANN HBS800 is built to order and the current lead time is confirmed at quotation — we state the shipping window in writing alongside the price rather than quoting a standard number of weeks. Because the HBS800 is a 500 kg three-phase machine, allow separate time after arrival for transport into the workshop, placement and electrical connection.
Who installs and commissions the HBS800, and what does that involve?
Commissioning the HOLZMANN HBS800 covers siting on a floor rated for its 500 kg, levelling the frame, connection of the 400V three-phase supply by a licensed electrician for the 5.5 kW S1 load, ducting both Ø100 mm ports to extraction, then fitting and tracking the first 5611 mm band and setting the guides before a test cut. Tell us at quotation stage whether you want the HBS800 commissioned by us or handled by your own millwright, because it changes the scope of the offer.
What should be budgeted alongside the HBS800 itself?
Budget beyond the HOLZMANN HBS800 for consumable saw bands in 5611 mm length — wide 50 mm bands for resawing and narrower 19 mm bands for tighter work — plus a chip extractor with two Ø100 mm branches and the hose to reach it, roller or trestle support for long boards, and a band sharpening or welding service locally. None of these are part of the HBS800 machine price and each is quoted separately.
