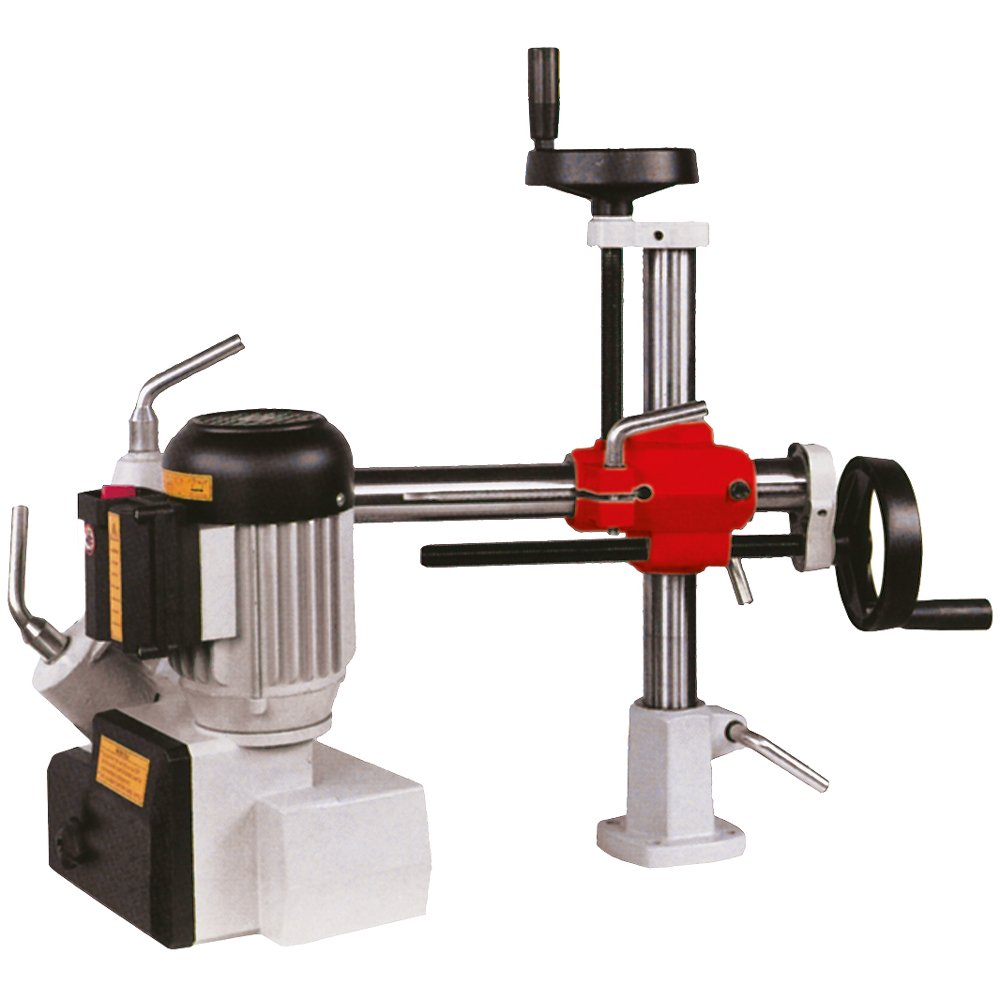

HOLZMANN SF324N Power Feeder — 4 Speeds, 230 V or 400 V

SF324N — HOLZMANN SF324N Power Feeder — 4 Speeds, 230 V or 400 V

The HOLZMANN SF324N is a compact three-roller power feeder with four feed speeds of 5, 5.6, 8 and 11 m/min and a 260 W S6 (185 W S1) motor, catalogued in both 400 V and 230 V versions. Three feed rollers of 80 mm diameter and 30 mm width and a dual rod device make up a 35.78 kg net feed head for smaller machines.

ძრავის სიმძლავრე
0.26 kW
ძაბვა
400V
მიწოდების სიჩქარე
5 / 5.6 / 8 / 11 m/min
წონა
35.78 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The SF324N price moves with the voltage version selected (SF324N_400V or SF324N_230V), the mounting column or bracket needed for your machine, the electrical connection work on site, and freight plus customs on a 37.78 kg gross shipment from Austria.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

The 230 V entry point into powered feeding

Voltage is the reason most workshops arrive at the SF324N: it is the one feeder in this group catalogued in two electrical versions, SF324N_400V (EAN 9120039902180) and SF324N_230V (EAN 9120039902197), which puts powered feeding within reach of a shop with no 400 V outlet at the machine. Behind both versions sits the same drive — a 260 W S6 / 185 W S1 motor with four feed speeds of 5, 5.6, 8 and 11 m/min taken from a precise gear set that keeps feeding steady at every one of those settings.

Three rollers of 80 mm diameter

The roller set is sized for the machines this feeder belongs on. Three feed rollers, each 80 mm in diameter and 30 mm wide, drive the workpiece — smaller in both dimensions than the 120 mm × 60 mm rollers of the eight-speed SF344N-8 and SF444N-8. Narrower rollers concentrate the downforce on a tighter band of the board face, which is exactly what is wanted on narrow mouldings and light stock, and less suited to wide boards where a broader contact patch would spread the load.

Adjustment and mounting

Setting the SF324N over the table is a dual rod job: height, angle to the fence and reach across the table are all reached from the same two rods, so the head can be canted toward the guide to turn part of the feed force into side pressure. At 35.78 kg net and 37.78 kg gross, the SF324N is the lightest head of the three feeders covered here, which lowers what the mounting column or table bracket has to carry — a real consideration on a smaller spindle moulder or saw bench where a 56 kg head would be too much.

Speed range and honest limits

Four speeds between 5 and 11 m/min cover the working band for profiling and light ripping, and no further. The eight-speed models reach 34 m/min on a 1050 W S6 motor; the SF324N works with 260 W S6 and a 11 m/min ceiling, so heavy ripping in thick hardwood is outside what this feeder is built for. The SF324N ships in a 560 × 560 × 270 mm package (length × width × height); price, delivery window, warranty and crate contents are confirmed at quotation.

ძირითადი მახასიათებლები

  • Catalogued in two voltages: SF324N_400V (EAN 9120039902180) and SF324N_230V (EAN 9120039902197)
  • Four feed speeds of 5, 5.6, 8 and 11 m/min from a precise gear set
  • 260 W S6 / 185 W S1 motor sized for light profiling and moulding work
  • Three feed rollers, each 80 mm in diameter and 30 mm wide
  • Dual rod device setting height, angle to the fence and reach from two rods
  • 35.78 kg net / 37.78 kg gross — the lightest of the SF3 and SF4 feed heads covered here
  • 560 × 560 × 270 mm shipping package (length × width × height)

ტექნიკური მახასიათებლები

Model
SF324N (SF324N_400V / SF324N_230V)
Motor power S6
260 W
Motor power S1
185 W
Feed speeds
5 / 5.6 / 8 / 11 m/min (4 speeds)
Voltage
400 V (SF324N_400V) or 230 V (SF324N_230V)
Number of feed rollers
3
Feed roller width
30 mm
Feed roller diameter
80 mm
Net weight
35.78 kg
Gross weight
37.78 kg
Packaging length
560 mm
Packaging width
560 mm
Packaging height
270 mm
EAN code (400 V)
9120039902180
EAN code (230 V)
9120039902197

უპირატესობები

  • Available as a 230 V version as well as 400 V — the only feeder of the three that suits a shop with no 400 V outlet
  • 35.78 kg net keeps the load on the mounting column low enough for smaller spindle moulders and saw benches
  • Four speeds from 5 to 11 m/min cover the usual profiling band without paying for an eight-speed gearbox

გასათვალისწინებელი

  • 260 W S6 against 1050 W S6 on the SF344N-8 — the SF324N is sized for light stock, not heavy ripping
  • Four speeds with an 11 m/min ceiling; the eight-speed feeders reach 34 m/min for fast ripping passes
  • Rollers of 80 mm diameter and 30 mm width press on a narrower band of the board face than the 120 mm × 60 mm rollers of the larger feeders, which limits comfortable board width

ხშირად დასმული კითხვები

How much does the HOLZMANN SF324N power feeder cost?
The SF324N is sold by quotation, and the price is driven by the version chosen (SF324N_400V or SF324N_230V), the mounting arrangement for your machine — a column and bracket set against fixing to an already prepared table — the electrical connection work at the machine position, and freight plus customs handling from Austria into Georgia on a 37.78 kg gross shipment. Tell us the machine the SF324N will mount to and which supply is available, and we return a firm figure.
What is the difference between the 230 V and 400 V versions of the SF324N?
The two versions of the SF324N differ in electrical supply and article code only: SF324N_400V carries EAN 9120039902180 and SF324N_230V carries EAN 9120039902197, while the 260 W S6 / 185 W S1 motor, the four feed speeds of 5, 5.6, 8 and 11 m/min and the three 80 mm × 30 mm rollers are the same on both. Choose the 230 V SF324N where no 400 V outlet exists at the machine position; the eight-speed SF344N-8 and SF444N-8 are catalogued in 400 V only.
What lead time should be expected for an SF324N?
Lead time for the SF324N depends on the HOLZMANN dispatch position in Austria for the chosen voltage version and on the freight routing into Georgia, so the delivery window for the SF324N is confirmed in writing with the quotation rather than published as a standing figure — and the 230 V and 400 V versions can differ.
What does installing the SF324N involve?
Installing the SF324N means fixing the 35.78 kg feed head to a column or table bracket, aligning the three 80 mm rollers to the fence with the head canted slightly toward the guide, setting roller pressure for the stock thickness, and having the 230 V or 400 V supply connected by a qualified electrician according to the version supplied. The installation scope for the SF324N is agreed per site in the quotation.
What should be budgeted separately alongside the SF324N?
Alongside the SF324N, plan separate budget lines for the mounting column or table bracket and any drilling of the machine table, for the electrical connection and isolator in the chosen voltage, for replacement feed rollers as wear parts (80 mm diameter, 30 mm width), and for the cutter tooling on the machine the SF324N feeds. The quotation for the SF324N states what the crate contains so those lines are priced once.
Is the SF324N powerful enough for ripping?
The SF324N is a light-duty feeder: 260 W S6 (185 W S1) and a top speed of 11 m/min across four settings suit profiling, moulding and light ripping of narrow stock. For fast ripping and heavier sections the eight-speed SF344N-8 and SF444N-8 are the right step, with a 1050 W S6 motor and speeds to 34 m/min, at the cost of 400 V-only supply and a heavier head than the 35.78 kg SF324N.
