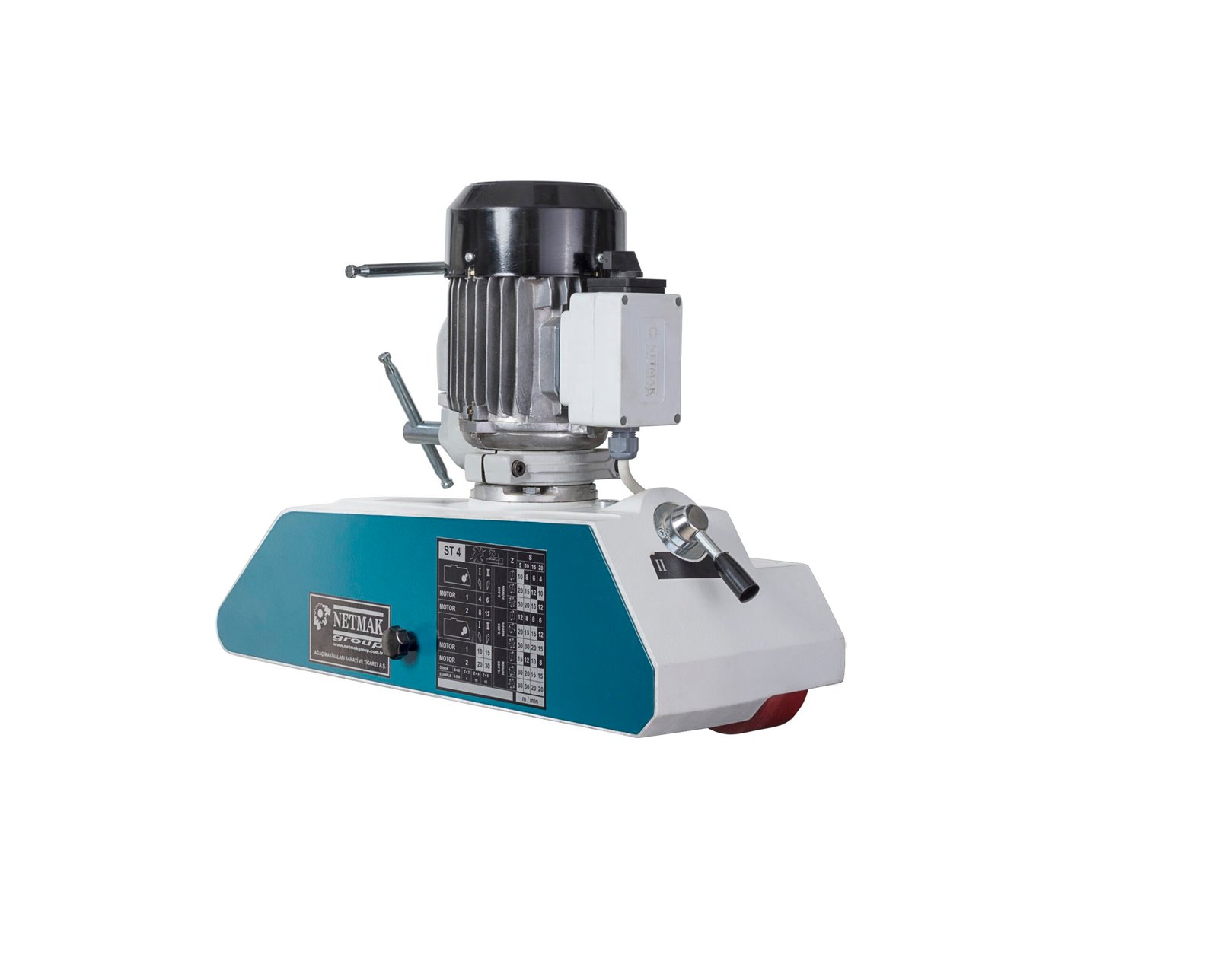

NETMAK ST-4 Four-Wheel Automatic Power Feeder

Four driven 110 x 50 mm feed wheels separate the NETMAK ST-4 from the single-wheel ST-1, gripping the full length of a board on spindle moulders, surface planers and tilting-arbour circular saws. The ST-4 runs a 1-1.15 HP motor across four feed ranges from 4-6 to 20-30 m/min and weighs 80 kg.

ძრავის სიმძლავრე: 0.86 kW
წონა: 80 kg
გაბარიტები: 600 x 1100 x 700 mm

ახალი
შეკვეთით

ფასი ფასი მოთხოვნით

Price on the ST-4 is driven by the mounting column and base plate specification for the host machine, the supply voltage the motor is built for, the number of spare feed wheel sets taken with the feeder, and whether the ST-4 is quoted on its own or with the moulder or saw it will be fitted to.

ფასის მოთხოვნა

WhatsApp +995 599 88 74 04

ირაკლი გაყიდვების მენეჯერი

კონფიგურაცია თქვენს ძაბვასა და ზომებზე
მიწოდება, მონტაჟი და გაშვება ადგილზე
ქარხნული გარანტია და სათადარიგო ნაწილები

What the ST-4 power feeder does

The ST-4 keeps the operator’s hands away from the cutter by driving the workpiece through the machine mechanically. Four 110 x 50 mm feed wheels grip the stock and press it down onto the table and sideways into the fence at a constant rate, which removes the two things that spoil hand-fed work: variable feed speed and inconsistent fence pressure. A 1-1.15 HP motor with a speed range of 1500-3000 rpm drives the wheel train through a gearbox offering four published feed ranges of 4-6, 8-12, 10-15 and 20-30 m/min.

Which machines the ST-4 fits

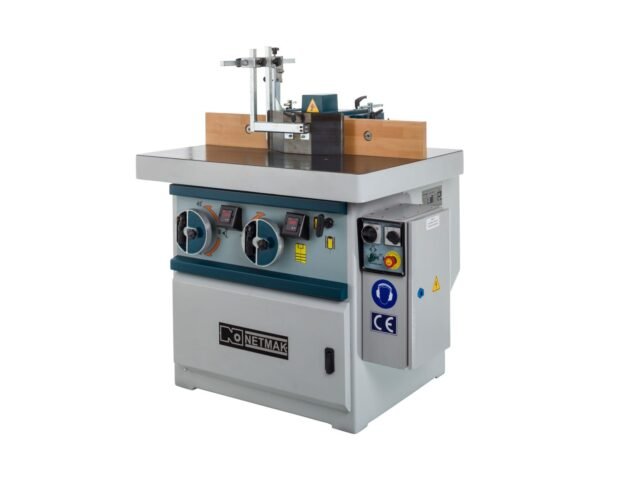

Netmak specifies the ST-4 for spindle moulders, surface planers and tilting-arbour circular saws, which covers most of the fixed machinery in a furniture or joinery workshop. On a spindle moulder the ST-4 gives repeatable moulding depth across a long run of skirting or door stiles. On a surface planer it takes the physical effort out of long boards. On a tilting-arbour saw it holds the workpiece tight to the fence through the whole cut, which is where hand-fed ripping usually goes wrong.

ST-4 compared with the single-wheel ST-1

Four wheels buy straightness; one wheel buys the ability to follow a curve. The ST-4 places four driven wheels in line, so the workpiece is held on a straight path along its whole travel, which is exactly what long straight runs need and exactly what curved work cannot tolerate. Its stablemate the ST-1 uses a single wheel for curved and shaped parts. Both feeders share the same 1-1.15 HP motor, the same 1500-3000 rpm range and the same four feed ranges, so the choice between them is decided by workpiece shape rather than by power. The ST-4 is the heavier unit at 80 kg against 60 kg, and the wider one at 600 mm against 460 mm.

What Netmak publishes and what to confirm

The published data for the ST-4 covers wheel count, wheel size, motor rating, motor speed, feed ranges, net weight and overall dimensions. It does not state supply voltage or phase, the mounting column and bracket arrangement, or whether a mounting kit for a specific machine table is supplied. Because a feeder is only as good as its mount, confirm with Danadgarebi that the ST-4 column suits the table it will be bolted to.

ძირითადი მახასიათებლები

Four 110 x 50 mm feed wheels for continuous grip along the full length of the workpiece
1-1.15 HP drive motor
Motor speed range of 1500-3000 rpm
Four published feed ranges: 4-6, 8-12, 10-15 and 20-30 m/min
Net weight of 80 kg, 20 kg heavier than the single-wheel ST-1
Overall dimensions of 600 x 1100 x 700 mm
Specified by Netmak for spindle moulders, surface planers and tilting-arbour circular saws

ტექნიკური მახასიათებლები

Product code: ST-4
Machine type: Automatic power feeder (Otomatik Surucu)
Number of wheels: 4
Wheel size: 110 x 50 mm
Motor power: 1-1.15 HP
Motor speed: 1500-3000 rpm
Feed rates: 4-6 / 8-12 / 10-15 / 20-30 m/min
Net weight: 80 kg
Overall dimensions: 600 x 1100 x 700 mm
Suitable machines: Spindle moulders, surface planers, tilting-arbour circular saws

უპირატესობები

Four driven 110 x 50 mm wheels give consistent fence and table pressure across the full length of a board, improving finish quality on long straight runs
Four feed ranges from 4-6 up to 20-30 m/min cover both slow hardwood profiling and fast softwood passes on the same feeder
One feeder serves several machines in Netmak's stated range: spindle moulders, surface planers and tilting-arbour circular saws

გასათვალისწინებელი

Netmak does not publish supply voltage or phase for the ST-4, so the electrical specification has to be confirmed separately
The four-wheel layout forces a straight feed path and is unsuitable for curved or shaped work, which needs the single-wheel ST-1 instead
At 80 kg the ST-4 loads the host machine's table through its mounting column, and the mounting arrangement is not covered in the published specification

ხშირად დასმული კითხვები

What power supply does the ST-4 power feeder need?

Netmak does not publish a voltage or phase rating for the ST-4. The published figure is motor output only, 1-1.15 HP at 1500-3000 rpm. Power feeders in this class are commonly supplied for three-phase 380 V, but that is not a manufacturer figure for the ST-4, so confirm the electrical specification with Danadgarebi before ordering.

Which machines can the ST-4 be fitted to?

Netmak specifies the ST-4 for spindle moulders, surface planers and tilting-arbour circular saws. Whether the ST-4 will physically mount on a particular table depends on the base and column arrangement, which Netmak does not publish, so the mounting has to be checked against the specific machine before purchase.

How fast does the ST-4 feed?

The ST-4 offers four published feed ranges: 4-6, 8-12, 10-15 and 20-30 m/min, across a motor speed range of 1500-3000 rpm. Slower ranges on the ST-4 suit hardwood and deep profile cuts where fast feeding burns the timber and overloads the spindle; the faster ranges suit softwood and shallow passes.

Should I buy the ST-4 or the ST-1?

Choose the ST-4 for straight work and the ST-1 for curved work. The ST-4 has four wheels that hold the workpiece on a straight line, which is right for skirting, door stiles and long ripped stock, while the single-wheel ST-1 allows a curved part to follow a template. The two feeders share the same motor rating and the same four feed ranges.

How much does the ST-4 weigh and how much space does it take?

The ST-4 weighs 80 kg net and measures 600 x 1100 x 700 mm overall. That 80 kg hangs off the host machine's table on the feeder column, so the table and its mounting must be able to carry the load of the ST-4 without deflecting.

What does the ST-4 not do?

The ST-4 feeds the workpiece; it does not cut, and it is not a substitute for the cutter guarding on the host machine. The ST-4 also does not suit curved or shaped parts, because four in-line wheels force the workpiece onto a straight path, and it does not include the cutter, fence or extraction for the machine it is mounted on.

How much does the NETMAK ST-4 cost?

The NETMAK ST-4 four-wheel power feeder is supplied by quotation rather than at a published online price. The price of an ST-4 depends on the mounting column and base plate needed for the specific spindle moulder, planer or tilting-arbour saw it will be fitted to, the supply voltage the 1-1.15 HP motor is built for, how many spare feed wheel sets are taken with the feeder, and whether the ST-4 is quoted on its own or as part of a machine package. Tell us which machine the ST-4 will mount on and a quotation follows.

What is the lead time on a NETMAK ST-4?

The NETMAK ST-4 is built to order and the current lead time is confirmed at quotation. Where an ST-4 is being bought together with the spindle moulder or saw it will drive, the feeder is scheduled with that machine so both arrive for one commissioning visit.

What is involved in fitting an ST-4 to an existing machine?

Fitting an ST-4 means bolting the mounting column to the table or body of the host spindle moulder, planer or tilting-arbour saw, checking that the table can carry the feeder's 80 kg through that column, setting the head so all four wheels bear evenly with a slight toe-in toward the fence, and having a qualified electrician make the supply connection. Netmak does not publish the mounting arrangement for the ST-4, so the column and base plate are confirmed against the host machine at quotation.

What consumables should be budgeted alongside an ST-4?

Feed wheels are the consumable on an ST-4: the four 110 x 50 mm rubber wheels wear and glaze with use and lose grip on resinous or dusty stock, so a spare set is worth budgeting with the feeder. Nothing else on the ST-4 is a routine consumable beyond gearbox oil, and any tooling cost sits with the host machine's cutter block rather than with the feeder.
