PL 500 Planya Makinasi — NETMAK PL 500 Surface Planer (500 mm)

NETMAK

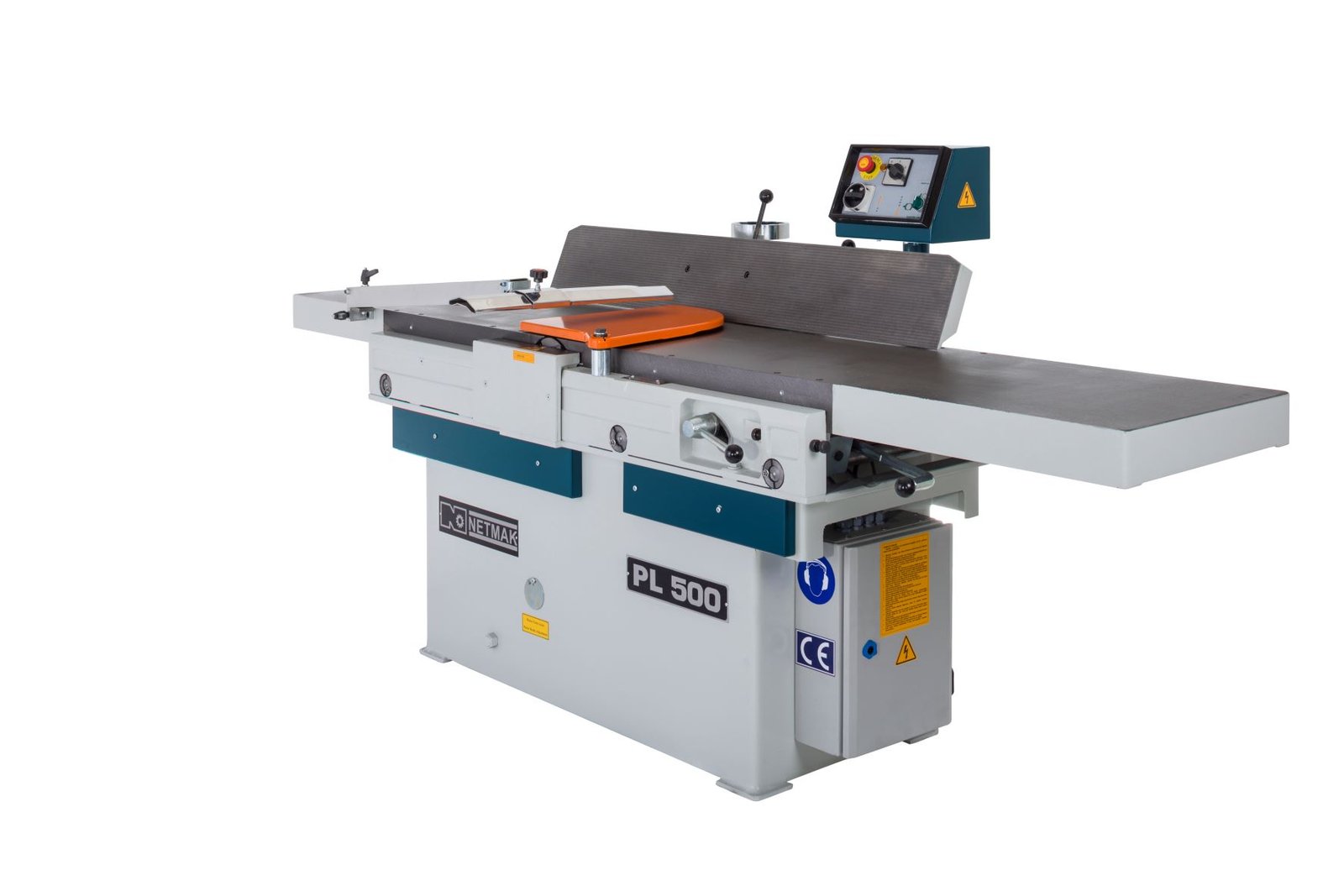

NETMAK PL 500 Surface Planer (500 mm)

PL 500 Planya Makinasi

Jointing width is the only real variable across the PL range, and the NETMAK PL 500 sits in the middle at 500 mm on 500 x 2600 mm tables, weighing 770 kg. Drive matches the PL 400 and PL 600: a 5.5 kW (7.5 HP) motor, a 120 mm four-knife block at 4500 rpm and a 15 mm maximum cut.

ფასი მოთხოვნით

The PL 500 price moves with cutterblock choice (four-knife or optional helical), whether automatic table adjustment and the digital height indicator are added, and with the delivery, offloading and installation of a 2650 mm long machine.

ფასის მოთხოვნა

What the PL 500 surface planer does

The NETMAK PL 500 flattens the first face and squares the first edge of solid timber up to 500 mm wide. Work is carried on 2600 mm of table, divided into a 1420 mm infeed and an 1180 mm outfeed section, over a 120 mm cutterblock with four knives spinning at 4500 rpm. The 7.5 HP / 5.5 kW motor supports a full 15 mm depth of cut, so heavily cupped or badly sawn boards can be brought to a true face quickly rather than shaved down over many passes.

Who the PL 500 suits

The PL 500 is the middle choice in the NETMAK planer range and suits the workshop that handles both framing timber and moderately wide boards. Furniture makers preparing 450 mm bed rails, stair builders facing strings, and door shops jointing wide stiles all sit in the PL 500’s working band. Its 770 kg mass and monoblock steel body damp the vibration that becomes noticeable when a wide board contacts all four knives at once, and the electromechanical brake stops the block quickly between pieces.

PL 500 against the PL 400 and PL 600

The PL 500 differs from its siblings in width and footprint only. Table length (2600 mm), infeed and outfeed split (1420 mm / 1180 mm), depth of cut (15 mm), knife count (4), block diameter (120 mm), spindle speed (4500 rpm) and motor (7.5 HP / 5.5 kW) are identical across the PL 400, PL 500 and PL 600. The PL 500 occupies 900 x 2650 x 1250 mm and weighs 770 kg, against 800 x 2600 x 1250 mm and 710 kg for the PL 400 and 1000 x 2650 x 1250 mm and 880 kg for the PL 600. Buying the PL 500 rather than the PL 400 costs 100 mm of workshop width and buys 100 mm of planing width.

What is included with the PL 500

The PL 500 is delivered with a monoblock steel body, an electromechanical brake, two hand and knife guards, a cast fence adjustable through 45 degrees and four knives on the 120 mm cutterblock. Digital height indication, automatic table adjustment and a helical cutterblock are offered as PL 500 options. Extraction hose and ducting, a power feed unit and spare knives are ordered separately.

ძირითადი მახასიათებლები

  • 500 mm jointing width on 500 x 2600 mm cast tables, the mid-size PL surface planer
  • 1420 mm infeed and 1180 mm outfeed table split for long stock
  • 15 mm maximum depth of cut per pass
  • 120 mm four-knife cutterblock running at 4500 rpm
  • 7.5 HP / 5.5 kW motor with electromechanical braking - unchanged from the PL 400 and PL 600
  • Cast fence tilting through 45 degrees plus two hand and knife guards
  • 770 kg monoblock steel body, 900 x 2650 x 1250 mm overall
  • Optional helical cutterblock, digital height indicator and automatic table adjustment

ტექნიკური მახასიათებლები

Product code
PL 500
Table size
500 x 2600 mm
Infeed table length
1420 mm
Outfeed table length
1180 mm
Max. depth of cut
15 mm
Number of knives
4
Cutterblock diameter
120 mm
Spindle speed
4500 rpm
Motor power
7.5 HP / 5.5 kW
Overall dimensions
900 x 2650 x 1250 mm
Net weight
770 kg
Standard equipment
Monoblock steel body, electromechanical brake, two hand and knife guards, 15 mm cutting depth, cast fence tilting to 45 degrees
Options
Digital height indicator, automatic table adjustment, helical cutterblock

უპირატესობები

  • 500 mm width covers wide rails and stair strings that a 400 mm planer cannot
  • Same 2600 mm bed and 15 mm cut as the larger PL 600 for a smaller footprint
  • 770 kg steel frame with electromechanical brake and standard guarding

გასათვალისწინებელი

  • No thicknessing function; a separate thicknesser is required
  • Table setting is manual unless the automatic table adjustment option is ordered
  • Extraction, power feeder and spare knives all cost extra

ხშირად დასმული კითხვები

How wide can the NETMAK PL 500 plane?
The PL 500 faces stock up to 500 mm wide on tables measuring 500 x 2600 mm, and removes up to 15 mm in a single pass. Work wider than 500 mm needs the NETMAK PL 600, which shares the PL 500's drive and table length but adds 100 mm of width.
Is the PL 500 worth the extra cost over the PL 400?
The PL 500 differs from the PL 400 only in width, footprint and weight: 500 mm against 400 mm, 900 x 2650 x 1250 mm against 800 x 2600 x 1250 mm, and 770 kg against 710 kg. Every cutting specification is shared, so the PL 500 is justified purely by how often stock between 400 and 500 mm wide comes through the shop.
What tooling does the PL 500 use?
The PL 500 runs four straight planing knives on a 120 mm cutterblock. Order at least one spare set of knives and a setting gauge with the PL 500, and specify the optional helical cutterblock at order time if the shop machines figured or interlocked-grain hardwood.
Does the PL 500 need three-phase power?
The PL 500 is driven by a single 7.5 HP / 5.5 kW motor. NETMAK does not publish the supply voltage or phase for the PL 500, so confirm the requirement with the dealer before installation; motors of this rating are normally supplied for industrial three-phase power.
Can the PL 500 thickness the second face of a board?
No, the PL 500 is a surface planer and machines only the face and edge presented to the cutterblock. Bringing a board to a set thickness after facing on the PL 500 requires a thicknesser such as the NETMAK KA 600 or KA 630.
What space and extraction does the PL 500 need?
The PL 500 occupies 900 x 2650 x 1250 mm, weighs 770 kg and must be connected to a separate chip extraction system that is not included. Leave clear space at both ends of the PL 500 at least as long as the longest board to be planed.
How much does the NETMAK PL 500 cost?
The NETMAK PL 500 surface planer is supplied on quotation, not at a fixed published price. What sets the PL 500 quotation is the cutterblock chosen (standard 120 mm four-knife or the optional helical block), whether automatic table adjustment and the digital height indicator are added, and delivery, offloading and installation of a 2650 mm long, 770 kg machine in Georgia. As the PL 400, PL 500 and PL 600 share one 5.5 kW drive and differ mainly in width, it is worth asking for two widths to be quoted side by side.
Is the NETMAK PL 500 available from stock?
The NETMAK PL 500 is built to order, so PL 500 availability and the current lead time are confirmed when the quotation is prepared rather than promised up front. A standard-specification PL 500 typically moves fastest; a helical cutterblock or automatic table adjustment is scheduled as a build. Ask for current PL 500 availability with your enquiry.
What is required to commission a PL 500?
Commissioning a PL 500 requires a level, load-bearing floor for 770 kg on a 900 x 2650 mm footprint, clear run-out at both ends for long stock, careful levelling along the full 2600 mm table length, a three-phase electrical connection made by a qualified electrician, and extraction ducted to a chip collector sized for a 500 mm cut. NETMAK does not publish the PL 500's supply voltage, phase or extraction port sizes, so these are agreed at quotation; delivery and commissioning can be quoted with the machine.
What consumables should be budgeted alongside a PL 500?
Budget separately from the PL 500 machine price for spare knives for the 120 mm four-knife cutterblock, or carbide inserts if the optional helical block is specified, plus a knife-setting gauge and a chip extractor with ducting, which is not included with the PL 500. Guards, brake parts and fence hardware are the normal wear and spare items to keep for a PL 500.
