HOLZMANN AHM410SMW2 Surface Planer with 44-Insert Spiral Cutterhead

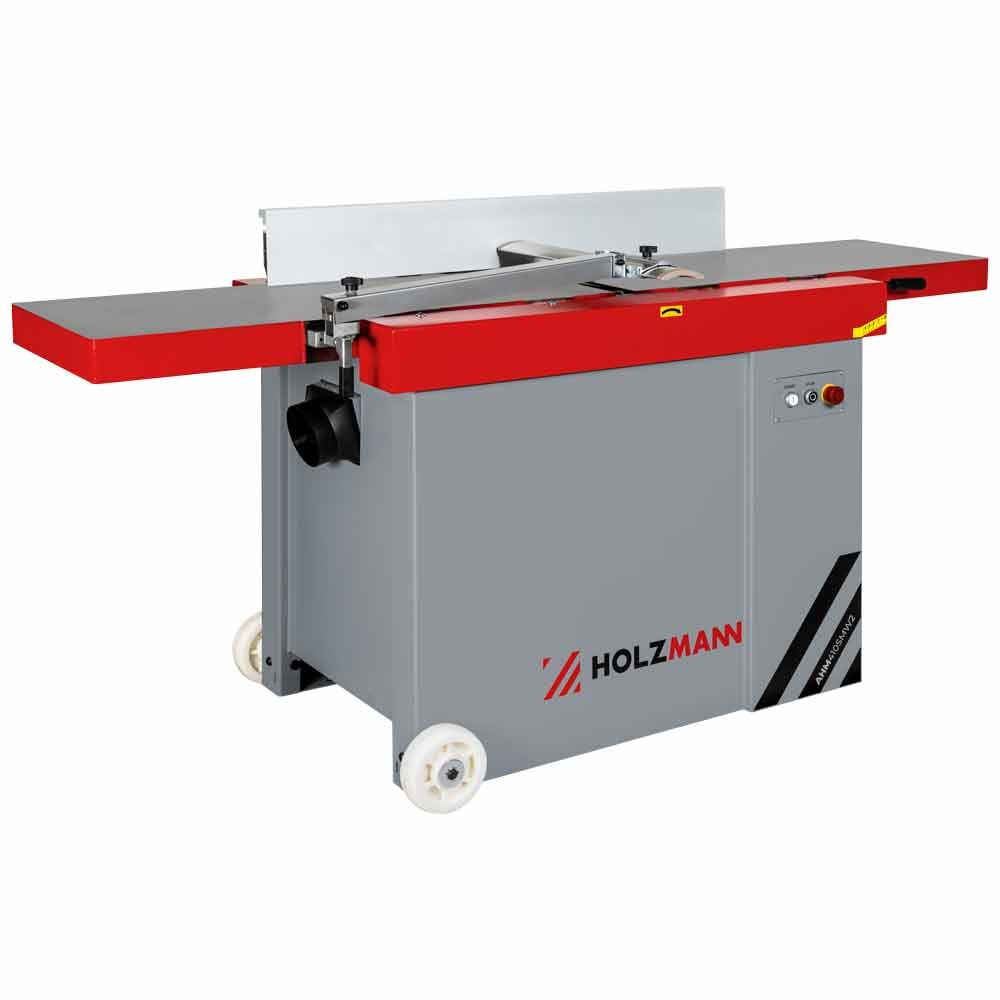

AHM410SMW2 — HOLZMANN AHM410SMW2 Surface Planer with 44-Insert Spiral Cutterhead 1 / 4

The HOLZMANN AHM410SMW2 is a 410 mm floor-standing surface planer built around a Ø 70 mm spiral cutterhead carrying 44 indexable carbide inserts (15 x 15 x 2.5 mm, 30°) and 2000 mm of work table. The AHM410SMW2 runs a 3000 W S6 motor at 5500 min-1, weighs 290 kg net, and is supplied in a 230 V or a 400 V version for joineries and carpentry shops.

სამუშაო სიგანე
410 mm
ძრავის სიმძლავრე
3 kW
მაგიდის სიგრძე
2000 mm
ძაბვა
230V
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The AHM410SMW2 price is driven by the voltage version (230 V or 400 V), the spare cutter-insert package, any extraction equipment quoted with the machine, and delivery, offloading and installation at your site.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the AHM410SMW2 is for

The HOLZMANN AHM410SMW2 is a dedicated surface planer, not a combination machine, and that is the whole argument for buying one. Because the AHM410SMW2 never has to fold its tables away for a second function, the machine keeps one long, permanently aligned reference surface: 2000 mm of table under a 410 mm cutting width, with a maximum depth of 4 mm in a single pass. A workshop that already owns a thicknesser gets a faster, more accurate face-and-edge station than any convertible machine will give.

The spiral cutterhead changes the running cost

The spiral head is the reason to specify the AHM410SMW2 over a straight-knife surface planer. The AHM410SMW2 carries 44 mounted carbide inserts of 15 x 15 x 2.5 mm at 30° on a Ø 70 mm head, so each insert shears into the timber instead of the full width striking at once. Three things follow. Tear-out drops sharply in interlocked oak, beech and knotty pine. Noise drops, which matters at a rated 107 dB(A) sound power. And when grit or a hidden nail damages an edge, the fix is rotating or replacing one insert rather than resetting a full knife set — five spare inserts are supplied with the machine. The head is driven at 5500 min-1 by a 3000 W S6 motor.

Tables, fence and handling

Support, not just cutting width, is what the AHM410SMW2 gives a joinery shop. The 2000 mm table length holds door stiles and long framing timber flat through the entire pass, and the solid fence measures 1100 x 150 mm and tilts from 90° to 45° for chamfers and bevelled edges. A mountable transport device is included so the AHM410SMW2 can be repositioned in the shop despite a 290 kg net weight.

Siting the AHM410SMW2

The AHM410SMW2 needs a planned floor position rather than a corner. Overall dimensions are 2080 x 740 x 1127 mm with a working table height of 850 mm, and clear infeed and outfeed runs beyond the 2 m table are what make the machine usable. Chip extraction should be connected before the first cut, and hearing protection is mandatory at 98 dB(A) sound pressure. Both 230 V and 400 V versions exist, so a single-phase workshop is not excluded.

ძირითადი მახასიათებლები

  • Spiral cutterhead, Ø 70 mm, with 44 mounted indexable carbide inserts (15 x 15 x 2.5 mm, 30°) for a clean cut and lower noise
  • 410 mm planing width supported by 2000 mm of work table for door stiles and long framing stock
  • 3000 W S6 motor driving the cutterhead at 5500 min-1
  • Solid planer fence, 1100 x 150 mm, tilting from 90° to 45°
  • Maximum cutting depth of 4 mm in one pass
  • Working table height 850 mm; overall footprint 2080 x 740 x 1127 mm
  • 290 kg net (351 kg gross) cast construction with a mountable transport device included
  • Five spare cutter inserts supplied in addition to the 44 already fitted

ტექნიკური მახასიათებლები

Planing width
410 mm
Work table length
2000 mm
Table height
850 mm
Max. cutting depth
4 mm
Planer fence
1100 x 150 mm
Fence tilt
90 - 45°
Cutterhead type
Spiral cutterhead with 44 mounted cutter inserts (15 x 15 x 2.5 mm, 30°)
Cutterhead diameter
Ø 70 mm
Cutterhead speed
5500 min-1
Motor power (S6)
3000 W
Voltage
230 V / 50 Hz (400 V version available)
Total dimensions
2080 x 740 x 1127 mm
Sound power level
107 dB(A)
Sound pressure level
98 dB(A)
Net weight
290 kg
Gross weight
351 kg
Packaging width
818 mm
Packaging length
2118 mm
Packaging height
1138 mm
EAN code (AHM410SMW2_230V)
9120132141547
EAN code (AHM410SMW2_400V)
9120132141554

უპირატესობები

  • The 44-insert spiral cutterhead of the AHM410SMW2 controls tear-out in figured and knotty timber and turns knife damage into a single-insert replacement instead of a full knife change.
  • 2000 mm of table under a 410 mm cut gives the AHM410SMW2 real support for long joinery components, which a folding combination table cannot match.
  • The AHM410SMW2 exists in both 230 V and 400 V versions, so a single-phase Georgian workshop is not shut out of the 410 mm class.

გასათვალისწინებელი

  • The AHM410SMW2 surfaces and edges only — there is no thicknessing function, so a separate thicknesser is still needed to bring stock to final dimension.
  • At 290 kg net and 2080 mm long, the AHM410SMW2 requires a permanent floor position, a level base and mechanical handling to unload and site.
  • A rated 107 dB(A) sound power means the AHM410SMW2 is loud even with a spiral head, and hearing protection plus sensible placement in a shared workshop are non-negotiable.

ხშირად დასმული კითხვები

How much does the HOLZMANN AHM410SMW2 cost?
The HOLZMANN AHM410SMW2 is supplied on quotation rather than at a fixed shelf price. The price of an AHM410SMW2 moves with the voltage version chosen (230 V or 400 V), the spare-insert package ordered with the machine, whether shop extraction ducting is quoted alongside it, and delivery, offloading and installation at your site in Georgia. Send us the voltage and your delivery address and we will return a written figure.
Should I order the AHM410SMW2 in 230 V or 400 V?
The AHM410SMW2 is available as a 230 V single-phase machine (EAN 9120132141547) and as a 400 V three-phase machine (EAN 9120132141554). If your workshop already has a 400 V three-phase supply, take the 400 V AHM410SMW2 — three-phase running is smoother under a full 410 mm cut and puts less strain on the installation. If your premises only has a 230 V single-phase supply and upgrading the connection is expensive, the 230 V AHM410SMW2 lets you run the same machine without rewiring.
What is the lead time for a HOLZMANN AHM410SMW2?
The HOLZMANN AHM410SMW2 is supplied from the Holzmann factory in Austria, so availability depends on the current production and shipping position rather than on stock sitting in Tbilisi. Ask us to confirm the current lead time for the AHM410SMW2 at the moment you request the quotation, and we will check the factory position before we commit a date.
Does the AHM410SMW2 need professional installation?
The AHM410SMW2 needs siting rather than a complex commissioning job. Because the AHM410SMW2 weighs 290 kg net and measures 2080 x 740 x 1127 mm, plan for mechanical offloading, a level and load-bearing floor, and clear infeed and outfeed space beyond the 2000 mm table. The electrical connection must be made by a qualified electrician — 400 V machines also need the cutterhead rotation direction checked — and chip extraction should be connected before the first workpiece.
What tooling and consumables should I budget for with the AHM410SMW2?
Budget separately for spare cutter inserts for the AHM410SMW2, for a dust extraction unit and hose if your shop does not already have one, and for machine-slideway lubricant and wax for the cast tables. The AHM410SMW2 arrives with 44 inserts fitted plus 5 spares, which covers first damage but not a full head change, so most shops keep at least one complete 44-insert set on the shelf.
Can the AHM410SMW2 thickness timber as well as surface it?
No — the AHM410SMW2 is a surface planer only. The AHM410SMW2 creates a flat face and a square edge; bringing the opposite face parallel at a set thickness requires a separate thicknesser or a combined planer-thicknesser such as the HOLZMANN HOB410ECO or HOB410PRO.
How loud is the AHM410SMW2 and does the spiral head help?
The AHM410SMW2 is rated at 107 dB(A) sound power and 98 dB(A) sound pressure. The spiral cutterhead of the AHM410SMW2 cuts progressively rather than striking the full width at once, which softens the tone compared with a straight-knife head of the same width, but hearing protection is still required for the operator.
