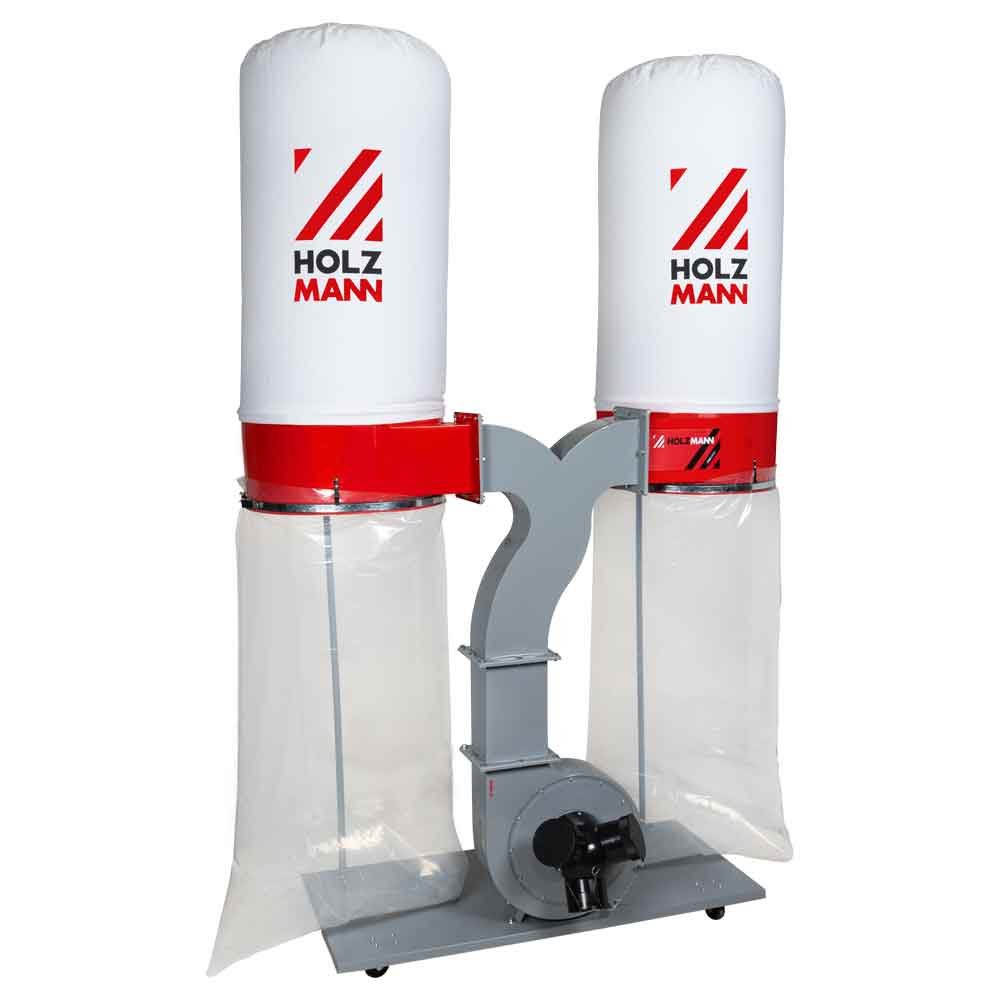

HOLZMANN ABS3880 Dust Collector with Insert — 3880 m³/h, Three 100 mm Ports
ABS3880
The HOLZMANN ABS3880 is a mobile dust collector with insert that delivers 3880 m³/h of suction performance at 1750 Pa through three 100 mm ports into two 200 l chip bags. Driven by a 2200 W S1 motor and a 300 mm fan wheel, the ABS3880 is offered as a 230 V or a 400 V variant.
Price on the ABS3880 is driven by the variant chosen (ABS3880_230V or ABS3880_400V), the ducting package built around the three 100 mm ports, the electrical connection work, and delivery to the workshop in Georgia.
ფასის მოთხოვნაHOLZMANN ABS3880: three ports, 400 litres of bag capacity
The HOLZMANN ABS3880 is the middle machine of the insert-collector range and the one to pick when three extraction points have to stay connected. The ABS3880 delivers 3880 m³/h of suction performance through three 100 mm dust collector ports at 1750 Pa of negative pressure, using a 300 mm fan wheel at 2950 min-1. Twin chip bags of 200 l each give 400 l of total capacity, and four swivel casters carry the 52 kg sheet-metal body.
Motor and duty rating
The ABS3880 is built for continuous duty, rated 2200 W on the S1 continuous rating and 3300 W on the S6 intermittent rating, a clear step up from the 1500 W S1 of the ABS2480. Both the 230 V and the 400 V version of the ABS3880 run the same 2950 min-1 fan speed, so airflow does not depend on which supply the workshop connects.
Chip handling and siting
Housekeeping on the ABS3880 is split across two bags: each bag is 500 mm in diameter and 1480 mm long and holds 200 l, so the interval between changes is long but two bags are handled at every emptying. The ABS3880 needs 2200 mm of clearance at full working height, less than the 2430 mm the ABS2480 asks for, which matters in a low basement workshop.
Noise
The ABS3880 is the loudest of the three insert collectors, with a sound power level of 102.1 dB(A) and a sound pressure level of 89.4 dB(A). Hearing protection and, where the layout allows, a separate machine bay with ducting back to the workshop are the sensible answer for the ABS3880.
Where the ABS3880 sits against its siblings
The ABS3880 sits between the two other insert models. The ABS2480 offers 2480 m³/h through two ports into one 270 l bag, while the ABS4560 moves 4560 m³/h at 2500 Pa through one ø180 mm and four ø100 mm ports on 400 V only. Pricing for the ABS3880 is by quotation; send the machine list and the supply voltage available and a quotation follows.
ძირითადი მახასიათებლები
- 3880 m³/h suction performance at 1750 Pa negative pressure
- Three 100 mm dust collector ports, so three machines stay connected
- Two 200 l chip bags, each 500 mm diameter x 1480 mm long, for 400 l total capacity
- 300 mm fan wheel turning at 2950 min-1
- 2200 W S1 continuous / 3300 W S6 motor rating
- Sheet-metal construction on four swivel casters, 52 kg net weight
- 2200 mm maximum working height, the lowest of the three insert models
- Offered as ABS3880_230V or ABS3880_400V
ტექნიკური მახასიათებლები
- Motor power S6 in W
- 3300
- Motor power S1 in W
- 2200
- Speed in min-1
- 2950
- Voltage
- 230V (ABS3880_230V); ABS3880_400V variant also offered
- Dust collector port in mm
- 3x100
- Max. height in mm
- 2200
- Suction performance in m³/h
- 3880
- Chip bag capacity in l
- 2x200
- Chip bag diameter in mm
- 500
- Chip bag length in mm
- 1480
- Fan wheel diameter in mm
- 300
- Negative pressure (hypotension) in Pa
- 1750
- Sound power level in dB(A)
- 102.1
- Sound pressure level in dB(A)
- 89.4
- Net weight in kg
- 52
- Gross weight in kg
- 54
- EAN code
- 9120039901954 (ABS3880_230V)
უპირატესობები
- 3880 m³/h across three 100 mm ports keeps three extraction points live from one machine
- 400 l of bag capacity in 2x200 l bags means long intervals between emptying
- 2200 mm maximum height is the lowest of the three insert models, easiest to fit under a low ceiling
გასათვალისწინებელი
- 102.1 dB(A) sound power is the loudest of the three insert collectors, so hearing protection and siting matter
- 1750 Pa negative pressure is the lowest of the three, below the 1800 Pa of the smaller ABS2480
- Two chip bags to detach and empty instead of one, and 52 kg net to move on the casters
