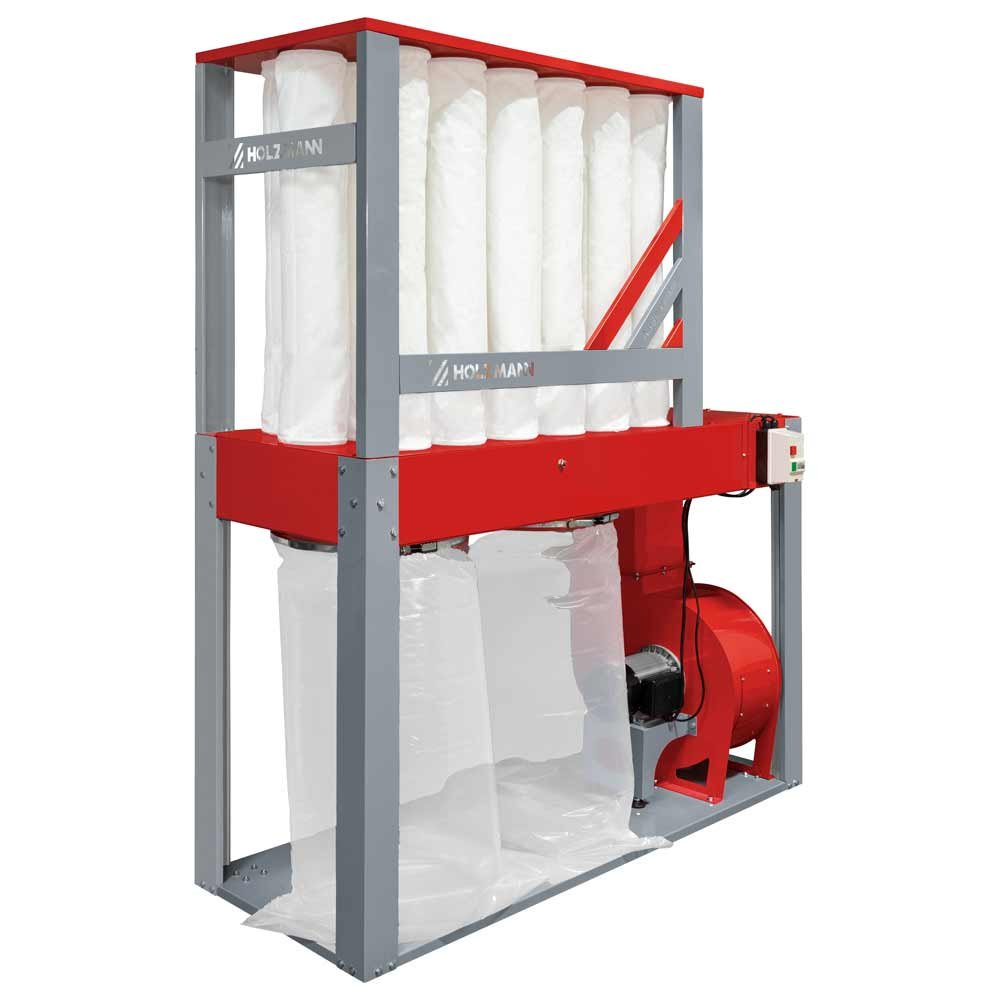

HOLZMANN ABS4500MF Multi-Filter Dust Collector (4500 m³/h)
ABS4500MF
No three-phase board, but 4500 m³/h needed? That is the case the ABS4500MF answers: a 3000 W motor on 230 V / 50 Hz driving a 400 mm fan wheel to 2690 Pa through a single Ø200 mm inlet. An 18-element filter block of Ø160 x 945 mm gives 8.46 m² of surface, and chips drop into a 185 l bag. 143 kg net.
The ABS4500MF price is driven by the Ø200 mm trunk ducting, reducers, branches and blast gates designed for your layout, spare filter elements and chip bags, any electrical work to provide a rated single-phase circuit, delivery of a 193 kg gross unit, and duty and VAT.
ფასის მოთხოვნაWhat the HOLZMANN ABS4500MF does
The HOLZMANN ABS4500MF is the high-capacity single-phase collector in the HOLZMANN range, and that is its defining fact: 4500 m³/h and 2690 Pa of static vacuum pressure from a 3000 W motor running on 230 V / 50 Hz. Extraction of that order normally means three-phase power, so the ABS4500MF is the unit that lets a workshop with only single-phase supply extract a planer-thicknesser, a spindle moulder or a panel saw properly. Air enters through a single Ø200 mm port, is driven by a Ø400 mm fan wheel, and is filtered through a multi-filter block of 18 elements measuring Ø160 x 945 mm each — 8.46 m² of filter surface in total.
Filtration, capacity and handling
The multi-filter design is what keeps the ABS4500MF’s airflow steady: spreading the same volume across 18 filter elements lowers face velocity and slows the rate at which the filter surface blinds, so extraction stays constant even under continuous use. The solid construction is shaped for clean flow conditions into the fan, and collected material drops into a 185 l chip bag of Ø500 x 900 mm. An integrated moving device makes the 143 kg ABS4500MF manoeuvrable inside the shop, although this is a machine that gets positioned once rather than wheeled between stations every hour.
How the ABS4500MF differs from the ABS8000PRO and ABS2200FLEX
The ABS4500MF sits between the two. The HOLZMANN ABS2200FLEX gives 2200 m³/h from a low 750 mm frame on 230 V or 400 V; the HOLZMANN ABS8000PRO gives 8000 m³/h and a four-machine distributor but only on 400 V. The ABS4500MF is the one that combines serious volume with a single-phase connection, at the cost of a single Ø200 mm inlet and a noticeably loud 108 dB(A) sound power level.
Delivery
The ABS4500MF is supplied with its moving device, the full set of 18 filters and 2 chip bags.
ძირითადი მახასიათებლები
- 4500 m³/h on ordinary 230 V / 50 Hz single-phase - no three-phase board required
- 3000 W S1 motor and 400 mm fan wheel reaching 2690 Pa
- 18-element filter block, Ø160 x 945 mm each, 8.46 m² of filter surface
- One Ø200 mm inlet, sized for fabricated trunk ducting rather than a plug-in distributor
- 185 l chip bag, Ø500 x 900 mm, with two bags in the delivery
- 108 dB(A) sound power and 89.8 dB(A) sound pressure - site it away from workstations
- 143 kg net, 193 kg gross, with an integrated moving device
ტექნიკური მახასიათებლები
- Motor power (S1)
- 3000 W
- Voltage
- 230 V / 50 Hz
- Extraction port
- Ø200 mm
- Suction performance
- 4500 m³/h
- Static vacuum pressure
- 2690 Pa
- Fan wheel diameter
- 400 mm
- Filter block
- 18 filters, Ø160 x 945 mm, 8.46 m² filter surface
- Chip bag capacity
- 185 l
- Chip bag diameter
- 500 mm
- Chip bag length
- 900 mm
- Sound power level
- 108 dB(A)
- Sound pressure level
- 89.8 dB(A)
- Net weight
- 143 kg
- Gross weight
- 193 kg
- EAN code
- 9120132141714
უპირატესობები
- 4500 m³/h on a 230 V single-phase supply — rare capacity without three-phase power
- 18-element multi-filter block with 8.46 m² of surface keeps airflow steady under continuous use
- 185 l chip bag and two bags included, so intervals between changes are long
გასათვალისწინებელი
- Very loud: 108 dB(A) sound power, 89.8 dB(A) sound pressure — hearing protection essential
- One Ø200 mm inlet only; multi-machine branch ducting is not supplied
- 143 kg with no cyclone separation or automatic filter cleaning; filters are serviced by hand
