HOLZMANN

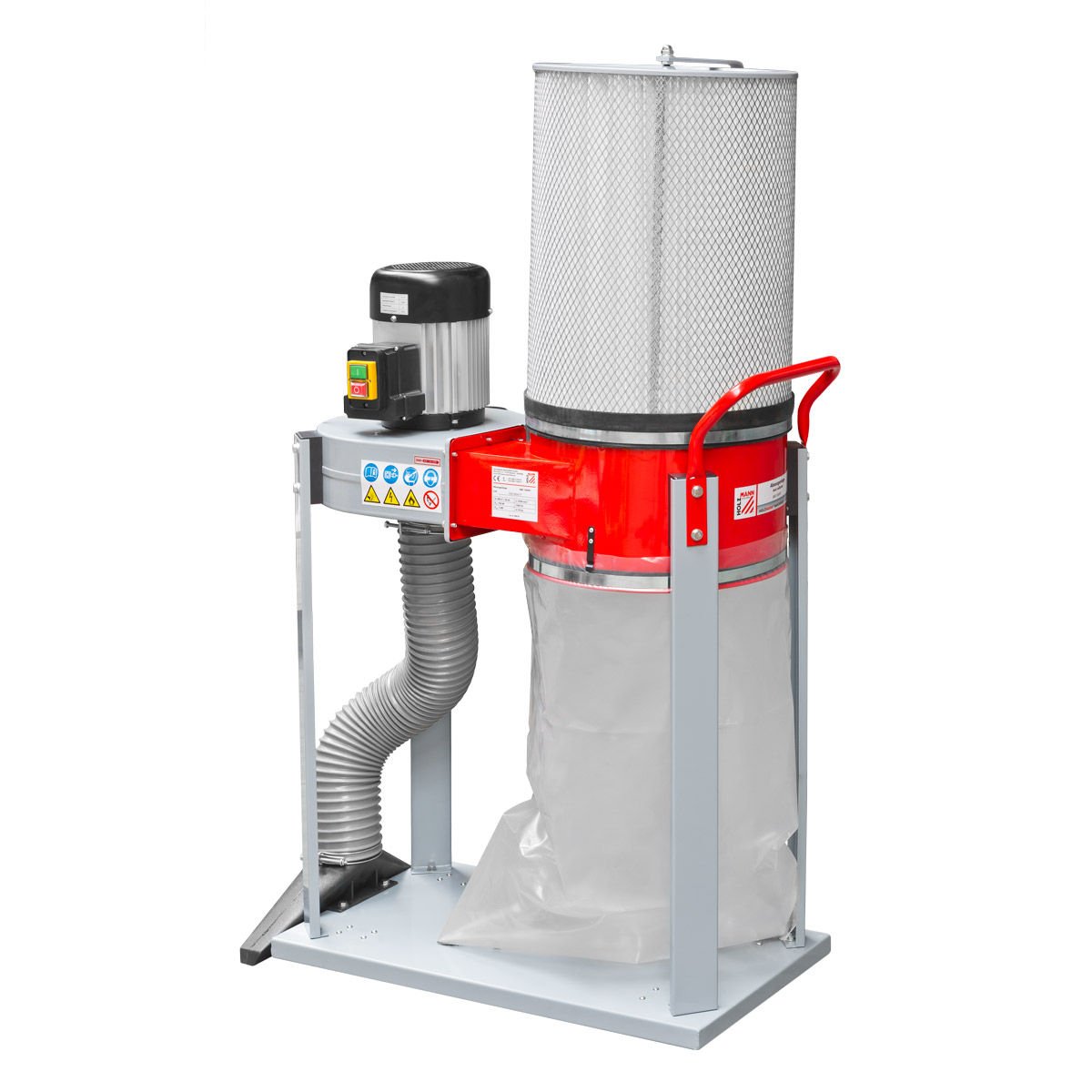

HOLZMANN ABS1500FF Dust Collector – 1500 m³/h
ABS1500FF
The HOLZMANN ABS1500FF is a mobile dust collector delivering 1500 m³/h at 1020 Pa from a 750 W S1 (1000 W S6) motor, with a Ø100 mm connection and a 60 litre chip bag. The ABS1500FF has a steel plate housing and steel fan wheel, stands 1400 mm tall, weighs 32 kg net and is available in 230V and 400V versions.
Price of the ABS1500FF is driven by the voltage version (230V or 400V), the spare filter and chip bag package, any Ø100 mm hose, clamps and blast gates ordered with it, and delivery, customs and VAT handling into Georgia.
ფასის მოთხოვნა1500 m³/h from a compact single-machine extractor
The HOLZMANN ABS1500FF is the extractor to put behind one demanding machine: 1500 m³/h of airflow and 1020 Pa of vacuum from a 750 W S1 (1000 W S6) motor spinning at 2950 rpm, through a Ø100 mm connection. That is enough air to serve a planer, a thicknesser or a bandsaw at the end of a short duct run. The ABS1500FF stands 1400 mm tall on a 720 x 380 mm base and weighs 32 kg net, so it moves on its own castors between machines rather than needing a fixed ducted installation.
Steel construction, and why that matters for chips
The body of the ABS1500FF is a solid steel plate construction rather than moulded plastic, which keeps static charge to a minimum in a dry, dusty workshop. The fan wheel is steel too, so the ABS1500FF survives the occasional offcut pulled into the impeller that would crack a plastic wheel. The large filter area is what lets the ABS1500FF pass its rated air volume, and it holds extraction force steady through long runs rather than tailing off as the bag loads.
Running costs and bag handling
The chip bag on the ABS1500FF holds 60 litres, which a thicknesser will fill quickly, so plan on frequent changes and budget for spare bags. Bag exchange on the ABS1500FF is designed to be quick and uncomplicated. Sound power is 85 dB(A) – loud enough that the ABS1500FF is worth siting away from the operator position wherever the duct run allows.
Sizing against the rest of the ABS range
Choose the ABS1500FF over the smaller ABS850 when the machine it serves is wide-bodied and 850 m³/h would be marginal. Choose the ABS3000SE instead if three machines must be connected at once, since the ABS1500FF has a single inlet and is not a multi-machine manifold unit.
ძირითადი მახასიათებლები
- 1500 m³/h suction performance at 1020 Pa vacuum
- 750 W S1 / 1000 W S6 motor running at 2950 min-1
- Ø100 mm dust collector connection
- 60 litre chip bag with quick, uncomplicated bag change
- Solid steel plate housing keeps static charge to a minimum compared with plastic bodies
- Steel fan wheel resists damage from small pieces of wood drawn into the impeller
- Large filter area sustains constant extraction force during long operations
- Carriage with castors included for workshop mobility; 32 kg net, 1400 mm tall
- Available in 230V and 400V versions
ტექნიკური მახასიათებლები
- Suction performance
- 1500 m³/h
- Vacuum (hypotension)
- 1020 Pa
- Chip bag capacity
- 60 l
- Dust collector port
- 100 mm
- Motor power S1
- 750 W
- Motor power S6
- 1000 W
- Voltage
- 230V (400V variant also available)
- Speed
- 2950 min-1
- Sound power level
- 85 dB(A)
- Total dimensions
- 720 x 380 x 1400 mm
- Net weight
- 32 kg
- Gross weight
- 33 kg
- Packaging (L x W x H)
- 840 x 760 x 460 mm
- EAN code (ABS1500FF_230V)
- 9120058376504
- EAN code (ABS1500FF_400V)
- 9120058376511
უპირატესობები
- 1500 m³/h at 1020 Pa is genuine planer and thicknesser capacity from a 750 W single-phase motor
- Steel plate housing and steel fan wheel tolerate offcuts and minimise static, unlike plastic-bodied collectors
- 32 kg on castors means the ABS1500FF is moved between machines rather than requiring fixed ducting
გასათვალისწინებელი
- A single Ø100 mm inlet means the ABS1500FF serves one machine at a time - three-machine work needs the ABS3000SE
- The 60 litre chip bag fills fast under a thicknesser, so bag changes are frequent and spare bags are a recurring cost
- 85 dB(A) sound power is significant in a small workshop where the unit stands next to the operator
