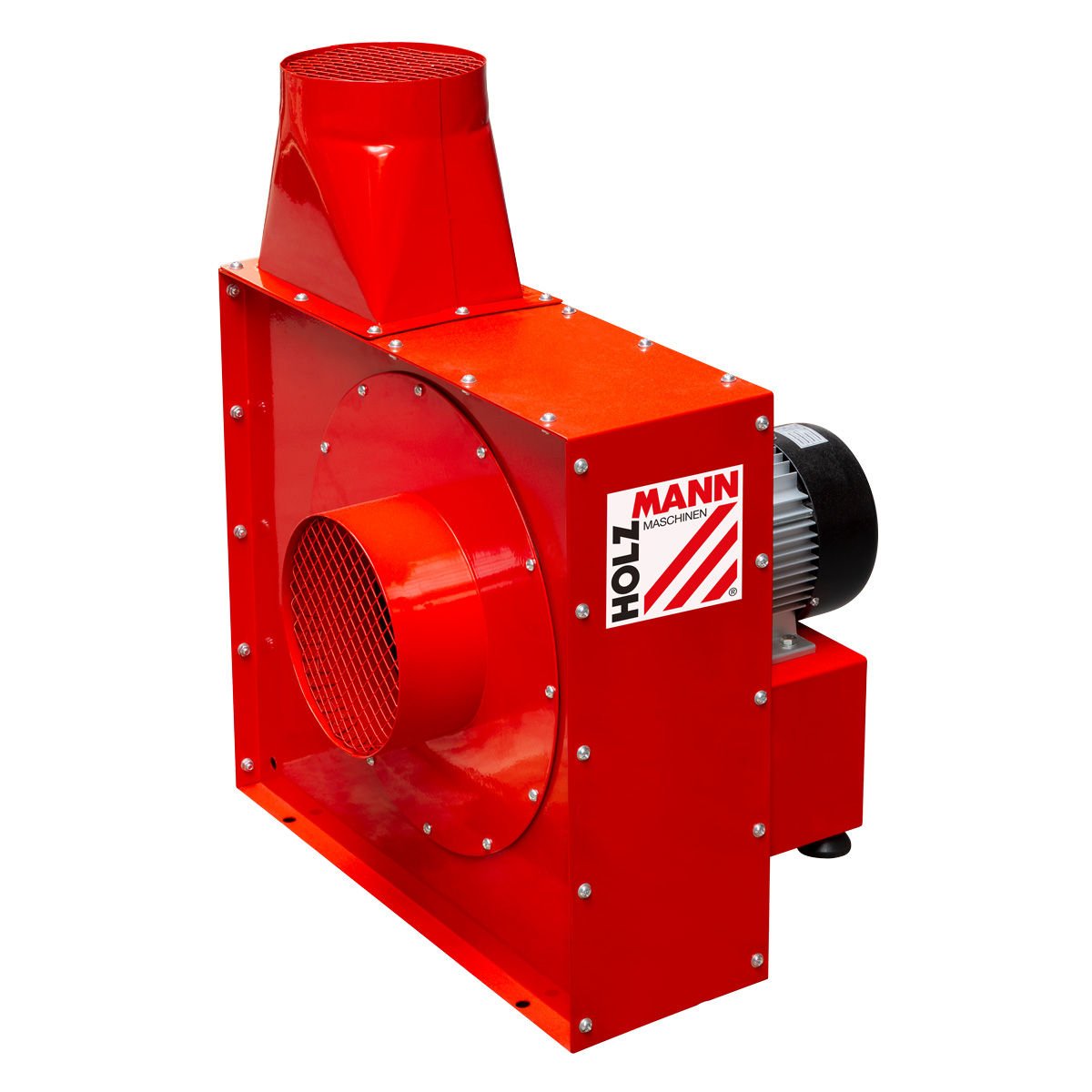

HOLZMANN FAN2200 Dust Fan – 4000 m³/h Extraction Blower

FAN2200 — HOLZMANN FAN2200 Dust Fan – 4000 m³/h Extraction Blower 1 / 3

Port size decides between the two HOLZMANN dust fans: the FAN2200 takes a 200 mm inlet and discharges through 180 mm, moving 4000 m³/h at 1900 Pa from a 330 mm wheel on a 2200 W 400V motor. At 36 kg net in a 575 x 585 x 705 mm housing it is the light one - and a blower stage only.

ძრავის სიმძლავრე
2.2 kW
ძაბვა
400V
გაბარიტები
575 x 585 x 705 mm
წონა
36 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

Price on the FAN2200 moves with the 400V three-phase motor rating, whether ducting, transitions, flexible connectors and a downstream separator or filter are quoted alongside the fan, and delivery plus rigging to the mounting position.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN FAN2200 does

The HOLZMANN FAN2200 is the air mover on its own, without the filter tower and bag that a complete collector carries. A 2200 W motor spins a 330 mm fan wheel to produce 4000 m³/h of airflow against 1900 Pa of static pressure, taken in and discharged through a 200 / 180 mm dust collector port. In practice the FAN2200 is built into a workshop’s own extraction layout: ducted into a bag house, a silo, a cyclone bin or an outside discharge that the workshop already owns or builds.

Who the FAN2200 suits

The FAN2200 suits sawmills and larger joineries that are designing their own central extraction rather than buying a packaged unit, and workshops that need to boost or replace the fan on an existing installation. Because the FAN2200 weighs only 36 kg and occupies 575 x 585 x 705 mm, it can be bracket-mounted or floor-mounted close to the ducting instead of standing on the shop floor. The sound power level is 85 dB(A).

How the FAN2200 differs from the HOLZMANN ABS collectors

The difference between the FAN2200 and a machine such as the ABS3000SE or ABS5000SE is separation. The ABS units arrive with filter sleeves, chip bags and a distributor and are ready to run the moment they are unpacked; the FAN2200 supplies airflow and nothing else, so the chip separation and filtration are the buyer’s design. In exchange the FAN2200 gives 4000 m³/h from a unit a third of the size, and its large 200 / 180 mm port suits main trunk ducting rather than 100 mm machine branches.

Planning an installation around the FAN2200

Anyone specifying the FAN2200 should plan the ducting for its 200 / 180 mm port and remember that 1900 Pa is the pressure available for the whole run — hose length, bends and any filter media all consume part of it. The FAN2200 requires a 400V three-phase supply, and no filter, bag, ducting or mounting frame forms part of its delivery.

ძირითადი მახასიათებლები

  • 200 mm inlet stepping down to a 180 mm discharge - sized for 200 mm workshop trunk ducting
  • 4000 m³/h at 1900 Pa from a 330 mm fan wheel
  • 2200 W S1 motor, 400V - the lower-current of HOLZMANN's two dust fans
  • 36 kg net (38 kg gross) in a 575 x 585 x 705 mm body: two people can lift it onto a bracket
  • Blower stage only - the separator, filter and collection point are specified around it
  • Sound power level of 85 dB(A)

ტექნიკური მახასიათებლები

Motor power S1
2200 W
Voltage
400V
Dust collector port
200 / 180 mm
Total dimensions
575 x 585 x 705 mm
Suction performance
4000 m³/h
Fan wheel diameter
330 mm
Hypotension (static pressure)
1900 Pa
Sound power level
85 dB(A)
Net weight
36 kg
Gross weight
38 kg
EAN code
9120058376856

უპირატესობები

  • 4000 m³/h from a 36 kg, 575 x 585 x 705 mm unit
  • Large 200 / 180 mm port suited to trunk ducting
  • Flexible: fits any custom or existing extraction layout

გასათვალისწინებელი

  • No filter, bag, cyclone or distributor included — blower only
  • 400V three-phase only
  • Requires the buyer to design and build the separation and ducting

ხშირად დასმული კითხვები

Does the HOLZMANN FAN2200 work on 230V single-phase?
No. The HOLZMANN FAN2200 is supplied as the FAN2200_400V variant with a 2200 W motor for a 400V three-phase supply. A workshop without three-phase power should look at a genuinely single-phase packaged collector instead - HOLZMANN lists the ABS4000 at 3900 m³/h on 230V and the ABS4500MF at 4500 m³/h on 230 V / 50Hz. (Correction: the ABS3000SE named in an earlier version of this answer is a 400V / 50Hz machine, not a 230V one, and is not a single-phase alternative to the FAN2200.)
What does the HOLZMANN FAN2200 not do?
The HOLZMANN FAN2200 does not filter or collect anything. The FAN2200 has no filter sleeve, no chip bag, no cyclone and no distributor — it is a blower that moves 4000 m³/h and must be ducted into a separation and collection system supplied by the workshop.
What is the FAN2200 used for in a workshop?
The HOLZMANN FAN2200 is used as the air mover of a custom or existing central extraction installation: ducted to a bag house, chip silo, cyclone bin or outside discharge, or fitted as a replacement fan on a system whose original blower has failed.
What duct size does the FAN2200 need?
The HOLZMANN FAN2200 has a 200 / 180 mm dust collector port, so it is designed for main trunk ducting of that diameter rather than the Ø100 mm branch hoses used at individual machines.
How much suction pressure does the FAN2200 have?
The HOLZMANN FAN2200 develops 1900 Pa of static pressure at 4000 m³/h. That figure covers the whole system, so long duct runs, tight bends and filter media all reduce the airflow actually reaching the machine.
How heavy is the FAN2200?
The HOLZMANN FAN2200 weighs 36 kg net (38 kg gross) and measures 575 x 585 x 705 mm, which is light enough for two people to lift it onto a bracket or a frame next to the ducting.
How much does the HOLZMANN FAN2200 cost?
The HOLZMANN FAN2200 is supplied by quotation rather than at a shelf price. What moves the figure is the 400V three-phase specification, whether we quote the fan alone or as part of a system with 200 mm trunk ducting, transitions, flexible connectors and a downstream separator or filter, and delivery and rigging to the mounting point. Send us the duct layout and machine list and we will price the FAN2200 against it.
What is the lead time on a HOLZMANN FAN2200?
The HOLZMANN FAN2200 is built to order, and the current lead time is confirmed on the quotation - we will not guess at a date before checking the factory position for you. Ask for the FAN2200 lead time in the same enquiry as the price so both arrive together.
What does commissioning a HOLZMANN FAN2200 involve?
Commissioning a HOLZMANN FAN2200 means mounting the 36 kg body on a level bracket or frame, connecting the 400V three-phase supply and confirming the impeller turns the correct way, flanging the 200 mm inlet and 180 mm outlet ducting on with flexible connectors, and balancing the branches so each machine receives its share of the 4000 m³/h. We can quote installation with the FAN2200 or work with your own contractor.
What else do I need to budget for besides the FAN2200 itself?
Budget beyond the HOLZMANN FAN2200 for everything it does not include: the separator, filter and collection point downstream, the 200 mm trunk and Ø100 mm branch ducting, blast gates, flexible connectors, the mounting frame, and the three-phase electrical work to the fan position. The FAN2200 is the air mover only, so the system around it is the larger part of the budget.
