HOLZMANN

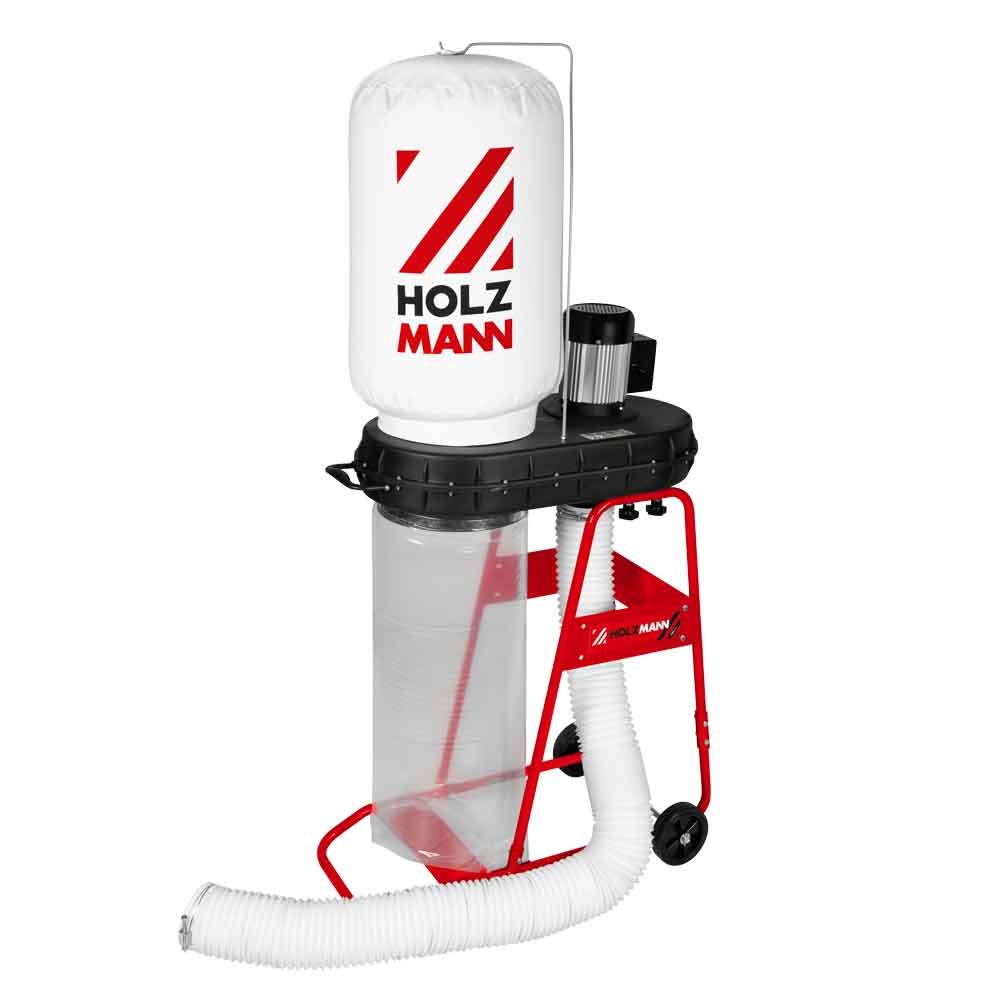

HOLZMANN ABS850 Dust Collector – 850 m³/h, 230V
ABS850
The HOLZMANN ABS850 is a compact single-machine dust collector delivering 850 m³/h at 800 Pa from a 750 W S1 (1050 W S6) motor on a 230V/50Hz supply, through a Ø100 mm port. The ABS850 uses a 230 mm fan wheel and a 40 litre chip bag, weighs 23 kg net and runs at 78 dB(A) sound power.
Price of the ABS850 is driven by the spare chip and filter bag package, the Ø100 mm hose, clamps and blast gates ordered with it, order quantity where several units are bought, and delivery, customs and VAT handling into Georgia.
ფასის მოთხოვნა850 m³/h for one machine, on ordinary 230V power
The HOLZMANN ABS850 is the smallest sensible extractor for a woodworking machine rather than a hand tool: 850 m³/h and 800 Pa of vacuum from a 750 W S1 (1050 W S6) motor on a standard 230V/50Hz socket, through a Ø100 mm port. The ABS850 is aimed at a single machine at a time – a bandsaw, a spindle moulder, a small planer – and delivers that performance from a low space requirement, weighing just 23 kg net.
Quiet enough to stand next to
Noise is the ABS850’s quiet advantage over larger units: sound power is 78 dB(A) and sound pressure 76.6 dB(A), measurably lower than the 85 dB(A) of the bigger ABS models. In a one-man shop where the extractor stands a metre from the operator, that difference is felt over a full working day. The 230 mm fan wheel is what keeps the ABS850 both compact and moderate in noise.
Bag capacity sets the working rhythm
Plan around the 40 litre chip bag on the ABS850, which measures 280 mm in diameter and 900 mm long. Forty litres fills fast under a planer, so the ABS850 suits intermittent machining better than continuous stock removal, and spare bags belong on the first order. Emptying is a two-minute job, but it is a job that recurs.
When to step up from the ABS850
The ABS850 is correctly specified for one Ø100 mm machine port at a time and a short hose run. If the shop plans a 300 mm-plus planer, a wide bandsaw, or two machines running together, the ABS1500FF at 1500 m³/h or the three-outlet ABS3000SE at 3000 m³/h is the honest recommendation – undersized extraction is the most common false economy in a small joinery.
ძირითადი მახასიათებლები
- 850 m³/h suction performance at 800 Pa vacuum
- 750 W S1 / 1050 W S6 motor on a standard 230V / 50Hz single-phase supply
- Ø100 mm dust collector port for one machine at a time
- 230 mm fan wheel in a compact housing with a low space requirement
- 40 litre chip bag, 280 mm diameter x 900 mm long
- 78 dB(A) sound power and 76.6 dB(A) sound pressure - the quietest unit in this ABS group
- 23 kg net weight, easily repositioned by one person
ტექნიკური მახასიათებლები
- Suction performance
- 850 m³/h
- Vacuum (hypotension)
- 800 Pa
- Chip bag capacity
- 40 l
- Chip bag diameter
- 280 mm
- Chip bag length
- 900 mm
- Fan wheel diameter
- 230 mm
- Dust collector port
- Ø 100 mm
- Motor power S1
- 750 W
- Motor power S6
- 1050 W
- Voltage
- 230V / 50Hz
- Sound power level
- 78 dB(A)
- Sound pressure level
- 76.6 dB(A)
- Net weight
- 23 kg
- Gross weight
- 26 kg
- Packaging (L x W x H)
- 760 x 450 x 410 mm
- EAN code (ABS850_230V)
- 9120058372414
უპირატესობები
- Runs from an ordinary 230V socket, so no electrical work is needed before the ABS850 can be used
- 78 dB(A) sound power makes the ABS850 noticeably quieter than the 85 dB(A) larger ABS units in a small shop
- 23 kg and compact - one person can lift and reposition the ABS850 between machines
გასათვალისწინებელი
- 850 m³/h and 800 Pa is the minimum useful level: a wide thicknesser or a 430 mm bandsaw will overwhelm the ABS850
- The 40 litre chip bag is small, so continuous planing means frequent emptying
- Single Ø100 mm port and no distributor - the ABS850 serves one machine at a time only
