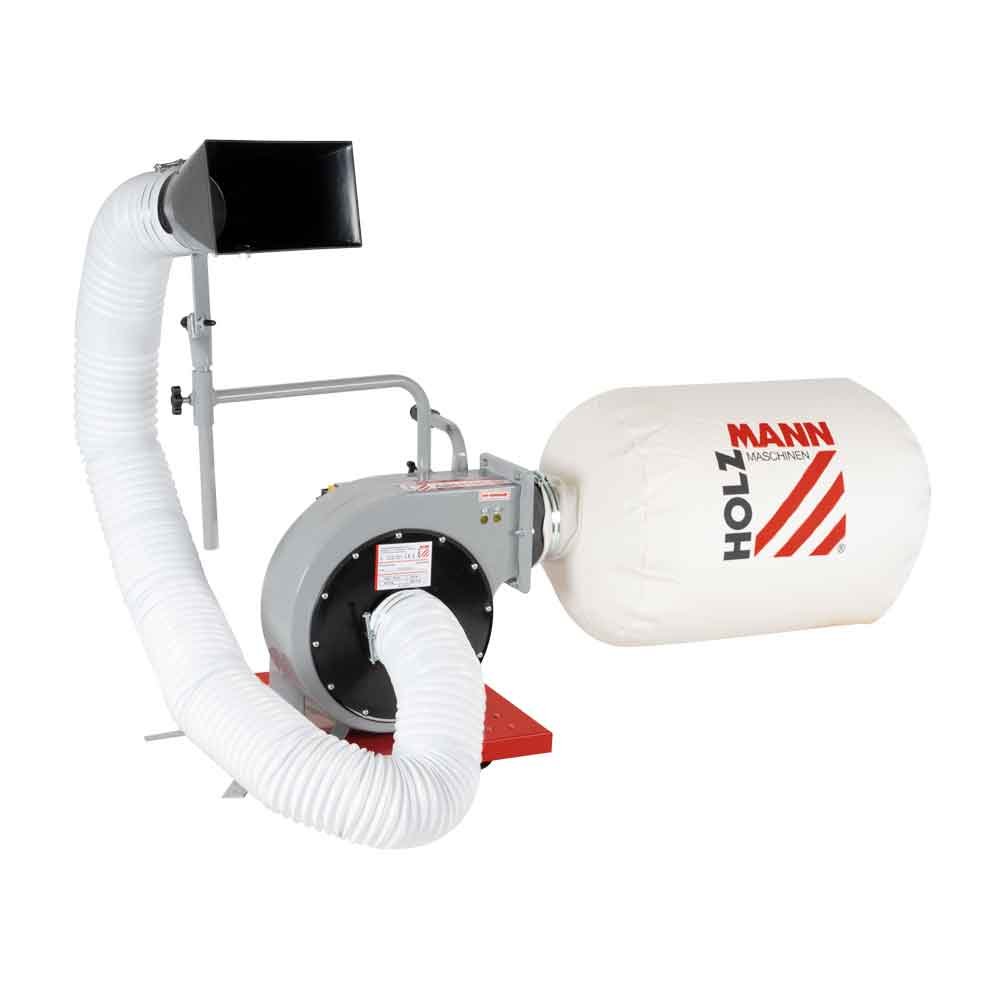

HOLZMANN ABS850DBK Dust Collector for Wood Lathes – 850 m³/h
ABS850DBK
A height-adjustable extraction hood measuring 230 x 125 mm is what separates the ABS850DBK from every round-port collector in this range, because it sets the mouth directly behind a turning workpiece. Behind that hood a 750 W motor moves 850 m³/h at 1030 Pa into a 56 l bag, at under 70 dB(A) and 20.5 kg net.
The ABS850DBK price moves with spare chip bag quantity, any 100 mm hose and adapter specified to suit your lathe, delivery to site in Georgia, and applicable duty and VAT.
ფასის მოთხოვნაWhat the HOLZMANN ABS850DBK does
The HOLZMANN ABS850DBK is a small dust collector designed around the awkward geometry of wood turning. A 750 W motor and 230 mm fan wheel give 850 m³/h at 1030 Pa, and instead of a fixed Ø100 mm stub the ABS850DBK carries a wide extraction hood with a 230 x 125 mm opening whose height can be adjusted. That lets the hood be set directly behind the workpiece on the lathe bed, where shavings and sanding dust actually leave the tool, rather than at a port two metres away.
Who the ABS850DBK suits
The ABS850DBK suits turners, small furniture workshops making legs and spindles, and school or training workshops. Four wheels on the base plate let the whole unit be pushed along the lathe as the work moves, and at 20.5 kg net and 1100 x 500 x 1300 mm the ABS850DBK is genuinely portable. The measured sound pressure of under 70 dB(A) is markedly quieter than the larger HOLZMANN collectors, which matters when a turner stands beside it all day.
How the ABS850DBK differs from the larger HOLZMANN collectors
The ABS850DBK is the smallest dust collector in this HOLZMANN group, and it is specialised rather than under-powered. Its 850 m³/h serves one machine at one point; the ABS3000SE at 3000 m³/h and the ABS4000 at 3900 m³/h are built to carry three machines through a Ø150 mm main duct. Where those machines run on tall filter sleeve and bag towers over two metres high, the ABS850DBK stands 1300 mm tall and plugs into an ordinary 230V socket, which makes it the practical choice for a shop with no three-phase supply and one lathe to clear.
What is included with the ABS850DBK
Delivery of the ABS850DBK includes the chip bag (Ø380 mm, 530 mm long, 56 litres) and the dust suction port with its 230 x 125 mm opening. The connection diameter at the machine side is 100 mm.
ძირითადი მახასიათებლები
- Height-adjustable suction hood with a 230 x 125 mm opening, positioned behind the turning workpiece
- 850 m³/h at 1030 Pa - sized for a single lathe rather than a ducted network
- Under 70 dB(A) sound pressure, quiet enough to stand beside the operator
- 56 l chip bag, Ø380 x 530 mm, supplied with the machine
- 750 W on a plain 230 V / 50 Hz socket, with no 400 V variant offered
- 230 mm fan wheel; 1100 x 500 x 1300 mm overall at 20.5 kg net
- Four wheels set into the base plate for sliding the unit along the lathe bed
ტექნიკური მახასიათებლები
- Motor power S1
- 750 W
- Voltage
- 230 V / 50 Hz
- Dust collector port
- 100 mm
- Total dimensions
- 1100 x 500 x 1300 mm
- Suction performance
- 850 m³/h
- Chip bag capacity
- 56 l
- Fan wheel diameter
- 230 mm
- Hypotension (static pressure)
- 1030 Pa
- Sound pressure level
- < 70 dB(A)
- Net weight
- 20.5 kg
- Gross weight
- 21.5 kg
- EAN code
- 9120058378775
უპირატესობები
- Height-adjustable 230 x 125 mm hood catches shavings at the lathe
- Runs from an ordinary 230V socket at only 750 W
- Quiet (under 70 dB(A)) and light at 20.5 kg on four wheels
გასათვალისწინებელი
- 850 m³/h is too little for a planer, moulder or table saw
- Single 100 mm connection — no distributor for several machines
- 56 litre bag fills fast during heavy roughing and is emptied by hand
