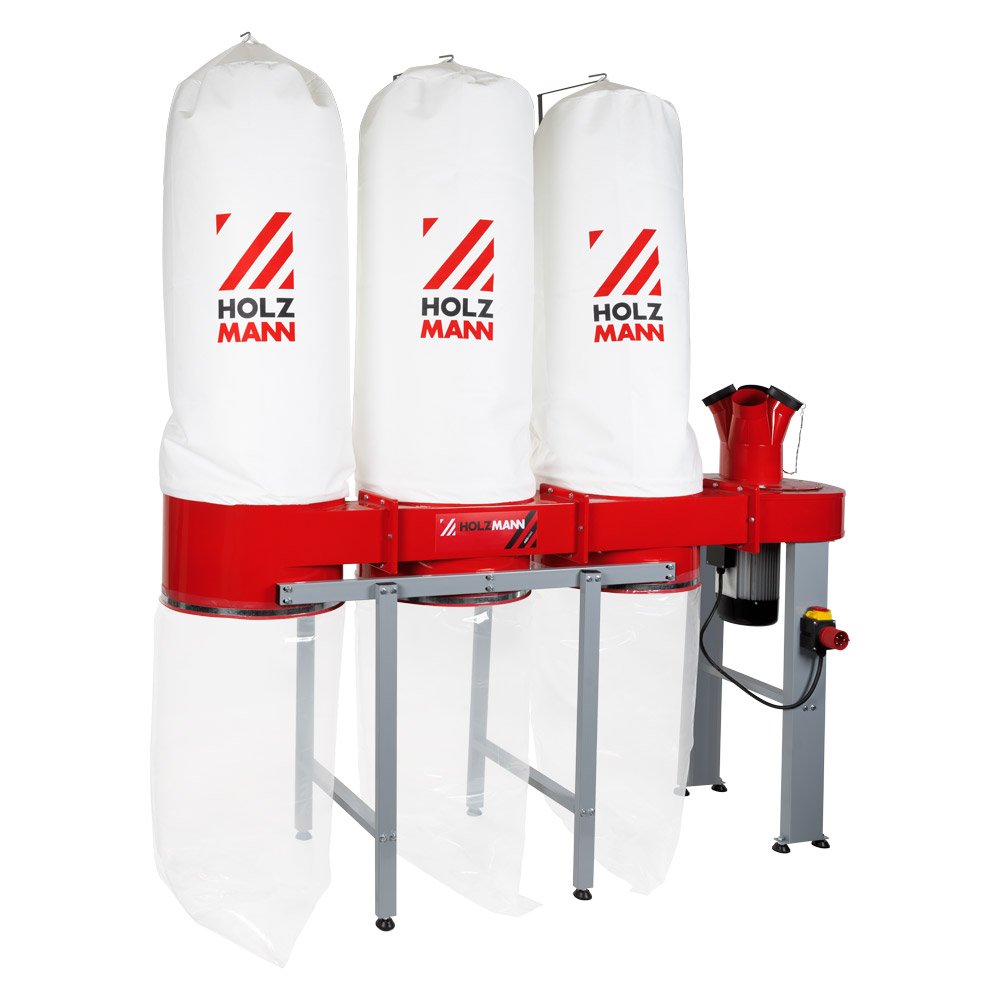

HOLZMANN ABS4560 Dust Collector with Insert — 4560 m³/h, 400 V

ABS4560 — HOLZMANN ABS4560 Dust Collector with Insert — 4560 m³/h, 400 V 1 / 4

The HOLZMANN ABS4560 is a 400 V dust collector with insert that delivers 4560 m³/h of suction performance at 2500 Pa on a 356 mm fan wheel, feeding three 160 l chip bags. With one ø180 mm and four ø100 mm ports, the ABS4560 is the largest insert collector in this HOLZMANN ABS range.

ძრავის სიმძლავრე
3.8 kW
ძაბვა
400V
გაბარიტები
2150 x 620 x 2320
წონა
69.50 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

Price on the ABS4560 is driven by the ducting design around the ø180 mm trunk and four ø100 mm branch ports, the three-phase electrical connection for the 3800 W S1 motor, handling and positioning of a 92 kg gross machine, and delivery to the workshop in Georgia.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

HOLZMANN ABS4560: the largest insert collector in this range

The HOLZMANN ABS4560 is the machine for a workshop with several machines running together, delivering 4560 m³/h of suction performance at 2500 Pa of negative pressure. The ABS4560 uses a 356 mm fan wheel, larger than the 300 mm wheel of the ABS2480 and ABS3880, and carries one ø180 mm plus four ø100 mm dust collector ports, so a main trunk and four branches can be served from a single machine.

Motor and supply

The ABS4560 is a three-phase machine only, rated 3800 W on the S1 continuous rating at 400 V / 50 Hz. No 230 V version of the ABS4560 is listed, so a shop without a three-phase connection has to arrange one or step down to the ABS2480 or ABS3880, both of which are offered in a 230 V variant.

Filtration and chip handling

Filter area is what lets the ABS4560 hold 4560 m³/h in service: the machine carries three filter bars of ø500 mm x 1200 mm. Collection is into three chip bags of 160 l each, 500 mm in diameter and 950 mm long, for 480 l of total capacity. The ABS4560 measures 2150 x 620 x 2320 mm overall and needs 2300 mm of clearance at working height, so the ABS4560 is a machine that takes a permanent position rather than being moved daily; net weight is 69.50 kg.

Noise

The ABS4560 is the quietest of the three insert collectors despite being the largest, at 96 dB(A) sound power and 86.7 dB(A) sound pressure, against 102.1 dB(A) sound power for the ABS3880. Hearing protection is still required around the ABS4560 during operation.

Where the ABS4560 sits against its siblings

The ABS4560 is the top of the three insert models: 4560 m³/h and 2500 Pa against 3880 m³/h and 1750 Pa for the ABS3880, and 2480 m³/h and 1800 Pa for the ABS2480. Pricing for the ABS4560 is by quotation; send the machine list, the port sizes and the supply available and a quotation follows.

ძირითადი მახასიათებლები

  • 4560 m³/h suction performance at 2500 Pa negative pressure
  • One ø180 mm plus four ø100 mm dust collector ports for a trunk line and branches
  • 356 mm fan wheel, larger than the 300 mm wheel of the ABS2480 and ABS3880
  • Three filter bars of ø500 mm x 1200 mm for the filter surface
  • Three 160 l chip bags, 500 mm diameter x 950 mm long, 480 l total capacity
  • 3800 W S1 continuous motor on 400 V / 50 Hz
  • 96 dB(A) sound power level, the lowest of the three insert collectors
  • 2150 x 620 x 2320 mm overall, 69.50 kg net

ტექნიკური მახასიათებლები

Motor power S1 in W
3800
Voltage
400V / (50Hz)
Dust collector port in mm
1 x ø180 / 4 x ø100
Max. height in mm
2300
Total dimensions in mm
2150 x 620 x 2320
Suction performance in m³/h
4560
Chip bag capacity in l
3x160
Chip bag diameter in mm
500
Chip bag length in mm
950
Fan wheel diameter in mm
356
Negative pressure (hypotension) in Pa
2500
Sound power level in dB(A)
96
Sound pressure level in dB(A)
86.7
Net weight in kg
69.50
Gross weight in kg
92
EAN code
9120039900599

უპირატესობები

  • 4560 m³/h at 2500 Pa, the highest airflow and the highest negative pressure of the three insert collectors
  • One ø180 mm trunk port plus four ø100 mm branches lets a whole shop be ducted from one machine
  • 96 dB(A) sound power is the lowest of the three despite the ABS4560 being the largest

გასათვალისწინებელი

  • 400 V three-phase only - no 230 V variant of the ABS4560 is listed, so a single-phase workshop is excluded
  • 2150 x 620 x 2320 mm overall and 92 kg gross makes the ABS4560 a fixed installation rather than a machine wheeled between benches
  • Three separate 160 l bags to release and empty, and the source gives no S6 intermittent rating for the motor

ხშირად დასმული კითხვები

How much does the HOLZMANN ABS4560 cost?
The HOLZMANN ABS4560 is sold by quotation rather than at a listed price. What moves the price of an ABS4560 is the ducting design around its one ø180 mm and four ø100 mm ports (trunk line, reducers, blast gates, clamps), the three-phase electrical connection work for the 3800 W S1 motor, the handling and positioning of a machine measuring 2150 x 620 x 2320 mm, and delivery to the site in Georgia. Send the machine list and the shop layout and a written quotation for the ABS4560 follows.
Is the HOLZMANN ABS4560 available in 230 V as well as 400 V?
No - the HOLZMANN ABS4560 is listed only as a 400 V / 50 Hz three-phase machine with a 3800 W S1 motor, and no 230 V variant of the ABS4560 exists in the range. A workshop on single-phase supply either arranges a three-phase connection for the ABS4560 or chooses one of the smaller insert collectors, since the ABS2480 and the ABS3880 are both offered in a 230 V as well as a 400 V variant.
What is the lead time for a HOLZMANN ABS4560?
The HOLZMANN ABS4560 is supplied to order from HOLZMANN in Austria rather than held for immediate release. The delivery position for the ABS4560 is confirmed in writing on the quotation at the time of enquiry, so ask for the current position rather than working from a general figure.
What is involved in installing the HOLZMANN ABS4560?
Installing the HOLZMANN ABS4560 means allocating a permanent floor position for a machine of 2150 x 620 x 2320 mm with 2300 mm of clearance at working height, leaving access below the three 160 l bags for emptying, and having a qualified electrician make the 400 V / 50 Hz three-phase connection for the 3800 W S1 motor. The ø180 mm trunk line and the four ø100 mm branch runs to individual machines are designed and installed separately from the ABS4560 itself.
What do I need to budget for separately alongside the ABS4560?
Alongside the HOLZMANN ABS4560 itself, budget for the full ducting system: ø180 mm trunk pipe, reducers to ø100 mm, branch hose to each machine, blast gates, clamps and machine adapters. Add spare chip bags so a full 160 l bag can be swapped instead of emptied mid-shift, replacement filter bars for the three ø500 mm x 1200 mm positions, the three-phase electrical work, and hearing protection for the 96 dB(A) environment around the ABS4560.
How does the HOLZMANN ABS4560 compare with the ABS3880?
The HOLZMANN ABS4560 sits a full step above the ABS3880: 4560 m³/h against 3880 m³/h, 2500 Pa of negative pressure against 1750 Pa, a 356 mm fan wheel against 300 mm, and a ø180 mm trunk port plus four ø100 mm branches against three 100 mm ports. The trade-offs are that the ABS4560 is 400 V only while the ABS3880 has a 230 V variant, and that the ABS4560 at 69.50 kg net on a 2150 x 620 x 2320 mm footprint is a fixed installation.
