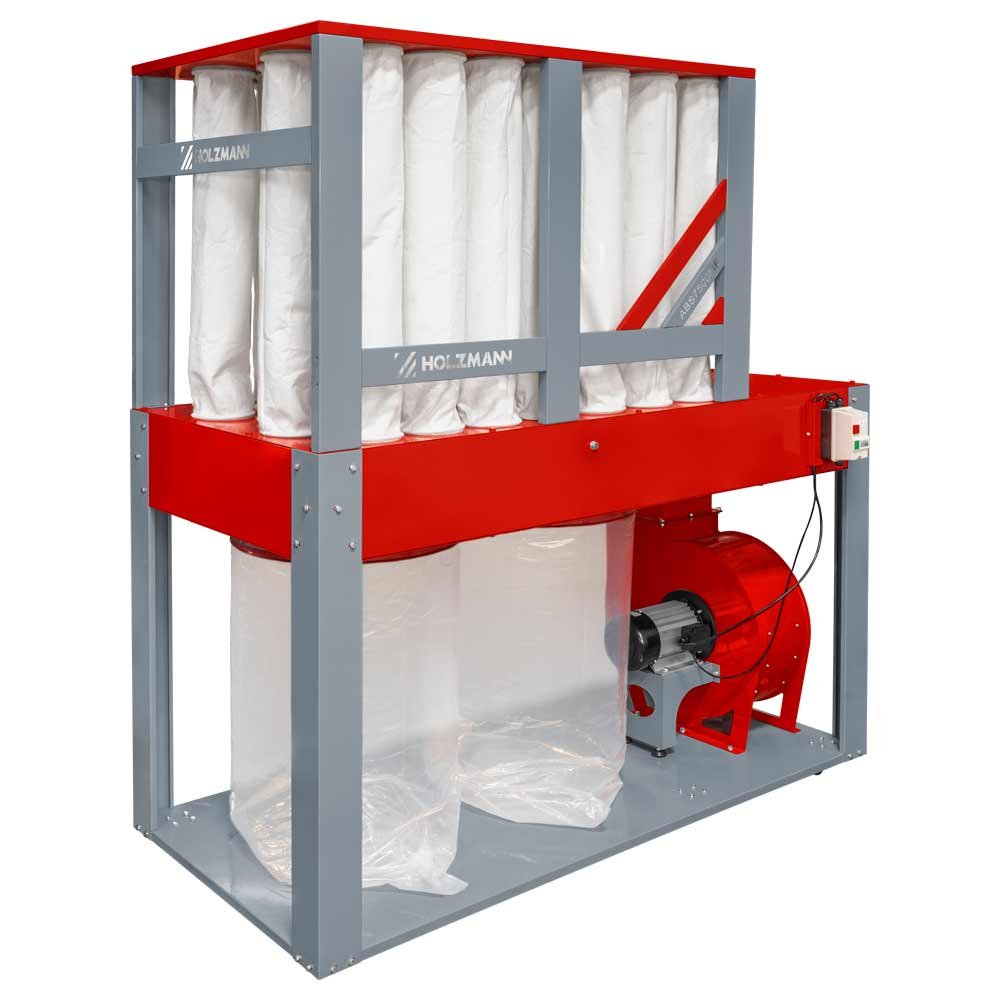

HOLZMANN ABS7500MF Multi-Filter Dust Collector – 7500 m³/h

ABS7500MF

3835 Pa is the figure that matters on the ABS7500MF: the highest static pressure in the HOLZMANN ABS range, and the reason it can pull a long trunk duct that would stall a lower-pressure collector. A 5500 W 400 V motor and 460 mm fan wheel move 7500 m³/h into a 280 mm port, past 35 filter elements totalling 16.45 m².

ფასი მოთხოვნით

The ABS7500MF price is driven by the 280 mm trunk ducting, branches, reducers and blast gates designed for your shop, the three-phase supply and protection work for a 5.5 kW motor, spare filters and bags, delivery and rigging of a 320 kg gross crate, and duty and VAT.

ფასის მოთხოვნა

What the HOLZMANN ABS7500MF does

The HOLZMANN ABS7500MF is the production-scale unit of this HOLZMANN range, intended to sit at the head of a workshop’s ducting and serve several machines at once. A 5500 W motor and a 460 mm fan wheel generate 7500 m³/h at 3835 Pa — the highest static pressure in the group by a wide margin, which is what long trunk runs and multiple open branches consume. The air passes through 35 filter bags of ø160 x 945 mm giving 16.45 m² of filter surface, and the collected material drops into two chip bags of 265 litres each, ø610 x 900 mm.

Who the ABS7500MF suits

The ABS7500MF suits sawmills, door manufacturers and furniture factories where a four-side moulder, a wide-belt sander and several other machines run through one duct system through the shift. The 3835 Pa reserve is the reason: on a smaller collector, opening a second and third branch collapses the airflow at the machine, while the ABS7500MF has pressure in hand. The trade-off is scale — 2110 x 1140 x 2260 mm and 243 kg net — and noise, at 88.8 dB(A) sound pressure and 99.8 dB(A) sound power, so hearing protection is required near the running ABS7500MF.

How the ABS7500MF differs from the smaller HOLZMANN collectors

Between the ABS5000SE and the ABS7500MF the machine changes character. The ABS5000SE is a mobile two-bag unit of 60 kg with a four-way Ø100 mm distributor; the ABS7500MF is a fixed multi-filter tower with a single 280 mm main port, 35 filter elements and more than twice the static pressure. Where the ABS5000SE is connected by hoses to individual machines, the ABS7500MF is designed to be plumbed into fabricated ducting sized for its 280 mm inlet.

What is included with the ABS7500MF

Delivery of the ABS7500MF includes the integrated moving device for manoeuvring the unit into position, all 35 filters and 2 chip bags. Ducting, reducers and blast gates are specified by the workshop to suit its own machine layout.

ძირითადი მახასიათებლები

  • 3835 Pa static pressure, the highest in the HOLZMANN ABS range, for long trunk runs
  • 7500 m³/h from a 5500 W motor on 400 V / 50 Hz three-phase
  • 35 filter elements of ø160 x 945 mm giving 16.45 m² of filter surface - nearly double the ABS4500MF block
  • 280 mm main port for fabricated trunk ducting rather than a plug-in distributor
  • 460 mm fan wheel, the largest fan in the ABS line
  • 265 l chip bags of ø610 x 900 mm, two supplied with the 35 filters
  • 99.8 dB(A) sound power and 88.8 dB(A) sound pressure
  • 243 kg net over a 2110 x 1140 mm footprint, 2260 mm high

ტექნიკური მახასიათებლები

Motor power S1
5500 W
Voltage
400 V / 50 Hz
Dust collector port
280 mm
Total dimensions
2110 x 1140 x 2260 mm
Suction performance
7500 m³/h
Chip bag capacity
265 l
Chip bag diameter
610 mm
Chip bag length
900 mm
Fan wheel diameter
460 mm
Hypotension (static pressure)
3835 Pa
Filter dimensions
ø160 x 945 mm x 35 (multi-filter), 16.45 m² total
Sound power level
99.8 dB(A)
Sound pressure level
88.8 dB(A)
Net weight
243 kg
Gross weight
320 kg
EAN code
9120132141721

უპირატესობები

  • 7500 m³/h at 3835 Pa runs several machines through one trunk duct
  • 16.45 m² of filter area across 35 bags holds airflow under continuous duty
  • Two 265 l chip bags mean long intervals between emptying

გასათვალისწინებელი

  • 400V three-phase only, and a 5.5 kW load on the workshop supply
  • Loud at 88.8 dB(A) sound pressure — hearing protection needed nearby
  • 243 kg and 2110 x 1140 x 2260 mm: a fixed installation, not a mobile unit

ხშირად დასმული კითხვები

What power supply does the HOLZMANN ABS7500MF require?
The HOLZMANN ABS7500MF is supplied only as the ABS7500MF_400V variant, with a 5500 W motor for a 400 V / 50 Hz three-phase supply. There is no 230V single-phase version of the ABS7500MF, and a 5.5 kW load requires the workshop's supply and protection to be checked before installation.
What does the HOLZMANN ABS7500MF not do?
The HOLZMANN ABS7500MF is not a mobile machine to wheel between benches, and it is not a cyclone: the ABS7500MF has no cyclone separator, no filter cartridge and no automatic filter cleaning like the RLE1500. Its 35 filter bags and 2 chip bags are serviced by hand, and ducting is not part of its delivery.
How many machines can the ABS7500MF extract?
The HOLZMANN ABS7500MF is described by HOLZMANN as suited to use with multiple woodworking machines simultaneously. Rather than a small distributor, the ABS7500MF has one 280 mm main port into which the workshop's own trunk ducting and branches are connected.
Why does the ABS7500MF have 35 filters?
The HOLZMANN ABS7500MF uses 35 filter bags of ø160 x 945 mm to reach a total filter surface of 16.45 m². That large area is what allows the ABS7500MF to pass 7500 m³/h without the filter resistance choking the airflow, and it is why the unit maintains suction under continuous duty.
How loud is the ABS7500MF?
The HOLZMANN ABS7500MF is rated at 88.8 dB(A) sound pressure and 99.8 dB(A) sound power. It is not the loudest unit in this collector group: the ABS4500MF is published at a higher 108 dB(A) sound power and 89.8 dB(A) sound pressure. Hearing protection is necessary for anyone working near a running ABS7500MF.
How much space and floor loading does the ABS7500MF need?
The HOLZMANN ABS7500MF measures 2110 x 1140 x 2260 mm and weighs 243 kg net (320 kg gross). It needs about 2.4 m² of floor with 2.3 m of clear height, and the integrated moving device is used to position it once rather than to move it daily.
What determines the quoted price of a HOLZMANN ABS7500MF?
With a HOLZMANN ABS7500MF, the collector is usually the smaller half of the project cost. The quotation is driven by the 280 mm trunk duct, branches, reducers, hangers and blast gates drawn for your machine layout, by the three-phase supply and protection a 5.5 kW motor needs, by spare filter elements and 265 l chip bags, and by delivery and unloading of a 320 kg gross crate plus duty and VAT. Send us a workshop layout and the ABS7500MF is quoted as an extraction system.
What is the lead time for a HOLZMANN ABS7500MF?
The HOLZMANN ABS7500MF is built to order and its lead time is confirmed at quotation. On a unit of this size we normally confirm the ABS7500MF date together with the ducting and the electrical work, so that the installation window is planned around one confirmed set of dates.
How is an ABS7500MF installed and commissioned?
A HOLZMANN ABS7500MF is unloaded, moved into its permanent position on the integrated moving device, and levelled on roughly 2.4 m² of floor with 2.3 m of clear height. An electrician then provides and protects the 400 V / 50 Hz supply for the 5500 W motor, the 280 mm port is connected to the trunk duct, and airflow is checked branch by branch. Commissioning can be quoted with the ABS7500MF.
What has to be budgeted on top of the ABS7500MF?
Budget beyond the HOLZMANN ABS7500MF for the complete duct system in 280 mm trunk and its branches, blast gates and hoods at each machine, the three-phase supply work, unloading equipment for a 320 kg gross crate, and consumables - spare elements for the 35-filter block and further 265 l chip bags. The first set of 35 filters and 2 bags is included with the ABS7500MF.
