ABS8000PRO — HOLZMANN ABS8000PRO Dust Collector (8000 m³/h) 1 / 3

HOLZMANN

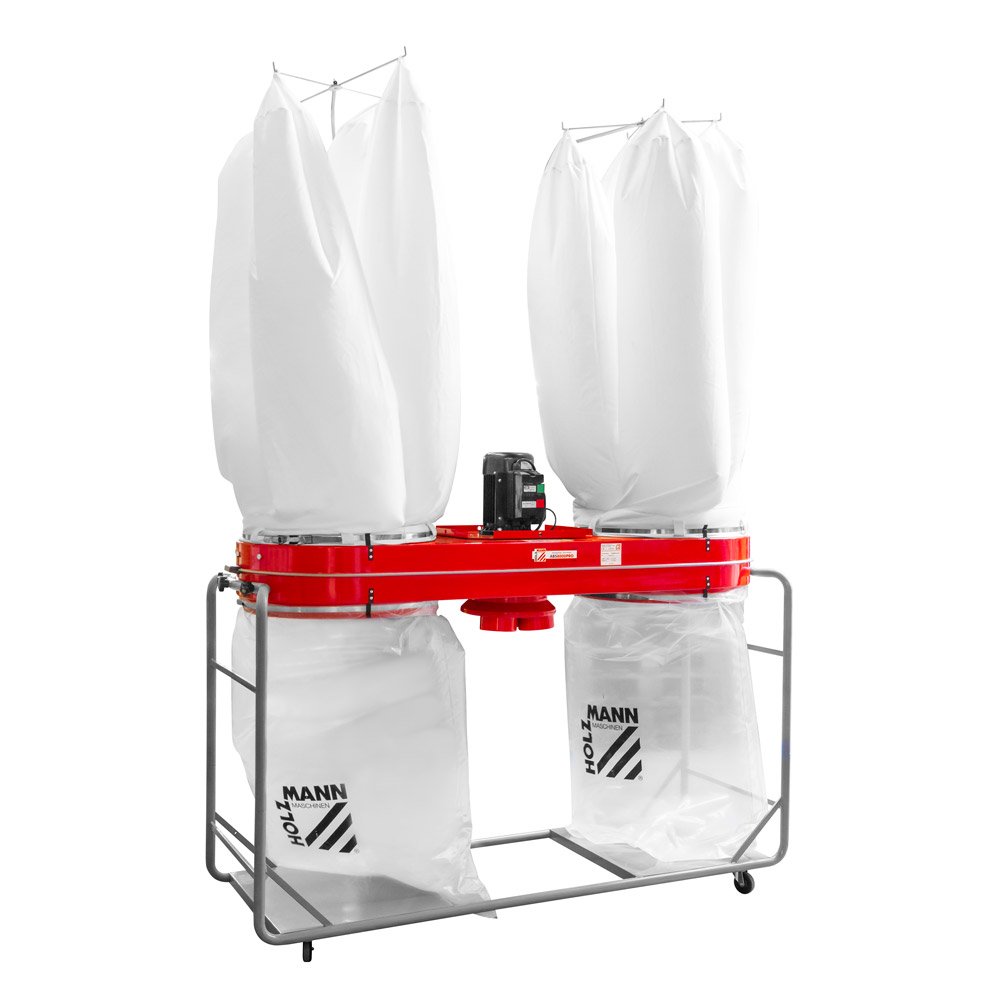

HOLZMANN ABS8000PRO Dust Collector (8000 m³/h)

ABS8000PRO

Branch size is what sets the ABS8000PRO apart from the ABS5000SE: its Ø250 mm outlet divides into three Ø125 mm connections plus one Ø100 mm, and the suction connection itself can be taken from the top or the bottom of the unit. A 4500 W 400 V motor and Ø380 mm fan wheel deliver 8000 m³/h at 2800 Pa, at 93 kg net.

ფასი მოთხოვნით

The ABS8000PRO price is driven by the three-phase supply work at its position, the Ø125 mm and Ø100 mm hose, clamps and blast gates for up to four branches, spare bag sets, delivery of a 104.5 kg gross crate, and duty and VAT.

ფასის მოთხოვნა

What the HOLZMANN ABS8000PRO does

The HOLZMANN ABS8000PRO is the highest-volume bag collector in the HOLZMANN range: 8000 m³/h at 2800 Pa static pressure, driven by a 4500 W motor on 400 V through a Ø380 mm fan wheel. The ABS8000PRO is built for simultaneous extraction — the supplied distributor divides the Ø250 mm main connection into one Ø100 mm and three Ø125 mm outlets, so four machines can be connected and run together instead of one hose being dragged around the shop. A large filter surface across the bag set is what allows the ABS8000PRO to hold that volume, and the suction connection can be taken from the top or the bottom, which decides how the ABS8000PRO sits against a wall or under an existing duct run.

Capacity, footprint and handling

The ABS8000PRO stands 2800 mm high on a 1900 x 670 mm footprint and takes chip bags of Ø610 mm x 1000 mm, giving it far more holding volume than any single-bag unit. Despite that height the ABS8000PRO weighs only 93 kg net, and its four casters allow it to be repositioned around the workshop rather than being bolted down. The motor cable is 1.75 m long, so the ABS8000PRO must stand close to its three-phase outlet. Sound pressure is under 85 dB(A).

How the ABS8000PRO differs from the ABS4500MF

The two are the workshop-scale HOLZMANN collectors and they split on power supply. The ABS8000PRO is a 4500 W 400 V machine reaching 8000 m³/h and 2800 Pa with a four-way distributor; the ABS4500MF is a 3000 W 230 V machine reaching 4500 m³/h and 2690 Pa through a single Ø200 mm port, and weighs 143 kg against the ABS8000PRO’s 93 kg. A Georgian workshop with three-phase power and four machines to serve takes the ABS8000PRO; a single-phase shop takes the ABS4500MF.

Delivery

The ABS8000PRO is supplied with the moving device, a dust and chip bag set, the distributor with 1 x Ø100 mm and 3 x Ø125 mm connections, and a Ø100/Ø120 adapter.

ძირითადი მახასიათებლები

  • Ø250 mm outlet split to 3 x Ø125 mm plus 1 x Ø100 mm - wider branches than the all-Ø100 mm ABS5000SE
  • Suction connection selectable at the top or the bottom of the unit
  • 8000 m³/h at 2800 Pa from a 4500 W S1 motor on 400 V
  • Ø380 mm fan wheel; 1.75 m mains cable
  • Chip bags of Ø610 mm diameter x 1000 mm length
  • 2800 mm overall height on a 1900 x 670 mm base - allow close to 3 m of clear height
  • 93 kg net, light for its output, on four casters; sound pressure below 85 dB(A)
  • Delivered with moving device, dust and chip bag set, the distributor and a Ø100/Ø120 adapter

ტექნიკური მახასიათებლები

Motor power (S1)
4500 W
Voltage
400 V
Cable length
1.75 m
Total dimensions
1900 x 670 x 2800 mm
Suction performance
8000 m³/h
Outputs
Ø250 mm (1 x Ø100 mm, 3 x Ø125 mm)
Chip bag diameter
610 mm
Chip bag length
1000 mm
Fan wheel diameter
Ø380 mm
Static vacuum pressure
2800 Pa
Sound pressure level
< 85 dB(A)
Net weight
93 kg
Gross weight
104.5 kg
EAN code
9120058377396

უპირატესობები

  • 8000 m³/h and 2800 Pa — the highest extraction volume of the HOLZMANN bag collectors
  • Distributor included, so four machines can be extracted simultaneously out of the box
  • Only 93 kg on four casters, so a very high-capacity unit stays mobile

გასათვალისწინებელი

  • 400 V three-phase only, with a 4.5 kW draw that needs a properly rated circuit
  • 2800 mm overall height demands a tall bay and clearance for bag changes
  • No cyclone separation or automatic filter cleaning — bags load directly and are changed by hand
  • Short 1.75 m power cable ties the unit to its outlet position

ხშირად დასმული კითხვები

Can the HOLZMANN ABS8000PRO run on 230 V?
No — the HOLZMANN ABS8000PRO is supplied only as ABS8000PRO_400V with a 4500 W three-phase motor, and a 230 V single-phase supply cannot run it. A single-phase Georgian workshop that still needs high volume should look at the HOLZMANN ABS4500MF, which delivers 4500 m³/h from a 3000 W motor on 230 V.
What does the HOLZMANN ABS8000PRO not do?
The HOLZMANN ABS8000PRO does not separate chips in a cyclone and does not clean its own filter. The ABS8000PRO is a bag collector, so fine dust loads the filter bags directly and the bags are changed by hand; a workshop that wants cyclone pre-separation and automatic cartridge cleaning should choose the HOLZMANN RLE2200 or RLE3000. The ABS8000PRO is also not a floor or wet vacuum.
How many machines can the HOLZMANN ABS8000PRO extract at once?
The HOLZMANN ABS8000PRO connects four machines simultaneously using the supplied distributor, which splits the Ø250 mm outlet into one Ø100 mm and three Ø125 mm connections. With 8000 m³/h available, the ABS8000PRO is the HOLZMANN collector to specify when several stations work in parallel.
How much ceiling height does the HOLZMANN ABS8000PRO need?
The HOLZMANN ABS8000PRO measures 1900 x 670 x 2800 mm, so the ABS8000PRO needs close to 3 m of clear height for the bags to hang and be changed. Its footprint is narrow for its output and it rolls on four casters, but the height is the limiting dimension in a low workshop.
Can one person move the HOLZMANN ABS8000PRO?
Yes, on the flat — the HOLZMANN ABS8000PRO weighs 93 kg net and stands on four casters, which is light for an 8000 m³/h unit. Note that the ABS8000PRO's motor cable is 1.75 m, so the machine still has to be parked next to a three-phase outlet.
What is included with the HOLZMANN ABS8000PRO?
The HOLZMANN ABS8000PRO is delivered with its moving device, a dust and chip bag set, the distributor carrying 1 x Ø100 mm and 3 x Ø125 mm ports, and a Ø100/Ø120 adapter. Hoses and machine-side hoods are not part of the ABS8000PRO delivery.
What determines the quoted price of a HOLZMANN ABS8000PRO?
The quoted price of a HOLZMANN ABS8000PRO is driven by the three-phase supply and protection installed at its position, the Ø125 mm and Ø100 mm hose, clamps and blast gates needed for the branches you actually use, spare dust and chip bag sets, delivery of a 104.5 kg gross crate to your site in Georgia, and duty and VAT. The distributor and the Ø100/Ø120 adapter come with the ABS8000PRO, so the hose network is the variable.
How long does a HOLZMANN ABS8000PRO take to arrive?
The HOLZMANN ABS8000PRO is built to order and its lead time is confirmed at quotation. The ABS8000PRO exists only in the 400 V build, so there is no variant to decide; the date follows the shipping route and whether hose and blast gates ship with the collector.
What installation does the ABS8000PRO need?
Before a HOLZMANN ABS8000PRO is delivered, confirm close to 3 m of clear height for the bags to hang and be changed over its 1900 x 670 mm base. Installation then means levelling on the casters, an electrician providing a 400 V outlet within the 1.75 m cable reach, choosing the top or bottom suction connection, and running hose from the Ø250 mm distributor to each machine.
What should be budgeted alongside an ABS8000PRO?
Budget separately from the HOLZMANN ABS8000PRO for Ø125 mm and Ø100 mm hose, clamps and blast gates, machine-side hoods, the three-phase outlet and protection, and replacement dust and chip bag sets. Hoses and hoods are not part of the ABS8000PRO delivery, while the distributor and Ø100/Ø120 adapter are.
