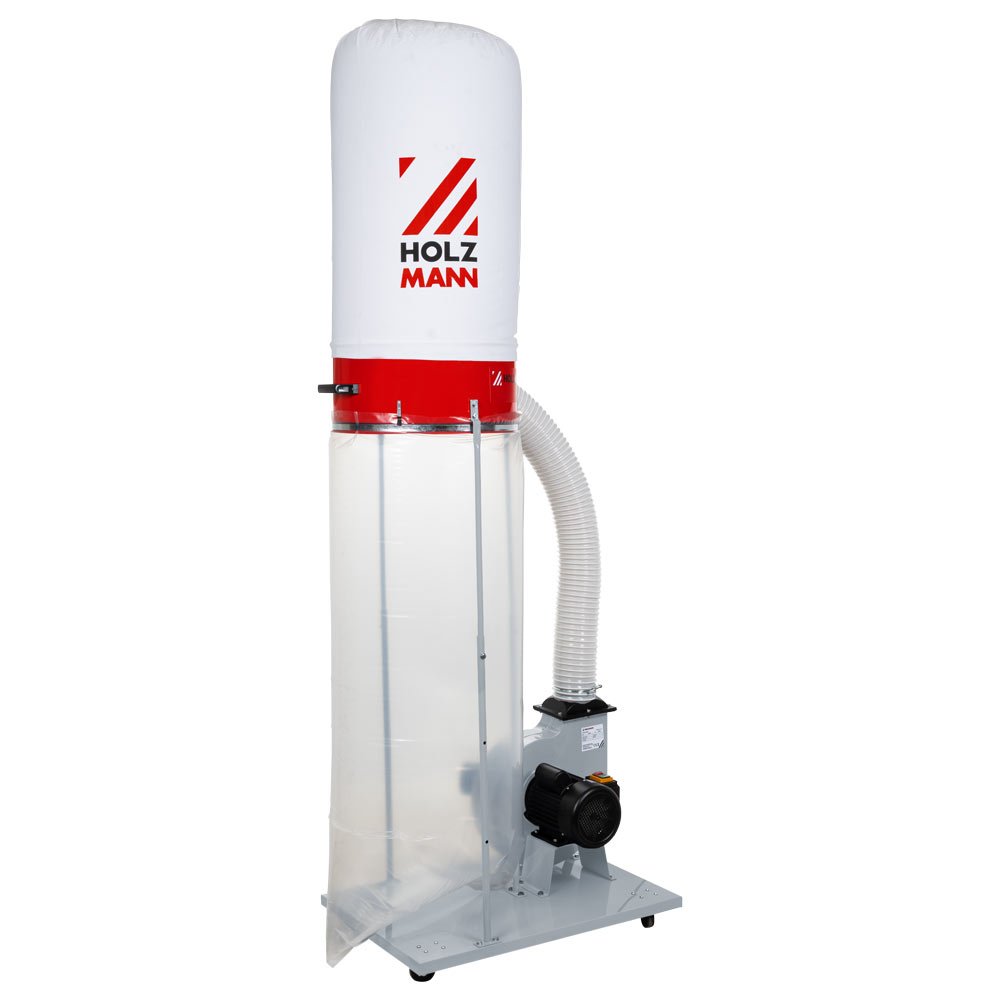

HOLZMANN ABS2480 Dust Collector with Insert — 2480 m³/h, 270 l Chip Bag
ABS2480
The HOLZMANN ABS2480 is a mobile dust collector with insert that delivers 2480 m³/h of suction performance at 1800 Pa through two 100 mm ports and collects into a single 270 l chip bag. Built around a 300 mm fan wheel at 2950 min-1, the ABS2480 is offered as a 230 V or a 400 V variant.
Price on the ABS2480 is driven by the variant chosen (ABS2480_230V or ABS2480_400V), the hose and blast-gate package built around the two 100 mm ports, the electrical connection work, and delivery to the workshop in Georgia.
ფასის მოთხოვნაHOLZMANN ABS2480: the entry point of the insert-collector range
The HOLZMANN ABS2480 is the machine to pick when one or two woodworking machines run at a time and 2480 m³/h is enough air. The ABS2480 is a dust collector with insert built from sheet metal, drawing through two 100 mm dust collector ports at 1800 Pa of negative pressure, with a 300 mm fan wheel turning at 2950 min-1. Four swivel casters let the 36 kg machine be rolled from a saw to a planer instead of being ducted to both.
Motor and duty rating
The ABS2480 is rated for steady running rather than short bursts, at 1500 W on the S1 continuous rating and 2250 W on the S6 intermittent rating. Fan speed is 2950 min-1 in both the 230 V and the 400 V build of the ABS2480, so the suction figures do not change with the supply chosen; the supply is a question of what the workshop already has at the wall.
Chip handling and floor space
Emptying the ABS2480 is a bag change rather than a filter service. The chip bag holds 270 l and measures 500 mm in diameter by 1400 mm long, which gives a long interval between changes for a shop feeding one machine at a time. The ABS2480 stands up to 2430 mm at full working height, the tallest of the three insert models, so the ceiling clearance in the intended corner is worth measuring before the machine arrives.
Noise
Hearing protection belongs with the ABS2480: the sound power level is 100.1 dB(A) and the sound pressure level is 87.1 dB(A). Placing the ABS2480 in an adjoining bay and ducting back to the machines is the usual way to keep operator exposure down in a small shop.
Where the ABS2480 sits against its siblings
The ABS2480 is the smallest of the three HOLZMANN insert collectors offered here. The ABS3880 raises airflow to 3880 m³/h across three 100 mm ports and 2×200 l of bag capacity, and the ABS4560 reaches 4560 m³/h on a 356 mm fan wheel. Pricing for the ABS2480 is by quotation; send the machine list and the ports to be served and a quotation follows.
ძირითადი მახასიათებლები
- 2480 m³/h suction performance at 1800 Pa negative pressure
- Two 100 mm dust collector ports for two connected machines
- Single 270 l chip bag, 500 mm diameter x 1400 mm long
- 300 mm fan wheel turning at 2950 min-1
- 1500 W S1 continuous / 2250 W S6 motor rating
- Sheet-metal construction on four swivel casters, 36 kg net weight
- Offered as ABS2480_230V or ABS2480_400V
ტექნიკური მახასიათებლები
- Motor power S6 in W
- 2250
- Motor power S1 in W
- 1500
- Speed in min-1
- 2950
- Voltage
- 230V (ABS2480_230V); ABS2480_400V variant also offered
- Dust collector port in mm
- 2x100
- Max. height in mm
- 2430
- Suction performance in m³/h
- 2480
- Chip bag capacity in l
- 270
- Chip bag diameter in mm
- 500
- Chip bag length in mm
- 1400
- Fan wheel diameter in mm
- 300
- Negative pressure (hypotension) in Pa
- 1800
- Sound power level in dB(A)
- 100.1
- Sound pressure level in dB(A)
- 87.1
- Net weight in kg
- 36
- Gross weight in kg
- 38
- EAN code
- 9120039901930 (ABS2480_230V)
უპირატესობები
- 1800 Pa of negative pressure, higher than the larger ABS3880's 1750 Pa, so hose runs are handled well for the size
- 36 kg net on four swivel casters makes the ABS2480 the easiest of the three to reposition
- Offered in both 230 V and 400 V, so a single-phase workshop is not excluded
გასათვალისწინებელი
- Only two 100 mm ports and 2480 m³/h, so a third machine running at the same time calls for the ABS3880
- 2430 mm maximum working height is the tallest of the three insert models and needs real ceiling clearance
- 100.1 dB(A) sound power level means hearing protection and careful siting even in a small shop
