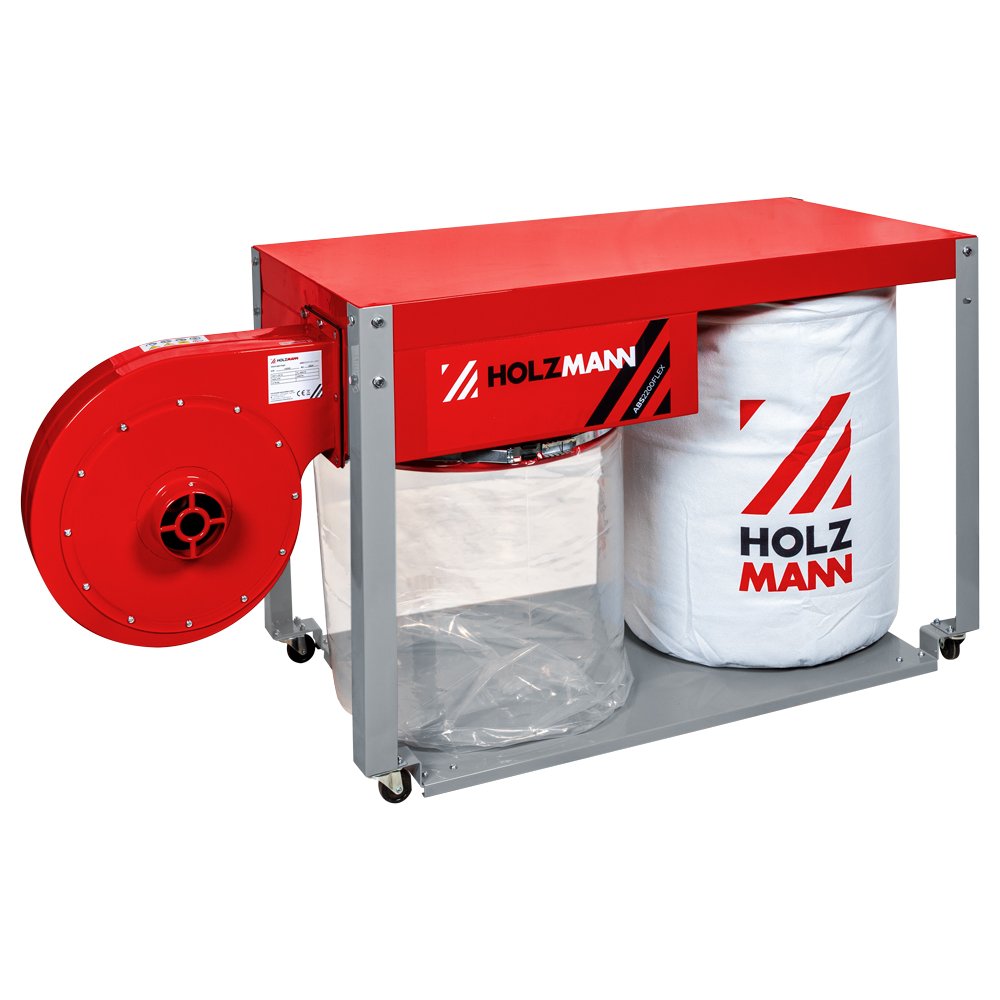

HOLZMANN ABS2200FLEX Low-Profile Dust Collector (2200 m³/h)
ABS2200FLEX
At 750 mm overall height on a horizontal 1540 x 550 mm chassis, the ABS2200FLEX is the one collector in this range that slides underneath a machine - typically the widening table of a saw. Output is 2200 m³/h at 2200 Pa from a 2200 W motor at 2850 min-1 and a 305 mm fan wheel, into a 160 l bag of Ø500 x 800 mm.
The ABS2200FLEX price moves with the 230 V or 400 V variant, spare filter and 160 l bag sets, Ø100 mm hose and adapter to reach the machine hood, delivery, and duty and VAT.
ფასის მოთხოვნაWhat the HOLZMANN ABS2200FLEX does
The defining feature of the HOLZMANN ABS2200FLEX is its height: at 750 mm overall the ABS2200FLEX is low enough to be pushed underneath a woodworking machine — under the widening table of a panel saw, for example — instead of taking up separate floor area. Within that flat 1540 x 550 mm frame the ABS2200FLEX still produces 2200 m³/h at 2200 Pa from a 2200 W motor turning at 2850 min-1 through a 305 mm fan wheel, feeding a single Ø100 mm connection. Chips collect in a 160 l bag of Ø500 x 800 mm, and the filter measures Ø500 x 650 mm.
Mobility and workshop layout
The ABS2200FLEX rides on four casters and weighs 46.5 kg net, so one person moves it easily and the unit follows the work rather than dictating the shop layout. That combination — full mobility plus a profile that slides under a machine — is what separates the ABS2200FLEX from taller collectors that must stand clear on their own patch of floor. Sound power level is 96 dB(A) and sound pressure 86.7 dB(A), so hearing protection is appropriate during long runs.
How the ABS2200FLEX differs from the ABS1500FF and ABS4500MF
The ABS2200FLEX sits between the two in output but is unique in shape. The HOLZMANN ABS1500FF gives 1500 m³/h and a 60 l bag from an upright 1400 mm cabinet at 32 kg; the ABS2200FLEX gives 2200 m³/h and a 160 l bag from a 750 mm chassis at 46.5 kg; the HOLZMANN ABS4500MF gives 4500 m³/h through 18 filters but weighs 143 kg and cannot be tucked anywhere. Where floor space is the binding constraint in a Georgian workshop, the ABS2200FLEX is usually the right answer.
Delivery and power supply
The ABS2200FLEX is delivered with its moving device and a filter and chip bag set. It is ordered as the 230 V single-phase or the 400 V three-phase version.
ძირითადი მახასიათებლები
- 750 mm overall height - the deciding dimension, low enough to sit beneath a saw's widening table
- Horizontal 1540 x 550 mm chassis instead of an upright bag column
- 2200 m³/h at 2200 Pa from a 2200 W S1 motor at 2850 min-1
- 305 mm fan wheel with a Ø500 x 650 mm filter
- 160 l chip bag, Ø500 x 800 mm
- One Ø100 mm connection - a single machine at a time, not a branch network
- 96 dB(A) sound power, 86.7 dB(A) sound pressure
- 46.5 kg net; delivered with moving device and filter and chip bag set, in 230 V / 1 / 50 Hz or 400 V
ტექნიკური მახასიათებლები
- Motor power (S1)
- 2200 W
- Voltage
- 230 V / 1 / 50 Hz (400 V version available)
- Motor speed
- 2850 min-1
- Extraction port
- 1 x Ø100 mm
- Total dimensions
- 1540 x 550 x 750 mm
- Suction performance
- 2200 m³/h
- Static vacuum pressure
- 2200 Pa
- Fan wheel diameter
- 305 mm
- Chip bag capacity
- 160 l
- Chip bag diameter
- 500 mm
- Chip bag length
- 800 mm
- Filter dimension
- Ø500 x 650 mm
- Sound power level
- 96 dB(A)
- Sound pressure level
- 86.7 dB(A)
- Net weight
- 46.5 kg
- Gross weight
- 50.5 kg
- EAN code (230 V)
- 9120058377570
- EAN code (400 V)
- 9120058377587
უპირატესობები
- Only 750 mm high, so it fits under a saw's widening table and frees floor space
- 160 l chip bag — nearly three times the ABS1500FF's capacity at similar mobility
- Offered in both 230 V and 400 V, so it suits single-phase and three-phase workshops alike
გასათვალისწინებელი
- Single Ø100 mm connection — one machine at a time, no multi-machine distributor
- Loud at 96 dB(A) sound power, and it usually stands close to the operator
- No cyclone pre-separation or self-cleaning filter; the filter loads directly with fine dust
