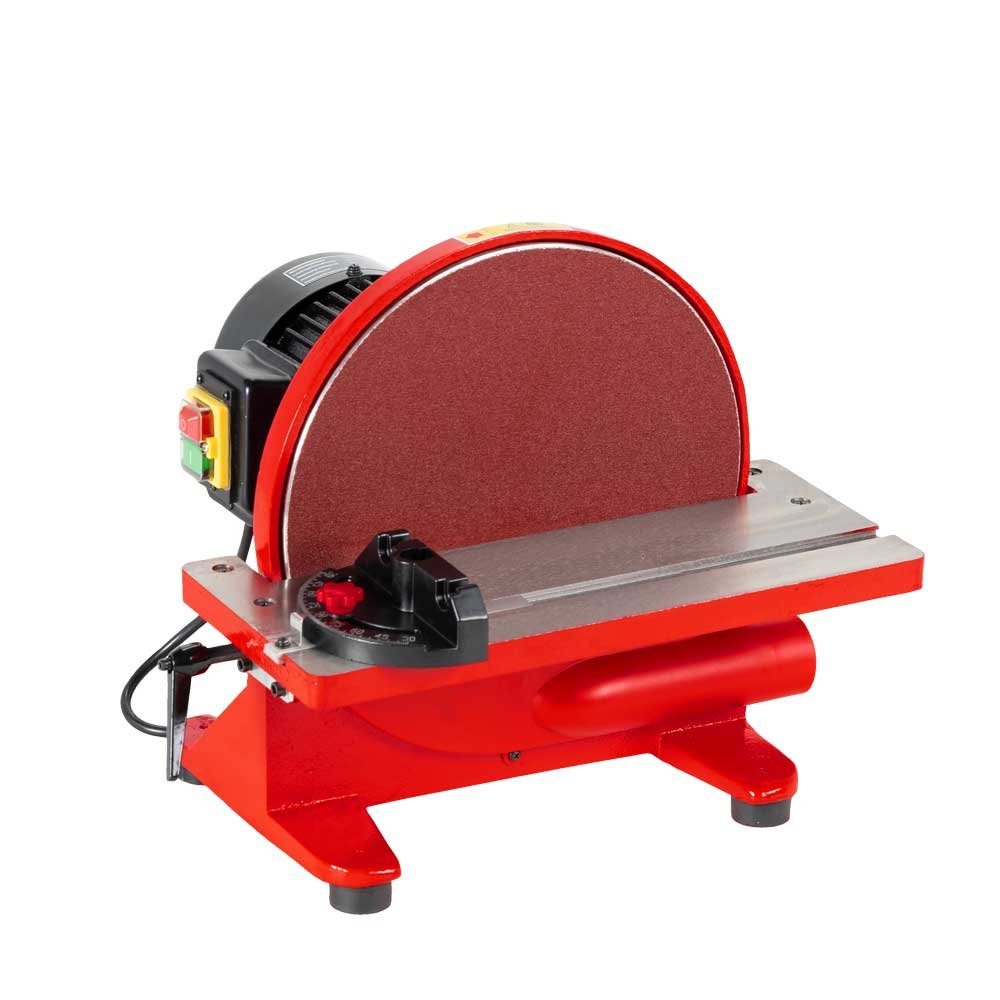

HOLZMANN TS305 Disc Sanding Machine
TS305
The HOLZMANN TS305 is a single-phase disc sanding machine with a 400 x 130 mm table that tilts from 0° to 45° for mitred work, a 1125 W S6 (750 W S1) motor and a T-slot mitre gauge for repeatable angles. Weighing 27 kg net with a Ø53 mm dust port, the TS305 is supplied with a self-adhesive K80 sanding disc.
The price of the TS305 is driven by the HOLZMANN Austria factory price and the EUR/GEL rate on the day, freight and customs on a 29 kg gross package into Georgia, the number of units ordered, and any spare sanding discs or extraction equipment added to the same order.
ფასის მოთხოვნაA disc sander built around a tilting table
The HOLZMANN TS305 is bought for its table as much as for its disc. The sanding table of the TS305 measures 400 x 130 mm and tilts from 0° to 45°, so mitred ends, chamfers and bevels are sanded against a supported surface instead of freehand. Running in a T-slot in that table is a mitre gauge, which turns a repeated angle into a setting rather than a judgement — the difference between one accurate mitre and forty identical ones.
Motor and vibration
The TS305 draws on a 230 V single-phase supply and is rated 1125 W S6 and 750 W S1, so short, heavy sanding bursts are covered as well as continuous light work. Smooth running on the TS305 comes from a solid machine body standing on rubber feet and a dynamically balanced disc plate; a disc sander that walks across a bench or chatters at the rim leaves marks in the workpiece, and the TS305 is built against both.
Dust extraction
Sanding dust on the TS305 is taken away through a Ø53 mm dust outlet for connection to external extraction. No collector is built into the TS305, so a workshop vacuum or chip extractor with a hose to suit Ø53 mm should be planned alongside the machine — particularly for MDF and hardwood, where the fine dust matters more than the visible pile.
Bench footprint and delivery contents
At 27 kg net and 29 kg gross, the TS305 is a bench machine that two people can position and one person can leave in place. Delivery of the TS305 includes a self-adhesive K80 sanding disc, the mitre gauge and the sanding table, so the machine can be tried as soon as the abrasive is fitted, with finer grits added to the consumable list afterwards. For a Georgian joinery or furniture shop, the TS305 sits between hand-block work and a full stationary sanding line: an accurate, quiet, single-phase station for squaring ends, cleaning up mitres and refining curves.
ძირითადი მახასიათებლები
- 400 x 130 mm sanding table tilting from 0° to 45° for mitred and bevelled work
- Mitre gauge guided in a T-slot in the table for repeatable sanding angles
- 1125 W S6 / 750 W S1 motor on a 230 V single-phase supply
- Ø53 mm dust outlet for connection to external extraction
- Dynamically balanced disc plate for vibration-free running
- Solid machine body on rubber feet, 27 kg net (29 kg gross)
- Self-adhesive K80 sanding disc, mitre gauge and sanding table included in delivery
ტექნიკური მახასიათებლები
- Motor power S6
- 1125 W
- Motor power S1
- 750 W
- Voltage
- 230 V
- Swivel range
- +30-45°
- Table size
- 400 x 130 mm
- Table tilt
- 0° to 45°
- Dust collector port
- Ø53 mm
- Net weight
- 27 kg
- Gross weight
- 29 kg
- EAN code
- 9120039901206
უპირატესობები
- The 400 x 130 mm table tilts to 45° and carries a T-slot mitre gauge, so angled sanding on the TS305 is set rather than eyeballed.
- A 1125 W S6 rating gives the TS305 headroom for short heavy passes that a lighter bench sander would stall on.
- A dynamically balanced disc plate, rubber feet and 27 kg of machine body keep the TS305 from walking or chattering during use.
გასათვალისწინებელი
- The TS305 has no built-in dust collection: only a Ø53 mm outlet, so an external vacuum or extractor is an additional purchase.
- Only the K80 disc is supplied, so finer grits for finishing passes have to be bought separately from the first day.
- As a disc sander the TS305 has no sanding belt, so long edges and wide faces still need a belt sander or a hand block.
