HOLZMANN

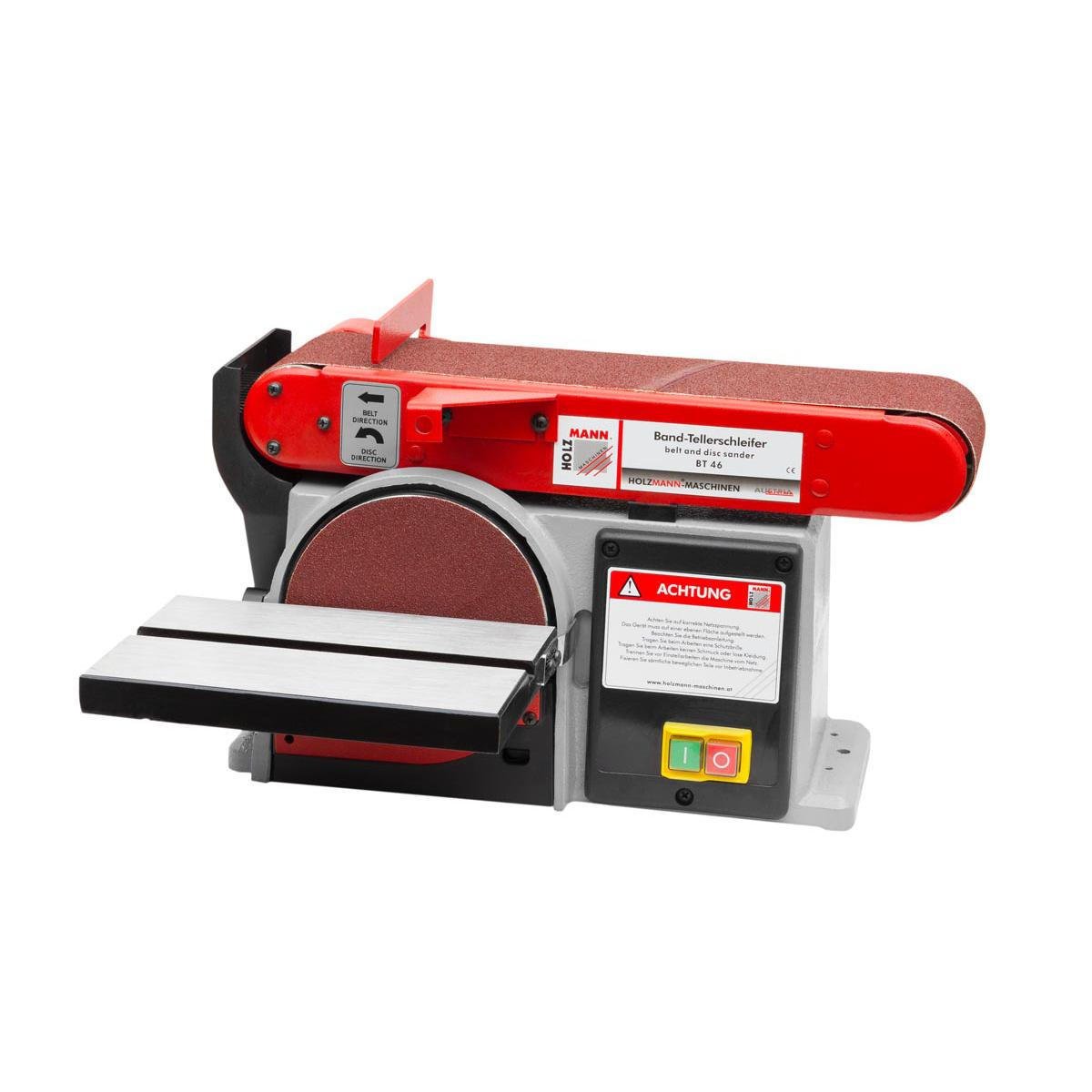

HOLZMANN BT46 Belt and Disc Sander
BT46
The HOLZMANN BT46 is a 250 W bench-top belt and disc sander that pairs a 100 x 915 mm sanding belt with a 150 mm sanding disc over a 150 x 230 mm aluminium table. The BT46 sanding belt unit tilts through 0-90 degrees horizontally and vertically, and the table pivots up to 45 degrees for mitre and angle work.
The BT46 price is driven by the HOLZMANN factory price and the EUR/GEL rate, freight and customs clearance into Georgia, the order quantity, and the abrasive package ordered with the machine.
ფასის მოთხოვნაA two-station sander for edges, faces and mitres
The HOLZMANN BT46 covers longitudinal edges, front edges, plane faces, round work and mitre sanding on a single bench-top frame, which is what makes the BT46 a sensible first sanding machine for a joinery or cabinet shop. A 100 x 915 mm sanding belt takes the long straight work, while the 150 mm sanding disc squares up end grain and short mitre cuts. Both stations are driven by one 250 W S1 motor turning at 590 min-1 from an ordinary 230 V single-phase socket.
Table and belt geometry
Aluminium table pivoting to 45 degrees
Angles are set on the machine rather than fought on the workpiece, because the BT46 aluminium table pivots up to 45 degrees and carries a mitre fence for precise angle sanding. The working surface of the BT46 measures 150 x 230 mm, which suits frame parts, drawer sides, small door rails and similar joinery components.
Belt unit tilting through 0-90 degrees
The belt station changes role without tools: the BT46 sanding belt unit tilts from 0 to 90 degrees both horizontally and vertically. Horizontal gives the BT46 a flat table sander for plane faces; vertical turns the same 100 x 915 mm belt into an edge and end sander, with a belt speed of 490 min-1.
Belt changes and workshop handling
Grit changes stay a hand operation on the BT46 thanks to a quick clamping device for fast and easy belt changes, so moving from coarse stock removal to a finishing grit does not cost a workbench full of tools. At 18 kg net and 19 kg gross, the BT46 is a machine one person can lift onto a bench, bolt down and move again when the shop layout changes.
Buying the HOLZMANN BT46 in Georgia
The BT46 is supplied by quotation as an imported HOLZMANN machine, EAN 9120058371585, in the 230 V single-phase version. A quotation for the BT46 sets out the scope of supply, the customs and delivery position to your address in Georgia, and the abrasive sizes to keep in stock, so the workshop budget covers the machine and its consumables together. Send the shop layout and the typical workpiece sizes with the enquiry and the BT46 can be compared against the larger BT belt and disc sanders in the same HOLZMANN range.
ძირითადი მახასიათებლები
- 100 x 915 mm sanding belt for longitudinal edges, front edges and plane faces
- 150 mm sanding disc for squaring end grain and short mitre cuts
- 250 W S1 motor running at 590 min-1 on a 230 V single-phase supply
- Belt speed of 490 min-1 at the sanding belt station
- Sanding belt unit tiltable from 0 to 90 degrees horizontally and vertically
- Pivoting aluminium table adjustable up to 45 degrees for angle sanding
- 150 x 230 mm table with mitre fence for precise angle sanding
- Quick clamping device for fast belt changes; 18 kg net weight for bench mounting
ტექნიკური მახასიათებლები
- Motor power (S1)
- 250 W
- Motor speed
- 590 min-1
- Voltage
- 230 V
- Table size
- 150 x 230 mm
- Sanding disc diameter
- 150 mm
- Sanding belt dimensions
- 100 x 915 mm
- Belt speed
- 490 min-1
- Net weight
- 18 kg
- Gross weight
- 19 kg
- EAN code
- 9120058371585
უპირატესობები
- The BT46 combines a 100 x 915 mm belt station and a 150 mm disc station in one 230 V machine, so a small shop does not buy two sanders.
- The BT46 belt unit tilts through the full 0-90 degrees horizontally and vertically, covering flat faces, edges, curves and mitres on one frame.
- At 18 kg net the BT46 is light enough for one person to place on a bench and relocate as the workshop layout changes.
გასათვალისწინებელი
- The BT46 motor is rated 250 W S1, which is modest output for continuous stock removal in hardwood and points to a larger BT model for production sanding.
- The 150 x 230 mm table and 150 mm disc of the BT46 limit the size of workpiece that can be supported, so wide panels need a different machine.
- HOLZMANN's published data for the BT46 does not list a dust extraction connection, so extraction provision has to be clarified before the BT46 is ordered.
