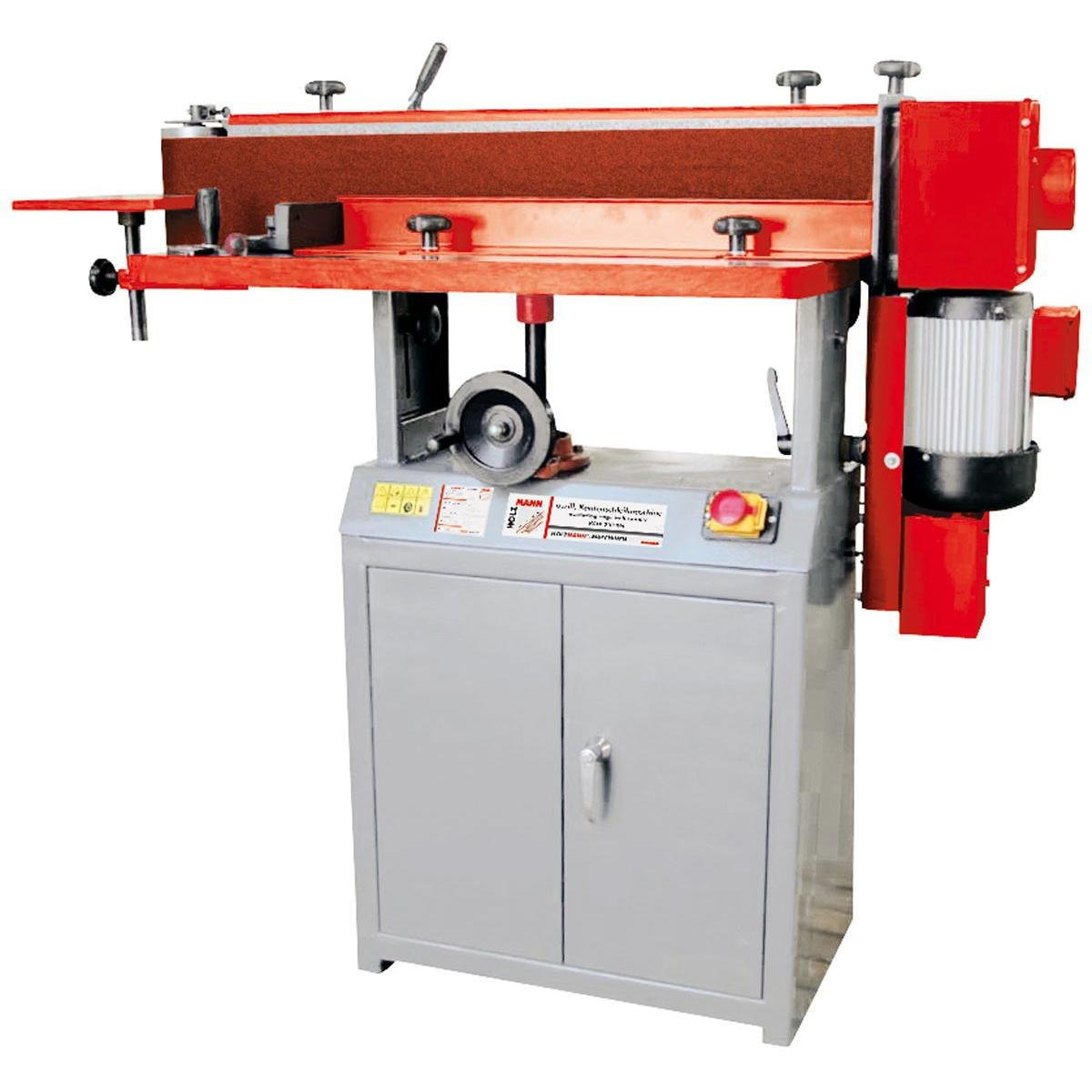

HOLZMANN KOS2510N Oscillating Belt Sanding Machine (2510 x 150 mm)

KOS2510N — HOLZMANN KOS2510N Oscillating Belt Sanding Machine (2510 x 150 mm)

The HOLZMANN KOS2510N is an oscillating belt sanding machine running a 2510 x 150 mm abrasive belt over an 840 x 300 mm table, offered as a 230 V or a 400 V machine with a 1500 W S1 motor rating. The sanding unit of the KOS2510N pivots up to 90° and an extra table covers round sanding work.

ძრავის სიმძლავრე
1.5 kW
ძაბვა
230V
მაგიდის ზომა
840 x 300 mm
წონა
110 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

Price moves with the voltage variant chosen (230 V or 400 V), freight and customs clearance for a 160 kg gross crate into Georgia, and the extras added - 2510 x 150 mm abrasive belt sets, a dust extractor for the 100 mm port, delivery and commissioning.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

How the HOLZMANN KOS2510N sands

Oscillation is the whole point of the KOS2510N. The 2510 x 150 mm abrasive belt strokes sideways as it runs, so scratch patterns break up instead of tracking, and the belt wears across its full surface rather than grooving in one line. Straight edges, curves, mitres and template work all pass over the same station.

Table, tilt and round sanding

Work support is generous for the belt size: an 840 x 300 mm table with height adjustment by handwheel, and a sanding unit that pivots up to 90° so the belt can be presented horizontally for faces or vertically for edges. An extra table covers round sanding, and the belt quick-change mechanism keeps grit changes short. A sheet steel frame carries the assembly.

Voltage: 230 V or 400 V

Supply is a decision made at ordering, not later. The KOS2510N is listed as a 230 V machine under EAN 9120058371844 and as a 400 V machine under EAN 9120058371837, both around a 1500 W S1 motor rating, with belt speed given as 16. Shops without a three-phase connection take the 230 V version; shops that already have 400 V distribution normally take the 400 V version for the steadier supply under load.

Extraction, noise and handling

Extraction connects at a single 100 mm dust collector port, which sets the hose and filter class to plan for. The KOS2510N weighs 110 kg net and 160 kg gross and ships in a crate of 1290 x 720 x 510 mm, so a pallet truck and a prepared bench or stand should be ready on delivery day. The published noise data lists 80 dB(A) sound power and 91 dB(A) sound pressure; both figures are confirmed against the delivered machine plate.

Requesting a quote for the KOS2510N

Pricing for the KOS2510N is driven by the voltage variant chosen, freight and customs into Georgia for a 160 kg gross crate, and the abrasive belt sets, extraction and commissioning added alongside. Confirm 230 V or 400 V and the grits used most, and the KOS2510N will be quoted complete.

ძირითადი მახასიათებლები

  • 2510 x 150 mm abrasive belt with oscillation, spreading wear across the whole belt surface and breaking up scratch patterns
  • 840 x 300 mm work table - the longer table of the two KOS oscillating sanders - with height adjustment by handwheel
  • Sanding unit pivoting up to 90°, presenting the belt horizontally for faces or vertically for edge work
  • 1500 W S1 motor rating, available as a 230 V machine (EAN 9120058371844) or a 400 V machine (EAN 9120058371837)
  • Belt speed of 16 m/s held constant for a smooth run of the abrasive belt
  • Abrasive belt quick-change mechanism, keeping downtime short between grit steps
  • Extra table supplied for the round sanding function on curved edges
  • 100 mm dust collector port and a stable sheet steel frame at 110 kg net machine weight

ტექნიკური მახასიათებლები

Motor power (S1)
1500 W
Voltage
230 V or 400 V (variant-dependent)
Abrasive belt dimensions
2510 x 150 mm
Belt speed
16 m/s
Table size
840 x 300 mm
Sanding unit tilt
up to 90°
Dust collector port
100 mm
Sound power level
80 dB(A)
Sound pressure level
91 dB(A)
Net weight
110 kg
Gross weight
160 kg
Packaging length
1290 mm
Packaging width
720 mm
Packaging height
510 mm
EAN code (230 V)
9120058371844
EAN code (400 V)
9120058371837

უპირატესობები

  • Available in both 230 V and 400 V, so the KOS2510N fits a small shop without three-phase power and a larger shop that already has it
  • The 840 x 300 mm table is longer than the 750 x 300 mm table of the KOS2600C, giving better support to long edges and frames on a smaller machine
  • Quick-change belt mechanism plus a supplied extra table for round sanding keep grit changes and curved-edge work inside one station

გასათვალისწინებელი

  • A 1500 W S1 rating and a 16 m/s belt speed put the KOS2510N below the KOS2600C on stock removal, so heavy continuous production will slow it down
  • At 110 kg net the KOS2510N still needs a pallet truck and a prepared bench or stand; no extraction unit or abrasive belts come with the machine
  • HOLZMANN's published noise figures for the KOS2510N - 80 dB(A) sound power against 91 dB(A) sound pressure - look transposed and should be checked on the machine plate before a noise assessment

ხშირად დასმული კითხვები

How much does the HOLZMANN KOS2510N cost?
The HOLZMANN KOS2510N is quoted rather than shelf-priced, because the final figure is built from the voltage variant chosen (230 V or 400 V), freight and customs clearance into Georgia for a 160 kg gross crate, and the items added to the order - abrasive belt sets in 2510 x 150 mm, a dust extractor for the 100 mm port, delivery and on-site commissioning. Tell us the variant and your grit sequence for a written quotation on the KOS2510N.
Should the KOS2510N be ordered in 230 V or 400 V?
The KOS2510N exists as both: the 230 V machine under EAN 9120058371844 and the 400 V machine under EAN 9120058371837, both listed around a 1500 W S1 motor rating. Order the 230 V KOS2510N if the workshop has no three-phase connection, and the 400 V KOS2510N if 400 V distribution is already in place, since three-phase supply holds up better under sustained load. The choice is made at order time and cannot be swapped afterwards.
What is the lead time for a HOLZMANN KOS2510N?
Lead time for the HOLZMANN KOS2510N depends on which voltage variant is ordered, HOLZMANN factory availability in Austria, and the shipping route into Georgia. A firm delivery date for the KOS2510N is confirmed in writing on the quotation.
What installation does the KOS2510N require?
Installation of the KOS2510N covers placing the 110 kg machine on a bench or stand with clearance for long workpieces, connecting the 230 V or 400 V supply and a hose to the 100 mm dust collector port, checking belt tracking and table height, and a first test on your own material. Site work for the KOS2510N in Georgia is quoted separately from the machine.
Which consumables should be budgeted separately from the KOS2510N?
Alongside the KOS2510N, budget 2510 x 150 mm abrasive belts in the grits you use, a dust extractor and hose for the 100 mm port, hearing protection, and a bench or stand plus handling for a 160 kg gross crate. None of this is assumed to be included with the KOS2510N unless it is written on the quotation.
Can the KOS2510N sand curved edges?
Yes - the KOS2510N is supplied with an extra table for the round sanding function, and the oscillating 2510 x 150 mm belt spreads wear so curved edges do not cut a groove into one track of the abrasive. The sanding unit of the KOS2510N also pivots up to 90°, so faces and edges are worked on the same machine.
