HOLZMANN TSM250 Disc Sander

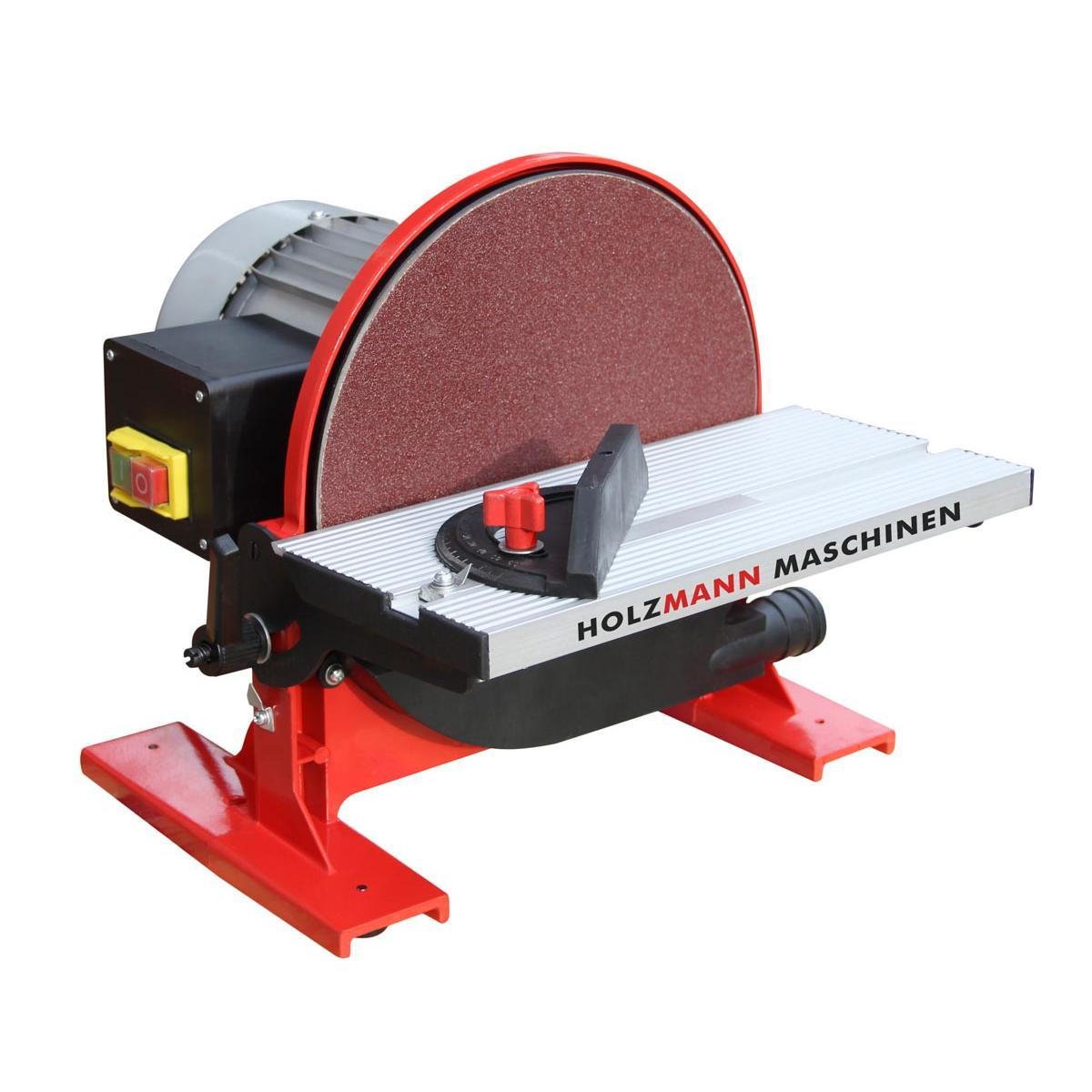

TSM250 — HOLZMANN TSM250 Disc Sander 1 / 2

The HOLZMANN TSM250 is a benchtop disc sander built around a Ø254 mm sanding disc driven by a 550 W S1 motor at 1450 min-1. The TSM250 has a 290 x 140 mm sanding table adjustable to 45° and a Ø35 mm suction port for external extraction, and the TSM250 weighs 11 kg net on a 12 kg gross shipping weight.

ძრავის სიმძლავრე
0.55 kW
ძაბვა
230V
მაგიდის ზომა
290 x 140 mm
წონა
11 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The price of the TSM250 is driven by the HOLZMANN Austria factory list at the time of order, the exchange rate and freight from Austria to Georgia, Georgian customs and VAT handling, and whether Ø254 mm abrasive disc sheets, a stand or an extraction unit are ordered with the machine.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN TSM250 does

The HOLZMANN TSM250 is the choice when the work is disc sanding alone: squaring end grain, cleaning mitres and truing small components against a flat abrasive face. The TSM250 drives a Ø254 mm sanding disc with a 550 W S1 motor at 1450 min-1, a deliberately lower spindle speed than the 2850 min-1 belt-and-disc machines in the same HOLZMANN range.

Disc diameter is the deciding spec

The Ø254 mm disc defines where the TSM250 sits in the HOLZMANN disc sander line, below the larger-disc TS305. A bigger disc gives more usable abrasive surface and a higher rim speed at the outer edge, so the TSM250 is specified where parts are small to medium and bench space is limited, while the TS305 answers larger work.

Table and angle work

Angle sanding on the TSM250 is handled by the sanding table, which measures 290 x 140 mm and adjusts to 45°. That range covers the everyday bevels and mitres of furniture and joinery parts, and the 290 mm table width gives the workpiece reasonable support either side of the point of contact on the TSM250.

Dust extraction and bench footprint

Disc sanding throws fine dust forward and down, which is why the TSM250 has a Ø35 mm suction port for external extraction; a workshop vacuum or a small mobile extractor connects directly, and running the TSM250 without extraction is not advisable in an enclosed shop. The TSM250 weighs 11 kg net and 12 kg gross, light enough to be lifted onto a bench by one person and stored away between jobs.

Power supply and how the TSM250 is bought

The TSM250 runs on 230 V / 50 Hz single phase, so any sound workshop socket in Georgia will power the machine and no three-phase supply is needed. The HOLZMANN TSM250 is supplied against a written quotation, with abrasive discs and extraction specified at the same time as the machine.

ძირითადი მახასიათებლები

  • Ø254 mm sanding disc for squaring end grain, mitres and small components
  • 550 W S1 motor running the disc at 1450 min-1
  • 290 x 140 mm sanding table adjustable to 45° for bevel and mitre work
  • Ø35 mm suction port for connection to external extraction
  • 11 kg net / 12 kg gross, a one-person benchtop machine
  • 230 V / 50 Hz single-phase supply, no three-phase connection required

ტექნიკური მახასიათებლები

Motor power S1
550 W
Speed
1450 min-1
Voltage
230 V / 50 Hz
Table size
290 x 140 mm
Dust collector port
Ø35 mm
Sanding disc diameter
Ø254 mm
Net weight
11 kg
Gross weight
12 kg
EAN code
9120058373206

უპირატესობები

  • A Ø254 mm sanding disc on a 550 W motor gives a large flat abrasive face for squaring ends and cleaning mitres accurately.
  • The 290 x 140 mm table adjusts to 45°, so bevels and mitres are set on the machine rather than on the workpiece.
  • A Ø35 mm suction port takes a workshop vacuum or mobile extractor directly, and 11 kg net keeps the TSM250 portable and easy to store.

გასათვალისწინებელი

  • The TSM250 is a disc sander only, with no sanding belt, so long edge and continuous curve work needs a belt-and-disc machine such as the BT150-914 or BT203-914.
  • 550 W at 1450 min-1 defines the TSM250 as a light benchtop machine rather than a production sander.
  • The HOLZMANN record for the TSM250 lists no mitre fence, no scope of supply and no machine dimensions, so all three have to be confirmed at quotation.

ხშირად დასმული კითხვები

How much does the HOLZMANN TSM250 disc sander cost in Georgia?
The HOLZMANN TSM250 is supplied by quotation rather than at a published shelf price. The price of the TSM250 depends on the HOLZMANN Austria factory list current at the time of order, the exchange rate on that day, freight from Austria to Georgia, Georgian customs and VAT handling, and whether Ø254 mm abrasive disc sheets and an extraction unit are added to the same order. Request a quote naming the TSM250 and the quantity for a written figure.
What is the lead time for the HOLZMANN TSM250?
The lead time for the HOLZMANN TSM250 follows HOLZMANN Austria's current production and dispatch scheduling together with transport and customs clearance into Georgia. A confirmed delivery window for the TSM250 is written into the quotation, and no date for the TSM250 is committed before that written confirmation is issued.
What is involved in installing the HOLZMANN TSM250?
Installing the HOLZMANN TSM250 involves placing the 11 kg machine on a level bench or stand, connecting to a 230 V / 50 Hz single-phase socket and attaching a hose to the Ø35 mm suction port. The TSM250 requires no foundation, no lifting gear and no three-phase electrical work, so setting up amounts to fixing the machine down, squaring the 290 x 140 mm table to the disc and checking extraction flow.
What abrasives and accessories should be budgeted separately for the HOLZMANN TSM250?
Ø254 mm self-adhesive abrasive disc sheets are the running cost of the HOLZMANN TSM250 and are budgeted separately from the machine, normally in at least a coarse and a fine grit. Where no extraction exists, a hose and a workshop vacuum or mobile extractor matched to the Ø35 mm suction port of the TSM250 should be priced at the same time, along with a bench or stand that holds the TSM250 steady at working height.
Is the HOLZMANN TSM250 a 230 V single-phase or a 400 V three-phase machine?
The HOLZMANN TSM250 is listed only as a 230 V / 50 Hz single-phase machine, EAN 9120058373206, and no 400 V three-phase variant of the TSM250 appears in the HOLZMANN data. For a Georgian workshop that means the TSM250 runs from a standard single-phase socket without an electrician, a three-phase board or a phase-rotation check. Where a 400 V three-phase sanding machine is a firm requirement, a larger HOLZMANN model should be quoted rather than the TSM250.
Should a workshop choose the HOLZMANN TSM250 or a belt and disc sander?
The HOLZMANN TSM250 should be chosen when the work is disc sanding: squaring end grain, cleaning mitres and truing small components on a Ø254 mm disc with a table adjustable to 45°. A workshop that also has to sand long edges, curves and plane faces is better served by a belt and disc machine such as the BT150-914 or BT203-914, because the TSM250 has no sanding belt station at all.
