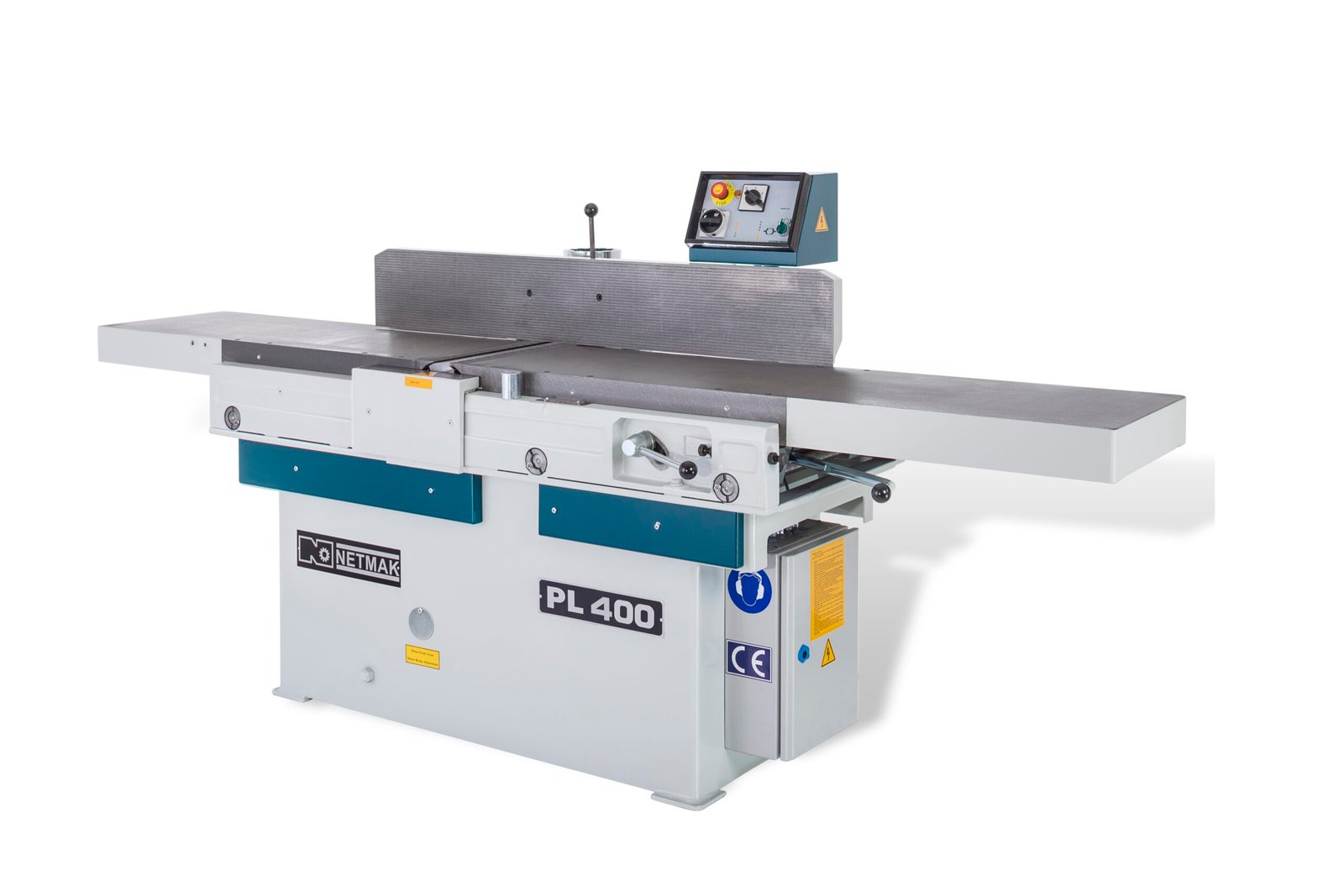

NETMAK PL 400 Surface Planer (400 mm)
PL 400 Planya Makinasi
The NETMAK PL 400 is the narrowest of the three PL surface planers at 400 mm jointing width, and the lightest at 710 kg on an 800 mm wide footprint. Like the PL 500 and PL 600, the PL 400 runs 2600 mm tables, a 120 mm four-knife block at 4500 rpm on a 5.5 kW motor, and cuts up to 15 mm deep.
PL 400 pricing is driven by cutterblock choice (standard four-knife or the optional helical block), whether automatic table adjustment and the digital height indicator are added, and by delivery and installation of a 2600 mm long machine, which is often the deciding logistics cost.
ფასის მოთხოვნაWhat the PL 400 surface planer does
The NETMAK PL 400 creates the first flat face and the first square edge on rough timber, the reference surfaces every later operation depends on. Total table length is 2600 mm, split into a 1420 mm infeed table and an 1180 mm outfeed table, which is long enough to support a 3 metre door stile without a roller stand under each end. A 120 mm cutterblock with four knives runs at 4500 rpm on a 7.5 HP / 5.5 kW motor, and the PL 400 will take up to 15 mm of material in a single pass on stock up to 400 mm wide.
Who the PL 400 suits
The PL 400 fits joinery and door workshops that machine long solid-timber sections rather than sheet material. Long tables are the whole argument for this class of machine: a short-bed planer produces a banana out of a 2.5 metre length no matter how carefully it is fed, while the 2600 mm bed of the PL 400 holds the workpiece flat through the cut. At 710 kg, the PL 400 is also the lightest and narrowest of the three NETMAK PL models, which matters in shops where floor space is tight.
PL 400 against the PL 500 and PL 600
All three NETMAK surface planers share the same 2600 mm table length, 1420 mm infeed and 1180 mm outfeed split, 15 mm depth of cut, four-knife 120 mm block, 4500 rpm spindle and 7.5 HP / 5.5 kW motor. They differ only in width and mass: the PL 400 gives 400 mm and 710 kg over an 800 x 2600 x 1250 mm footprint, the PL 500 gives 500 mm and 770 kg, the PL 600 gives 600 mm and 880 kg. Choose the PL 400 when the work is framing timber, door and window sections and furniture rails; step up if wide glued panels have to be faced.
What is included with the PL 400
Every PL 400 is supplied with a monoblock steel body, an electromechanical brake, two dedicated hand and knife guards, a cast fence that tilts through 45 degrees, and four knives on the 120 mm block. Optional on the PL 400 are a digital height indicator, automatic table adjustment and a helical cutterblock. Chip extraction, a power feed unit and knife-setting equipment are not included and are usually specified alongside the machine.
ძირითადი მახასიათებლები
- 400 mm jointing width, the narrowest of the three PL surface planers, at 710 kg on an 800 mm wide footprint
- 400 x 2600 mm tables, split 1420 mm infeed and 1180 mm outfeed
- 15 mm maximum depth of cut in a single pass
- 120 mm cutterblock carrying 4 knives at 4500 rpm
- 7.5 HP / 5.5 kW motor with electromechanical brake, the same drive as the PL 500 and PL 600
- Cast fence tilting through 45 degrees for chamfers and angled edges
- Two separate hand and knife guards fitted as standard
- 800 x 2600 x 1250 mm overall; helical cutterblock, digital height indicator and automatic table adjustment optional
ტექნიკური მახასიათებლები
- Product code
- PL 400
- Table size
- 400 x 2600 mm
- Infeed table length
- 1420 mm
- Outfeed table length
- 1180 mm
- Max. depth of cut
- 15 mm
- Number of knives
- 4
- Cutterblock diameter
- 120 mm
- Spindle speed
- 4500 rpm
- Motor power
- 7.5 HP / 5.5 kW
- Overall dimensions
- 800 x 2600 x 1250 mm
- Net weight
- 710 kg
- Standard equipment
- Monoblock steel body, electromechanical brake, two hand and knife guards, cast fence tilting to 45 degrees
- Options
- Digital height indicator, automatic table adjustment, helical cutterblock
უპირატესობები
- 2600 mm bed keeps long door and window sections straight through the cut
- 15 mm depth of cut clears heavy waste from rough-sawn stock in few passes
- 45 degree cast fence and twin guards are standard equipment
გასათვალისწინებელი
- Surface planing only, so a separate thicknesser is still needed
- 400 mm width is the narrowest of the PL range and cannot face wide panels
- Manual table setting unless the optional automatic table adjustment is ordered
