MZK KAPI KILIT PLUS — MZK Kapi Kilit Plus Door Lock and Hinge Machine 1 / 4

MIZRAK

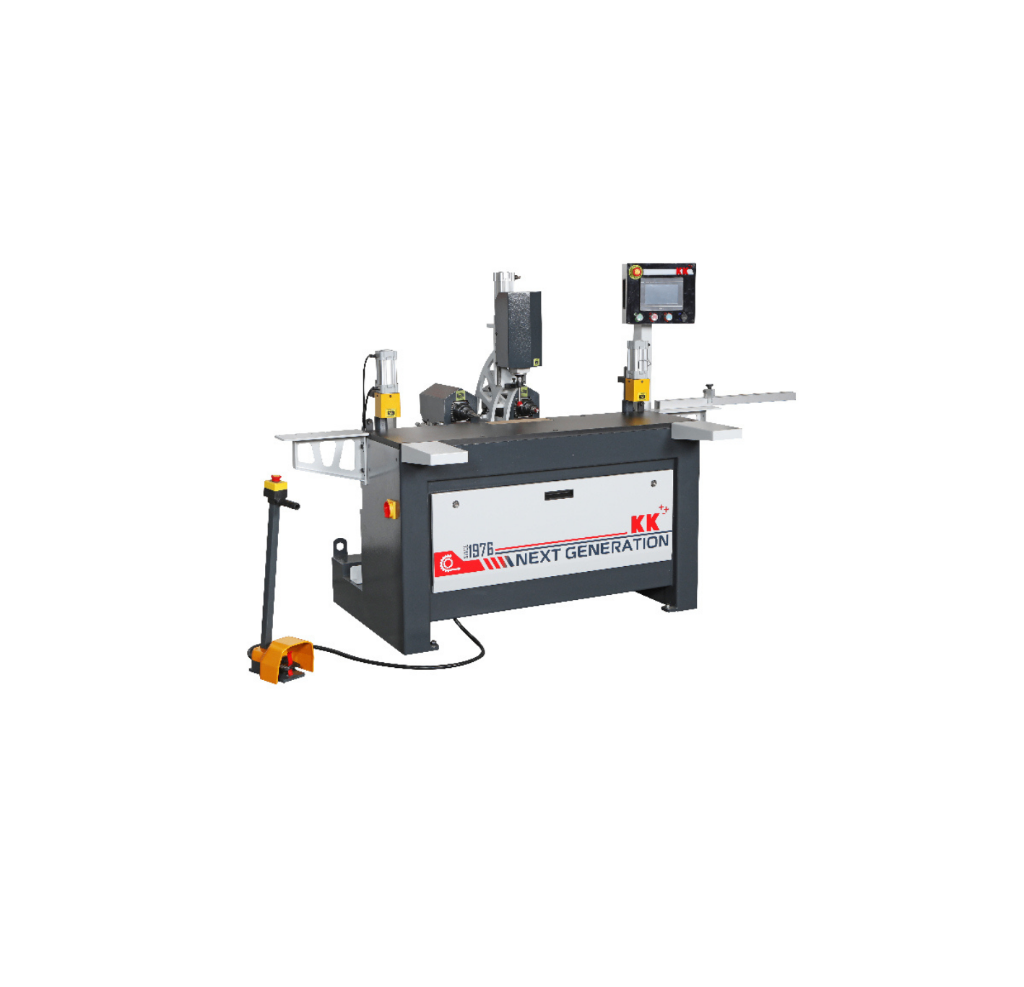

MZK Kapi Kilit Plus Door Lock and Hinge Machine

MZK KAPI KILIT PLUS

Lock seats to 200 mm, faceplate recesses to 250 mm and hinge seats to 125 mm are cut at one clamping by the MZK Kapi Kilit Plus, the only fully specified machine in Mizrak's lock group. The MZK Kapi Kilit Plus draws 5.5 kW in total, fixes the lock-to-handle axis at 96 mm and weighs 900 kg.

ფასი მოთხოვნით

Price of the MZK Kapi Kilit Plus is driven by the cutter package for lock, faceplate and hinge seats, air preparation for the 6-8 atm clamping system, extraction provision, and delivery, installation and operator training in Georgia.

ფასის მოთხოვნა

What the MZK Kapi Kilit Plus does

The MZK Kapi Kilit Plus completes all three hardware operations on a finished door leaf on one machine: the lock body seat, the handle and faceplate recess, and the hinge seats. Lock seat length is adjustable from 0 to a maximum of 200 mm, faceplate milling runs from 0 to 250 mm and hinge seats from 0 to 125 mm, which covers the common European mortise lock and hinge sizes used in Georgian door production. The distance between the lock and handle axes on the MZK Kapi Kilit Plus is fixed at 96 mm, so hardware must be selected to that standard centre distance.

Motors and speeds

The MZK Kapi Kilit Plus splits the work across three motors rather than driving everything from one head. A 2.2 kW motor at 1500 rpm cuts the lock seat, a 1.1 kW motor handles the handle recess and a further 1.1 kW motor at 12000 rpm cuts hinge seats. Drilling runs at 2850 rpm and milling at 12000 rpm. Total electrical power for the MZK Kapi Kilit Plus is 5.5 kW, which is modest enough that most workshops with an existing three-phase board can add the machine without upgrading supply.

Who the MZK Kapi Kilit Plus suits

The MZK Kapi Kilit Plus suits door manufacturers and larger joineries preparing interior doors for hardware in batches. At 2500 x 1600 mm and 900 kg, the MZK Kapi Kilit Plus is far smaller than a full sizing line and fits along a wall in a working shop. The machine also needs compressed air at 6-8 atm for its clamping, so a workshop with no compressor must budget for one.

How it differs from the base and CNC options

Against the base MZK Kapi Kilit, the Plus model publishes full capacities and adds the hinge group, so lock and hinge work happen at one station. Against the PC-controlled Ripper CNC KKM, the MZK Kapi Kilit Plus is mechanically set rather than programmed, which makes it faster to learn and cheaper to own but slower to change between different hardware layouts.

ძირითადი მახასიათებლები

  • Lock seat length adjustable from 0 to a maximum of 200 mm
  • Faceplate (rosette) milling length of 0 to 250 mm and hinge seat length of 0 to 125 mm
  • Fixed 96 mm distance between the lock and handle axes
  • 2.2 kW / 1500 rpm lock seat motor with a 1.1 kW hinge seat motor at 12000 rpm
  • Drilling at 2850 rpm and milling at 12000 rpm
  • 5.5 kW total electrical power and 6-8 atm air requirement
  • Compact 2500 x 1600 x 1750 mm footprint at 900 kg

ტექნიკური მახასიათებლები

Distance Between Lock and Handle Axes
96 mm
Lock Slot Length
0–200 mm (Max)
Rosette Slot (Faceplate) Milling Length
0–250 mm
Hinge Slot Length
0–125 mm
Drilling Speed
2850 rpm
Milling Speed
12000 rpm
Lock Slot Motor
2.2 kW, 1500 rpm
Handle Slot Motor
1.1 kW, 30000 rpm
Hinge Slot Motor
1.1 kW, 12000 rpm
Total Electric Power
5.5 kW
Air Pressure
6–8 atm
Machine Length
2500 mm
Machine Width
1600 mm
Machine Height
1750 mm
Machine Weight
900 kg

უპირატესობები

  • Lock, handle, faceplate and hinge seats all cut at one station with three dedicated motors
  • 5.5 kW total power and a 900 kg mass make installation straightforward in an existing shop
  • Capacities are fully published, so hardware compatibility can be checked before ordering

გასათვალისწინებელი

  • The 96 mm lock-to-handle axis is fixed, so hardware must match that centre distance
  • Requires a compressed air supply at 6-8 atm in addition to the electrical connection
  • Mechanically set rather than programmable, so changeovers between hardware layouts are manual

ხშირად დასმული კითხვები

What is the maximum lock seat the MZK Kapi Kilit Plus can cut?
The MZK Kapi Kilit Plus cuts lock seats from 0 up to a maximum length of 200 mm, faceplate recesses from 0 to 250 mm and hinge seats from 0 to 125 mm. Hardware requiring a mortise longer than 200 mm falls outside the capacity of the MZK Kapi Kilit Plus.
What is the lock-to-handle centre distance on the MZK Kapi Kilit Plus?
The distance between the lock and handle axes on the MZK Kapi Kilit Plus is 96 mm. Lock and handle sets used with the MZK Kapi Kilit Plus must be specified to that 96 mm centre distance.
What power and air supply does the MZK Kapi Kilit Plus need?
The MZK Kapi Kilit Plus has a total electrical power of 5.5 kW and requires compressed air at 6 to 8 atm. Both the electrical connection and a compressor capable of holding 6-8 atm must be in place before the MZK Kapi Kilit Plus is commissioned.
How much space does the MZK Kapi Kilit Plus occupy?
The MZK Kapi Kilit Plus measures 2500 mm long, 1600 mm wide and 1750 mm high and weighs 900 kg. Allow additional clearance either side of the MZK Kapi Kilit Plus for loading and unloading full-height door leaves.
Does the MZK Kapi Kilit Plus size the door as well?
No, the MZK Kapi Kilit Plus cuts lock, handle, faceplate and hinge seats only and does not trim door leaves to length or width. Doors must arrive at the MZK Kapi Kilit Plus already sized on a machine such as the MZK NC Ripper series.
Does the MZK Kapi Kilit Plus include dust extraction?
Dust extraction is not listed as part of the MZK Kapi Kilit Plus and must be provided separately. Milling at 12000 rpm on the MZK Kapi Kilit Plus produces fine chip that should be extracted at the cutting head.
How much does the MZK Kapi Kilit Plus cost?
The MZK Kapi Kilit Plus is priced on quotation, not from a list. What moves the quoted figure for the MZK Kapi Kilit Plus is the cutter package for lock, faceplate and hinge seats, whether air preparation for the 6-8 atm clamping system is included, extraction provision, and delivery, installation and training in Georgia. Supply the lock and hinge sets in use, which must suit the fixed 96 mm centre distance, and a written quotation follows.
What is the lead time for the MZK Kapi Kilit Plus?
The MZK Kapi Kilit Plus is manufactured to order by Mizrak, so the lead time for the MZK Kapi Kilit Plus is confirmed at quotation rather than published in advance. Ask for the current build slot at the time of enquiry, as it shifts with the supplier's production schedule.
What does commissioning the MZK Kapi Kilit Plus involve?
Commissioning the MZK Kapi Kilit Plus means positioning and levelling 900 kg on a load-bearing floor, connecting three-phase power for 5.5 kW, connecting compressed air held at 6-8 atm, and connecting extraction at the milling head. Delivery, rigging and commissioning of the MZK Kapi Kilit Plus are quoted separately from the machine.
What tooling and consumables should be budgeted alongside the MZK Kapi Kilit Plus?
Budget separately for lock, faceplate and hinge cutters and their resharpening, for a compressor if the workshop has no 6-8 atm air, and for the extraction connection, since none of these is listed in the specification of the MZK Kapi Kilit Plus. Milling at 12000 rpm on the MZK Kapi Kilit Plus produces fine chip, so extraction is a working requirement rather than an option.
