MIZRAK OF-KA MZK 4 WIND Edge Banding Machine

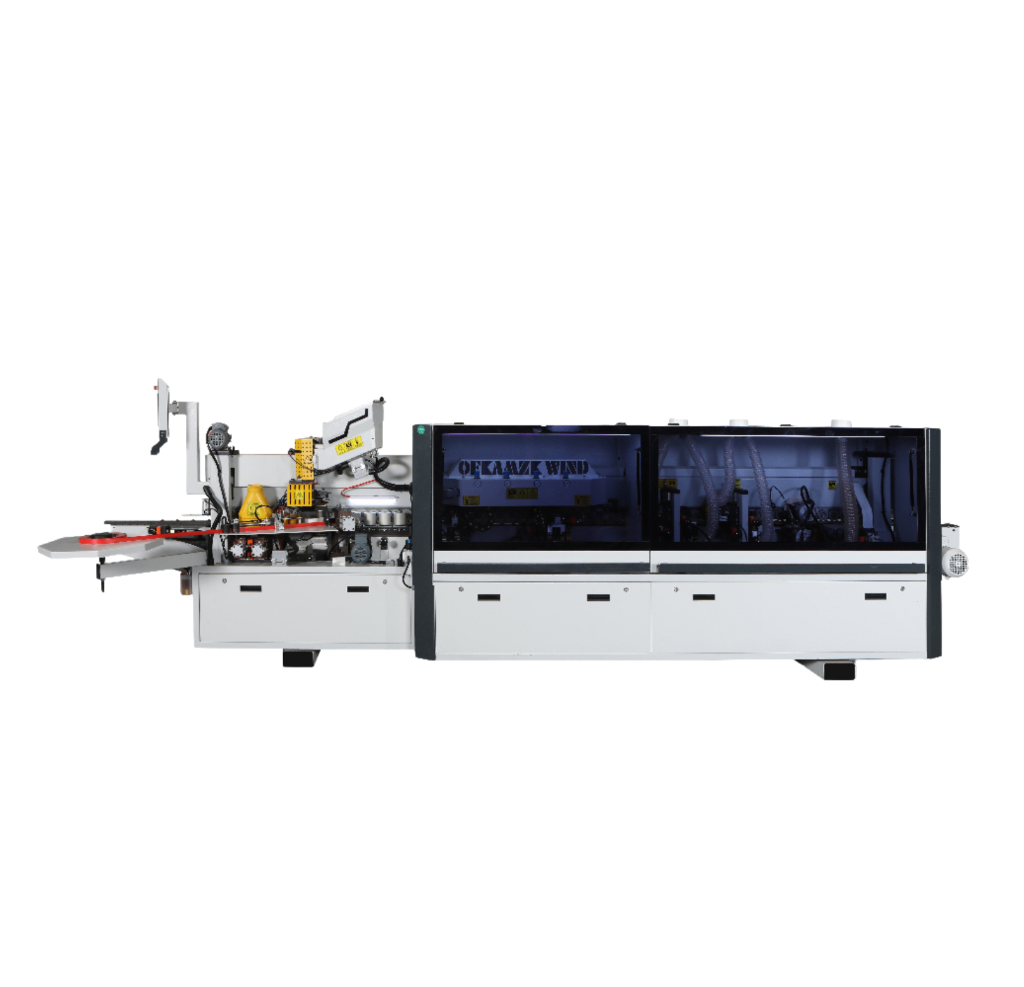

OF-KA MZK 4 WIND — MIZRAK OF-KA MZK 4 WIND Edge Banding Machine 1 / 4

The OF-KA MZK 4 WIND runs the fastest conveyor in the Mizrak MZK 4 family at 20 m/min, against 14 m/min for the MZK-4, OF MZK-4 and OF MZK 4 DOOR, because a flying front and rear cutting unit trims tape ends while the panel keeps moving. Pre-milling, top-feed gluing, scraping, cleaning fluid and polishing complete the OF-KA MZK 4 WIND.

  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The price of the OF-KA MZK 4 WIND is moved by the unit configuration confirmed with Mizrak, the tooling and glue package, whether extraction plant and a compressor are ordered with the machine, and delivery, positioning and commissioning of the line.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the OF-KA MZK 4 WIND does

The OF-KA MZK 4 WIND bands panel edges at a conveyor speed of 20 m/min, the highest quoted in the MZK 4 family. Panels enter past a pre-tracer with a counter, pass the pre-milling unit, then reach a top-feed gluing unit working with the shear and pressure units. A flying front and rear cutting unit trims the tape ends while the panel keeps moving, which is what allows the higher line speed, and the milling, scraping, glue cleaning fluid and polishing units finish the edge before the panel leaves the machine.

Who the OF-KA MZK 4 WIND suits

The OF-KA MZK 4 WIND suits production workshops where the edge bander has become the bottleneck behind a beam saw. A flying cut-off means the conveyor does not slow or stop to square the tape ends, so throughput at 20 m/min is roughly double that of the 10 m/min ADVANTAGE machines and noticeably above the 14 m/min of the OF MZK-4. Workshops running long daily batches of carcase panels benefit most from that difference.

How the OF-KA MZK 4 WIND compares with the OF MZK-4

The OF-KA MZK 4 WIND is the fast version of the same concept. Both machines carry a pre-milling unit, a gluing unit with shear and pressure, end trimming, milling, scraping, glue cleaning fluid and polishing. The difference is the flying front and rear cutting unit and the 20 m/min conveyor on the OF-KA MZK 4 WIND, against a conventional cutting unit and 14 m/min on the OF MZK-4, plus the pre-tracer with counter that the OF-KA MZK 4 WIND shares with the OF MZK 4 DOOR.

What is included with the OF-KA MZK 4 WIND

The OF-KA MZK 4 WIND is listed by the manufacturer with the pre-tracer and counter, pre-milling unit, top-feed gluing unit, shear unit, pressure unit, flying front and rear cutting unit, milling unit, scraping unit, glue cleaning fluid system and polishing unit. The manufacturer has not published a technical data table for the OF-KA MZK 4 WIND, so electrical supply, workpiece capacity, machine dimensions and weight should be confirmed in writing before ordering.

ძირითადი მახასიათებლები

  • Runs the fastest conveyor in the MZK 4 family at 20 m/min, against 14 m/min on the MZK-4, OF MZK-4 and OF MZK 4 DOOR
  • Flying front and rear cutting unit that trims tape ends without stopping the panel
  • Pre-tracer with digital counter at the machine infeed
  • Pre-milling unit ahead of the gluing station
  • Top-feed gluing unit working with shear and pressure units
  • Milling and scraping units followed by a glue cleaning fluid system
  • Polishing unit as the final station before the outfeed

უპირატესობები

  • Flying cut-off unit keeps the line moving through end trimming
  • 20 m/min conveyor speed, the fastest quoted in the MZK 4 family
  • Full finishing chain of milling, scraping, cleaning fluid and polishing

გასათვალისწინებელი

  • No technical data table published, so electrical rating, capacity, footprint and weight must be confirmed before ordering
  • No corner rounding unit is listed for this model
  • Compressed air and three-phase power should be expected but are not confirmed in the published data

ხშირად დასმული კითხვები

How fast does the OF-KA MZK 4 WIND run?
The OF-KA MZK 4 WIND runs at a conveyor speed of 20 m/min, which is the figure the manufacturer publishes for this model and the highest in the MZK 4 edge banding family.
What is the flying cutting unit on the OF-KA MZK 4 WIND?
The flying front and rear cutting unit on the OF-KA MZK 4 WIND trims the tape overhang at both ends of the panel while the panel continues to travel, rather than pausing the conveyor, which is what supports the 20 m/min line speed.
What power supply does the OF-KA MZK 4 WIND need?
The manufacturer has not published an electrical data table for the OF-KA MZK 4 WIND. Machines in the same MZK 4 family are specified at 380-430 V three-phase, so a three-phase connection should be expected, but the exact rating for the OF-KA MZK 4 WIND must be confirmed with the dealer before installation.
What are the dimensions and weight of the OF-KA MZK 4 WIND?
No dimensions or weight are published for the OF-KA MZK 4 WIND in the manufacturer's data. Related MZK 4 models are around four metres long and over a tonne, so plan a full bay, but request the exact footprint drawing for the OF-KA MZK 4 WIND before preparing the floor.
What panel thickness can the OF-KA MZK 4 WIND handle?
The workpiece thickness range for the OF-KA MZK 4 WIND is not published by the manufacturer. This figure should be requested in writing before ordering, especially for door-thickness panels.
What does the OF-KA MZK 4 WIND not do?
The OF-KA MZK 4 WIND bands one edge per pass and does not cut panels to size, so a beam saw or panel saw is still needed upstream. No corner rounding unit is listed for the OF-KA MZK 4 WIND.
How much does the OF-KA MZK 4 WIND cost?
The OF-KA MZK 4 WIND is supplied on quotation and has no published list price. The price of the OF-KA MZK 4 WIND is set by the unit configuration confirmed with Mizrak, the tooling and glue package, whether extraction plant and a compressor are ordered alongside it, and delivery, positioning and commissioning. Because Mizrak publishes no technical table for this model, the quotation is prepared against a supplier datasheet requested for the specific enquiry.
What is the lead time for an OF-KA MZK 4 WIND?
The OF-KA MZK 4 WIND is built to order rather than held in stock, so availability follows the current Mizrak production slot. The lead time for the OF-KA MZK 4 WIND is confirmed in writing at quotation, together with transport and customs time to Georgia.
What has to be confirmed before the OF-KA MZK 4 WIND is installed?
Mizrak publishes the 20 m/min conveyor speed and the unit list for the OF-KA MZK 4 WIND but no dimensions, weight, connected load, panel thickness range or air pressure. Before site preparation, those figures are requested from the supplier so that the bay, floor loading, three-phase connection, compressed air and extraction ducting for the OF-KA MZK 4 WIND can be specified correctly.
What consumables should be budgeted separately for the OF-KA MZK 4 WIND?
Budget separately for hot-melt glue, edge tape, replacement pre-milling and trimming tooling, scraper knives, polishing consumables and glue cleaning fluid for the OF-KA MZK 4 WIND. A dust collector and a compressor are not described as part of the machine and are quoted as separate items, with quantities set once the supplier datasheet for the OF-KA MZK 4 WIND is received.
