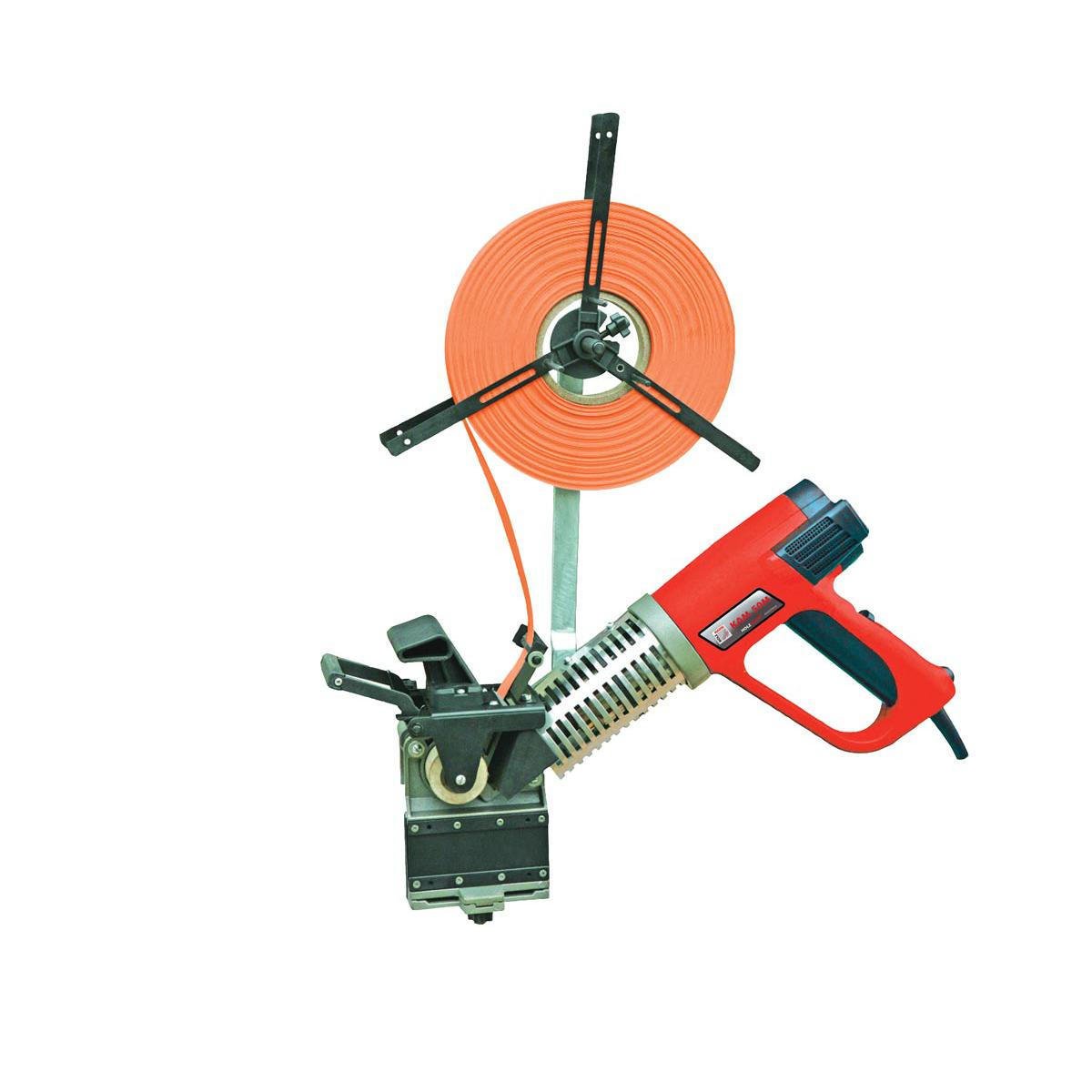

HOLZMANN KAM50M Handheld Edge Banding Machine
KAM50M
The HOLZMANN KAM50M is a 2000 W handheld edge banding machine weighing just 3 kg, applying edge banding up to 50 mm wide single-sided or 30 mm double-sided at 330-540 °C. Built around a die-cast aluminium mechanism, the KAM50M bands both straight and curved workpieces from a standard 230 V socket.
KAM50M pricing moves with the euro exchange rate, freight and customs clearance into Georgia, order quantity, and whether pre-glued edge banding tape is supplied with the tool.
ფასის მოთხოვნაWhat the KAM50M actually is
The HOLZMANN KAM50M is a hand tool, not a bench machine, and that is the point. At 3 kg net the KAM50M is carried in one hand and drawn along the edge of a panel, which makes it the cheapest and fastest way into edge banding for a workshop that bands occasionally. The KAM50M runs on 2000 W from a single-phase 230 V supply, and its heat is generated on demand rather than held in a melt tank, so there is no long warm-up before the first edge.
Capacity: 50 mm one side, 30 mm both
Capacity on the KAM50M is stated in two figures because the tool works in two modes. The KAM50M bands up to 50 mm of edge width when working single-sided, and up to 30 mm when banding both sides. That covers standard 16-25 mm carcase board comfortably and reaches worktop-front sizes in single-sided mode.
Heat range and material choice
The KAM50M works far hotter than a melt-tank bander. Working temperature on the KAM50M spans 330 to 540 °C, which is the range used for reactivating pre-glued banding rather than melting raw granulate, so the KAM50M suits pre-glued melamine, veneer and ABS tape. That single fact decides whether the KAM50M is right for a shop: if your material is pre-glued tape, the KAM50M is the efficient tool; if you want to apply raw banding with your own granulate, a melt-tank machine such as the KAM45PRO is the correct choice.
Precision from the die-cast body
The KAM50M holds a line better than its price suggests because the guidance is die-cast aluminium rather than pressed steel. HOLZMANN specifies a precise aluminium die-cast mechanism on the KAM50M, and the tool is rated for curved as well as straight workpieces, so shaped shelf ends and curved fronts are within its scope.
Where the KAM50M stops
The KAM50M has no feed drive, no melt tank and no trimming station. Edge quality on the KAM50M depends entirely on the operator’s hand speed and pressure, and every edge still needs trimming and scraping afterwards. For repeatable results across many panels a day, the KAM50M should be regarded as a fitting and repair tool rather than a production one.
ძირითადი მახასიათებლები
- 2000 W heating element on a standard single-phase 230 V supply
- Bands up to 50 mm edge width single-sided, or 30 mm when banding both sides
- Working temperature range 330-540 °C for reactivating pre-glued edge banding
- Precise die-cast aluminium mechanism for accurate guidance along the edge
- Rated for both straight and curved workpieces
- Only 3 kg net weight - a genuine one-handed tool for site and repair work
- Suits a wide variety of edge banding materials including melamine, veneer and ABS tape
ტექნიკური მახასიათებლები
- Motor / heater power (S1)
- 2000 W
- Voltage
- 230 V
- Edge width
- 50 mm single-sided / 30 mm double-sided
- Working temperature
- 330-540 °C
- Net weight
- 3 kg
- Gross weight
- 3.3 kg
- EAN code
- 9120039900681
უპირატესობები
- Lowest-cost route into edge banding at 3 kg and a standard 230 V plug
- Handles curved as well as straight workpieces thanks to the die-cast aluminium guide
- No melt tank means no warm-up wait and no glue granulate stock to manage
გასათვალისწინებელი
- Works with pre-glued banding at 330-540 °C rather than applying raw granulate, so consumable choice is restricted
- Edge quality depends entirely on the operator's hand speed - no powered feed
- HOLZMANN publishes no feed speed, curve radius or edge thickness limit for the KAM50M
