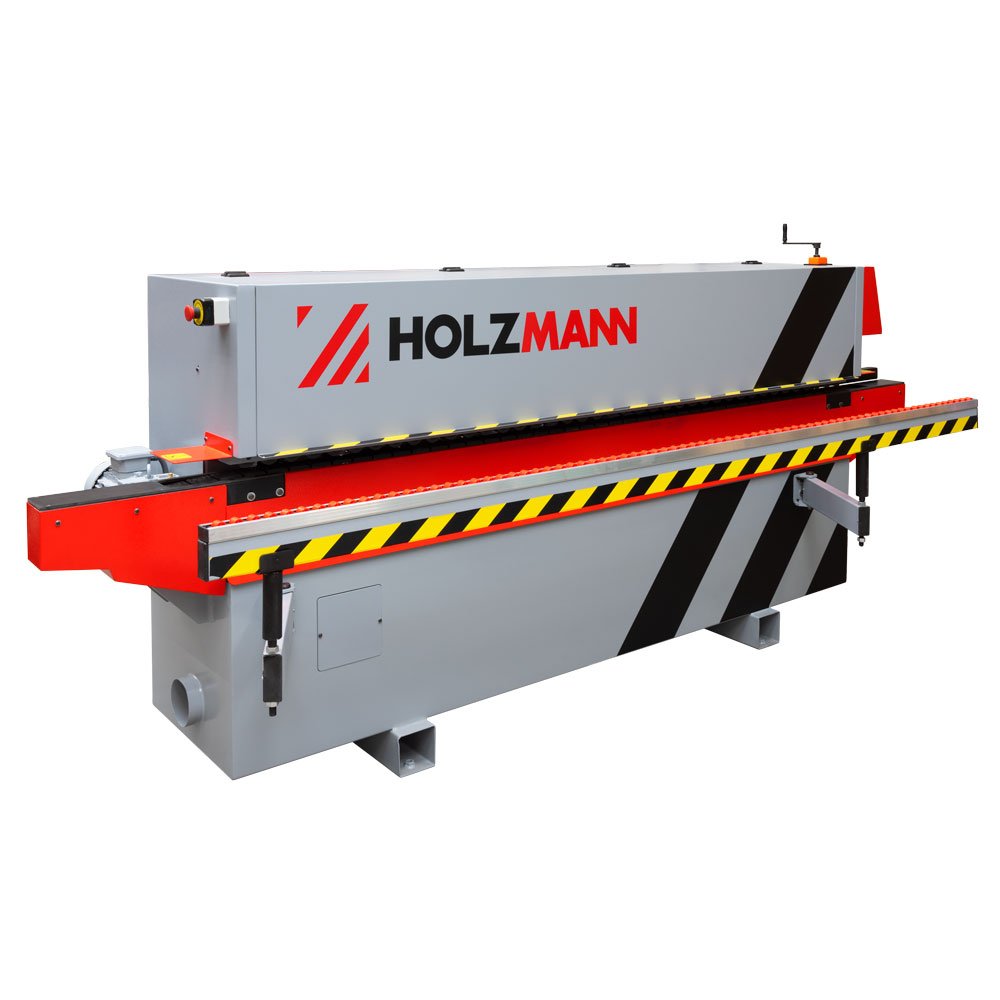

HOLZMANN KAM4EPS One-Sided Automatic Edge Banding Machine

1 / 4

The HOLZMANN KAM4EPS is a one-sided automatic edge banding machine with an integrated dust collection system, a 10 m/min chain-conveyor feed and a 6470 W connected load, handling edge material 0.4-3 mm thick on panels from 8 to 42 mm. The KAM4EPS runs on 400 V supply and is supplied on quotation.

ძრავის სიმძლავრე: 6.47 kW
ძაბვა: 400V
მიწოდების სიჩქარე: 10 m / min
გაბარიტები: 3960 x 1060 x 1560

ახალი
შეკვეთით

ფასი ფასი მოთხოვნით

Price on the KAM4EPS is moved by the milling and cutting tooling package, spare wear parts, freight of an 855 kg gross / 3500 mm crate to site, unloading and positioning, the 400 V connection work, and whether commissioning and operator training are included.

ფასის მოთხოვნა

WhatsApp +995 599 88 74 04

ირაკლი გაყიდვების მენეჯერი

კონფიგურაცია თქვენს ძაბვასა და ზომებზე
მიწოდება, მონტაჟი და გაშვება ადგილზე
ქარხნული გარანტია და სათადარიგო ნაწილები

The KAM4EPS is built around integrated dust extraction

The HOLZMANN KAM4EPS separates itself from the KAM35 and KAM215 machines with an on-board dust collection system, so the KAM4EPS does not have to be connected into a shop extraction network to run cleanly. For a workshop whose collector is already at capacity, or a unit being commissioned where ducting is not yet installed, that changes the installation job significantly. A Ø125 mm port is provided for connection where a central system is available.

A production machine at 10 m/min

The KAM4EPS is a one-sided automatic edge bander running a constant chain-conveyor panel feed at 10 m/min on a 6470 W connected load — faster than the 8 m/min compact machines and below the 13 m/min KAM215 series. Adhesive is delivered directly onto the workpiece from a heated tank whose temperature is set electronically at the touch panel, pressure rollers close the tape to the panel, a cutting unit trims the tape accurately at the back and front, and the milling unit removes the overhang above and below either flush or with a 2 mm radius.

The setting counter is the operator-facing feature

Unit adjustment on the KAM4EPS is equipped with a counter for setting different kinds of edge tape. In practice that turns a changeover from a trial-and-error adjustment into a repeatable number an operator can write down — the difference between a machine that a trained setter runs and a machine that any operator can change over between tape types without scrapping the first few panels.

Capacity and services

The KAM4EPS takes edge material 0.4–3 mm thick on panels 8–42 mm thick, with a minimum workpiece of 100 x 100 mm. Note both ends of that range against the alternatives: the KAM4EPS goes down to 8 mm board, thinner than any KAM35 model accepts, but stops at 42 mm, so thick worktops belong on a KAM35ALL or KAM215 machine instead. A 400 V supply at 50–60 Hz and compressed air at 6–8 bar are required. Measured sound pressure is 82.9 dB(A), and the machine occupies 3960 x 1060 x 1560 mm at 850 kg net.

ძირითადი მახასიათებლები

Integrated dust collection system on board, with a Ø125 mm port for connection to a central extraction system
Constant chain-conveyor panel feed at 10 m/min on a 6470 W connected load
Milling unit removes the edge overhang above and below, flush or with a 2 mm radius
Cutting unit trims the tape accurately at the front and rear of the panel
Unit adjustment equipped with a counter for repeatable setting between different edge tape types
Glue delivered directly onto the workpiece, with adhesive temperature set electronically at the touch panel
Handles edge material 0.4–3 mm thick on panels 8–42 mm thick, minimum workpiece 100 x 100 mm
400 V supply at 50–60 Hz with 6–8 bar compressed air; 82.9 dB(A) sound pressure, 850 kg net

ტექნიკური მახასიათებლები

Motor power S1 (W): 6470
Voltage: 400 V / (50-60Hz)
Feed speed: 10 m / min
Dust collector port (mm): 125
Total dimensions (mm): 3960 x 1060 x 1560
Min. workpiece length (mm): 100
Min. workpiece width (mm): 100
Min. workpiece thickness (mm): 8
Max. workpiece thickness (mm): 42
Required air pressure (bar): 6-8
Edge thickness (mm): 0.4 - 3
Sound pressure level (dB(A)): 82.9
Gross weight (kg): 855
Net weight (kg): 850
Packaging width (mm): 750
Packaging length (mm): 3500
Packaging height (mm): 1550
EAN code: 9120058379079

უპირატესობები

Integrated dust collection means the KAM4EPS can be commissioned without first extending the shop's extraction ducting
The setting counter on unit adjustment makes changeover between edge tape types repeatable rather than trial-and-error
Accepts panels down to 8 mm thick — thinner than any KAM35 model in the HOLZMANN range accepts

გასათვალისწინებელი

Maximum panel thickness is 42 mm, so thick worktops and 50 mm panels are outside the KAM4EPS range
Minimum workpiece is 100 x 100 mm, larger than the 70 x 80 mm minimum on the KAM35 machines, so small components need another method
At 82.9 dB(A) the KAM4EPS is the noisiest edge bander in this group, and it still needs a compressor holding 6–8 bar

ხშირად დასმული კითხვები

How much does the HOLZMANN KAM4EPS cost?

The HOLZMANN KAM4EPS is supplied on quotation rather than at a published price. The price of the KAM4EPS is moved by the tooling package specified for the milling and cutting units, the spare wear parts included, freight of an 855 kg gross crate 3500 mm long to site in Georgia, unloading and positioning, connection of the 400 V supply, and whether commissioning and operator training are included.

What is the lead time and availability for the KAM4EPS?

The HOLZMANN KAM4EPS is built to order at the factory in Austria. HOLZMANN currently lists this model as unavailable on its own webshop; in a quotation model that means availability is confirmed with the factory before the order goes in. Confirm the current lead time for the KAM4EPS when requesting a quote.

Does the KAM4EPS need a dust collector?

The HOLZMANN KAM4EPS has an integrated dust collection system, so it does not need to be connected into a shop extraction network to run cleanly — a genuine advantage where the existing collector is already at capacity. A Ø125 mm port is nevertheless provided on the KAM4EPS for connection to a central system where one exists and where the shop prefers to duct waste away.

What installation and commissioning does the KAM4EPS need?

The HOLZMANN KAM4EPS measures 3960 x 1060 x 1560 mm and weighs 850 kg net, so it needs a level floor, mechanical handling to position it, and an access route checked against a 3500 mm crate. Services required are a 400 V connection at 50–60 Hz made by a qualified electrician and a compressed air supply holding 6–8 bar. Unit alignment and glue temperature setting are part of commissioning.

What tooling and consumables should I budget for separately with the KAM4EPS?

Budget separately for hot-melt adhesive granulate, edge tape stock, replacement cutters for the milling unit that removes the overhang flush or at 2 mm radius, blades for the cutting unit, glue pot cleaning agent, and a compressor sized for 6–8 bar continuous duty if none is installed. The KAM4EPS integrated dust system still needs its filter and bag consumables budgeted.

What panel and edge sizes does the KAM4EPS handle?

The HOLZMANN KAM4EPS applies edge material 0.4 to 3 mm thick to panels 8 to 42 mm thick, with a minimum workpiece of 100 x 100 mm. The 8 mm lower limit is the widest-reaching in this HOLZMANN group and suits thin backs and shelving, but the 42 mm ceiling means thick worktop panels should be quoted on a KAM35ALL or a KAM215 machine instead.
