HOLZMANN KAM215ALL Industrial Edge Banding Machine with Corner Trimming

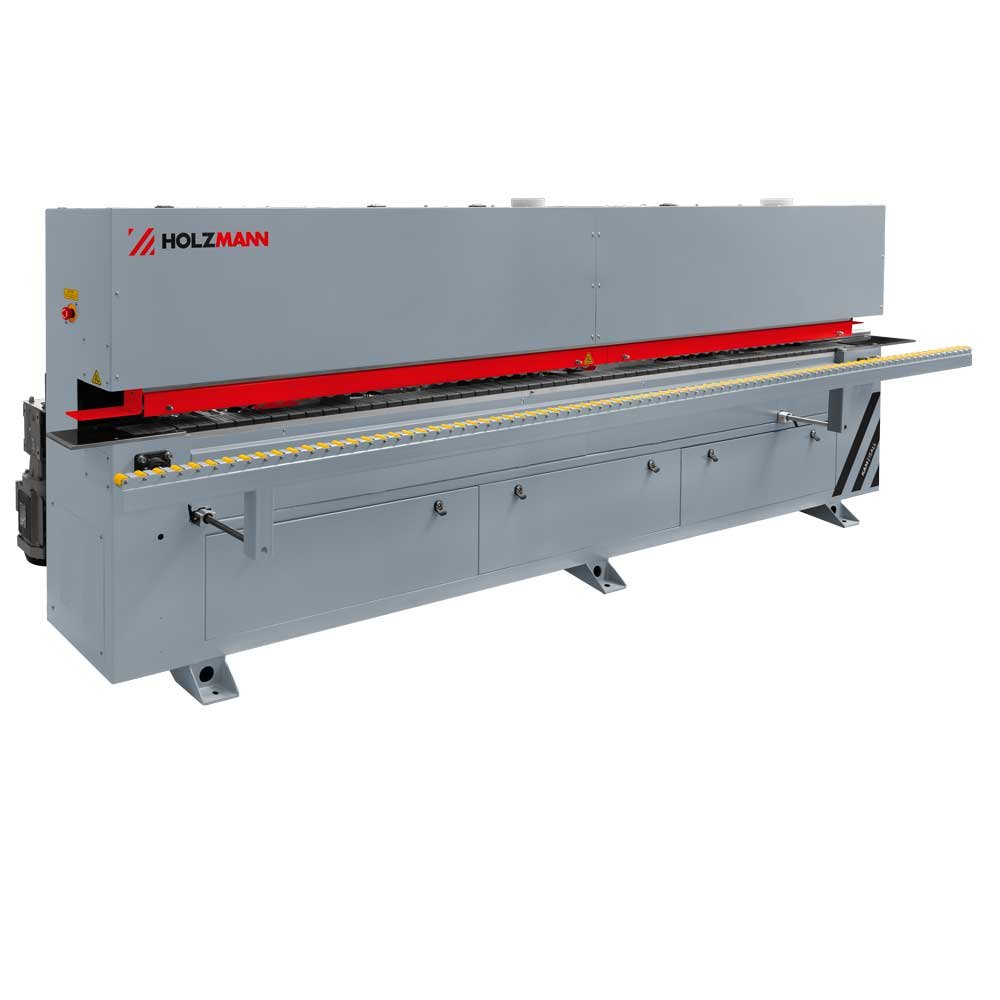

KAM215ALL — HOLZMANN KAM215ALL Industrial Edge Banding Machine with Corner Trimming 1 / 4

The HOLZMANN KAM215ALL is a one-sided automatic edge banding machine carrying pre-milling, glue application, end trimming, double trimming, corner trimming, R2 scraping and polishing units, with three selectable feed speeds up to 13 m/min. The KAM215ALL runs on 400 V three-phase supply and is supplied on quotation.

ძაბვა
400V
მიწოდების სიჩქარე
max. 13 m/min
დეტალის სისქე
50
ჰაერის წნევა
6
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

Price on the KAM215ALL is moved by the tooling package for the pre-milling, trimming and corner-trim units, spare scrapers and polishing discs, freight of a 1363 kg gross / 4200 mm crate to site, unloading and positioning, and whether commissioning and operator training are included.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

The KAM215ALL is the fully equipped machine in the HOLZMANN KAM215 series

The HOLZMANN KAM215ALL is the model for a furniture producer that wants an edge finished completely at one pass and at industrial output. Where the KAM215EPSV in the same series stops at a flat scraper, the KAM215ALL adds a corner trimming unit and an R2 radius scraping unit, and offers three selectable feed speeds up to 13 m/min instead of a single fixed rate. At 1090 kg net the KAM215ALL is the heaviest machine covered here.

Corner trimming and R2 scraping in production

The two extra units on the KAM215ALL exist to remove hand finishing from the process. The corner trim is a double unit, one working the lower and one the upper corner of the workpiece with a 0.3 kW motor each, rounding both ends of the applied tape automatically. Behind it, the R2 scraper cleans the top and bottom of a 2 mm radiused edge so no cutter marks reach the assembly bench. Together they mean a KAM215ALL delivers a door or drawer front ready to assemble, which is the whole economic case for the machine over the KAM215EPSV.

The rest of the line

Ahead of those units the KAM215ALL runs the full industrial sequence: pre-milling with two counter-rotating Ø80 mm cutters at 1.1 kW and 12000 rpm per unit, a heated glue tank with direct delivery to the workpiece and electronic temperature setting at the touch display, pressure rollers, front and rear crosscut saw units at 0.35 kW and 12000 rpm, a double trimming unit at 0.75 kW per unit and 18000 rpm with straight or 2 mm radius form cutters, then R-scraping and polishing at 0.18 kW and 1400 rpm.

Capacity, air and space

The KAM215ALL handles tape 15–55 mm wide and 0.4–3 mm thick on panels 10–50 mm thick, minimum workpiece 120 x 80 mm, and needs compressed air at 6 bar plus a 400 V three-phase supply. Plan the building around the delivery as well as the running: the KAM215ALL ships in a 4200 mm long crate at 1363 kg gross, so access, door width and lifting equipment should be confirmed at the quotation stage rather than on delivery day.

ძირითადი მახასიათებლები

  • Pre-milling unit with two counter-rotating Ø80 mm cutters, 1.1 kW per unit at 12000 rpm
  • Double trimming unit at 0.75 kW per unit and 18000 rpm, with straight or 2 mm radius form cutters
  • Corner trimming as a double unit — one for the upper and one for the lower corner — with a 0.3 kW motor each
  • R2 scraper unit top and bottom plus polishing unit at 0.18 kW per unit and 1400 rpm
  • Front and rear crosscut saw units for the tape ends, 0.35 kW each at 12000 rpm
  • Three selectable feed speeds up to 13 m/min on a chain conveyor drive
  • Tape 15–55 mm wide and 0.4–3 mm thick on panels 10–50 mm thick, minimum workpiece 120 x 80 mm
  • Glue temperature set electronically on the touch display; 6 bar compressed air required

ტექნიკური მახასიათებლები

Voltage
400V / 50Hz
Feed speed
max. 13 m/min
Min. workpiece length (mm)
120
Min. workpiece width (mm)
80
Min. workpiece thickness (mm)
10
Max. workpiece thickness (mm)
50
Edge width (mm)
15-55
Edge thickness (mm)
0.4-3
Required air pressure (bar)
6
Gross weight (kg)
1363
Net weight (kg)
1090
XL-Versand (oversize freight)
17
Packaging width (mm)
770
Packaging length (mm)
4200
Packaging height (mm)
1615
EAN code
9120058378096

უპირატესობები

  • Corner trimming plus R2 scraping means panels leave the KAM215ALL ready to assemble, with no hand finishing of corners
  • Industrial 0.75 kW / 18000 rpm trimming units and 13 m/min feed suit sustained daily output rather than batch work
  • Three selectable feed speeds let the operator slow down for difficult tape instead of running one fixed rate

გასათვალისწინებელი

  • At 1090 kg net and shipped in a 4200 mm crate, the KAM215ALL is a serious logistics and access problem in an existing building
  • 400 V three-phase and a 6 bar compressed air supply are both mandatory — neither is optional on this machine
  • Nine processing units means nine sets of consumables and a real maintenance routine; a shop banding a few panels a week will not recover the cost

ხშირად დასმული კითხვები

How much does the HOLZMANN KAM215ALL cost?
The HOLZMANN KAM215ALL is supplied on quotation, not at a published price, because it is an industrial capital machine imported to order. The price of the KAM215ALL is moved by the tooling package specified for the pre-milling, trimming and corner-trim units, the spare scrapers and polishing discs included, freight of a 1363 kg gross, 4200 mm long crate to site in Georgia, unloading and positioning, and whether commissioning and operator training are quoted with the machine.
What is the lead time and availability for the KAM215ALL?
The HOLZMANN KAM215ALL is built to order at the factory in Austria; HOLZMANN currently lists this model as unavailable on its own webshop, which in a quotation model simply means availability is confirmed with the factory before the order is placed. Confirm the current lead time for the KAM215ALL when requesting a quote.
What does installing the KAM215ALL involve?
The HOLZMANN KAM215ALL weighs 1090 kg net and arrives in a 4200 mm crate, so access route, door widths and lifting equipment must be checked before delivery. On site the KAM215ALL needs a level floor, a 400 V three-phase connection made by a qualified electrician, a compressed air supply delivering 6 bar continuously, and extraction connected before the first panel is run. Levelling and unit alignment are part of commissioning.
What tooling and consumables should I budget for separately with the KAM215ALL?
Beyond the machine, budget for hot-melt adhesive granulate, edge tape stock, and replacement wear tooling for the KAM215ALL: Ø80 mm pre-milling cutters, Ø104 mm saw blades, form cutters for the 0.75 kW trimming units, corner-trim cutters, R2 scraper blades, Ø150 mm polishing discs and cleaning agent. A compressor sized for 6 bar continuous duty and a dust collector are separate capital items if not already installed.
What is the difference between the KAM215ALL and the KAM215EPSV?
The HOLZMANN KAM215ALL differs from the KAM215EPSV by adding a corner trimming unit (a double unit with a 0.3 kW motor for each of the upper and lower corners) and an R2 radius scraper in place of the flat scraper on the KAM215EPSV, plus three selectable feed speeds instead of a single 13 m/min rate. The KAM215ALL is correspondingly heavier at 1090 kg net against 900 kg.
What edge tape and panel sizes can the KAM215ALL handle?
The HOLZMANN KAM215ALL applies edge tape from 15 to 55 mm wide and 0.4 to 3 mm thick, on panels 10 to 50 mm thick with a minimum workpiece size of 120 x 80 mm. That range covers thin PVC melamine tape through to 3 mm ABS on thick worktop panels, which is why the KAM215ALL suits mixed furniture production.
