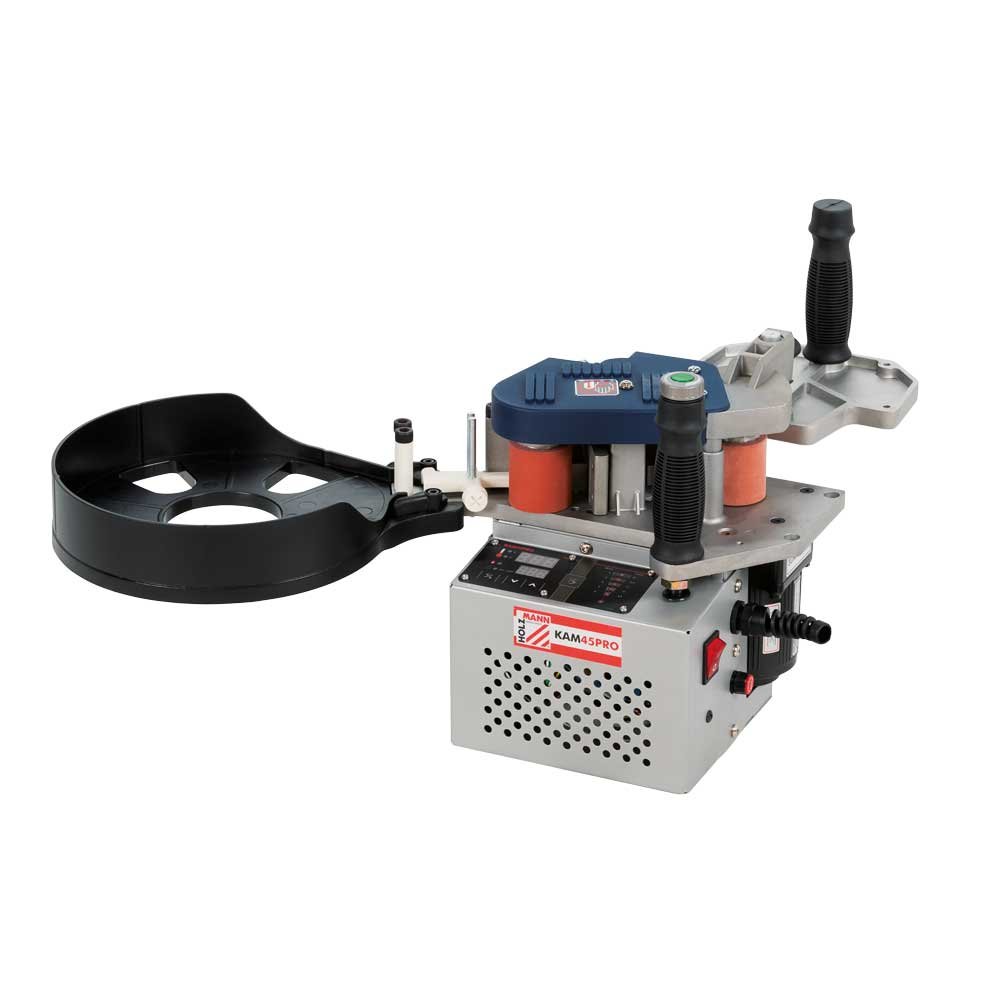

HOLZMANN KAM45PRO Portable Edge Banding Machine

KAM45PRO

The HOLZMANN KAM45PRO is a 855 W portable edge banding machine that applies 10-45 mm wide, 0.4-3 mm thick edge banding at 2-6 m/min from a single-phase 230 V socket. Weighing 9.4 kg and supplied with an edge banding dispenser, the KAM45PRO is built for on-site fitting work and small joinery shops rather than continuous production.

ფასი მოთხოვნით

KAM45PRO pricing moves with the euro exchange rate at order date, freight and customs clearance into Georgia, the volume of glue granulate and edge banding tape added to the order, and any extended warranty selected.

ფასის მოთხოვნა

Who the KAM45PRO suits

The HOLZMANN KAM45PRO earns its place in workshops that band edges in short, varied runs rather than in continuous batches. The KAM45PRO is a hand-guided machine of 9.4 kg net that runs from an ordinary 230 V / 50 Hz socket on 855 W, so a fitter can carry it to a kitchen installation, band a cut panel on site and carry it back. The 5 m cable means the KAM45PRO reaches a wall socket from the middle of a room without an extension lead.

Edge capacity

The KAM45PRO covers the banding sizes that dominate cabinet and shopfitting work. Edge width runs from 10 to 45 mm and edge thickness from 0.4 to 3 mm, which spans thin melamine and ABS tape through to 2 mm and 3 mm PVC and solid-wood lippings. A minimum curve radius of 25 mm lets the KAM45PRO follow shaped worktops and radiused shelf ends, and the machine can pre-glue an edge so mitred corner joints close cleanly.

Glue system and warm-up

Glue handling is the practical difference between the KAM45PRO and a hot-air gun. The KAM45PRO melts EVA granulate in an easily accessible tank, holds the melt between 125 and 200 °C under a temperature display, and reaches working temperature in about 4 minutes. Feed speed is variable from 2 to 6 m/min, so an operator can slow down on curves and speed up on straight runs.

How the KAM45PRO differs from the KAM65PRO

Choose the KAM45PRO when 45 mm of edge width is enough, and step up only if it is not. The larger KAM65PRO in the same HOLZMANN range shares the 855 W motor and the 2-6 m/min feed but takes edge banding up to 65 mm wide, which matters for thick worktop fronts and tall drawer faces. If your work is 16-25 mm board with matching tape, the KAM45PRO is the more compact and lighter choice at 9.4 kg.

What the KAM45PRO does not replace

The KAM45PRO is not an automatic edge bander. Trimming, flush cutting, scraping and buffing remain hand operations with the KAM45PRO, and glue granulate is a running cost to budget for. Workshops banding hundreds of panels a day should be quoted a stationary machine instead.

ძირითადი მახასიათებლები

855 W (S1) motor on 230 V / 50 Hz single-phase supply - no three-phase connection needed
Edge width 10-45 mm and edge thickness 0.4-3 mm covers melamine, ABS, PVC and solid-wood lippings
Variable feed speed 2-6 m/min for slower control on curves and faster straight runs
Working temperature 125-200 °C with a temperature display, and a 4 minute warm-up
Minimum curve radius 25 mm for shaped worktops and radiused shelf ends
Easily accessible melting tank for filling with glue granulate
Edge banding dispenser included in the standard delivery
9.4 kg net weight and a 5 m cable for genuine portability on site

ტექნიკური მახასიათებლები

Motor power (S1): 855 W
Voltage: 230 V / 50 Hz
Feed speed: 2-6 m/min
Cable length: 5 m
Edge width: 10-45 mm
Edge thickness: 0.4-3 mm
Warm-up time: 4 min
Working temperature: 125-200 °C
Minimum curve radius: 25 mm
Net weight: 9.4 kg
Gross weight: 10.4 kg
Packaging width: 350 mm
Packaging length: 310 mm
Packaging height: 360 mm
EAN code: 9120058378331

უპირატესობები

Runs on a standard 230 V socket, so no three-phase installation is required
Genuinely portable at 9.4 kg with a 5 m cable, suited to on-site kitchen and shopfitting work
Edge banding dispenser is included, so the machine works out of the box once granulate is bought

გასათვალისწინებელი

Edge width stops at 45 mm, so thick worktop fronts need the wider KAM65PRO
Trimming, flush cutting and buffing are separate hand operations - the KAM45PRO only glues and presses
A 4 minute warm-up and hand feeding make the KAM45PRO unsuitable for high-volume batch production

ხშირად დასმული კითხვები

How much does the HOLZMANN KAM45PRO cost?

The HOLZMANN KAM45PRO is supplied on quotation rather than at a fixed shelf price. The price of a KAM45PRO quotation is driven by the exchange rate at order date, the freight route from Austria to Georgia, import duty and VAT handling, whether spare glue granulate and edge banding tape are added to the order, and any extension of the standard warranty. Send the intended edge sizes and quantity and a written KAM45PRO quotation will be issued.

What is the lead time for the HOLZMANN KAM45PRO?

The HOLZMANN KAM45PRO is ordered from the HOLZMANN factory in Austria once the quotation is accepted, so delivery depends on current factory stock and the freight schedule to Georgia. HOLZMANN currently shows the KAM45PRO as unavailable on its own catalogue, so confirm the current KAM45PRO lead time at the time of enquiry rather than assuming stock.

Does the HOLZMANN KAM45PRO need special installation?

The HOLZMANN KAM45PRO needs no installation in the engineering sense. The KAM45PRO is a 9.4 kg hand-guided machine that plugs into a 230 V / 50 Hz socket with its 5 m cable and is ready once the melting tank is filled and 4 minutes of warm-up have passed. A stable bench and a ventilated space for hot-melt fumes are the only site requirements for the KAM45PRO.

What consumables must be budgeted for alongside the KAM45PRO?

The KAM45PRO consumes EVA glue granulate and edge banding tape, neither of which is included beyond the supplied dispenser. Budget for glue granulate in 5 kg or 25 kg bags, a stock of edge banding in the widths you use between 10 and 45 mm, and hand trimming tools such as an end trimmer, edge scraper and glue scraper, because the KAM45PRO applies and presses the edge but does not trim it.

Can the HOLZMANN KAM45PRO band curved workpieces?

Yes - the HOLZMANN KAM45PRO bands curved workpieces down to a minimum curve radius of 25 mm. Feed speed on the KAM45PRO is variable between 2 and 6 m/min, so an operator can reduce speed through the curve and return to full speed on straight sections.

What is the difference between the KAM45PRO and the KAM65PRO?

The difference between the KAM45PRO and the KAM65PRO is edge width capacity. The KAM45PRO takes edge banding 10-45 mm wide, while the KAM65PRO takes 10-65 mm, and the KAM45PRO is the lighter machine at 9.4 kg net. Both share the 855 W motor, the 230 V supply and the 2-6 m/min feed range.
