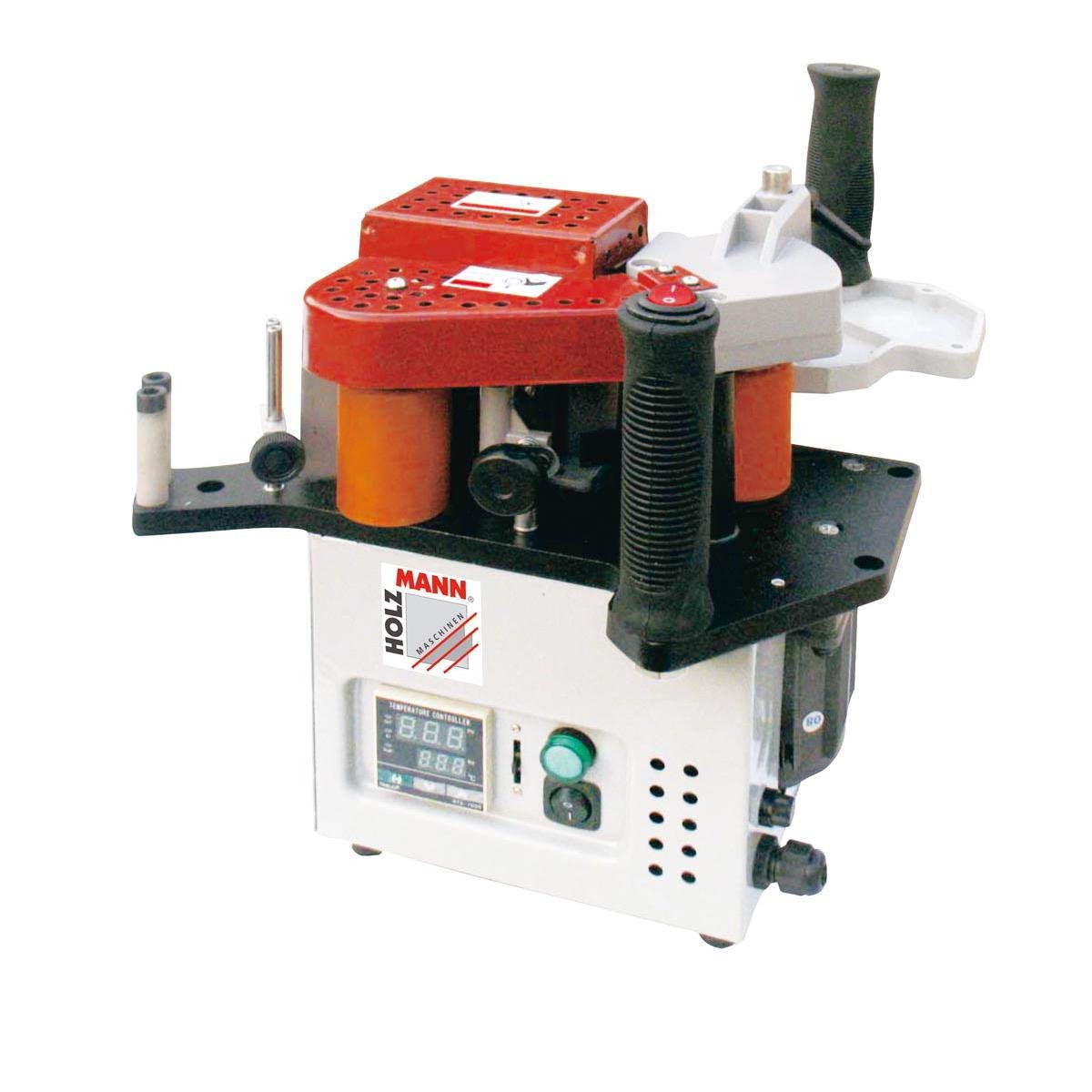

HOLZMANN KAM55V Portable Edge Banding Machine
KAM55V
The HOLZMANN KAM55V is a 765 W portable edge banding machine supplied with accessories, taking edge banding 10-55 mm wide and 0.3-3 mm thick on a single-phase 230 V supply. At 8.5 kg net and 320 x 300 x 400 mm, the KAM55V bands wider fronts than the 45 mm class while staying light enough to carry to site.
KAM55V pricing moves with the euro exchange rate, freight and customs clearance into Georgia, the accessory set specified, the quantity of glue granulate and banding tape ordered alongside, and any extended warranty.
ფასის მოთხოვნაWhere the KAM55V fits
The HOLZMANN KAM55V answers a specific problem: edge banding wider than 45 mm without moving up to a stationary machine. The KAM55V accepts edge banding from 10 to 55 mm wide and 0.3 to 3 mm thick, which covers 16-25 mm board tape, tall drawer fronts and many worktop lippings from one hand-guided unit. At 8.5 kg net the KAM55V remains a machine an installer can lift into a van.
Power and glue temperature
The KAM55V is deliberately modest on power draw. A 765 W motor runs from a single-phase 230 V socket, so the KAM55V needs no three-phase installation and no dedicated circuit in most Georgian workshops. Working temperature runs from 120 to 180 °C, at the lower end of the hot-melt range, which suits thin 0.3 mm tape that scorches easily as well as heavier 3 mm PVC.
Curves and shaped work
The KAM55V is the better choice of the portable HOLZMANN edge banders for shaped work. A minimum curve radius of 20 mm on the KAM55V is tighter than the 25 mm of the KAM45PRO and KAM65PRO, so radiused shelf ends, rounded worktop corners and curved table edges are within reach. Combined with the 10 mm lower limit on edge width, the KAM55V handles small shaped components that larger machines cannot follow.
How the KAM55V differs from the KAM45PRO
Compare the two on capacity rather than power. The KAM45PRO carries a larger 855 W motor and is supplied with a banding dispenser, but stops at 45 mm of edge width and a 25 mm radius. The KAM55V trades a little motor power for 55 mm of edge width, a 20 mm minimum radius and a thinner 0.3 mm lower thickness limit, and arrives as a set with accessories. Shops doing shaped and wide-front work should look at the KAM55V; shops doing straight runs of standard tape may prefer the KAM45PRO.
Practical limits of the KAM55V
The KAM55V glues and presses the edge; it does not trim it. End trimming, flush trimming and scraping remain hand operations, and glue granulate and tape are consumables to budget separately. The KAM55V is a fitting and small-batch machine, not a production bander.
ძირითადი მახასიათებლები
- 765 W motor on a single-phase 230 V supply - no three-phase connection required
- Edge width 10-55 mm, wider than the 45 mm portable class in the same HOLZMANN range
- Edge thickness 0.3-3 mm, covering thin tape through to 3 mm PVC and solid lippings
- Working temperature 120-180 °C, a lower range that suits thin 0.3 mm banding
- Minimum curve radius 20 mm for radiused shelf ends and shaped worktop corners
- Supplied as a set with accessories, per HOLZMANN's 'incl. accessoires' listing
- Compact 320 x 300 x 400 mm envelope and 8.5 kg net weight for site work
ტექნიკური მახასიათებლები
- Motor power (S1)
- 765 W
- Voltage
- 230 V (variant KAM55V_230V)
- Edge width
- 10-55 mm
- Edge thickness
- 0.3-3 mm
- Working temperature
- 120-180 °C
- Minimum curve radius
- 20 mm
- Total dimensions
- 320 x 300 x 400 mm
- Net weight
- 8.5 kg
- Gross weight
- 13 kg
- Packaging width
- 445 mm
- Packaging length
- 500 mm
- Packaging height
- 475 mm
- EAN code
- 9120039909042
უპირატესობები
- 55 mm edge width from a portable machine, wider than most hand-guided edge banders
- 20 mm minimum curve radius is the tightest in HOLZMANN's portable edge banding range
- Low 765 W draw on standard 230 V, so the KAM55V works anywhere there is a domestic socket
გასათვალისწინებელი
- No trimming function - end trimming, flush trimming and scraping stay manual
- HOLZMANN publishes only a catalogue-level spec set for the KAM55V, with no feed speed or warm-up time stated
- At 765 W the KAM55V has less motor reserve than the 855 W KAM45PRO for long continuous runs
