HOLZMANN KAM65PRO Mobile Edge Banding Machine (10-65 mm)

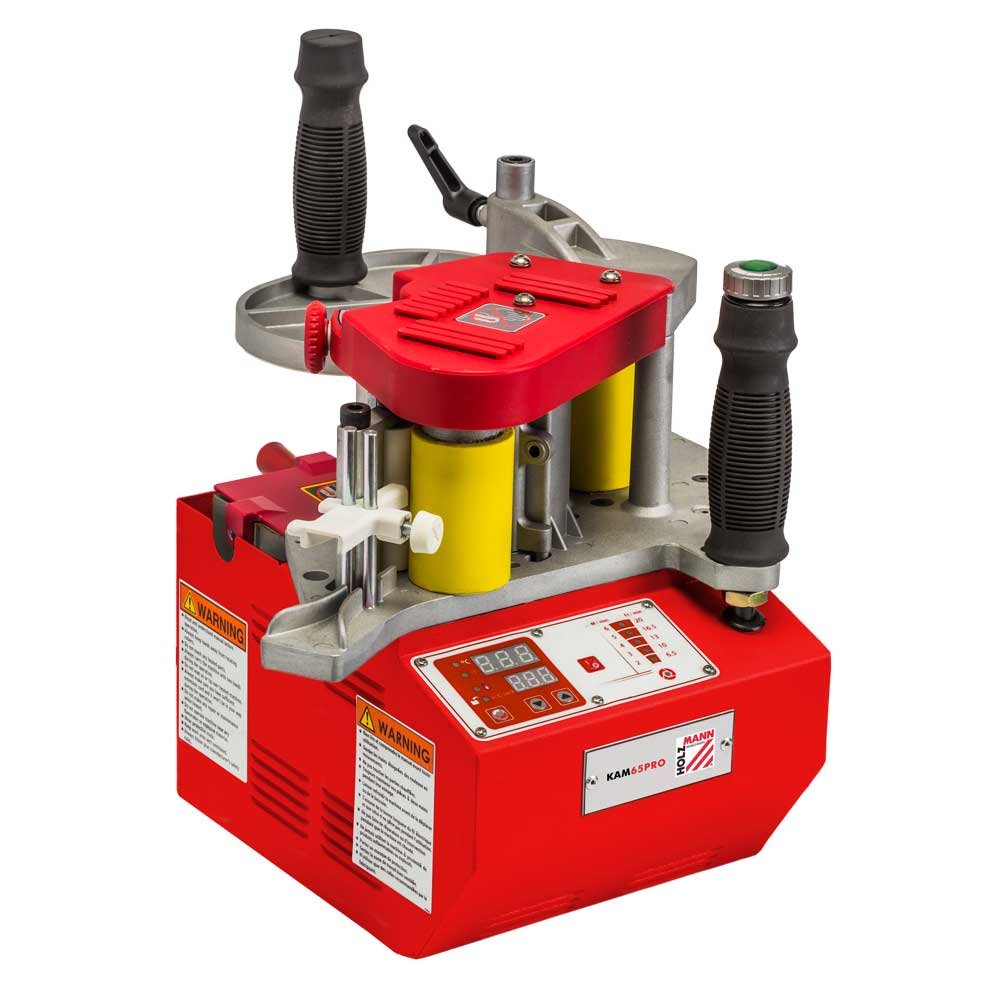

KAM65PRO — HOLZMANN KAM65PRO Mobile Edge Banding Machine (10-65 mm) 1 / 4

For all that it weighs 8.8 kg, the HOLZMANN KAM65PRO takes wider tape than the stationary KAM535NEO - 10 to 65 mm against 13 to 54 mm. The KAM65PRO is hand-guided at 2-6 m/min, its granulate tank reaches a set point between 125 and 200 C in about four minutes, and it plugs into a 230 V socket on a 5 m cable.

ძრავის სიმძლავრე
0.86 kW
ძაბვა
230V
მიწოდების სიჩქარე
2-6 m/min
გაბარიტები
340 x 300 x 350 mm
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The quoted price for the KAM65PRO moves with the number of units ordered - fitting teams commonly take one per van - the starting stock of glue granulate and edge tape, the hand trimmer and scraper set specified with it, and freight and customs clearance into Georgia.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN KAM65PRO does

The HOLZMANN KAM65PRO is a hand-guided edge banding machine that melts glue granulate in an on-board tank and presses edge tape onto a panel as the operator walks the machine along the edge. Edge tape from 10 mm to 65 mm wide and 0.4 mm to 3 mm thick can be applied at a feed speed of 2-6 m/min, and the tank reaches its working temperature of 125-200 °C in about 4 minutes. A display shows tank temperature, so the setting can be matched to PVC, ABS, melamine or veneer tape.

Who the KAM65PRO suits

The KAM65PRO is built for fitters and small joineries rather than for a production line. The whole machine measures 340 x 300 x 350 mm, weighs 8.8 kg net and runs from an ordinary 230 V socket on a 5 m cable, so the KAM65PRO travels to a kitchen installation to band a cut-down worktop or a re-sized carcase on the spot. Curved work down to a 25 mm radius is possible, and the KAM65PRO can pre-glue edge tape for corner joints before assembly.

KAM65PRO compared with the HOLZMANN KAM45PRO

The choice between the two portable HOLZMANN banders is the tape width. The KAM45PRO takes edge tape 10-45 mm wide, which covers ordinary carcase board. The KAM65PRO takes tape 10-65 mm wide from the same 855 W drive and the same 2-6 m/min feed, so the KAM65PRO also bands thick worktops, doubled panels and stair components that the KAM45PRO cannot. Buy the KAM65PRO where worktops and thick fronts are part of the work.

Delivery and handling

The KAM65PRO arrives at 9 kg gross with an easily accessible melting tank for filling with glue granulate. The fork measurement is 5 mm.

ძირითადი მახასიათებლები

  • Edge tape from 10 to 65 mm wide, 11 mm wider than the stationary KAM535NEO manages, in thicknesses of 0.4 to 3 mm
  • 8.8 kg net in a 340 x 300 x 350 mm body: lifted in one hand and taken to the fitting site
  • 230 V / 50 Hz single-phase, 855 W, on a 5 m cable - no three-phase connection and no compressed air line anywhere in the requirement
  • Glue granulate tank adjustable across 125 to 200 C with the setting shown on the temperature display
  • About 4 minutes from cold to working temperature, so the machine is ready within a coffee break on site
  • Hand-guided feed at 2 to 6 m/min, the operator setting the pace along the panel
  • Curved edges down to a 25 mm minimum radius
  • Edges can be pre-glued for corner joints, and the melt tank is reached easily for topping up granulate

ტექნიკური მახასიათებლები

Motor power (S1)
855 W
Voltage
230 V / 50 Hz
Feed speed
2-6 m/min
Cable length
5 m
Total dimensions
340 x 300 x 350 mm
Fork measurement
5 mm
Edge width
10-65 mm
Edge thickness
0.4-3 mm
Working temperature
125-200 °C
Warm-up time
4 min
Min. curve radius
25 mm
Net weight
8.80 kg
Gross weight
9 kg
EAN code
9120058373787

უპირატესობები

  • Takes edge tape up to 65 mm wide, so worktops and thick fronts are covered
  • 8.8 kg and 230 V on a 5 m cable makes the KAM65PRO a true site machine
  • 4 minute warm-up with a temperature display from 125 °C to 200 °C

გასათვალისწინებელი

  • Hand-guided at 2-6 m/min, so output is far below a stationary bander
  • No milling, cross-cut, trimming or polishing units, so edges are finished by hand
  • Curves are limited to a 25 mm minimum radius, wider than the 20 mm of the KAM535NEO

ხშირად დასმული კითხვები

What power supply does the HOLZMANN KAM65PRO need?
The HOLZMANN KAM65PRO runs on single-phase 230 V / 50 Hz, draws 855 W and comes with a 5 m cable, so the KAM65PRO works from any ordinary socket on site. There is no 400 V three-phase version of the KAM65PRO, which is precisely why the machine suits installation work.
How wide an edge can the KAM65PRO band?
The KAM65PRO applies edge tape 10-65 mm wide and 0.4-3 mm thick, which covers standard 16-25 mm carcase board as well as thick worktops and doubled panels.
How long does the KAM65PRO take to heat up?
The KAM65PRO reaches its working temperature in about 4 minutes, with the tank adjustable between 125 °C and 200 °C and shown on the display, so the setting can be matched to PVC, ABS, melamine or veneer tape.
Can the KAM65PRO band curved edges?
The KAM65PRO can follow curves down to a minimum radius of 25 mm. Tighter curves than 25 mm are outside the range of the KAM65PRO.
What does the KAM65PRO not do?
The KAM65PRO glues and presses the tape only. The KAM65PRO does not pre-mill the panel edge, does not cross-cut the tape ends, and does not trim, scrape or polish the applied edge, so the overhang must be removed with a hand trimmer and scraper. The KAM65PRO is a hand-guided machine and does not feed panels automatically.
Is the KAM65PRO suitable for production runs?
The KAM65PRO is designed for installation work and small workshop batches at 2-6 m/min under hand guidance. For continuous panel output a stationary machine such as the KAM535NEO or an automatic bander is the better choice than the KAM65PRO.
What does a HOLZMANN KAM65PRO cost?
The HOLZMANN KAM65PRO is supplied by quotation. Since the KAM65PRO needs no three-phase power, no compressed air and no installation work, the price drivers are simple: how many units are ordered - a fitting team often wants one per vehicle - the starting stock of glue granulate and edge tape, the hand trimmer and scraper set bought with it, and freight and customs clearance into Georgia.
How quickly can a HOLZMANN KAM65PRO be delivered?
The HOLZMANN KAM65PRO is built to order and the current lead time is confirmed on the quotation. At 9 kg gross in a 460 x 430 x 510 mm carton, the KAM65PRO ships as a normal parcel-sized item, so freight adds little to the overall lead time once the machine is built.
Does a HOLZMANN KAM65PRO need commissioning?
No. A HOLZMANN KAM65PRO is put to work by the fitter: stand it on a stable, heat-tolerant surface, plug the 5 m cable into a 230 V socket, fill the melt tank with granulate and wait about four minutes for it to reach the set temperature. No electrical installation, no air line and no commissioning visit are needed for the KAM65PRO, which is why it is the machine that goes to site.
What should be budgeted alongside a HOLZMANN KAM65PRO?
Budget with the HOLZMANN KAM65PRO for hot-melt glue granulate as a recurring consumable, edge tape in the 10-65 mm widths it accepts, and hand tools for the finishing steps: the KAM65PRO glues and presses the tape but does not cross-cut the ends, trim, scrape or polish the edge, so an end-cutter, a manual edge trimmer and a scraper belong in the same order.
