MIZRAK MZK-4 Edge Banding Machine

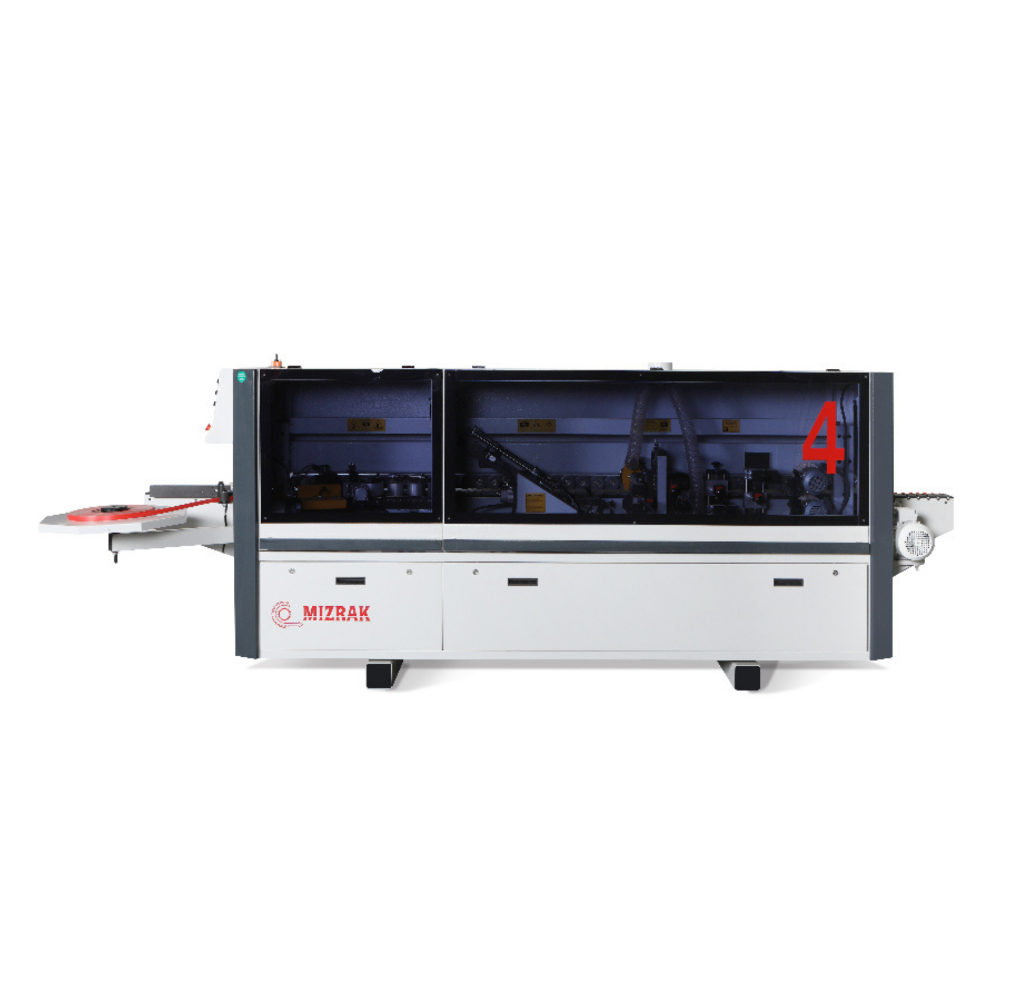

MZK-4 — MIZRAK MZK-4 Edge Banding Machine 1 / 4

Alone in the MZK 4 family, the MZK-4 works without a pre-milling unit and needs only 4.02 kW where the pre-milling models draw 7.02 kW. The MZK-4 bands panels 8 to 54 mm thick at 14 m/min with gluing, guillotine and pressure units, end trimming, milling, combined flat and radius scraping and polishing.

დეტალის სისქე
8 - 54 mm
სამუშაო სიჩქარე
14 m/min
ჰაერის წნევა
6 - 8 atm
წონა
850 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The price of the MZK-4 is moved by the tooling and glue package specified, whether extraction and a 6-8 atm compressor are ordered alongside the machine, and delivery, positioning and commissioning at the customer's site.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the MZK-4 does

The MZK-4 bands panels up to 54 mm thick at 14 m/min while drawing only 4.02 kW. Tape from 0.40 mm to 3 mm is applied by the gluing, guillotine and pressure units under a 54 mm top pressure beam, a Ø100 x 3.2 mm saw trims the tape ends, Ø49 x r3 cutters mill top and bottom at 12,000 rpm, and the scraping unit handles both flat and radius profiles before the 0.25 kW polishing unit finishes the edge. The chain conveyor is driven by a 1.5 kW motor at 30 rpm.

Who the MZK-4 suits

The MZK-4 suits workshops that need thick-panel capacity without a pre-milling unit or a large electrical connection. Because the MZK-4 combines the 8-54 mm range and the 14 m/min speed of the larger OF models with the lowest total power in that family, the MZK-4 is a practical machine for a joinery that cuts panels cleanly and wants to band door leaves and worktops as well as carcase parts.

How the MZK-4 compares with the OF MZK-4

The MZK-4 is the shorter and lighter machine of the pair. Both models share the 8-54 mm thickness range, the 14 m/min conveyor, the 54 mm top pressure beam, the 2.5 kg glue pot and the 950 mm working height, but the OF MZK-4 adds a 1.5 kW pre-milling unit and glue cleaning fluid. Leaving those out brings the MZK-4 down to 4.02 kW against 7.02 kW, 3800 mm against 4020 mm and 850 kg against 1150 kg, at the cost of relying on the incoming cut quality.

What is included with the MZK-4

The MZK-4 is supplied with the gluing unit, guillotine unit, pressure unit, end trimming unit, top and bottom milling unit, 54 mm top pressure beam, flat and radius scraping unit, polishing unit and a glue tank holding up to 2.5 kg. Site requirements for the MZK-4 are a 380-430 V 50 Hz three-phase supply (3P + 1N) and compressed air at 6-8 atm.

ძირითადი მახასიათებლები

  • Bands panels 8 to 54 mm thick at a conveyor speed of 14 m/min
  • The only MZK 4 model supplied without a pre-milling unit, keeping connected load at 4.02 kW
  • Combined flat and radius scraping unit in one station
  • 54 mm top pressure beam with a 2.5 kg maximum glue tank
  • Ø100 x 3.2 mm end trimming saw and Ø49 x r3 milling cutters at 12,000 rpm
  • 1.5 kW / 30 rpm chain conveyor drive
  • 3800 x 700 x 1350 mm frame weighing 850 kg

ტექნიკური მახასიათებლები

Nominal voltage
380-430 V, 50 Hz - 3P + 1N 1MP
Sound level
Lwa 82.9 dB
Edge band thickness
0.40 mm - 3 mm
Workpiece thickness
8 - 54 mm
Minimum workpiece width
100 mm
Working speed
14 m/min
Working height
950 mm
Tank capacity (max.)
2.5 kg
Air pressure
6 - 8 atm
End trimming saw diameter
Ø100 x 3.2 mm
Top-bottom milling cutter diameter
Ø49 x r3 mm
End trimming motor power / speed
0.37 kW / 12,000 rpm
Top-bottom milling motor power / speed
0.55 kW / 12,000 rpm
Polishing motor power / speed
0.25 kW / 2,840 rpm
Conveyor chain motor power / speed
1.5 kW / 30 rpm
Total electrical power
4.02 kW
Machine length
3800 mm
Machine width
700 mm
Machine height
1350 mm
Machine weight
850 kg

უპირატესობები

  • 54 mm thickness capacity on the lowest power draw in the MZK 4 family
  • Flat and radius scraping in one unit
  • 850 kg and 3800 mm, the lightest machine with 54 mm capacity here

გასათვალისწინებელი

  • No pre-milling unit, so panel cut quality determines the glue line
  • No dust extraction motor listed in the technical table
  • Three-phase supply and a separate 6-8 atm compressor are both required

ხშირად დასმული კითხვები

What panel thickness can the MZK-4 band?
The MZK-4 bands panels from 8 to 54 mm thick with a minimum workpiece width of 100 mm and edge tape from 0.40 mm to 3 mm.
What power supply does the MZK-4 need?
The MZK-4 needs a 380-430 V, 50 Hz three-phase supply (3P + 1N) and draws only 4.02 kW in total, the lowest of the MZK 4 family, plus compressed air at 6-8 atm.
Does the MZK-4 have a pre-milling unit?
No, the MZK-4 has no pre-milling unit. Panels must arrive at the MZK-4 already cut square and clean; the OF MZK-4 is the model in the same family that adds a 1.5 kW pre-milling spindle.
What scraping does the MZK-4 offer?
The MZK-4 has a combined flat and radius scraping unit, so both square and radiused tape profiles can be finished on the same machine without changing units.
How much floor space does the MZK-4 need?
The MZK-4 measures 3800 x 700 x 1350 mm and weighs 850 kg at a 950 mm working height, so allow a four-metre bay plus operator space at the infeed and outfeed.
What does the MZK-4 not do?
The MZK-4 does not pre-mill, does not round corners, does not apply glue cleaning fluid and does not cut panels to size. No dust extraction motor is listed in the MZK-4 technical table, so extraction must be arranged separately.
How much does the MZK-4 cost?
The MZK-4 is supplied on quotation, not at a published list price. The price of the MZK-4 is set by the tooling and glue package specified, whether a dust collector and a 6-8 atm compressor are ordered with the machine, and the cost of delivery, positioning and commissioning on site. Send the panel thicknesses and tape types to be run and a written quotation for the MZK-4 follows.
What is the lead time for an MZK-4?
The MZK-4 is built to order rather than held in stock, so availability follows the current Mizrak production slot. The lead time for the MZK-4 is confirmed in writing at quotation, together with shipping and customs time to Georgia, so the delivery date is known before any order is placed.
What is involved in installing and commissioning the MZK-4?
Installing the MZK-4 means preparing a level bay for the 3800 x 700 x 1350 mm frame, levelling the 850 kg machine at its 950 mm working height, connecting 380-430 V 50 Hz three-phase power for the 4.02 kW load, feeding 6-8 atm compressed air from a compressor and ducting extraction to a collector. Commissioning of the MZK-4, including first glue-up and trim setting, is scoped in the quotation.
What consumables should be budgeted separately for the MZK-4?
Budget separately for edge tape in the 0.40-3 mm range the MZK-4 accepts, hot-melt glue for the 2.5 kg tank, replacement Ø100 x 3.2 mm end trimming saws and Ø49 x r3 milling cutters, scraper knives and polishing consumables. A dust collector and a compressor are not listed as part of the MZK-4 and are quoted as separate items.
