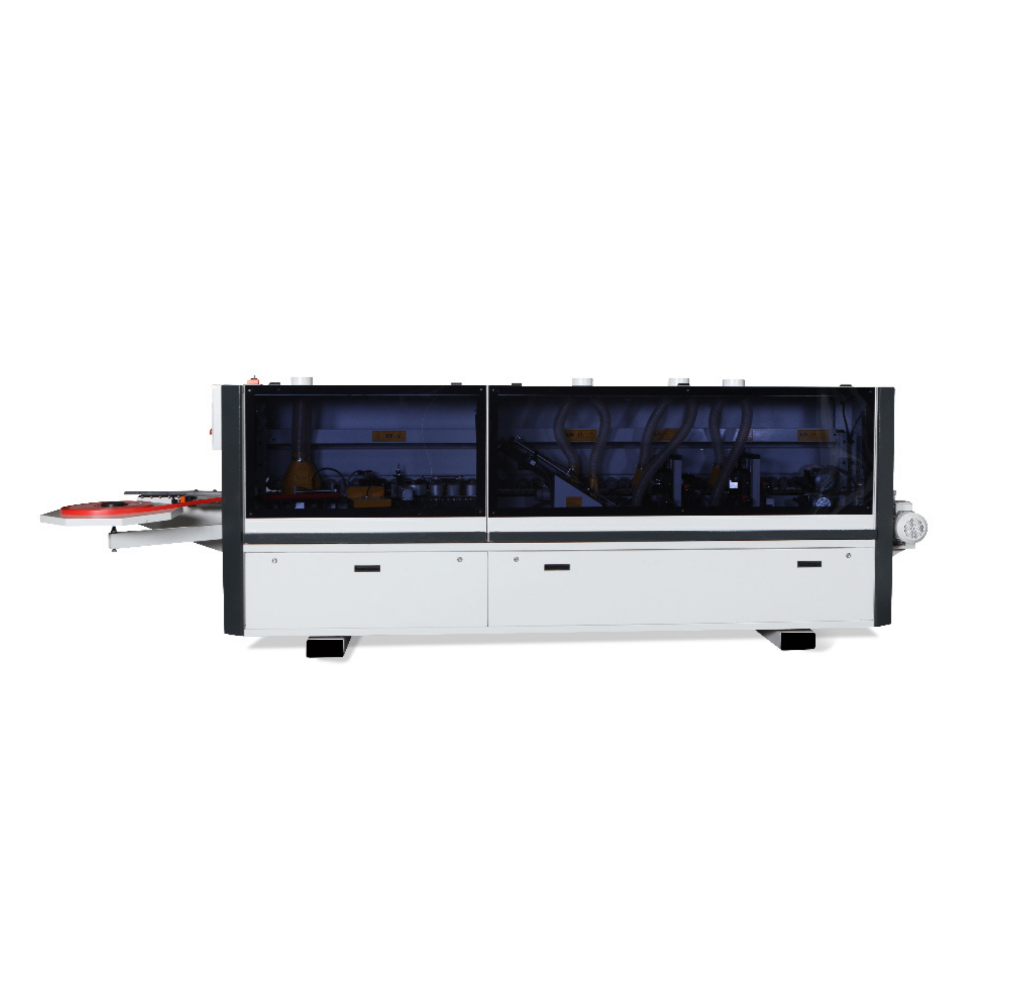

MIZRAK OF MZK-4 Edge Banding Machine

OF MZK-4

Pre-milling is the difference between the OF MZK-4 and the base MZK-4: a 1.5 kW cutter at 12,000 rpm dresses the panel edge before glue is applied. The OF MZK-4 bands 8 to 54 mm panels at 14 m/min with end trimming, top and bottom milling, radius scraping, cleaning fluid and polishing, at 7.02 kW and 1150 kg.

ფასი მოთხოვნით

The price of the OF MZK-4 is moved by the pre-milling and trimming tooling package specified, the glue and tape starter package, whether extraction plant and a 6-8 atm compressor are ordered with the machine, and delivery, positioning and commissioning of the 1150 kg frame.

ფასის მოთხოვნა

What the OF MZK-4 does

The OF MZK-4 bands panels up to 54 mm thick, which is thicker than any machine in the ADVANTAGE range. The 1.5 kW pre-milling unit at 12,000 rpm squares the edge with a Ø70 x 35 x 3 mm blade, the gluing, shear and pressing units apply tape from 0.40 mm to 3 mm under a 54 mm top pressure beam, a Ø100 x 3.2 mm saw trims the ends, Ø49 x r3 cutters mill top and bottom, and the radius scraper, cleaning fluid and 0.25 kW polishing unit finish the edge. The chain conveyor runs at 14 m/min on a 1.5 kW / 30 rpm drive.

Who the OF MZK-4 suits

The OF MZK-4 suits workshops that band thick material as well as standard carcase panels. A 54 mm capacity covers worktops, thick door leaves and built-up panels that an 8-42 mm machine cannot take, and the 14 m/min conveyor is 40 percent faster than the 10 m/min ADVANTAGE line, so the OF MZK-4 is a step up in both capacity and throughput for a joinery that mixes furniture and door work.

How the OF MZK-4 compares with the MZK-4

The OF MZK-4 is the pre-milling version of the MZK-4. Both machines share the 8-54 mm thickness range, the 14 m/min conveyor, the 54 mm top pressure beam, the 950 mm working height and the 700 x 1350 mm cross section, but the OF MZK-4 adds the 1.5 kW pre-milling unit and the glue cleaning fluid system. That raises total power from 4.02 kW to 7.02 kW, length from 3800 mm to 4020 mm and weight from 850 kg to 1150 kg.

What is included with the OF MZK-4

The OF MZK-4 is supplied with the pre-milling unit, gluing unit, shear unit, pressing unit, end trimming unit, top and bottom milling unit, 54 mm top pressure beam, radius scraping unit, cleaning fluid application, polishing unit and a glue pot holding up to 2.5 kg. Installation requires a 380-430 V 50 Hz three-phase supply (3P + 1N) and compressed air at 6-8 atm.

ძირითადი მახასიათებლები

1.5 kW pre-milling unit at 12,000 rpm with a Ø70 x 35 x 3 mm blade, the feature the MZK-4 does not carry
Bands panels from 8 to 54 mm thick, covering worktops and thick door leaves
54 mm top pressure beam and a 14 m/min chain conveyor
Ø100 x 3.2 mm end trimming saw and Ø49 x R3 top and bottom milling cutters
Radius scraping unit with glue cleaning fluid application
1.5 kW / 30 rpm conveyor drive and 2.5 kg maximum glue pot
7.02 kW total power, 4020 x 700 x 1350 mm, 1150 kg

ტექნიკური მახასიათებლები

Nominal current: 380-430 V, 50 Hz - 3P + 1N 1MP
Sound level: Lwa 82.9 dB
Band thickness: 0.40 mm - 3 mm
Workpiece thickness: 8 - 54 mm
Minimum workpiece width: 100 mm
Working speed: 14 m/min
Working height: 950 mm
Glue pot capacity (max.): 2.5 kg
Air pressure: 6 - 8 atm
Pre-milling blade diameter: Ø70 x 35 x 3 mm
End trimming blade diameter: Ø100 x 3.2 mm
Top-bottom trimming blade diameter: Ø49 x R3 mm
Pre-milling motor power / speed: 1.5 kW / 12,000 rpm
End trimming motor power / speed: 0.37 kW / 12,000 rpm
Top-bottom trimming motor power / speed: 0.55 kW / 12,000 rpm
Polishing motor power / speed: 0.25 kW / 2840 rpm
Chain conveyor motor power / speed: 1.5 kW / 30 rpm
Total electric power: 7.02 kW
Machine length: 4020 mm
Machine width: 700 mm
Machine height: 1350 mm
Machine weight: 1150 kg

უპირატესობები

54 mm thickness capacity covers worktops and door leaves
Pre-milling plus glue cleaning fluid for a clean, tight edge
14 m/min conveyor is faster than the whole ADVANTAGE range

გასათვალისწინებელი

No dust extraction motor is listed in the technical table, so separate extraction is needed
No corner rounding unit
1150 kg over a 4020 mm frame, requiring a prepared floor and a full bay

ხშირად დასმული კითხვები

How thick a panel can the OF MZK-4 band?

The OF MZK-4 bands panels from 8 to 54 mm thick with a minimum width of 100 mm, so the OF MZK-4 covers worktops and thick door leaves that the 8-42 mm ADVANTAGE machines cannot take.

What power supply does the OF MZK-4 need?

The OF MZK-4 needs a 380-430 V, 50 Hz three-phase supply (3P + 1N) and draws 7.02 kW in total, together with a compressed air line at 6-8 atm.

How fast does the OF MZK-4 run?

The OF MZK-4 runs at a conveyor speed of 14 m/min, driven by a 1.5 kW motor at 30 rpm, which is faster than the 10 m/min of the ADVANTAGE range and slower than the 20 m/min OF-KA MZK 4 WIND.

What tooling does the OF MZK-4 use?

The OF MZK-4 uses a Ø70 x 35 x 3 mm pre-milling blade, a Ø100 x 3.2 mm end trimming saw and Ø49 x r3 top and bottom milling cutters, with EVA granule glue in a pot holding up to 2.5 kg.

How much floor space does the OF MZK-4 take?

The OF MZK-4 measures 4020 x 700 x 1350 mm and weighs 1150 kg at a 950 mm working height, so a bay of over four metres plus operator space at both ends is needed.

What does the OF MZK-4 not do?

The OF MZK-4 has no corner rounding unit and no dust extraction motor listed in its technical table, and does not cut panels to size. Extraction and a compressor must therefore be planned separately.

How much does the OF MZK-4 cost?

The OF MZK-4 is supplied on quotation rather than at a published price. The price of the OF MZK-4 is set by the pre-milling and trimming tooling package, the glue and edge tape supplied at handover, whether extraction plant and a 6-8 atm compressor are included, and delivery and commissioning of the 1150 kg machine on site. Send the panel thicknesses and tape types to be run for a written quotation.

How soon can an OF MZK-4 be delivered?

The OF MZK-4 is built to order at Mizrak, so delivery depends on the current production slot rather than on stock. The lead time for the OF MZK-4 is confirmed at quotation along with transport and customs time to Georgia, so a firm delivery window is agreed before the order is placed.

What does commissioning the OF MZK-4 involve?

Commissioning the OF MZK-4 covers siting and levelling the 4020 x 700 x 1350 mm frame at 950 mm working height, connecting 380-430 V 50 Hz three-phase power for the 7.02 kW load, supplying 6-8 atm compressed air, connecting extraction, then setting pre-milling depth, glue quantity and trimming for the first panels. The scope of commissioning for the OF MZK-4 is stated in the quotation.

What tooling and consumables should be budgeted alongside the OF MZK-4?

Budget separately for hot-melt glue for the 2.5 kg pot, edge tape in the 0.40-3 mm range, replacement Ø70 x 35 x 3 mm pre-milling blades, Ø100 x 3.2 mm end trimming saws, Ø49 x R3 milling cutters, scraper knives and glue cleaning fluid. Extraction plant and a compressor are not part of the OF MZK-4 and are quoted separately.
