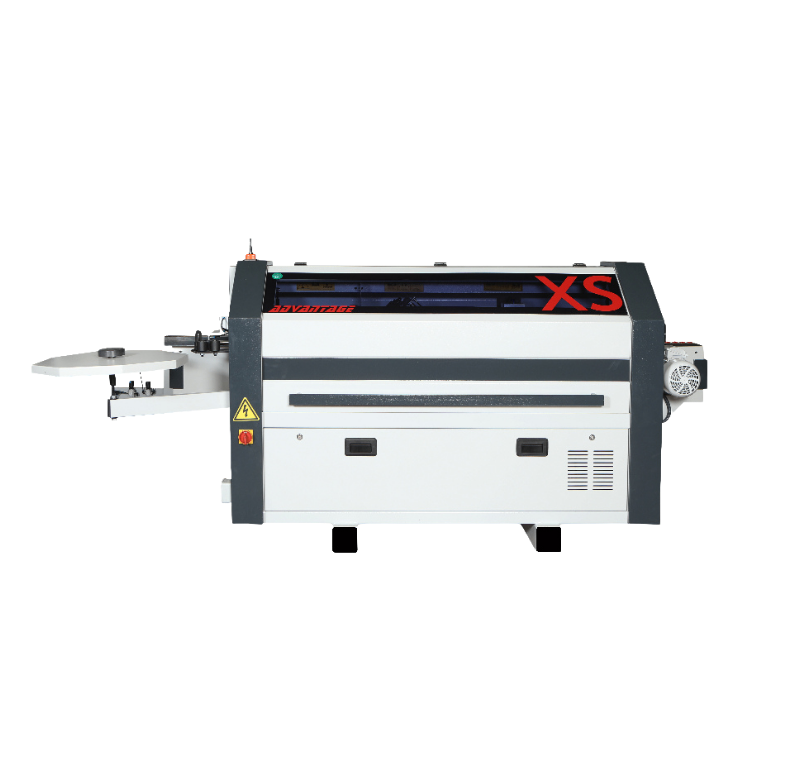

MIZRAK ADVANTAGE X SMALL Edge Banding Machine

ADVANTAGE X SMALL

Automatic front and rear end cutting is the step the ADVANTAGE X SMALL has and the shorter ADVANTAGE-3 does not. At 2700 x 590 x 1320 mm and 650 kg, the ADVANTAGE X SMALL glues, presses, mills and polishes 8 to 42 mm panels at 10 m/min on 4.72 kW, with a metre counter fitted.

ფასი მოთხოვნით

The ADVANTAGE X SMALL price is driven by the tooling package, whether extraction and a compressor are added to cover what the machine does not include, and delivery and installation - the 650 kg weight and 2700 mm length keep both to a minimum.

ფასის მოთხოვნა

What the ADVANTAGE X SMALL does

The ADVANTAGE X SMALL applies and trims edge tape on panels 8 to 42 mm thick in a 2700 mm frame. The gluing unit lays adhesive, the shear unit cuts the tape to length, the pressing unit bonds it, the front and rear cutting unit removes the overhang at both ends with a Ø100 x 3.2 mm x 30 Z 30 saw, the milling unit cleans the edge with a Ø49 x 20 Z 4 cutter at 18,000 rpm, and the polishing unit at 3000 rpm finishes the surface. A metre counter records how much tape has been processed.

Who the ADVANTAGE X SMALL suits

The ADVANTAGE X SMALL suits small joineries and start-up furniture workshops where floor space is the binding constraint. At 2700 x 590 mm and 650 kg, the ADVANTAGE X SMALL occupies roughly half the length of a full ADVANTAGE-6 line while still banding the same 8-42 mm panel range at the same 10 m/min conveyor speed, which makes it a realistic first automatic bander for a shop that has been using a hand-held banding tool.

How the ADVANTAGE X SMALL compares with the ADVANTAGE-4

The ADVANTAGE X SMALL is the shorter, simpler machine. Both models share the 0.37 kW end trimming motor, the 0.55 kW / 18,000 rpm milling motor, the 3.5 kg glue pot and the same blade sizes, but the ADVANTAGE-4 adds a radius scraping unit and a 0.55 kW dust extraction motor, which is why the ADVANTAGE-4 is 3500 mm long and 5.27 kW against 2700 mm and 4.72 kW here. A workshop that wants a scraped radius edge should compare the ADVANTAGE-4 before choosing.

What is included with the ADVANTAGE X SMALL

The ADVANTAGE X SMALL includes the gluing, shear and pressing units, a glue pot holding up to 3.5 kg, the 42 mm top pressure beam, front and rear cutting, milling, polishing, a metre counter and a 1.1 kW chain conveyor drive at 26 rpm. Installation requires a 380-430 V 50-60 Hz three-phase supply and compressed air at 6-8 atm, at a working height of 950 mm.

ძირითადი მახასიათებლები

  • Compact 2700 x 590 x 1320 mm frame weighing 650 kg
  • Processes panels 8-42 mm thick with tape from 0.40 mm to 3 mm
  • Ø100 x 3.2 mm x 30 Z 30 end cutting saw and Ø49 x 20 Z 4 milling cutter
  • 0.55 kW milling motor running at 18,000 rpm
  • Metre counter recording processed material length
  • 3.5 kg maximum glue pot and 42 mm top pressure beam
  • 4.72 kW total power with a 1.1 kW / 26 rpm chain conveyor at 10 m/min

ტექნიკური მახასიათებლები

Nominal current
380-430 V, 50-60 Hz
Sound level
Lwa 82.9 dB
Band thickness
0.40 mm - 3 mm
Workpiece thickness
8 - 42 mm
Minimum workpiece width
100 mm
Working speed
10 m/min
Working height
950 mm
Maximum glue pot capacity
3.5 kg
Air pressure
6 - 8 atm
Front-rear cutting saw blade size
Ø100 x 3.2 mm x 30 Z 30
Top-bottom trimming saw blade size
Ø49 x 20 Z 4
Front-rear cutting motor power / speed
0.37 kW / 12,000 rpm
Top-bottom trimming motor power / speed
0.55 kW / 18,000 rpm
Polishing motor power / speed
0.25 kW / 3000 rpm
Chain conveyor motor power / speed
1.1 kW / 26 rpm
Total electric power
4.72 kW
Machine length
2700 mm
Machine width
590 mm
Machine height
1320 mm
Machine weight
650 kg

უპირატესობები

  • Smallest footprint in the range at 2700 mm long and 650 kg
  • Handles the same 8-42 mm panel range as the larger ADVANTAGE models
  • Metre counter gives a direct record of tape consumption

გასათვალისწინებელი

  • No scraping unit, so the edge profile is less refined than on the ADVANTAGE-4
  • No dust extraction motor listed in the supplier specification
  • Three-phase 380-430 V supply and a separate 6-8 atm compressor are both required

ხშირად დასმული კითხვები

What power supply does the ADVANTAGE X SMALL need?
The ADVANTAGE X SMALL needs a 380-430 V, 50-60 Hz three-phase supply and draws 4.72 kW in total, so a three-phase connection is required even though the machine is compact.
How much space does the ADVANTAGE X SMALL need?
The ADVANTAGE X SMALL measures 2700 x 590 x 1320 mm and weighs 650 kg, the smallest footprint of the ADVANTAGE range, with a 950 mm working height. Clear space is still needed at the infeed and outfeed for full-size panels.
What panels can the ADVANTAGE X SMALL process?
The ADVANTAGE X SMALL processes panels 8 to 42 mm thick with a minimum width of 100 mm and applies edge tape from 0.40 mm to 3 mm at 10 m/min.
Does the ADVANTAGE X SMALL have a scraping unit?
No, the supplier specification for the ADVANTAGE X SMALL lists gluing, shear, pressing, front and rear cutting, milling, 42 mm top pressure and polishing, but no scraping unit. The ADVANTAGE-4 is the model in the same range that adds radius scraping.
Does the ADVANTAGE X SMALL include dust extraction?
The technical table for the ADVANTAGE X SMALL lists no dust extraction motor, unlike the ADVANTAGE-4, ADVANTAGE-5 and ADVANTAGE-6. Plan a workshop extraction connection and confirm the arrangement with the dealer before ordering.
What does the ADVANTAGE X SMALL not do?
The ADVANTAGE X SMALL does not pre-mill, does not round corners and does not cut panels to size, so a panel saw remains necessary upstream and thick tape corners are finished by hand.
How much does the ADVANTAGE X SMALL cost?
The ADVANTAGE X SMALL edge banding machine is supplied on quotation, not at a published list price. The quoted figure for an ADVANTAGE X SMALL depends on the tooling package specified, whether an extraction unit and a compressor are added - neither is included with the machine - and delivery and installation in Georgia. Send the panel thicknesses and tape sizes to be run and a written quotation is issued.
How quickly can an ADVANTAGE X SMALL be delivered?
The ADVANTAGE X SMALL is built to order by Mizrak, so its current lead time is confirmed at quotation rather than published. Delivery timing for an ADVANTAGE X SMALL follows the factory schedule at the time of order and is stated in writing on the offer.
Can an ADVANTAGE X SMALL be installed in a small workshop?
The ADVANTAGE X SMALL is the shortest machine in the ADVANTAGE range at 2700 x 590 x 1320 mm and 650 kg, so it suits a workshop with roughly three metres of clear run plus panel infeed and outfeed. Installing an ADVANTAGE X SMALL still needs a 380-430 V three-phase supply for 4.72 kW, a 6-8 atm compressed air line and an extraction connection, since no dust extraction motor is listed for this model. Installation is arranged through the dealer.
What consumables and extras should be budgeted alongside the ADVANTAGE X SMALL?
Alongside the ADVANTAGE X SMALL machine price, budget for hot-melt glue for the 3.5 kg pot, edge tape from 0.40 mm to 3 mm, replacement Ø100 x 3.2 mm x 30 Z 30 end cutting saws and Ø49 x 20 Z 4 milling cutters, a compressor delivering 6-8 atm, and a dust extraction unit - the ADVANTAGE X SMALL specification lists no on-board extraction motor.
