ADVANTAGE-3 — MIZRAK ADVANTAGE-3 Edge Banding Machine 1 / 4

MIZRAK

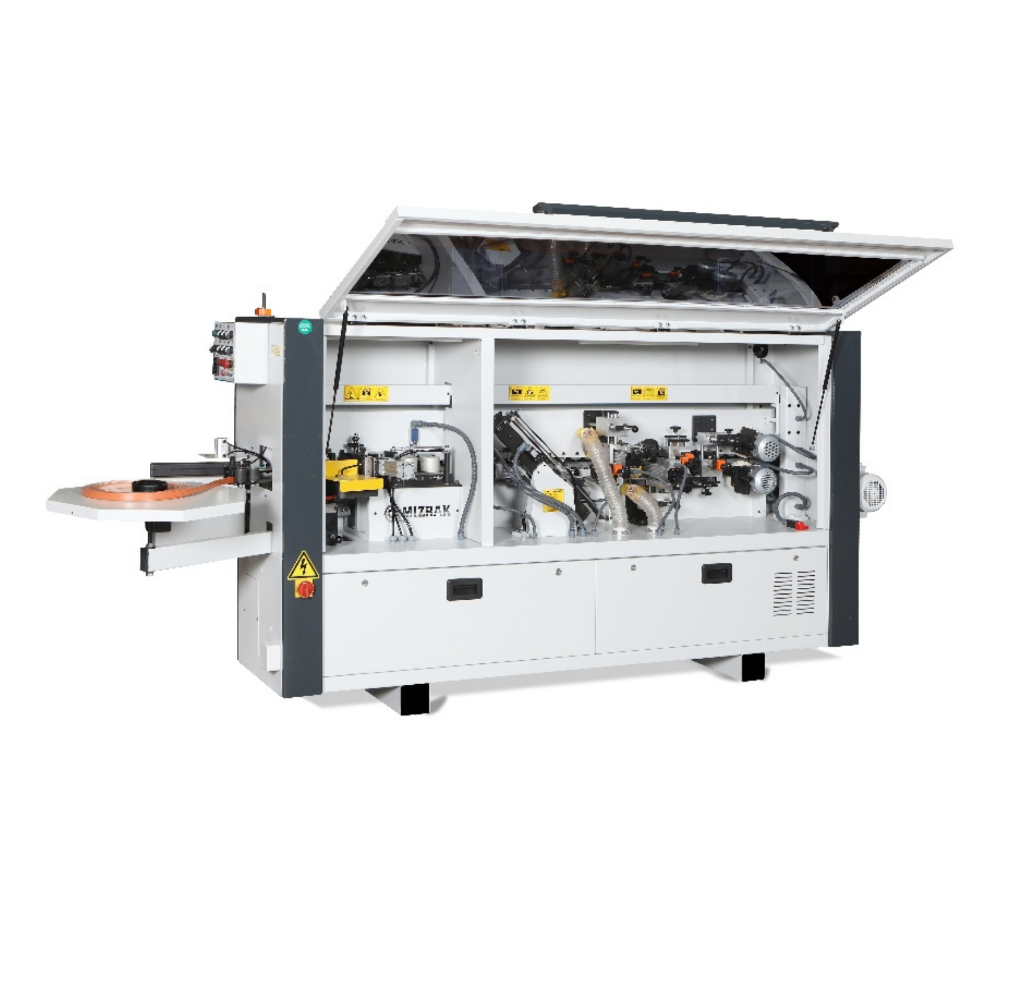

MIZRAK ADVANTAGE-3 Edge Banding Machine

ADVANTAGE-3

At 3.62 kW in a 2500 mm frame, the ADVANTAGE-3 is the shortest and lowest-powered machine in the ADVANTAGE range, trading the automatic end cutting unit for a bench-sized footprint. Gluing, milling, flat scraping and polishing carry 8 to 42 mm panels through the ADVANTAGE-3 at 10 m/min.

ფასი მოთხოვნით

The ADVANTAGE-3 price depends first on whether Mizrak can still supply it at all, then on the tooling package, whether extraction and a compressor are added, and delivery - which is minimal for a 620 kg machine.

ფასის მოთხოვნა

What the ADVANTAGE-3 does

The ADVANTAGE-3 applies edge tape and finishes it in the shortest frame of the ADVANTAGE range. The gluing unit lays adhesive, the shear unit cuts the tape to length, the pressing unit bonds it under a 42 mm top pressure beam, the top and bottom milling unit trims both edges with a Ø49 x 20 Z 4 cutter at 12,000 rpm, the flat scraping unit removes the remaining excess, and the 0.25 kW polishing unit finishes the surface. Panels from 8 to 42 mm thick and at least 100 mm wide run at 10 m/min.

Who the ADVANTAGE-3 suits

The ADVANTAGE-3 suits a small workshop taking its first step away from hand-held banding tools. Total power of 3.62 kW and a 2500 x 540 mm footprint make the ADVANTAGE-3 the least demanding machine in the range in both electricity and floor space, and the 620 kg weight means the ADVANTAGE-3 can be positioned in a workshop without special foundations.

How the ADVANTAGE-3 compares with the ADVANTAGE-4

The ADVANTAGE-3 leaves out two things the ADVANTAGE-4 has. There is no front and rear cutting unit on the ADVANTAGE-3, so the tape overhang at the ends of the panel is dealt with by the operator rather than by a Ø100 x 3.2 mm saw, and the scraping unit is flat rather than radius, so a rounded tape profile is not produced. Those omissions bring the ADVANTAGE-3 to 3.62 kW against 5.27 kW, 2500 mm against 3500 mm and 620 kg against 813 kg.

What is included with the ADVANTAGE-3

The ADVANTAGE-3 is supplied with the gluing, shear and pressing units, a glue pot holding up to 3.5 kg, the 42 mm top pressure beam, the top and bottom milling unit, the flat scraping unit, the polishing unit and a 1.1 kW chain conveyor drive at 26 rpm. Installation requires a 380-430 V 50-60 Hz three-phase supply and compressed air at 6-8 atm, at a 950 mm working height.

ძირითადი მახასიათებლები

  • Lowest total power in the ADVANTAGE range at 3.62 kW
  • Shortest frame at 2500 x 540 x 1120 mm, weighing 620 kg
  • Processes panels 8-42 mm thick with tape from 0.40 mm to 3 mm
  • Ø49 x 20 Z 4 top and bottom milling cutter driven at 12,000 rpm
  • Flat scraping unit and 0.25 kW / 2840 rpm polishing unit
  • 3.5 kg maximum glue pot and 42 mm top pressure beam
  • 1.1 kW / 26 rpm chain conveyor running at 10 m/min

ტექნიკური მახასიათებლები

Nominal current
380-430 V, 50-60 Hz
Sound level
Lwa 82.9 dB
Band thickness
0.40 mm - 3 mm
Workpiece thickness
8 - 42 mm
Minimum workpiece width
100 mm
Working speed
10 m/min
Working height
950 mm
Maximum glue pot capacity
3.5 kg
Air pressure
6 - 8 atm
Top-bottom trimming saw blade size
Ø49 x 20 Z 4
Top-bottom trimming motor power / speed
0.55 kW / 12,000 rpm
Polishing motor power / speed
0.25 kW / 2840 rpm
Chain conveyor motor power / speed
1.1 kW / 26 rpm
Total electric power
3.62 kW
Machine length
2500 mm
Machine width
540 mm
Machine height
1120 mm
Machine weight
620 kg

უპირატესობები

  • Lowest electrical demand and smallest footprint in the range
  • 3.5 kg glue pot, the same capacity as larger ADVANTAGE models
  • 620 kg, light enough to place without special floor preparation

გასათვალისწინებელი

  • No front and rear cutting unit, so tape ends are trimmed by hand
  • Flat scraping only, with no radius profile and no corner rounding
  • Listed as inactive by the manufacturer, so availability is uncertain

ხშირად დასმული კითხვები

What power supply does the ADVANTAGE-3 need?
The ADVANTAGE-3 needs a 380-430 V, 50-60 Hz three-phase supply and draws 3.62 kW in total, the lowest of the ADVANTAGE range, plus compressed air at 6-8 atm.
Does the ADVANTAGE-3 cut the tape ends automatically?
No, the ADVANTAGE-3 specification lists no front and rear cutting unit, so tape overhang at the ends of the panel is trimmed by the operator. The ADVANTAGE-4 is the model in the same range that adds a Ø100 x 3.2 mm end cutting saw.
What panels can the ADVANTAGE-3 process?
The ADVANTAGE-3 processes panels 8 to 42 mm thick with a minimum width of 100 mm and applies edge tape from 0.40 mm to 3 mm at a conveyor speed of 10 m/min.
How much space does the ADVANTAGE-3 need?
The ADVANTAGE-3 measures 2500 x 540 x 1120 mm and weighs 620 kg at a 950 mm working height, making the ADVANTAGE-3 the easiest machine in the range to fit into a small workshop.
What kind of scraping does the ADVANTAGE-3 do?
The ADVANTAGE-3 has a flat scraping unit only, which cleans a square tape profile. The ADVANTAGE-3 does not produce a radiused edge; radius scraping starts with the ADVANTAGE-4.
Is the ADVANTAGE-3 still available?
The ADVANTAGE-3 is listed as inactive in the manufacturer's current catalogue, so availability of the ADVANTAGE-3 should be confirmed with the dealer before ordering; the ADVANTAGE X SMALL and ADVANTAGE-4 are the closest current alternatives.
How much does the ADVANTAGE-3 cost?
The ADVANTAGE-3 edge banding machine is supplied on quotation rather than at a published price, and the first thing a quotation confirms is whether Mizrak can still supply it, since the ADVANTAGE-3 is listed as inactive. Beyond that, the figure depends on the tooling package, whether an extraction unit and a compressor are added - neither is included - and delivery. Ask for current availability and pricing together.
Is the ADVANTAGE-3 still available, and what is the lead time?
Mizrak lists the ADVANTAGE-3 as an inactive model, so availability cannot be assumed. Where the ADVANTAGE-3 can still be supplied it is built to order and the current lead time is confirmed at quotation. If it is no longer in production, the ADVANTAGE X SMALL is the nearest replacement, adding automatic front and rear end cutting and a metre counter in a 2700 mm frame.
What does installing an ADVANTAGE-3 involve?
Installing an ADVANTAGE-3 needs a 2500 x 540 mm footprint plus panel infeed and outfeed clearance, a 380-430 V three-phase supply for 3.62 kW, a compressor delivering 6-8 atm and an extraction connection, as no dust extraction motor is listed for the ADVANTAGE-3. At 620 kg the machine needs no special floor preparation. Installation and commissioning are arranged through the dealer and quoted separately.
What consumables and extras should be budgeted alongside the ADVANTAGE-3?
Alongside the ADVANTAGE-3 machine price, budget for hot-melt glue for the 3.5 kg pot, edge tape from 0.40 mm to 3 mm, replacement Ø49 x 20 Z 4 milling cutters and scraper knives, a compressor delivering 6-8 atm, a dust extraction unit, and a hand trimmer - the ADVANTAGE-3 has no automatic front and rear cutting unit, so tape ends are trimmed by hand.
