OF MZK 4 DOOR — MIZRAK OF MZK 4 DOOR Edge Banding Machine 1 / 4

MIZRAK

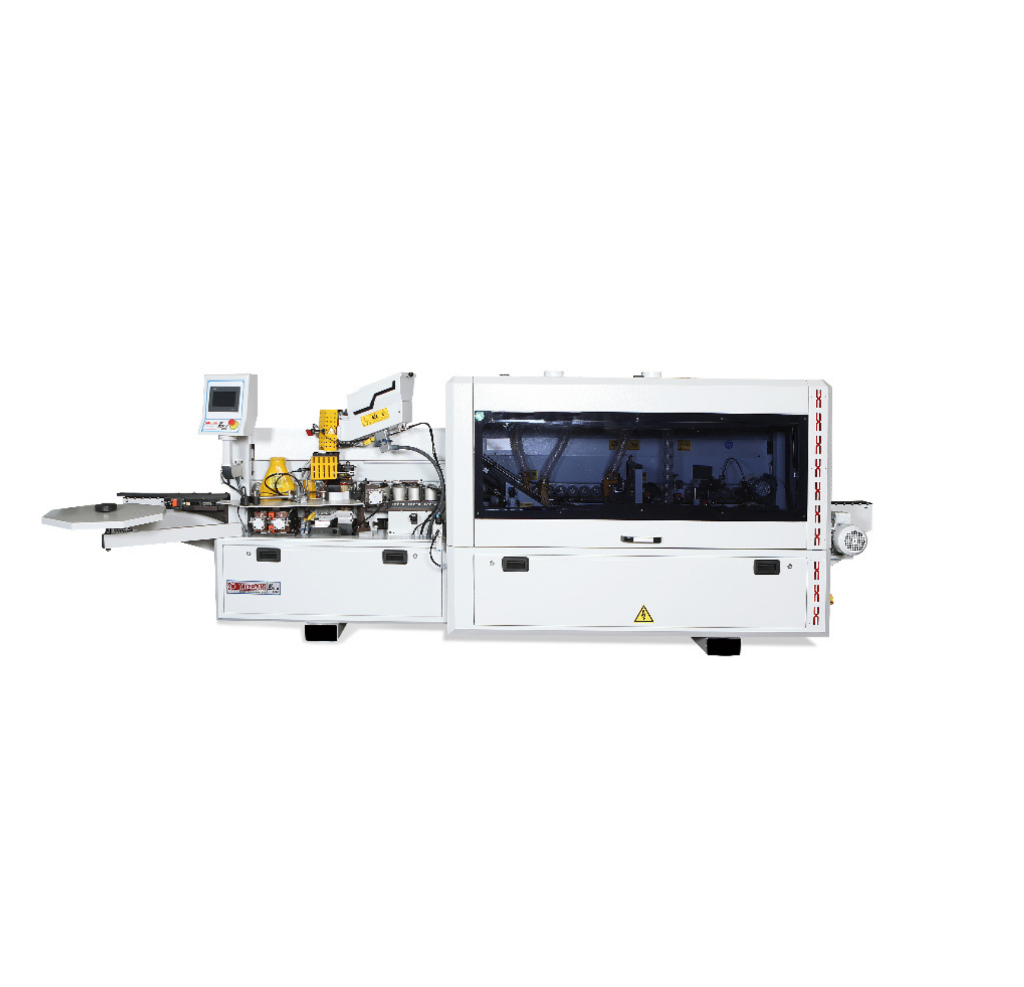

MIZRAK OF MZK 4 DOOR Edge Banding Machine

OF MZK 4 DOOR

Mass is what sets the OF MZK 4 DOOR apart from the OF MZK-4: 1400 kg against 1150 kg, holding long door leaves steady through the pass, with a pre-viewer and digital counter added at the infeed. The OF MZK 4 DOOR pre-mills, glues, trims, scrapes and polishes edges on 8 to 54 mm stock at 14 m/min.

ფასი მოთხოვნით

The price of the OF MZK 4 DOOR is moved by the pre-milling and trimming tooling package, the glue and tape package, whether extraction plant and a 6-8 atm compressor are ordered with the machine, and delivery, mechanical handling and commissioning of the 1400 kg frame in a bay long enough for door leaves.

ფასის მოთხოვნა

What the OF MZK 4 DOOR does

The OF MZK 4 DOOR bands the long edges of door leaves and thick panels between 8 and 54 mm at 14 m/min. A pre-viewer with a digital counter tracks the workpiece at the infeed, the 1.5 kW pre-milling unit squares the edge with a Ø70 x 35 x 3 mm blade, and a top-feed gluing unit with guillotine and pressure units lays tape from 0.40 mm to 3 mm. A Ø100 x 3.2 mm saw handles end trimming, Ø49 x r3 cutters mill top and bottom, and the scraping unit, glue cleaning fluid and 0.25 kW polishing unit at 3000 rpm finish the edge.

Who the OF MZK 4 DOOR suits

The OF MZK 4 DOOR suits door manufacturers and joineries whose main product is long, heavy workpieces rather than small carcase parts. At 1400 kg the OF MZK 4 DOOR is 250 kg heavier than the otherwise similarly sized OF MZK-4, mass that matters when a full door leaf is being pushed through the machine, and the top-feed gluing arrangement keeps the glue application accessible on tall workpieces.

How the OF MZK 4 DOOR compares with the OF MZK-4

The OF MZK 4 DOOR is the door-oriented build of the same 4020 mm platform. Both machines run at 14 m/min, take 8-54 mm workpieces, draw 7.02 kW and measure 4020 x 700 x 1350 mm, but the OF MZK 4 DOOR adds the pre-viewer with digital counter and the top-feed gluing unit, and weighs 1400 kg against 1150 kg. The published motor split also differs: the OF MZK 4 DOOR lists 0.55 kW for end trimming and 0.37 kW for top and bottom milling, the reverse of the OF MZK-4.

What is included with the OF MZK 4 DOOR

The OF MZK 4 DOOR is supplied with the pre-viewer and digital counter, pre-milling unit, top-feed gluing unit, guillotine unit, pressure unit, end trimming unit, milling unit, scraping unit, glue cleaning liquid system, polishing unit and a glue tank holding up to 2.5 kg. Installation requires a 380-430 V 50 Hz three-phase supply (3P + 1N) and compressed air at 6-8 atm.

ძირითადი მახასიათებლები

  • 1400 kg machine mass against 1150 kg on the OF MZK-4, for stability under long door leaves
  • Pre-viewer with digital counter tracking workpieces at the infeed
  • Bands door leaves and panels 8 to 54 mm thick at 14 m/min
  • 1.5 kW pre-milling unit at 12,000 rpm with a Ø70 x 35 x 3 mm blade
  • Top-feed gluing unit with guillotine and pressure units
  • Glue cleaning liquid system plus a 0.25 kW / 3,000 rpm polishing unit
  • 7.02 kW total power in a 4020 x 700 x 1350 mm frame

ტექნიკური მახასიათებლები

Rated voltage
380-430 V, 50 Hz - 3P + 1N 1MP
Sound level
Lwa 82.9 dB
Edge band thickness
0.40 mm - 3 mm
Workpiece thickness
8 - 54 mm
Minimum workpiece width
100 mm
Working speed
14 m/min
Working height
950 mm
Glue tank capacity (max.)
2.5 kg
Air pressure
6 - 8 atm
Pre-milling saw diameter
Ø70 x 35 x 3 mm
End trimming saw diameter
Ø100 x 3.2 mm
Top-bottom milling cutter diameter
Ø49 x r3 mm
Pre-milling motor power / speed
1.5 kW / 12,000 rpm
End trimming motor power / speed
0.55 kW / 12,000 rpm
Top-bottom milling motor power / speed
0.37 kW / 12,000 rpm
Polishing motor power / speed
0.25 kW / 3,000 rpm
Conveyor chain motor power / speed
1.5 kW / 30 rpm
Total electrical power
7.02 kW
Machine length
4020 mm
Machine width
700 mm
Machine height
1350 mm
Machine weight
1400 kg

უპირატესობები

  • 1400 kg mass gives stability when long door leaves are fed through
  • Pre-viewer with digital counter and top-feed gluing unit as standard
  • 54 mm capacity with pre-milling and glue cleaning fluid included

გასათვალისწინებელი

  • No dust extraction motor is listed in the technical table
  • Bands edges only, so lock and hinge machining needs separate equipment
  • 4020 mm frame at 1400 kg requires a prepared bay and three-phase power

ხშირად დასმული კითხვები

What workpiece thickness does the OF MZK 4 DOOR accept?
The OF MZK 4 DOOR accepts workpieces 8 to 54 mm thick with a minimum width of 100 mm, which covers standard interior door leaves as well as furniture panels.
What power supply does the OF MZK 4 DOOR need?
The OF MZK 4 DOOR needs a 380-430 V, 50 Hz three-phase supply (3P + 1N), draws 7.02 kW in total and also requires compressed air at 6-8 atm.
What is the pre-viewer with digital counter on the OF MZK 4 DOOR?
The pre-viewer with digital counter on the OF MZK 4 DOOR sits at the infeed and tracks the incoming workpiece, giving the operator a running count of processed pieces or length.
How heavy is the OF MZK 4 DOOR and what floor does it need?
The OF MZK 4 DOOR weighs 1400 kg in a 4020 x 700 x 1350 mm frame at a 950 mm working height, so a level, load-bearing floor and clear length at both ends for full door leaves are required.
What tooling does the OF MZK 4 DOOR use?
The OF MZK 4 DOOR uses a Ø70 x 35 x 3 mm pre-milling saw, a Ø100 x 3.2 mm end trimming saw and Ø49 x r3 top and bottom milling cutters, with EVA granule glue in a tank holding up to 2.5 kg.
What does the OF MZK 4 DOOR not do?
The OF MZK 4 DOOR bands edges only: the OF MZK 4 DOOR does not size door blanks, does not machine lock or hinge recesses and does not round corners. No dust extraction motor is listed in its technical table, so extraction is a separate item.
How much does the OF MZK 4 DOOR cost?
The OF MZK 4 DOOR is supplied on quotation and carries no published list price. The price of the OF MZK 4 DOOR is set by the pre-milling and trimming tooling package specified, the glue and edge tape package, whether extraction plant and a compressor are ordered with it, and delivery, rigging and commissioning of a 1400 kg machine. Send the door thicknesses and tape types to be run for a written quotation.
What is the lead time and availability of the OF MZK 4 DOOR?
The OF MZK 4 DOOR is built to order at Mizrak rather than stocked, so availability follows the current production slot. The lead time for the OF MZK 4 DOOR is confirmed in writing at quotation, together with transport and customs time to Georgia.
What does installing the OF MZK 4 DOOR require on site?
Installing the OF MZK 4 DOOR requires a level bay for the 4020 x 700 x 1350 mm frame with free infeed and outfeed length for full door leaves, a floor rated for 1400 kg, a 380-430 V 50 Hz three-phase connection for the 7.02 kW load, 6-8 atm compressed air and extraction ducting. Mechanical handling to position the OF MZK 4 DOOR is normally needed and is scoped in the quotation.
What consumables should be budgeted separately for the OF MZK 4 DOOR?
Budget separately for hot-melt glue for the 2.5 kg tank, edge tape from 0.40 to 3 mm, replacement Ø70 x 35 x 3 mm pre-milling blades, Ø100 x 3.2 mm end trimming saws, Ø49 x r3 milling cutters, scraper knives and glue cleaning liquid. Extraction plant and a compressor are not included with the OF MZK 4 DOOR and are quoted as separate items.
