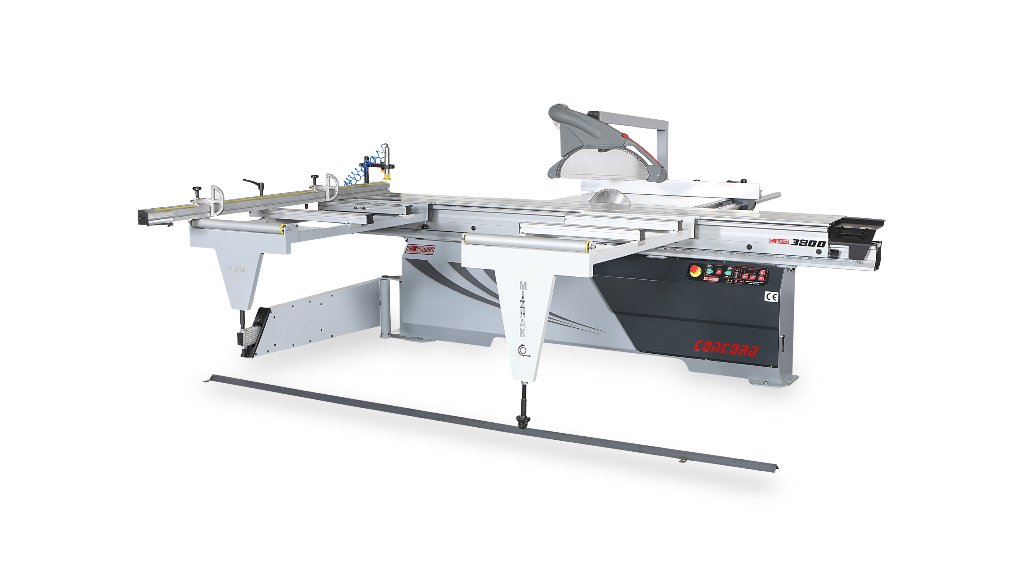

MIZRAK MZK 3800 Concord Sliding Table Panel Saw
MZK 3800 CONCORD
The long-bed Concord: the MZK 3800 Concord runs 3800 mm of sliding table travel and adds an additional profile carriage that the MZK 3200 Concord does not list. A 5.5 kW main saw, automatic 45-90 degree tilt, pneumatic hold-down and a digital cast-iron fence are standard, at 900 kg.
The price of an MZK 3800 Concord is driven by the 3800 mm carriage and the additional profile carriage over the 3200 mm Concord, the blade package specified against the unresolved Ø250-Ø300 mm versus 400 mm blade question, whether an air compressor is bought with the machine, and rigging plus commissioning of a 900 kg saw with two services to connect.
ფასის მოთხოვნაThe MZK 3800 Concord is the heaviest saw Mizrak builds in this class
The MZK 3800 Concord takes the standard sliding table saw layout and adds mass, motor power and shop-floor automation. A 5.5 kW main motor – 1.5 kW more than every Diamond model – drives the blade at 4750-5250 rpm, the frame weighs 900 kg, and the machine is specified as compatible with a 400 mm saw blade. Cutting depth is 80 mm at 90 degrees and 65 mm at 45 degrees, and a 0.75 kW scoring motor runs a Ø125 x 20 mm scorer at 7250 rpm.
Pneumatics, lubrication and the digital fence
Three systems separate the MZK 3800 Concord from the Diamond range in daily use. A pneumatic panel hold-down presses chipboard and MDF down onto the carriage so the sheet cannot lift or creep during the cut. A pneumatic dust cleaning system clears the working area between cuts. A cast-iron rip fence with a digital display shows the rip width as a number instead of a scale reading, and the 45-90 degree tilt and vertical blade movement are driven by actuator motors. The MZK 3800 Concord also carries a lubrication system and, in the 3800 configuration, an additional profile carriage.
Who the MZK 3800 Concord suits
The MZK 3800 Concord suits door manufacturers and larger furniture producers running the saw as a full-shift production machine on long, heavy panels. The extra 1.5 kW of motor power matters when cutting thick solid stock or dense faced board hour after hour, and the 900 kg frame is what keeps a 3800 mm carriage true under continuous load. A workshop cutting a few sheets a day will not recover the difference over an MZK 3800 Diamond.
MZK 3800 Concord against the Diamond models and the 3200 Concord
Compared with the MZK 3800 Diamond SX, the MZK 3800 Concord swaps PLC and servo positioning for a heavier 5.5 kW mechanical package with pneumatics and a digital fence. Compared with the MZK 3200 Concord, it is the same specification on a 3800 mm rather than 3200 mm carriage, 100 kg heavier at 900 kg, with an additional profile carriage listed.
What is included
The MZK 3800 Concord specification covers the 550 x 910 mm main table, 380 x 540 mm side and 785 x 970 mm rear extension tables, a 1200 mm rip fence, a 1950 mm crosscut fence with a 0-3000 mm stop range, the scoring unit and the pneumatic systems. Blades, a compressed air supply, extraction and the electrical connection are not included.
ძირითადი მახასიათებლები
- 3800 mm sliding table with 3800 mm of travel plus an additional profile carriage not listed on the MZK 3200 Concord
- 5.5 kW main saw motor, 1.5 kW more than any Diamond model, at 4750-5250 rpm
- 420 mm wide aluminium carriage
- Pneumatic chipboard hold-down and pneumatic dust cleaning system
- Cast-iron rip fence with digital position display
- Actuator motor-driven automatic 45-90 degree tilt and automatic vertical blade movement
- 0.75 kW scoring motor with Ø125 x 20 mm blade at 7250 rpm
- 80 mm cutting depth at 90 degrees, 65 mm at 45 degrees, on Ø250-Ø300 mm blades
- 900 kg machined frame with lubrication system
ტექნიკური მახასიათებლები
- Saw blade diameter (outer x inner, min-max)
- Ø250 x 30 mm – Ø300 x 30 mm
- Saw blade compatibility (general information)
- Compatible with 400 mm saw blade
- Max. cutting depth (90°)
- 80 mm
- Max. cutting depth (45°)
- 65 mm
- Saw blade speed
- 4750 – 5250 rpm
- Main saw motor power
- 5.5 kW
- Scoring blade diameter (outer x inner)
- Ø125 x 20 mm
- Scoring saw speed
- 7250 rpm
- Scoring saw motor power
- 0.75 kW
- Sound level
- 80 dB
- Main table size
- 550 x 910 mm
- Side extension table size
- 380 x 540 mm
- Rear extension table size
- 785 x 970 mm
- Rip fence length (on table)
- 1200 mm
- Sliding table length
- 3800 mm
- Sliding table travel
- 3800 mm
- Sliding table fence angle (right–left)
- 0–45° right and left
- Aluminium carriage width
- 420 mm
- Crosscut fence length
- 1950 mm
- Crosscut fence angle (right–left)
- ±45°
- Crosscut fence stop range
- 0 – 3000 mm
- Blade tilt and height adjustment
- Actuator motor-driven automatic 45–90° tilt and automatic vertical movement
- Rip fence
- Cast iron fence with digital display
- Pneumatic systems
- Pneumatic chip/panel pressing system and pneumatic dust cleaning system
- Lubrication
- Lubrication system
- Additional equipment
- Additional profile carriage
- Dust extraction port height from floor
- 845 mm
- Machine height
- 1400 mm
- Net weight
- 900 kg
უპირატესობები
- 5.5 kW motor and 900 kg frame handle continuous full-shift cutting of thick and dense material
- Pneumatic panel hold-down stops chipboard lifting or creeping mid-cut, which hand pressure cannot guarantee
- Digital cast-iron rip fence and actuator-driven tilt remove scale-reading errors on rip width and angle
გასათვალისწინებელი
- Requires a compressed air supply for the hold-down and dust cleaning systems, and no compressor or pressure spec is published
- Heaviest and most space-hungry machine in the range at 900 kg with 3800 mm of carriage travel
- Blade sizing is ambiguous in the supplier data - Ø250-Ø300 mm in the technical table but 400 mm in the feature list
