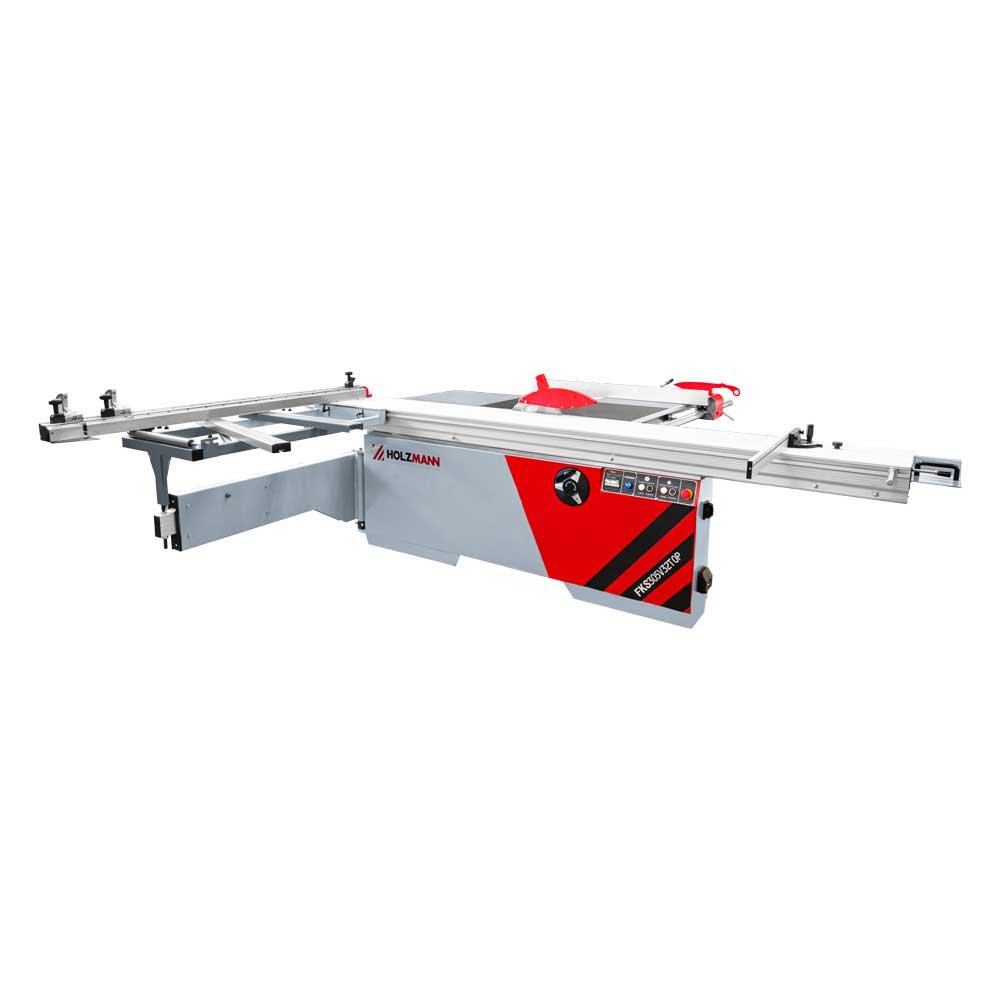

HOLZMANN FKS305V32TOP Panel Saw – 3.2 m Carriage, Manual Settings

FKS305V32TOP — HOLZMANN FKS305V32TOP Panel Saw – 3.2 m Carriage, Manual Settings 1 / 4

A 3200 x 360 mm carriage with a cross-cut fence opening from 1950 to 3300 mm lets the FKS305V32TOP trim a full-length sheet in one pass - twice the stroke of the FKS305V16TOP. Its 315 mm blade runs at 4000 or 6000 min-1 ahead of a 750 W scorer, on a 3250 x 3390 mm plan at 645 kg net.

სამუშაო სიგანე
1250 mm
ძრავის სიმძლავრე
5.5 kW
მაგიდის სიგრძე
3200 mm
ძაბვა
400V
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

Price on the FKS305V32TOP is moved by the 3.2 m carriage and 1950-3300 mm cross-cut fence that separate it from the 1.6 m FKS305V16TOP, by the 400 V installation, by freight and customs on 810 kg gross into Georgia, by the main and scoring blades that are not included, and by extraction, unloading and commissioning if you add them to the order.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

A 3.2 m sliding table with manual settings

The HOLZMANN FKS305V32TOP is a sliding-table panel saw with a 3200 x 360 mm aluminium carriage and a 5500 W main motor, sized for joineries that cut full sheets but prefer to set the machine by hand rather than through a display. The main blade accepts diameters from 250 to 315 mm on a 30 mm bore and runs at 4000 or 6000 rpm, and a separate 750 W scoring motor drives a Ø120 x 20 x 3.2-4.2/2.2 mm scoring blade at 8000 rpm, so the underside of a coated panel is cut clean before the main blade reaches it. Both the scorer height and its lateral position are adjusted manually on the FKS305V32TOP.

Tables, fences and rip capacity

The FKS305V32TOP is built on a 935 x 600 mm cast iron work table with a 900 x 500 mm table widening and a 600 x 520 mm table extension in solid steel construction, all working at 890 mm height. A 1220 x 530 mm outrigger table and a cross-cut fence adjustable between 1950 and 3300 mm carry long panels through the cut, and maximum rip width at the parallel fence is 1250 mm – enough for the width of a standard sheet.

How the FKS305V32TOP differs from its neighbours

The FKS305V32TOP sits between two machines. Against the FKS305V16TOP it doubles the carriage from 1.6 m to 3.2 m and extends the cross-cut fence from 1200-2280 mm to 1950-3300 mm, at 645 kg instead of 490 kg. Against the FKS400V32TOP it keeps the same 3.2 m stroke but uses a smaller 315 mm blade, so cutting height is lower, blade height stays manual instead of electric, and the FKS305V32TOP occupies 3250 x 3390 x 870 mm rather than a 4.7 m footprint – and weighs some 285 kg less.

Working environment

The FKS305V32TOP runs on 400 V / 50 Hz three-phase power, declares 90 dB(A) sound power and 88.2 dB(A) sound pressure, and carries a single 100 mm extraction port that requires a separately supplied dust collector. Gross shipping weight of the FKS305V32TOP is 810 kg.

ძირითადი მახასიათებლები

  • 3200 x 360 mm carriage - twice the stroke of the 1600 mm table on the FKS305V16TOP, on the same 315 mm blade chassis
  • 1220 x 530 mm outrigger with a cross-cut fence extending 1950-3300 mm for full-length sheet trimming
  • Scoring blade specified as Ø120 x 20 x 3.2-4.2/2.2 mm so the scoring kerf can be shimmed to the main blade
  • Two main-spindle speeds, 4000 and 6000 min-1, from a 5500 W S1 motor with a separate 750 W scorer at 8000 min-1
  • Cast iron table 935 x 600 mm with 900 x 500 mm widening and 600 x 520 mm extension in solid steel
  • Blade height, scorer height and scorer side position all set by hand; tilt 0-45° read from an angle indicator
  • 645 kg net / 810 kg gross standing in a 3250 x 3390 mm plan - 155 kg heavier than the FKS305V16TOP
  • 1250 mm rip at the parallel fence, extraction through a single 100 mm port

ტექნიკური მახასიათებლები

Motor power S1
5500 W (scoring unit 750 W)
Voltage
400 V / 50 Hz
Table height
890 mm
Sliding table
3200 x 360 mm
Outrigger table
1220 x 530 mm
Total dimensions
3250 x 3390 x 870 mm
Max. cutting width at parallel fence
1250 mm
Saw blade
250-315 mm (30 mm bore)
Saw blade speed
(I) 4000 / (II) 6000 min-1
Saw blade swivel
0-45°
Scoring saw blade
Ø120 x 20 x 3.2-4.2/2.2 mm
Scoring unit motor power
750 W
Scoring unit speed
8000 min-1
Dust collector port
100 mm
Sound power level
90 dB(A)
Sound pressure level
88.2 dB(A)
Net weight
645 kg
Gross weight
810 kg
EAN code
9120058379444

უპირატესობები

  • Full 3.2 m carriage and 1950-3300 mm cross-cut fence for sizing full-length sheets
  • Independent 750 W scoring motor at 8000 rpm delivers chip-free edges on melamine and veneer
  • At 645 kg and a 3250 x 3390 mm footprint, the FKS305V32TOP is far more compact than the 400 mm-blade format saws

გასათვალისწინებელი

  • Everything is manual on the FKS305V32TOP - blade height, scorer height and side position, and tilt read from an angle indicator
  • Maximum blade diameter is 315 mm, so the FKS305V32TOP cannot reach the 130 mm cutting height of the FKS400V32TOP
  • Three-phase 400V only, and no dust collector is included with the single 100 mm port

ხშირად დასმული კითხვები

Does the HOLZMANN FKS305V32TOP need a three-phase 400V supply?
Yes. The HOLZMANN FKS305V32TOP is built only for a 400 V / 50 Hz three-phase supply, because the main motor alone draws 5500 W and the scoring unit adds a further 750 W. There is no 230V single-phase version of the FKS305V32TOP. A workshop limited to single-phase power should look at the HOLZMANN TS315VF2600, which is offered in a 230V variant.
Should I choose the FKS305V32TOP or the FKS305V16TOP?
The FKS305V32TOP and the FKS305V16TOP use the same 315 mm blade capacity, the same 5500 W motor and the same 750 W scorer; the difference is stroke and size. The FKS305V32TOP has a 3200 mm carriage and a 1950-3300 mm cross-cut fence for sizing full-length sheets, and weighs 645 kg. The FKS305V16TOP has a 1600 mm carriage, a 1200-2280 mm fence and 490 kg, and fits a smaller shop.
What is the maximum rip width on the FKS305V32TOP?
Maximum cutting width at the parallel fence on the FKS305V32TOP is 1250 mm. That covers the width of a standard panel, so a full sheet can be ripped along its length on the FKS305V32TOP with the parallel fence, while the 3.2 m carriage and cross-cut fence handle the length.
What does the FKS305V32TOP not do?
The FKS305V32TOP does not adjust anything electrically: blade height, scorer height and scorer side position are all set by hand, and blade tilt is read off an angle indicator rather than a display. The FKS305V32TOP also does not take a 400 mm blade, so it cannot reach the 130 mm cutting height of the FKS400V32TOP, and it does not include a dust collector.
Why does the FKS305V32TOP have a scoring unit with its own motor?
The scoring unit on the FKS305V32TOP has a dedicated 750 W motor rather than a belt drive from the main spindle, which lets it run at 8000 rpm independently of the main blade's 4000 or 6000 rpm. That independent speed is what allows the Ø120 mm scorer to pre-cut melamine and veneer faces cleanly, and it means the FKS305V32TOP keeps scoring quality even when the main blade is slowed for hardwood.
How loud is the FKS305V32TOP and does it need extraction?
The FKS305V32TOP declares a sound power level of 90 dB(A) and a sound pressure level of 88.2 dB(A), so hearing protection is required. Extraction on the FKS305V32TOP goes through a single 100 mm port and a dust collector must be purchased separately; running the machine without extraction will load the cabinet with chip and degrade cut quality.
What makes one quotation for the FKS305V32TOP differ from another?
A quotation for the HOLZMANN FKS305V32TOP moves on the carriage and fence configuration - the 3200 x 360 mm sliding table and 1950-3300 mm cross-cut fence are the reason it costs more than the 1.6 m FKS305V16TOP - and then on freight and customs for 810 kg gross into Georgia, the 250-315 mm main blades and Ø120 x 20 x 3.2-4.2/2.2 mm scoring blades that are not in the delivery, the dust collector for its 100 mm port, and any installation or training added. Send us the sheet sizes you cut and we will quote the FKS305V32TOP against them.
What is the lead time on the FKS305V32TOP?
The FKS305V32TOP is built to order and its current lead time is confirmed at quotation. Because the FKS305V32TOP leaves the factory as an 810 kg gross palletised machine, freight into Georgia and customs clearance are scheduled together with the build, and the confirmed dates are written into the quotation rather than estimated in advance.
What does installation of the FKS305V32TOP require from the workshop?
Installation of the FKS305V32TOP requires a level floor rated for 645 kg, a 3250 x 3390 mm clear plan with walking room at both ends of the 3.2 m carriage, lifting gear for unloading, and a 400 V / 50 Hz three-phase circuit sized for the 5500 W main motor plus the 750 W scorer. On site the carriage of the FKS305V32TOP is levelled to the cast iron table, the tilt indicator is checked against a square, and the 100 mm extraction port is ducted. We can include installation of the FKS305V32TOP in the quotation.
What tooling and extraction should be budgeted with the FKS305V32TOP?
Budget separately from the FKS305V32TOP for main saw blades in the 250-315 mm range on a 30 mm bore, Ø120 x 20 x 3.2-4.2/2.2 mm scoring blades in the kerf widths you cut, a dust collector matched to the single 100 mm port with ducting, and hearing protection for a machine declaring 90 dB(A) sound power and 88.2 dB(A) sound pressure. HOLZMANN lists no blades or extraction in the FKS305V32TOP delivery, so these belong on the same quotation.
