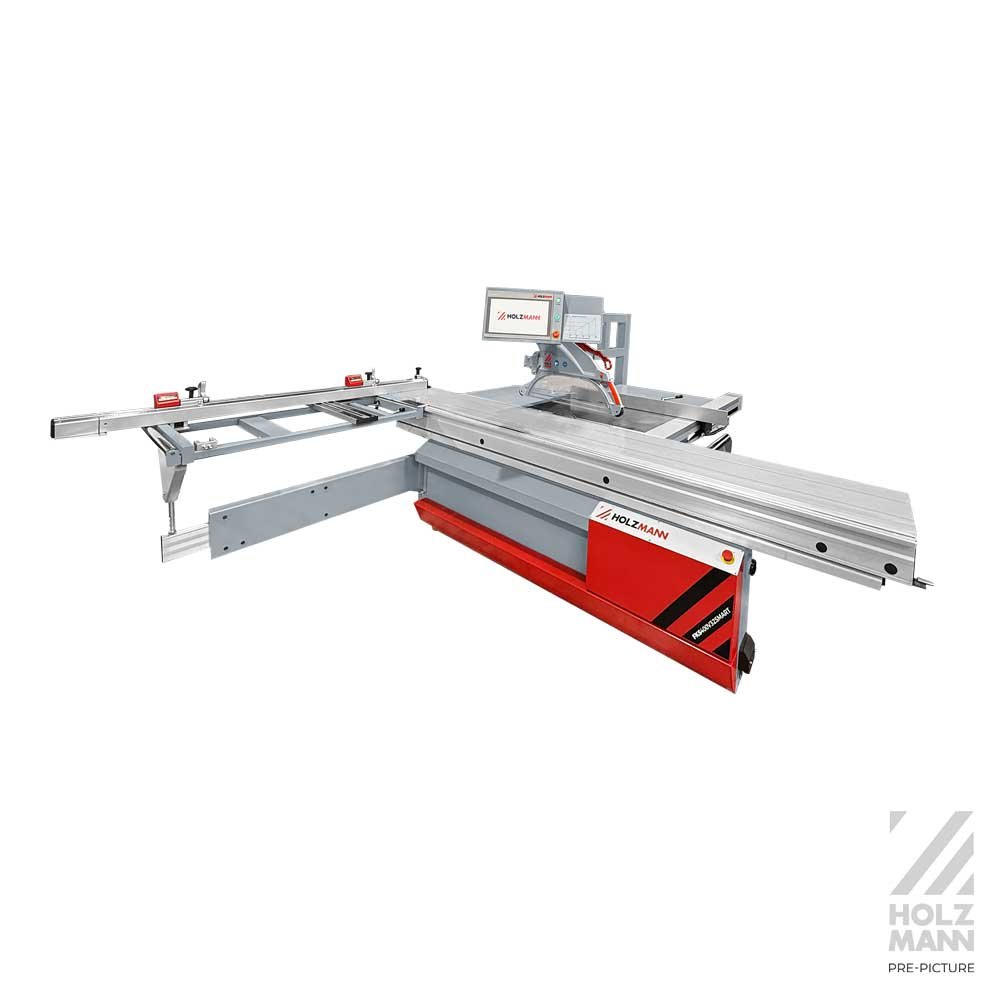

HOLZMANN FKS400V32SMART Panel Saw with Electronic Rip Fence
FKS400V32SMART
The HOLZMANN FKS400V32SMART is a 400 V panel saw with a 3200 x 430 mm sliding table, blades up to Ø400 mm for 130 mm cutting height, and rip fence, blade height and 0-45° tilt all positioned electronically from a display. The FKS400V32SMART weighs 870 kg net and is supplied on quotation.
The price of an FKS400V32SMART is moved by the blade and scoring tooling package specified across the Ø250-400 mm range, extraction equipment and ducting, freight and unloading of a 1004 kg gross machine into Georgia, the three-phase electrical installation for a 7520 W motor package, and whether commissioning, calibration and operator training are included.
ფასის მოთხოვნაA production panel saw with electronic setting
The FKS400V32SMART is the model to quote when set-up time, not raw capacity, is the constraint on output. On the FKS400V32SMART the rip fence is positioned by an electric motor from a numeric display input, and saw blade height and 0-45° tilt are also set electrically from the display, so repeat cutting lists are dialled in rather than tapped against a scale. The FKS400V32SMART rips up to 1300 mm at the parallel fence.
Blade capacity and scoring
Blade capacity is where the FKS400V32SMART separates itself from the 315 mm class. The FKS400V32SMART accepts blades from Ø250 to Ø400 mm on a 30 mm bore, running at 4150 or 5150 rpm, and reaches 130 mm cutting height with a Ø400 mm blade — enough for stacked panels, thick worktop material and solid timber sections. Scoring on the FKS400V32SMART is handled by a dedicated 1100 W motor turning a Ø120 x 20 x 3.2-4.2/2.2 mm blade at 9000 rpm, giving clean undersides on faced board.
Table, footprint and services
Site the FKS400V32SMART as permanent plant. The FKS400V32SMART works at 830 mm table height on a 720 x 920 mm cast iron top with a 900 x 680 mm table extension and a 640 x 680 mm length extension in steel, carries a 3200 x 430 mm sliding table and a 1200 x 600 mm outrigger, and occupies roughly 3400 x 3700 mm with a 1800 mm height clearance. The FKS400V32SMART weighs 870 kg net, needs 400 V three-phase for its 7520 W total motor package (5500 W main plus 1100 W scoring), and extracts through one Ø100 mm and one Ø80 mm port.
Where the FKS400V32SMART sits against the FKS305V32ECO
Choose the FKS400V32SMART for batch furniture and joinery production; choose the FKS305V32ECO for the same sheet sizes at lower cost. The FKS400V32SMART adds Ø400 mm blade capacity, 130 mm depth of cut and display-driven fence and blade positioning that the manual FKS305V32ECO does not offer.
ძირითადი მახასიათებლები
- Rip fence positioned by electric motor from a numeric display input, up to 1300 mm cutting width
- Saw blades from Ø250 to Ø400 mm on a 30 mm bore at 4150 or 5150 rpm
- 130 mm maximum cutting height with a Ø400 mm saw blade
- Electrically tilting saw blade 0-45° and blade height adjustment, both set from the display
- Scoring unit with its own 1100 W motor at 9000 rpm and a Ø120 x 20 x 3.2-4.2/2.2 mm blade
- 3200 x 430 mm aluminium sliding table with 1200 x 600 mm outrigger table
- Cast iron work table 720 x 920 mm with 900 x 680 mm extension and 640 x 680 mm length extension in steel
- 7520 W total motor package (5500 W main, 1100 W scoring) on 400 V three-phase; 870 kg net
ტექნიკური მახასიათებლები
- Motor power (S1), total
- 7520 W (5500 W main / 1100 W scoring)
- Voltage
- 400 V / 50 Hz
- Table height
- 830 mm
- Sliding table
- 3200 x 430 mm
- Outrigger table
- 1200 x 600 mm
- Dust extraction port
- 1 x Ø100 mm / 1 x Ø80 mm
- Total dimensions
- 3400 x 3700 x 1800 mm
- Max. cutting width at parallel fence
- 1300 mm
- Max. cutting height
- 130 mm (with Ø400 mm saw blade)
- Saw blade
- Ø250-400 mm (30 mm bore)
- Saw blade speed
- 4150 / 5150 rpm
- Scoring saw blade
- Ø120 x 20 x 3.2-4.2/2.2 mm
- Scoring unit motor power
- 1100 W
- Scoring unit speed
- 9000 rpm
- Saw blade swivel
- 0-45°
- Sound power level
- 90 dB(A)
- Sound pressure level
- 88.2 dB(A)
- Gross weight
- 1004 kg
- Net weight
- 870 kg
- Packaging width
- 1300 mm
- Packaging length
- 2200 mm
- Packaging height
- 1300 mm
- EAN code
- 9120132141684
უპირატესობები
- Electronic positioning of rip fence, blade height and tilt cuts set-up time on repeat cutting lists, which is where production shops lose hours
- Ø400 mm blade capacity and 130 mm cutting height take the FKS400V32SMART beyond board into thick worktop and solid timber sections
- An 1100 W scoring motor at 9000 rpm is a genuinely powerful scorer, not a token unit, so faced board runs cleanly at production speed
გასათვალისწინებელი
- At 870 kg net the FKS400V32SMART needs a forklift or crane to unload and a floor that will carry it; this is not a machine to move once sited
- 400 V three-phase only, and the 7520 W total motor package needs a supply and protection sized accordingly
- Electronic positioning adds a control system and drives that a purely mechanical panel saw does not have, so service and spares planning matters more over the machine's life
