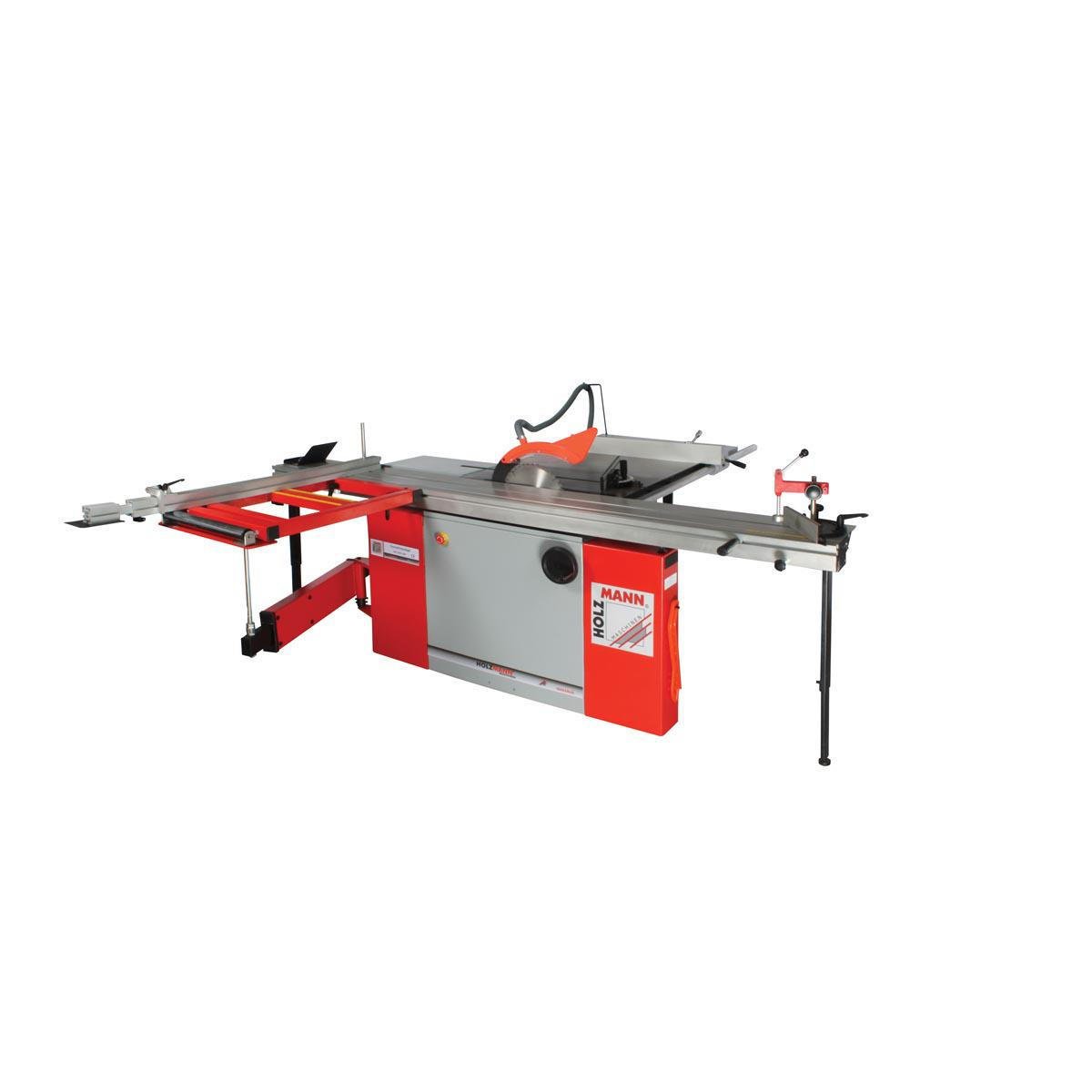

HOLZMANN TS315VF2600 Panel Saw – 2.6 m Sliding Table with Scoring Unit

TS315VF2600 — HOLZMANN TS315VF2600 Panel Saw – 2.6 m Sliding Table with Scoring Unit 1 / 2

Ordered as a 230 V single-phase or a 400 V three-phase machine, the TS315VF2600 is the one sliding-table saw here that does not force a three-phase installation. Its 315 mm blade cuts 100 mm at 90° and 75 mm at 45°, the 2600 mm carriage trims to 2600 mm, and a two-piece 100 mm scorer turns at 8500 min-1.

სამუშაო სიგანე
1200 mm
ძრავის სიმძლავრე
5.1 kW
მაგიდის სიგრძე
2600 mm
ძაბვა
230V
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

What moves the TS315VF2600 price is which voltage variant you order, the scoring unit and 2600 mm carriage package, freight and customs on 370 kg gross into Georgia, the 315 mm main blades and 100 mm scoring blades you add beyond the included two-piece scorer, and whether a dust collector for the 100 mm port, delivery and commissioning are quoted with the machine.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

Sliding-table panel saw for daily sheet cutting

The HOLZMANN TS315VF2600 is a sliding-table panel saw that breaks sheet material down to finished size in one operation. A 2600 x 270 mm sliding table carries the panel past a 315 mm main blade turning at 4500 rpm, which cuts 100 mm deep at 90 degrees and 75 mm at 45 degrees, while a separate 100 mm scoring blade at 8500 rpm scores the underside first so melamine and veneered chipboard leave the TS315VF2600 without chipped edges. Maximum trimming length on the TS315VF2600 is 2600 mm and maximum rip width at the parallel fence is 1200 mm.

Which workshop the TS315VF2600 fits

The TS315VF2600 fits a furniture workshop or joinery that cuts panels every day but cannot give a 3.2 m format saw the floor space it demands. The cast iron main table measures 800 x 820 mm at 850 mm working height and is extended to the rear and to the left with support-leg-mounted extensions of 500 x 310 mm and 800 x 440 mm. A 760 x 540 mm outrigger table with a support roller takes the weight of the panel while the operator positions it, and a strengthened machine body beneath the sliding table keeps the carriage running true. Net weight of the TS315VF2600 is 340 kg.

How the TS315VF2600 compares with the HOLZMANN FKS panel saws

The TS315VF2600 is the compact, dual-voltage entry to HOLZMANN sliding-table sawing. It is the only panel saw in this group offered as a 230V single-phase machine as well as a 400V three-phase one, and at 340 kg it is well under the 490 kg of the FKS305V16TOP. In exchange, the TS315VF2600 takes a fixed 315 mm blade rather than the 250-315 mm or 250-400 mm range of the FKS models, and its blade and scorer are set by hand.

Delivery and extraction

The TS315VF2600 is delivered with a high-quality two-piece scoring saw blade, a bar-guided rip fence with quick clamp, and a pull-out cross-cut fence with workpiece end stop. A single 100 mm extraction port is fitted; a dust collector is not part of the delivery of the TS315VF2600 and must be ordered separately.

ძირითადი მახასიათებლები

  • Ordered as TS315VF2600_230V single-phase or TS315VF2600_400V three-phase - no other sliding-table saw in this group offers 230 V
  • Published cutting depth of 100 mm at 90° and 75 mm at 45°, figures the FKS panel saws do not state at all
  • 2600 x 270 mm carriage giving a maximum trimming length of 2600 mm
  • Two-piece 100 mm scoring blade at 8500 min-1, described by HOLZMANN as included
  • 5100 W S6 motor rated 3800 W in continuous S1 duty, with the 315 mm blade at 4500 min-1
  • Cast iron table 800 x 820 mm at 850 mm working height, with 500 x 310 mm and 800 x 440 mm extensions on a support leg
  • 760 x 540 mm outrigger table with a support roller, plus a bar-guided rip fence with quick clamp to 1200 mm
  • 340 kg net / 370 kg gross - the lightest scoring saw in this comparison by 150 kg

ტექნიკური მახასიათებლები

Motor power S6
5100 W
Motor power S1
3800 W
Voltage
230V (TS315VF2600_230V) / 400V (TS315VF2600_400V)
Table size
800 x 820 mm
Table extension
500 x 310 mm / 800 x 440 mm
Table height
850 mm
Sliding table
2600 x 270 mm
Outrigger table
760 x 540 mm
Max. cutting height at 90°
100 mm
Max. cutting height at 45°
75 mm
Max. trimming length
2600 mm
Max. cutting width at parallel fence
1200 mm
Saw blade
315 mm
Saw blade speed
4500 min-1
Saw blade swivel
0°-45°
Scoring saw blade
100 mm
Scoring unit speed
8500 min-1
Dust collector port
100 mm
Net weight
340 kg
Gross weight
370 kg

უპირატესობები

  • Dual voltage: the TS315VF2600 is the only panel saw in this HOLZMANN group available on 230V as well as 400V
  • Full scoring unit with a two-piece 100 mm blade at 8500 rpm is standard, not an option
  • At 340 kg and 850 mm table height, the TS315VF2600 fits workshops that cannot host a 3.2 m format saw

გასათვალისწინებელი

  • Rip capacity at the parallel fence is 1200 mm, so a 1250 mm wide panel cannot be ripped in one pass on the TS315VF2600
  • All settings on the TS315VF2600 are manual - there is no digital rip fence positioning or electric blade height adjustment
  • No dust collector is included; the single 100 mm port needs a separately purchased extraction unit

ხშირად დასმული კითხვები

Is the HOLZMANN TS315VF2600 available for a 230V single-phase supply?
Yes. The HOLZMANN TS315VF2600 is supplied in two variants: TS315VF2600_230V for a single-phase 230V supply and TS315VF2600_400V for a three-phase 400V supply. A workshop without three-phase power can run the 230V version of the TS315VF2600; where 400V is already installed, the three-phase variant is the usual choice for continuous production.
What does the scoring unit on the TS315VF2600 do?
The scoring unit of the TS315VF2600 drives a two-piece 100 mm blade at 8500 rpm just ahead of the main blade. It cuts the underside fibres of the panel before the 315 mm main blade passes through, which is what prevents breakout on melamine-faced chipboard, MDF and veneered panel. The two-piece scoring blade can be shimmed to match the kerf of the main blade.
What can the TS315VF2600 not do?
The TS315VF2600 does not rip wider than 1200 mm at the parallel fence - the spec table figure, not the 1260 mm quoted in the HOLZMANN marketing highlights - and does not cut deeper than 100 mm at 90° or 75 mm at 45°. It has no powered or digital positioning of the rip fence, blade height or tilt: every setting on the TS315VF2600 is made by hand. It is also not a solid-timber crosscut or moulding machine, and no dust collector is included with it.
How large a panel can the TS315VF2600 handle?
The TS315VF2600 has a 2600 x 270 mm sliding table and a maximum trimming length of 2600 mm, so a standard 2500 mm long sheet can be trimmed in a single pass. Wider crosscuts are supported by the 760 x 540 mm outrigger table with its support roller, and the rear and left table extensions of the TS315VF2600 catch the offcut.
Does the TS315VF2600 need dust extraction?
Yes. The TS315VF2600 has one 100 mm extraction port and must be connected to a dust collector, which is not included in the delivery. For continuous panel cutting, a collector sized for a 100 mm hose should be selected so that chips are cleared from the blade guard and the cabinet of the TS315VF2600.
How much space and what floor does the TS315VF2600 need?
The TS315VF2600 weighs 340 kg net and works at 850 mm table height with a 2600 mm carriage stroke, so the installation needs a level concrete floor plus clear travel in front of and behind the sliding table. Lifting equipment or a small forklift is required to unload and position the TS315VF2600.
What does a HOLZMANN TS315VF2600 quotation depend on?
A quotation for the HOLZMANN TS315VF2600 depends first on the variant - TS315VF2600_230V or TS315VF2600_400V - then on freight and Georgian customs for a 370 kg gross machine, on the 315 mm main saw blades you specify beyond the included two-piece 100 mm scoring blade, on a dust collector and ducting for the 100 mm port, and on whether delivery, positioning and commissioning are included. The TS315VF2600 is priced on enquiry rather than listed; tell us which voltage your workshop has and we will quote it.
How long does it take to get a TS315VF2600?
The TS315VF2600 is built to order and the current lead time is confirmed at quotation. The 230 V and 400 V variants of the TS315VF2600 are ordered separately and can move on different schedules, so the confirmed date is given per variant on the quote rather than as a general figure, and it includes freight and customs clearance into Georgia.
What does installing the TS315VF2600 involve?
Installing the TS315VF2600 means a level concrete floor for 340 kg, clear travel front and back for the 2600 mm carriage stroke, room for the 760 x 540 mm outrigger to swing, and lifting gear to place the machine at its 850 mm working height. A qualified electrician connects the ordered variant to a 230 V single-phase or 400 V three-phase supply for the 5100 W S6 motor, then the carriage is levelled to the cast iron table and the 100 mm extraction port is ducted. Installation of the TS315VF2600 can be quoted with the machine.
What extras should be budgeted with the TS315VF2600?
With the TS315VF2600, budget for 315 mm main saw blades in the tooth counts your materials need, replacement two-piece 100 mm scoring blades once the supplied set wears, a dust collector and ducting sized for the single 100 mm port, and roller support if you handle long sheets alone. HOLZMANN includes the two-piece scoring blade with the TS315VF2600 but no extraction unit, so the collector is the largest separate line on the quotation.
